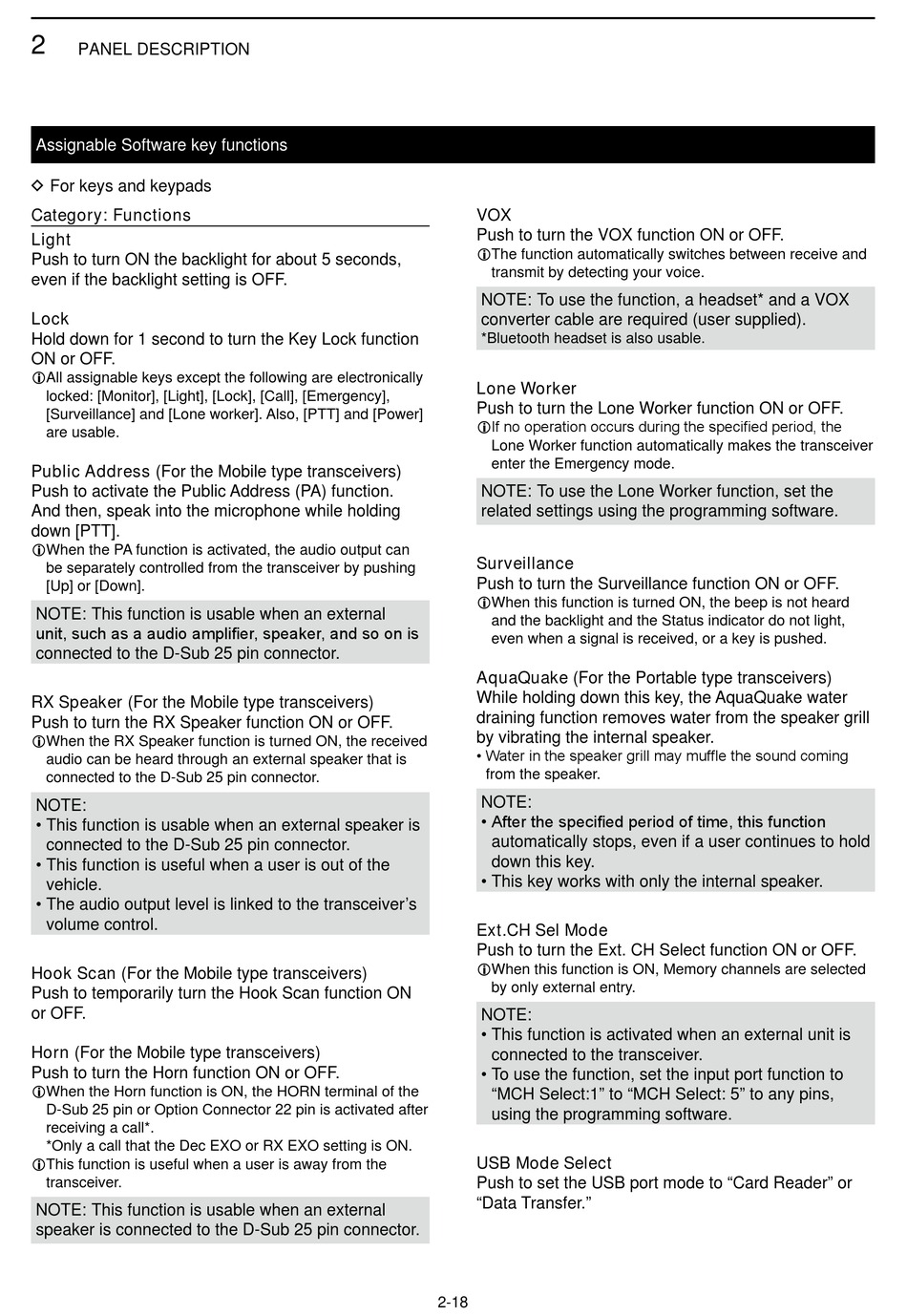

Icom IC-F7010 Series Operating Manual page 26

2
PANEL DESCRIPTION
Assignable Software key functions
D For keys and keypads
Category: Functions
Light
Push to turn ON the backlight for about 5 seconds,
even if the backlight setting is OFF.
Lock
Hold down for 1 second to turn the Key Lock function
ON or OFF.
L All assignable keys except the following are electronically
locked: [Monitor], [Light], [Lock], [Call], [Emergency],
[Surveillance] and [Lone worker]. Also, [PTT] and [Power]
are usable.
Public Address (For the Mobile type transceivers)
Push to activate the Public Address (PA) function.
And then, speak into the microphone while holding
down [PTT].
L When the PA function is activated, the audio output can
be separately controlled from the transceiver by pushing
[Up] or [Down].
NOTE: This function is usable when an external
unit, such as a audio amplifier, speaker, and so on is
connected to the D-Sub 25 pin connector.
RX Speaker (For the Mobile type transceivers)
Push to turn the RX Speaker function ON or OFF.
L When the RX Speaker function is turned ON, the received
audio can be heard through an external speaker that is
connected to the D-Sub 25 pin connector.
NOTE:
• This function is usable when an external speaker is
connected to the D-Sub 25 pin connector.
• This function is useful when a user is out of the
vehicle.
• The audio output level is linked to the transceiver's
volume control.
Hook Scan (For the Mobile type transceivers)
Push to temporarily turn the Hook Scan function ON
or OFF.
Horn (For the Mobile type transceivers)
Push to turn the Horn function ON or OFF.
L When the Horn function is ON, the HORN terminal of the
D-Sub 25 pin or Option Connector 22 pin is activated after
receiving a call*.
* Only a call that the Dec EXO or RX EXO setting is ON.
L This function is useful when a user is away from the
transceiver.
NOTE: This function is usable when an external
speaker is connected to the D-Sub 25 pin connector.
VOX
Push to turn the VOX function ON or OFF.
L The function automatically switches between receive and
transmit by detecting your voice.
NOTE: To use the function, a headset* and a VOX
converter cable are required (user supplied).
*Bluetooth headset is also usable.
Lone Worker
Push to turn the Lone Worker function ON or OFF.
L I f no operation occurs during the specified period, the
Lone Worker function automatically makes the transceiver
enter the Emergency mode.
NOTE: To use the Lone Worker function, set the
related settings using the programming software.
Surveillance
Push to turn the Surveillance function ON or OFF.
L When this function is turned ON, the beep is not heard
and the backlight and the Status indicator do not light,
even when a signal is received, or a key is pushed.
AquaQuake (For the Portable type transceivers)
While holding down this key, the AquaQuake water
draining function removes water from the speaker grill
by vibrating the internal speaker.
• W ater in the speaker grill may muffle the sound coming
from the speaker.
NOTE:
• A fter the specified period of time, this function
automatically stops, even if a user continues to hold
down this key.
• This key works with only the internal speaker.
Ext.CH Sel Mode
Push to turn the Ext. CH Select function ON or OFF.
L When this function is ON, Memory channels are selected
by only external entry.
NOTE:
• This function is activated when an external unit is
connected to the transceiver.
• To use the function, set the input port function to
"MCH Select:1" to "MCH Select: 5" to any pins,
using the programming software.
USB Mode Select
Push to set the USB port mode to "Card Reader" or
"Data Transfer."
2-18
