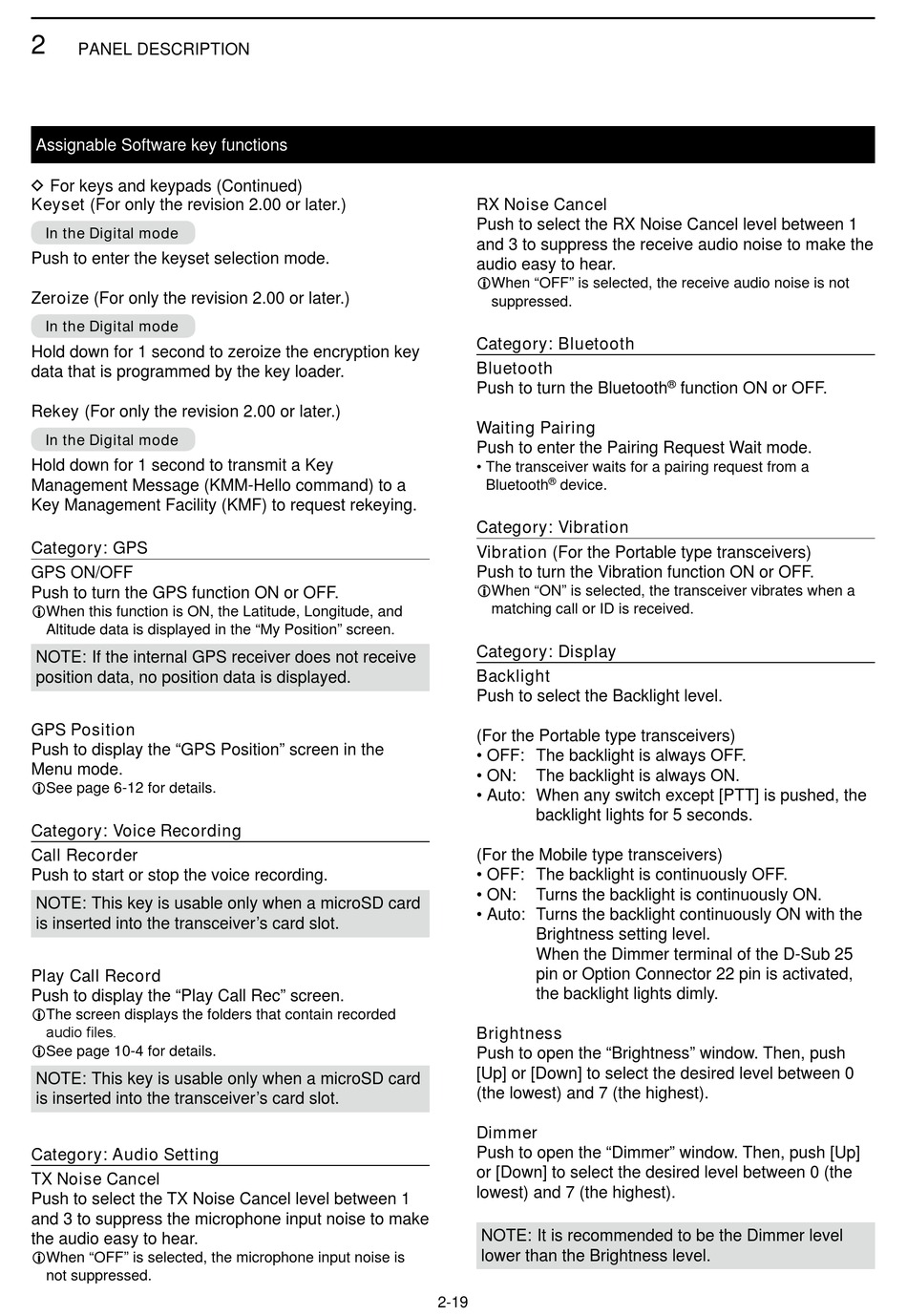

PANEL DESCRIPTION
Assignable Software key functions
D For keys and keypads (Continued)
Keyset (For only the revision 2.00 or later.)
In the Digital mode
Push to enter the keyset selection mode.
Zeroize (For only the revision 2.00 or later.)
In the Digital mode
Hold down for 1 second to zeroize the encryption key
data that is programmed by the key loader.
Rekey (For only the revision 2.00 or later.)
In the Digital mode
Hold down for 1 second to transmit a Key
Management Message (KMM-Hello command) to a
Key Management Facility (KMF) to request rekeying.
Category: GPS
GPS ON/OFF
Push to turn the GPS function ON or OFF.
L When this function is ON, the Latitude, Longitude, and
Altitude data is displayed in the "My Position" screen.
NOTE: If the internal GPS receiver does not receive
position data, no position data is displayed.
GPS Position
Push to display the "GPS Position" screen in the
Menu mode.
L See page 6-12 for details.
Category: Voice Recording
Call Recorder
Push to start or stop the voice recording.
NOTE: This key is usable only when a microSD card
is inserted into the transceiver's card slot.
Play Call Record
Push to display the "Play Call Rec" screen.
L The screen displays the folders that contain recorded
audio files.
L See page 10-4 for details.
NOTE: This key is usable only when a microSD card
is inserted into the transceiver's card slot.
Category: Audio Setting
TX Noise Cancel
Push to select the TX Noise Cancel level between 1
and 3 to suppress the microphone input noise to make
the audio easy to hear.
L When "OFF" is selected, the microphone input noise is
not suppressed.
RX Noise Cancel
Push to select the RX Noise Cancel level between 1
and 3 to suppress the receive audio noise to make the
audio easy to hear.
L When "OFF" is selected, the receive audio noise is not
suppressed.
Category: Bluetooth
Bluetooth
Push to turn the Bluetooth
Waiting Pairing
Push to enter the Pairing Request Wait mode.
• The transceiver waits for a pairing request from a
Bluetooth ® device.
Category: Vibration
Vibration (For the Portable type transceivers)
Push to turn the Vibration function ON or OFF.
L When "ON" is selected, the transceiver vibrates when a
matching call or ID is received.
Category: Display
Backlight
Push to select the Backlight level.
(For the Portable type transceivers)
• OFF: The backlight is always OFF.
• ON: The backlight is always ON.
• Auto: When any switch except [PTT] is pushed, the
backlight lights for 5 seconds.
(For the Mobile type transceivers)
• OFF: The backlight is continuously OFF.
• ON: Turns the backlight is continuously ON.
• Auto: Turns the backlight continuously ON with the
Brightness setting level.
When the Dimmer terminal of the D-Sub 25
pin or Option Connector 22 pin is activated,
the backlight lights dimly.
Brightness
Push to open the "Brightness" window. Then, push
[Up] or [Down] to select the desired level between 0
(the lowest) and 7 (the highest).
Dimmer
Push to open the "Dimmer" window. Then, push [Up]
or [Down] to select the desired level between 0 (the
lowest) and 7 (the highest).
NOTE: It is recommended to be the Dimmer level
lower than the Brightness level.
