PANEL DESCRIPTION

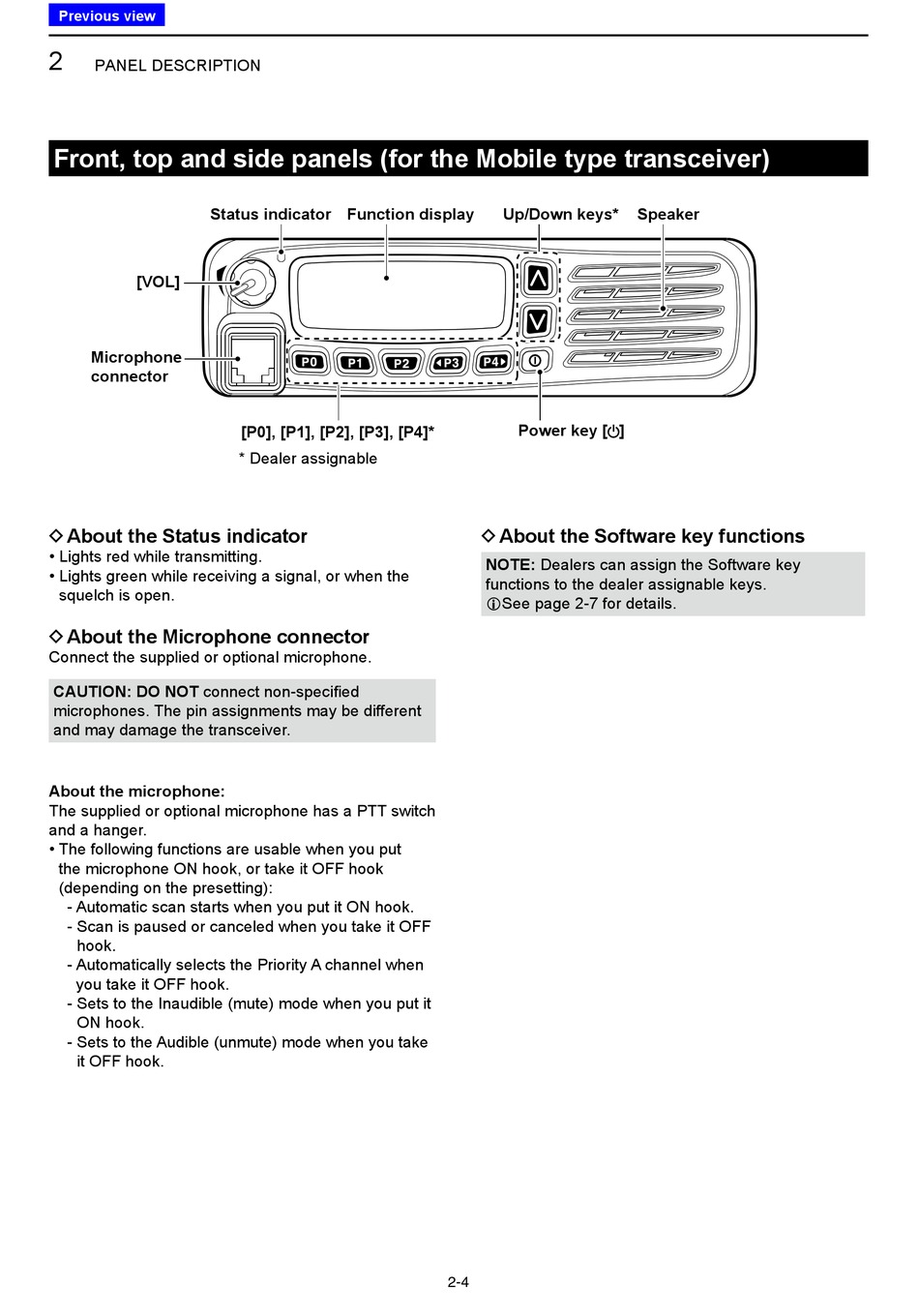

Front, top and side panels (for the Mobile type transceiver)

Status indicator
[VOL]
Microphone
connector

D About the Status indicator

• Lights red while transmitting.
• Lights green while receiving a signal, or when the
squelch is open.

D About the Microphone connector

Connect the supplied or optional microphone.
CAUTION: DO NOTconnectnon-specified
microphones. The pin assignments may be different
and may damage the transceiver.
About the microphone:
The supplied or optional microphone has a PTT switch
and a hanger.
• The following functions are usable when you put
the microphone ON hook, or take it OFF hook
(depending on the presetting):
- Automatic scan starts when you put it ON hook.
- Scan is paused or canceled when you take it OFF
hook.
- Automatically selects the Priority A channel when
you take it OFF hook.
- Sets to the Inaudible (mute) mode when you put it
ON hook.
- Sets to the Audible (unmute) mode when you take
it OFF hook.
Function display
[P0], [P1], [P2], [P3], [P4]*
* Dealer assignable
Up/Down keys*
Power key [ ]

D About the Software key functions

NOTE: Dealers can assign the Software key
functions to the dealer assignable keys.
LSee page 2-7 for details.
2-4
Speaker
