6
MENU SCREEN

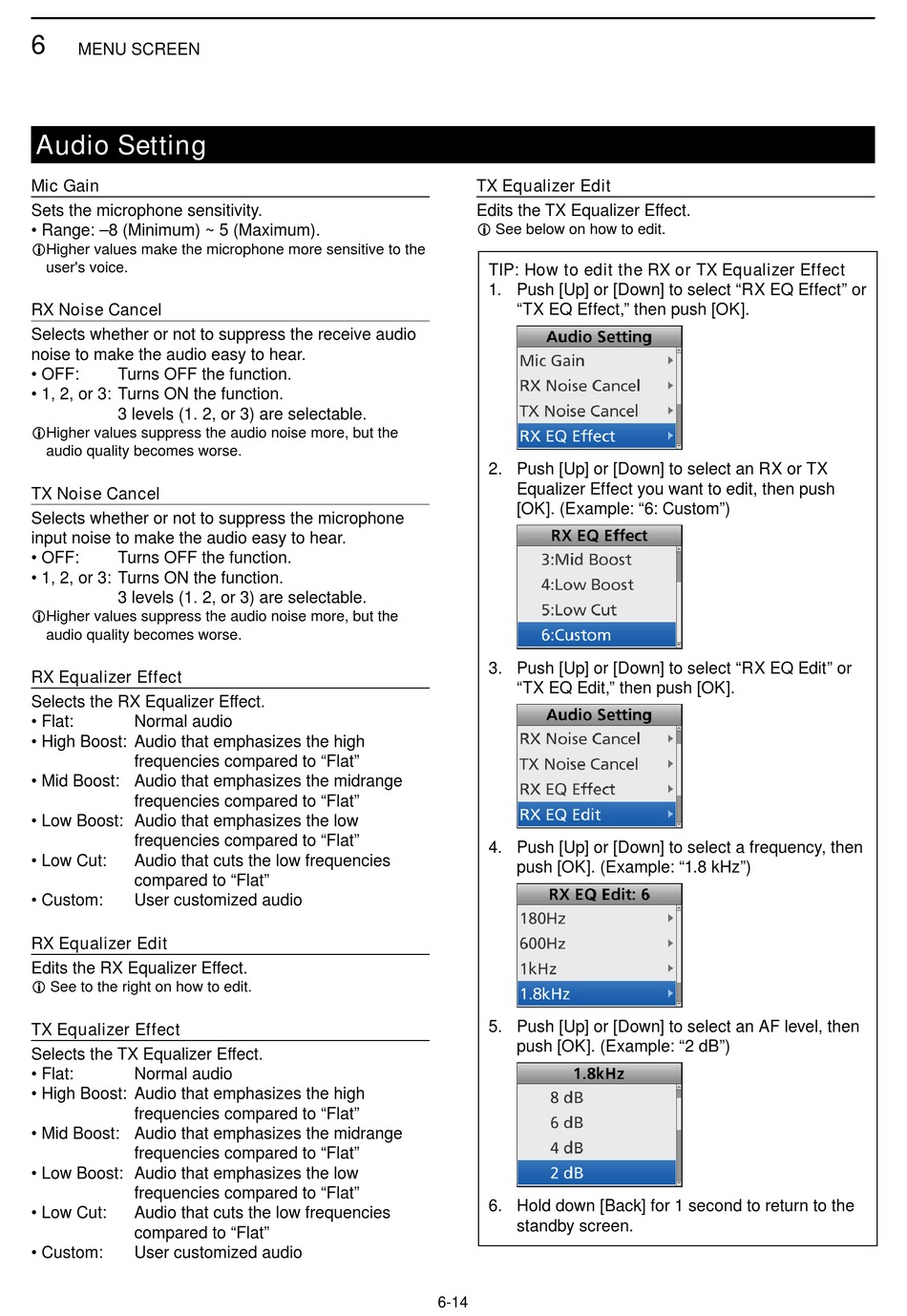

Audio Setting

Mic Gain
Sets the microphone sensitivity.
• Range: –8 (Minimum) ~ 5 (Maximum).
L Higher values make the microphone more sensitive to the
user's voice.
RX Noise Cancel
Selects whether or not to suppress the receive audio
noise to make the audio easy to hear.
• OFF: Turns OFF the function.
• 1, 2, or 3: Turns ON the function.
3 levels (1. 2, or 3) are selectable.
L Higher values suppress the audio noise more, but the
audio quality becomes worse.
TX Noise Cancel
Selects whether or not to suppress the microphone
input noise to make the audio easy to hear.
• OFF: Turns OFF the function.
• 1, 2, or 3: Turns ON the function.
3 levels (1. 2, or 3) are selectable.
L Higher values suppress the audio noise more, but the
audio quality becomes worse.
RX Equalizer Effect
Selects the RX Equalizer Effect.
• Flat: Normal audio
• High Boost: Audio that emphasizes the high
frequencies compared to "Flat"
• Mid Boost: Audio that emphasizes the midrange
frequencies compared to "Flat"
• Low Boost: Audio that emphasizes the low
frequencies compared to "Flat"
• Low Cut: Audio that cuts the low frequencies
compared to "Flat"
• Custom: User customized audio
RX Equalizer Edit
Edits the RX Equalizer Effect.
L See to the right on how to edit.
TX Equalizer Effect
Selects the TX Equalizer Effect.
• Flat: Normal audio
• High Boost: Audio that emphasizes the high
frequencies compared to "Flat"
• Mid Boost: Audio that emphasizes the midrange
frequencies compared to "Flat"
• Low Boost: Audio that emphasizes the low
frequencies compared to "Flat"
• Low Cut: Audio that cuts the low frequencies
compared to "Flat"
• Custom: User customized audio
TX Equalizer Edit
Edits the TX Equalizer Effect.
L See below on how to edit.
TIP: How to edit the RX or TX Equalizer Effect
1. Push [Up] or [Down] to select "RX EQ Effect" or
"TX EQ Effect," then push [OK].
2. Push [Up] or [Down] to select an RX or TX
Equalizer Effect you want to edit, then push
[OK]. (Example: "6: Custom")
3. Push [Up] or [Down] to select "RX EQ Edit" or
"TX EQ Edit," then push [OK].
4. Push [Up] or [Down] to select a frequency, then
push [OK]. (Example: "1.8 kHz")
5. Push [Up] or [Down] to select an AF level, then
push [OK]. (Example: "2 dB")
6. Hold down [Back] for 1 second to return to the
standby screen.
6-14
