Setting The Squelch Level - Icom IC-F7010 Series Operating Manual

12
USER SETTINGS

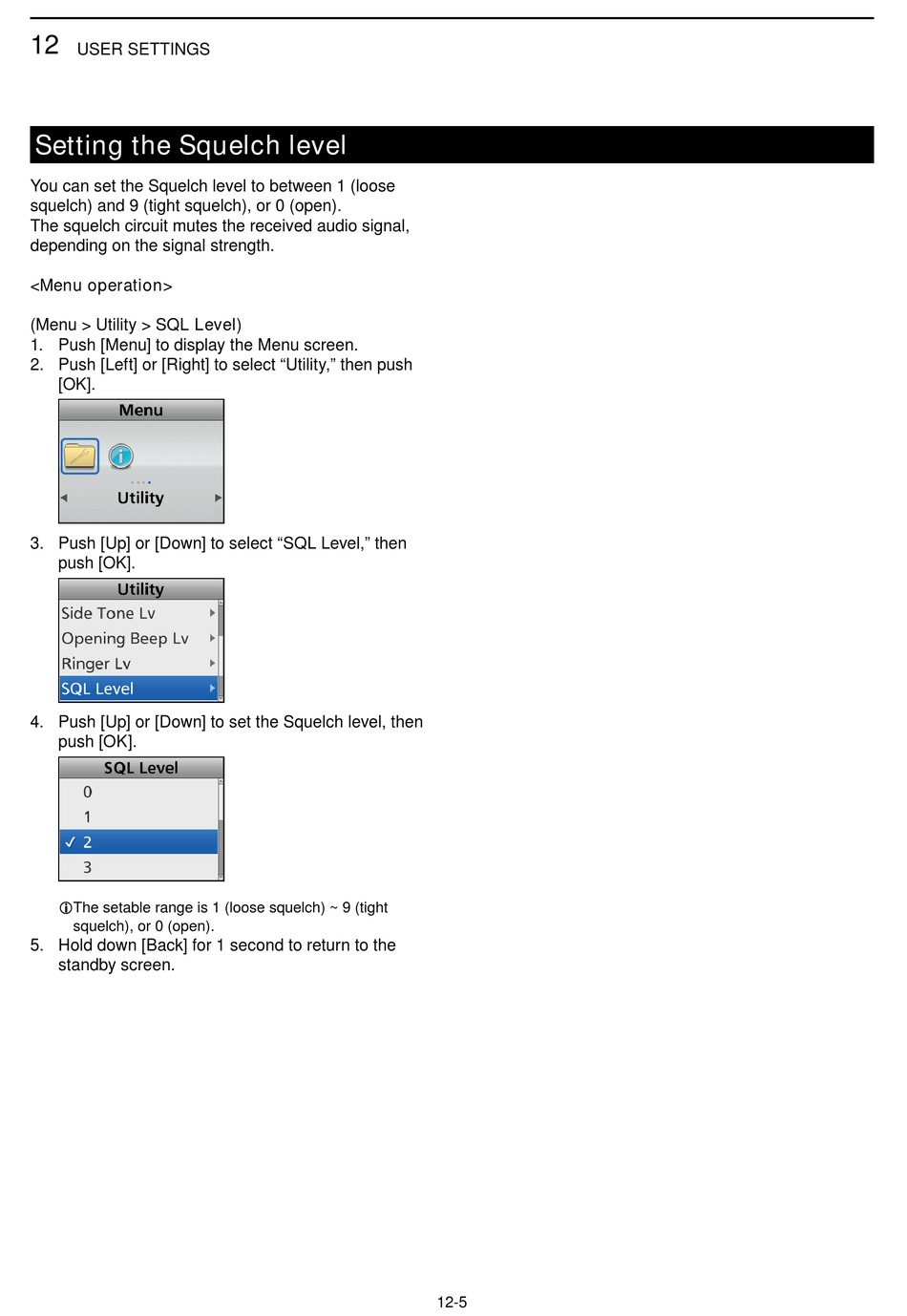

Setting the Squelch level

You can set the Squelch level to between 1 (loose
squelch) and 9 (tight squelch), or 0 (open).
The squelch circuit mutes the received audio signal,
depending on the signal strength.
<Menu operation>
( Menu > Utility > SQL Level)
1. Push [Menu] to display the Menu screen.
2. Push [Left] or [Right] to select "Utility," then push
[OK].
3. Push [Up] or [Down] to select "SQL Level," then
push [OK].
4. Push [Up] or [Down] to set the Squelch level, then
push [OK].
 The setable range is 1 (loose squelch) ~ 9 (tight
squelch), or 0 (open).
5. Hold down [Back] for 1 second to return to the
standby screen.
12-5
