D Belt Clip (Portable) - Icom IC-F7010 Series Operating Manual

1
ACCESSORIES
Accessory attachments (Continued)

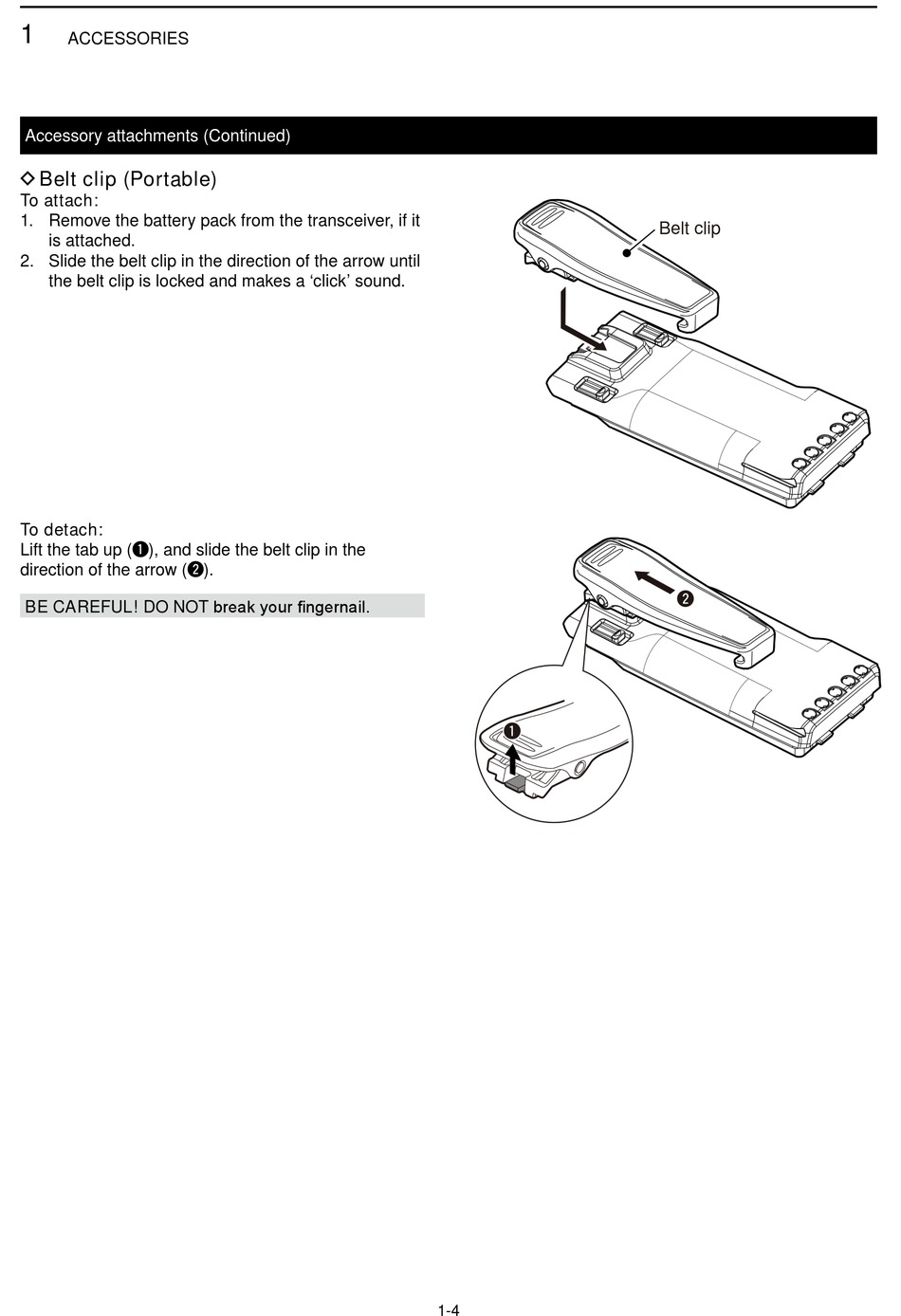

D Belt clip (Portable)

To attach:
1. Remove the battery pack from the transceiver, if it
is attached.
2. Slide the belt clip in the direction of the arrow until
the belt clip is locked and makes a 'click' sound.
To detach:
Lift the tab up (q), and slide the belt clip in the
direction of the arrow (w).
BE CAREFUL! DO NOT break your fingernail.
q
1-4
Belt clip
w
