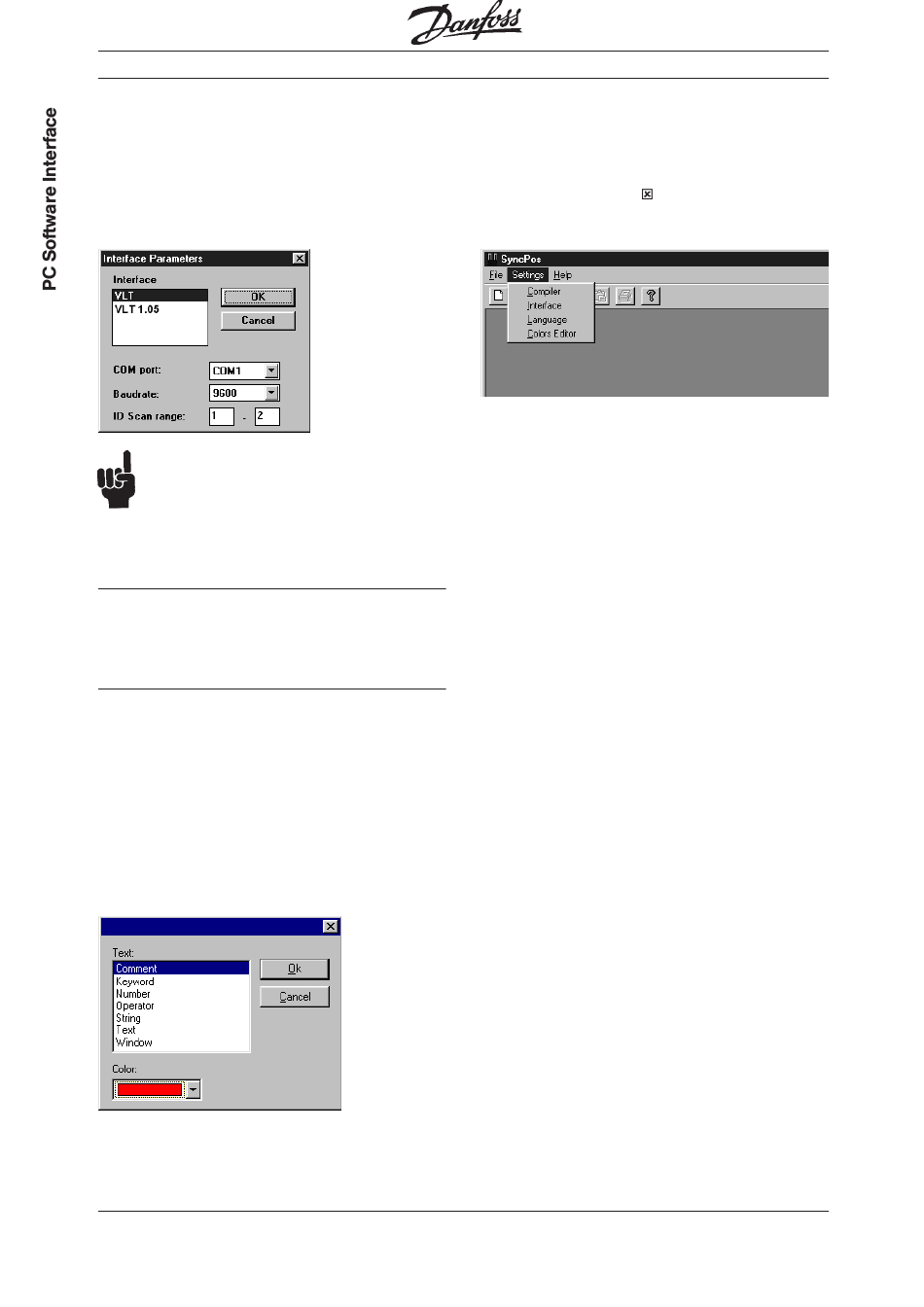

■ ■ ■ ■ ■ "INTERFACE"
You have already determined the interface settings
while starting the VLT. A baud rate of 19.2k is also
available for the VLT interface.
If you have to change one of the settings, for
example the baud rate, click on "SETTINGS" → → → → →
"INTERFACE" and enter the change.
NB!
However, it is important to remember that a
change in the interface settings can cause
the communication between the PC and the VLT to
be lost.
Scan Range
Define the range for scanning the connected VLTs. If
you add one or more VLTs in the network, you have
to extend the range.
RS485 connection
You need the RS232 standard interface in the PC or
an additional RS232 interface card and an external
converter for a RS485 connection.
■ ■ ■ ■ ■ "COLORS EDITOR"
In order to provide greater clarity, different colors can
be assigned to the various program sections such
as comment, key word, number etc. To do this, open
the "COLORS EDITOR" in menu "SETTINGS." Select
the type, e.g. Comment, and select the desired color.
Click OK to store the new settings.
78
Programmable SyncPos motion controller
■ "LANGUAGE"
If you want to access the "SETTINGS" menu to
change the language, then all dialog windows and
edit windows must be closed. To close these win-
dows click on the close
hand corner of the open edit or dialog window.
If you desire another language, click on "SETTINGS"
→ → → → → "LANGUAGE" and choose from English and
German in the subsequent dialog field. "EXIT
PROGRAM" and start SyncPos again.
MG. 1 0.J8.02 – VLT is a registered Danfoss trade mark
icon in the upper right-
