■ ■ ■ ■ ■ CAM Editor in MCT10 Mode
You can open configurations files (*.cnf) only via the
MCT10 such as it is with program files. MCT10 com-
mands SyncPos to open up the file selected by the
user via the MCT10.
If there is a configuration file (*.cnf) including curve
data, the CAM-Editor is open up automatically and
you can edit the parameters (which the file contains)
and edit interactive a possible present curve profile
using all CAM-Editor features.
If there is a configuration without curve data, a modi-
fied reduced CAM-Editor including the parameter
index cards is opened and it is possible to →
"INSERT CAM-PROFILE" further if necessary.
If there is no configuration file with the start-up of
SyncPos, the CAM-Editor is not opened and there is
no possibility to do that by way of addition or to open
a file for the CAM-Editor.

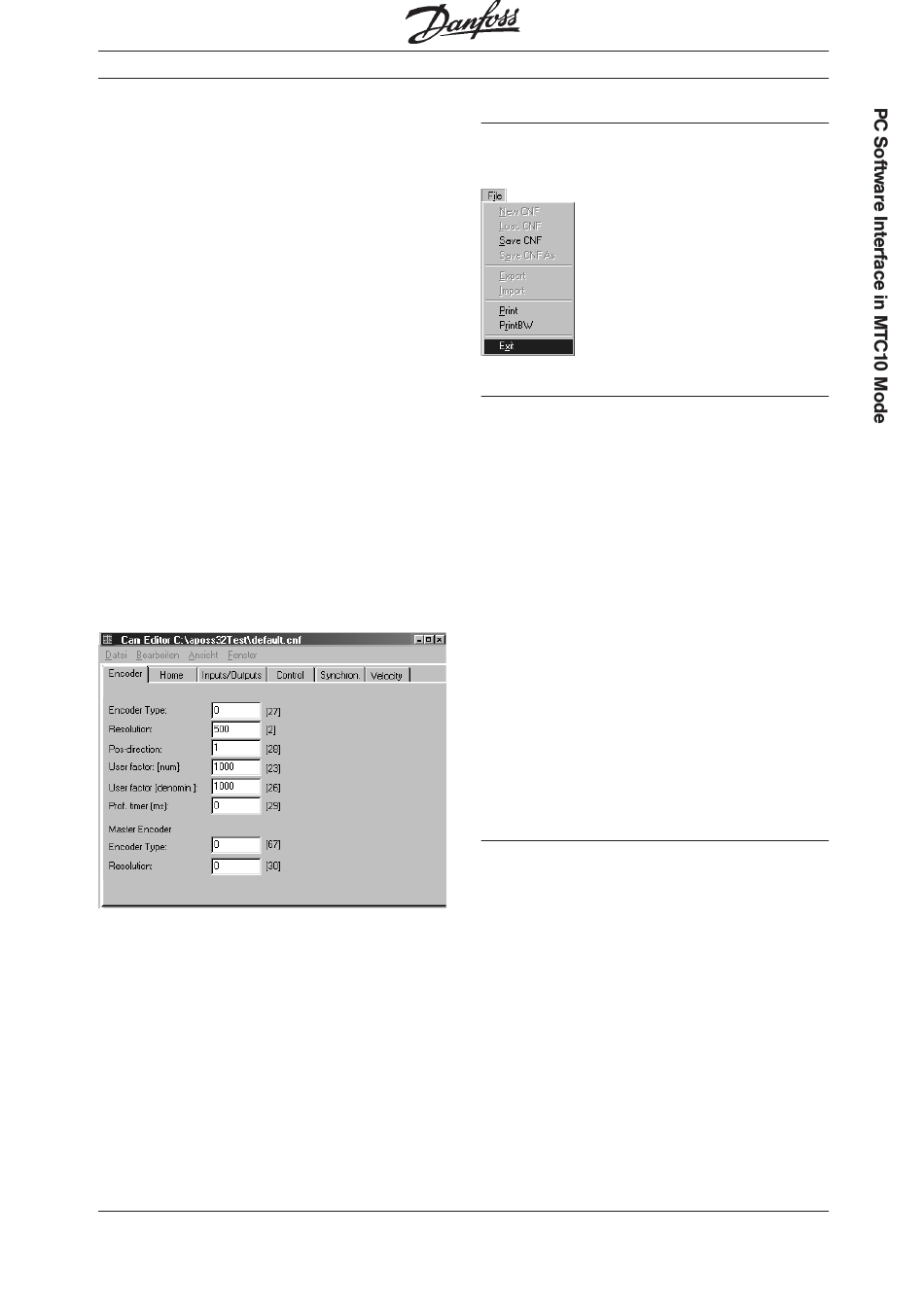

■ ■ ■ ■ ■ CAM-Editor window without curve data
Even when the configuration file doesn't contain
curve data, you can change the parameters which
are stored in the file using the reduced CAM-Editor.
In this case the modified CAM-Editor shows instead
of the four sectors just the parameter index cards.
MG.10.J8.02 – VLT is a registered Danfoss trade mark
Programmable SyncPos motion controller
"FILE" menu (CAM-Editor) in MCT10 Mode
Due to the fact that all file handling is done by
MCT10, many menu items are disabled permanent
or specific:
Disabled menu items
"FILE" → "NEW CNF"
Create new configuration files via MCT10.
"FILE" → "LOAD CNF"
The file selection and opening has to be done via
the MCT10. The file will be load automatically when
SyncPos is opened.
If the automatically opened configuration file doesn't
contain a curve, you can insert one with "EDIT" →
"INSERT CAM-PROFILE".
"FILE" → "SAVE CNF AS"
Please use the MTC10 features to rename a configu-
ration file (*.cnf) or copy it thereby. But you can save
the actual file resp. the changes under the same file
name using → "SAVE CNF".
"FILE" → "EXPORT" and → "IMPORT"
It is not possible to export or import any curve data.
This has to be done via MCT10.
Specific menu items
"FILE" → "PRINT" and → "PRINT SW"
If there are curves within a configuration file, you
can print the graphics, because there is no possibi-
lity to print diagrams with the MCT10. If there are no
curves within a configuration file, the menu item is
disabled.
"FILE" → "EXIT"
You cannot open again a configuration file, if you
had closed them manual with "FILE" → "EXIT" or
with clicking on the Exit
Exit
Exit
Exit button, because they have
Exit
to be selected via the MCT10. If the program file isn't
opened anymore, SyncPos will be closed also.
85
