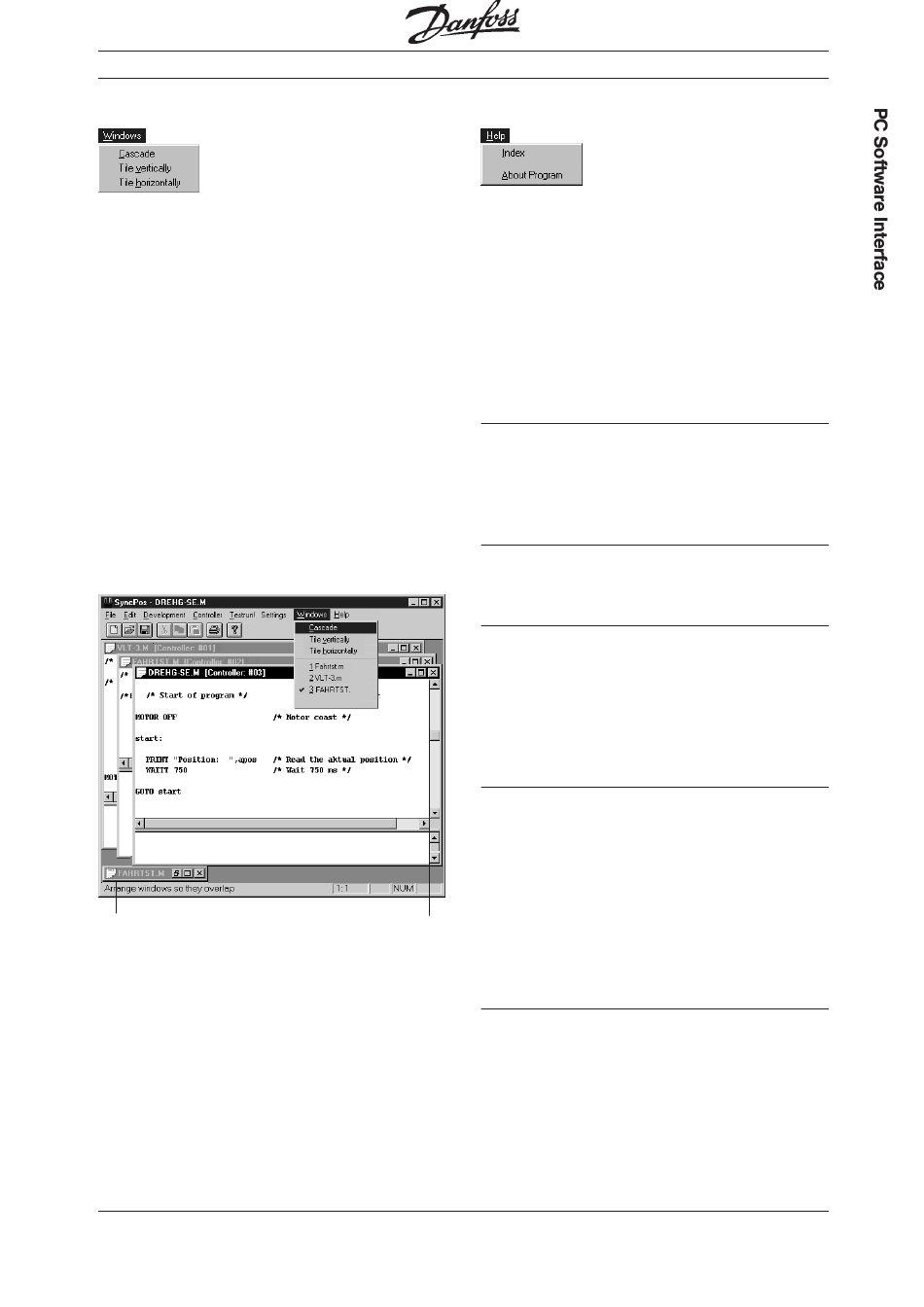

■ "WINDOW" menu
You can open several edit windows resp. files and
each edit window can be linked with a controller.
In order to display a number of editing windows
choose between → "CASCADE", "VERTICAL"
(alongside each other) or "HORIZONTAL" (on top of
each other) in the "WINDOWS" menu. . . . .
Click on the full screen symbol, if you do not want to
cascade the windows or display them next to each
other.
In general, if you chose to display files as symbols
they are displayed at the bottom left of the SyncPos
window.
■ ■ ■ ■ ■ "CASCADE"
All opened files are listed in the "WINDOW" menu.
Click on the file that should be on top when the
windows are cascaded.
The files are shown slightly staggered on top of
each other:
File symbol
■ ■ ■ ■ ■ "TILE VERTICALLY"
If you want to look at a number of programs at the
same time you can choose between different win-
dow representations. You can, for example, split the
SyncPos window and display the files alongside
each other.
■ ■ ■ ■ ■ "TILE HORIZONTALLY"
The SyncPos window is divided up and the files
shown on top of each other.
MG.10.J8.02 – VLT is a registered Danfoss trade mark
Programmable SyncPos motion controller
■ ■ ■ ■ ■ "HELP" menu
The representation and functionality of the online-
help varies, depending on the operating system
used.
■ ■ ■ ■ ■ "I NDEX"
Click on "HELP" → → → → → "INDEX". For example, if you are
looking for details on the ACC command, select in the
table of contents the topic "All SyncPos Commands
from ACC to #INCLUDE" and cklick on ACC.
Text retrieval
For text retrieval first click on "SEARCH", so that the
word list is created. Then enter the search term
"acc", mark an equivalent term and then select the
desired topic from the list displayed.
Search via Index
Or enter "acc" in the index and select the corres-
ponding index entry.
Context-sensitive help
The "COMMAND LIST", the parameter dialog fields in
the menu "CONTROLLER" as well as the "CAM-Editor"
offers a direct access to the online help. Mark a com-
mand in the "COMMAND LIST" resp. select one of the
input fields of a parameter and press [F1]. You will get
the corresponding information.
Cross-references
Cross-references to other texts are marked in green.
Click on the marked cross-reference and the desired
text is displayed. Click next on "BACK" in the menu
bar to read again the previous section.
Click on the words marked with green dotted line
and the corresponding popup shows images, gra-
phics and explanation from the glossary, for example
Full size symbol
MLONG. Click on beside of the popup or press the
Esc-key to close the popup.
Printing or copying help texts
You can print the help text or insert it in your edit
window with "EDIT" → → → → → "COPY". For example, this
can be used to insert complete program strings from
program samples.
■ ■ ■ ■ ■ "ABOUT PROGRAM"
Here you can find the version numbers of the
SyncPos program, the program library and the
compiler.
79
