■ ■ ■ ■ ■ Axis parameters
The axis parameters are always valid for all the
programs belonging to one controller. The units of
the parameter values, the factory settings and all
other information concerning the parameters can be
found in the Software Reference in the section
Parameters. This information is arranged according
to the internal parameter numbers (in increasing
order).
There are two possibilities to set or change the
parameters:

Set or change Axis parameters online

Click on "CONTROLLER" → → → → → "PARAMETERS" → → → → →
"AXIS" and mark the controller the parameters of
which you want to view or change in the subsequent
dialog window. Also select the type in the field
"PARAMETE RS":
Encoder
Home
Inputs / Outputs
PID-Controller
Synchronization
Velocity
You can change each parameter and re-load it in
the VLT by clicking on "OK". But you can also imme-
diately select another VLT, change the parameters
and then load all the changes into the VLT simul-
taneously with "OK".

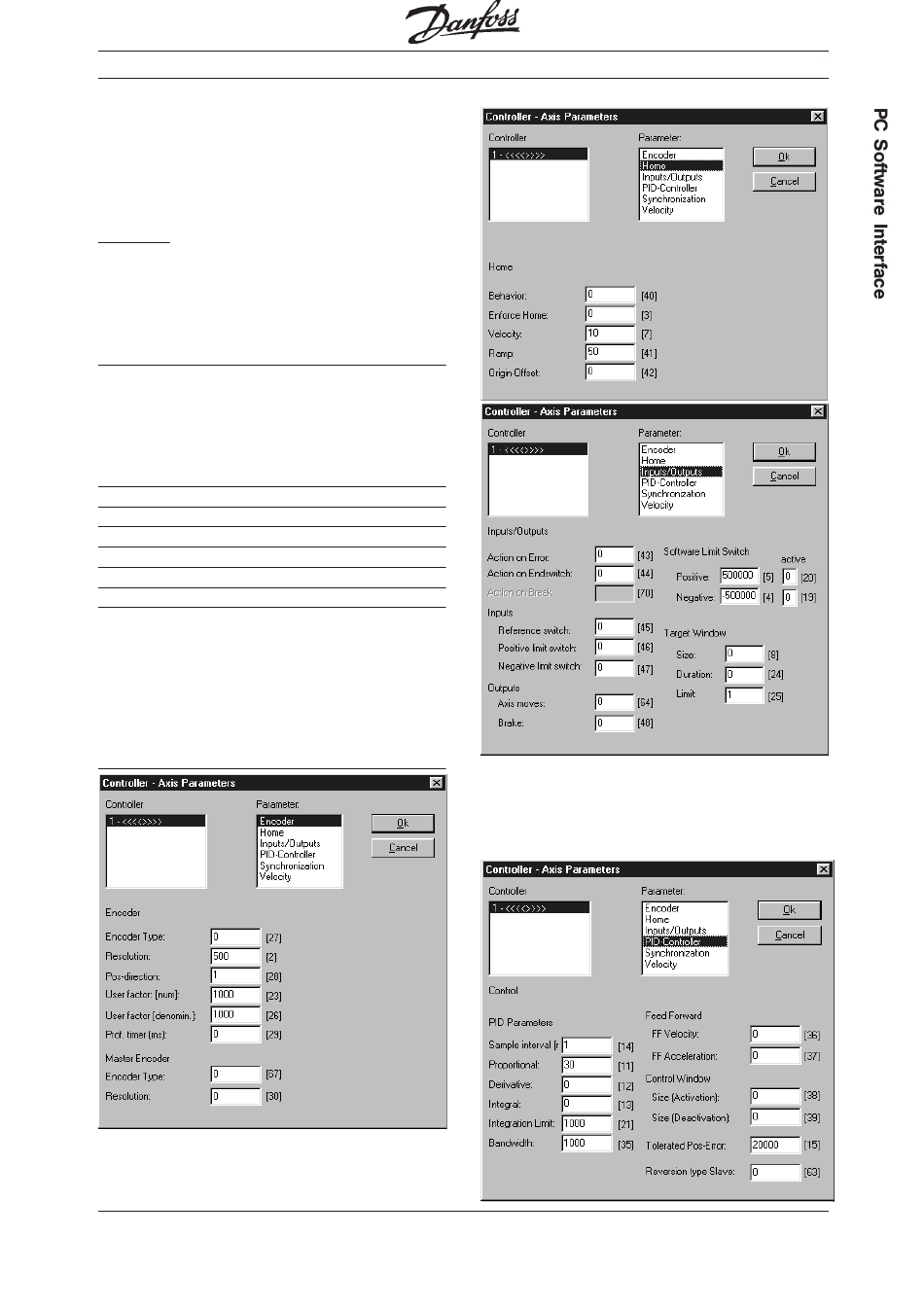

Axis parameters with their factory settings
MG.10.J8.02 – VLT is a registered Danfoss trade mark
Programmable SyncPos motion controller
AXE
AXH
AXI
AXR
AXS
AXV
In this parameter group the inputs and outputs are
assigned fixed functions – depending on the appli-
cation. If necessary it is also possible to define a
software end switch here.
