Canon imagePRESS C10000VPSeries Troubleshooting Manual page 257

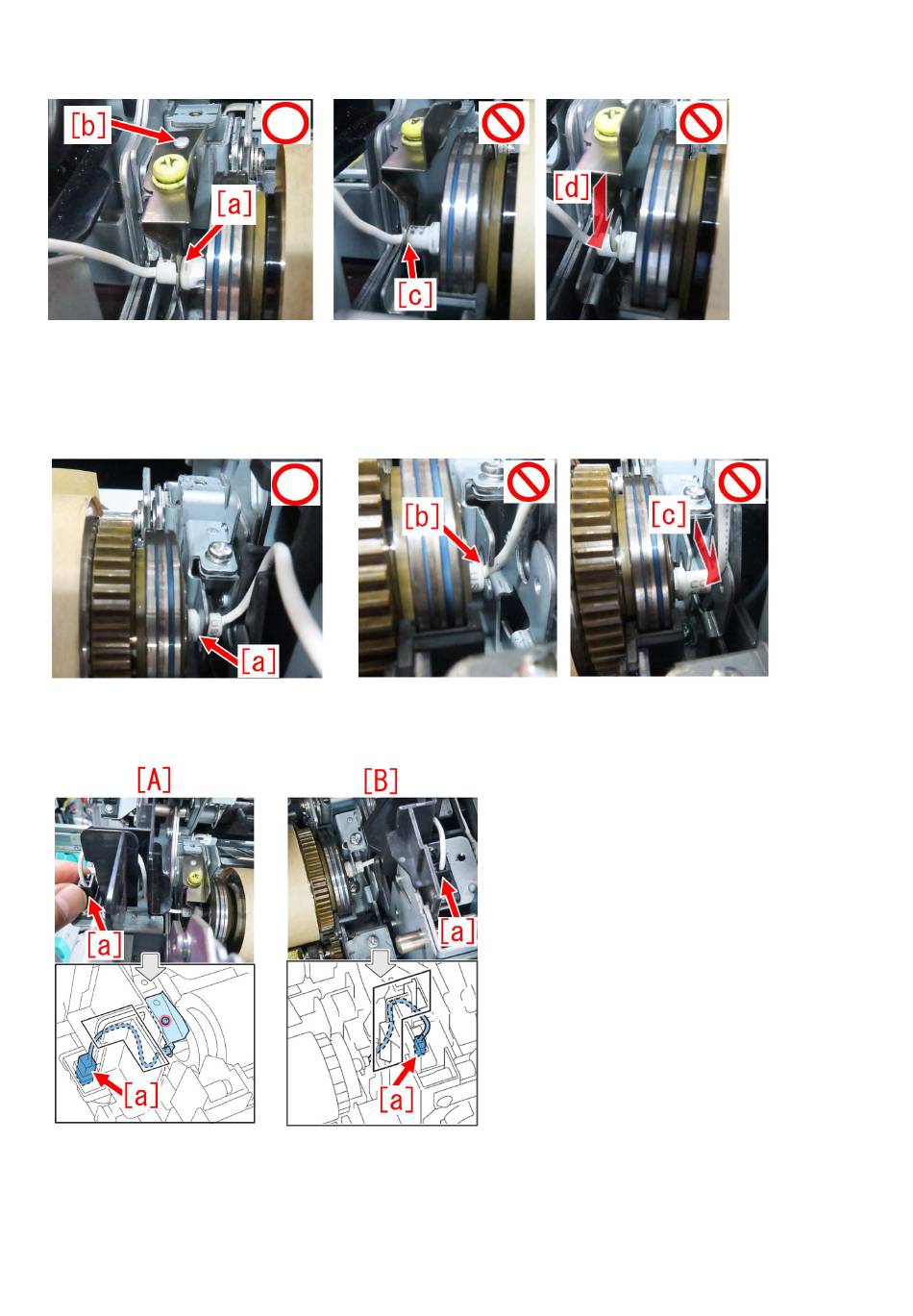

[Reference] In the photo [c] below, the edge of the insulator is hitting the mounting component. In the photo [d], the insulator is
not set in the mounting component. The insulator is not in the correct state in both cases.
Front side: The insulator of the pressure roller heater is inserted into the notch of the heater retainer (front) up to its stepped
section [a].
[Reference] In the photo [b] below, the edge of the insulator is hitting the notch of the heater retainer (front). In the photo [c], the
insulator is not set in the notch of the heater retainer (front). The insulator is not in the correct state in both cases.
10) Wire the AC cable of the pressure roller heater in the cable guide and connect the connector [a]. The photo [A] shows the
rear side and the photo [B] shows the front side.
11) Close the upper and under units and put the secondary fixing assembly back to the machine.
252
