Root NIBPT Chapter 3: Operation

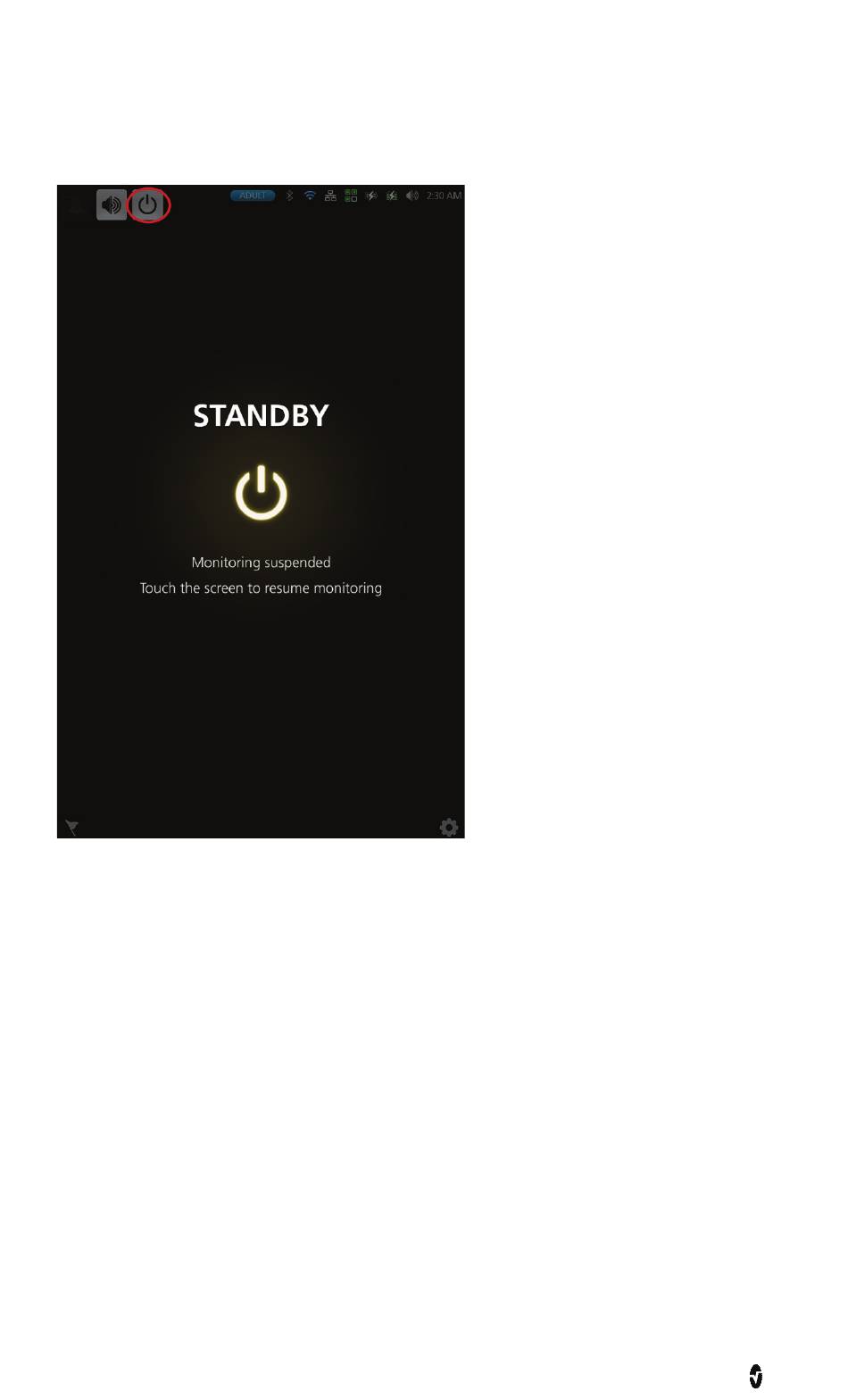

Note: Standby Mode will not affect any devices using Root's Iris Connectivity to Masimo
Patient SafetyNet.

Trend Download

Root can store up to 96 hours of trend data captured at 2-second intervals from Radical-7,
Radius-7, and MOC-9 modules. Trend data from Root can be transferred to a computer via
USB for evaluation.
Trend data is stored in non-volatile memory, so it is not erased when Root is shut off. Trend
data download is initiated using the Masimo Instrument Configuration Tool, which converts
the data to a .TXT or .CSV file.
