Masimo Root Operator's Manual page 24

Root NIBPT
Ref. Feature
AC Power
5
Indicator
Radical-7
6
Charging
Indicator
*Only the touchscreen version of the Radical-7 is able to communicate monitored parameters
and measurements. All other versions can only charge in the docking station but not
communicate with Root.

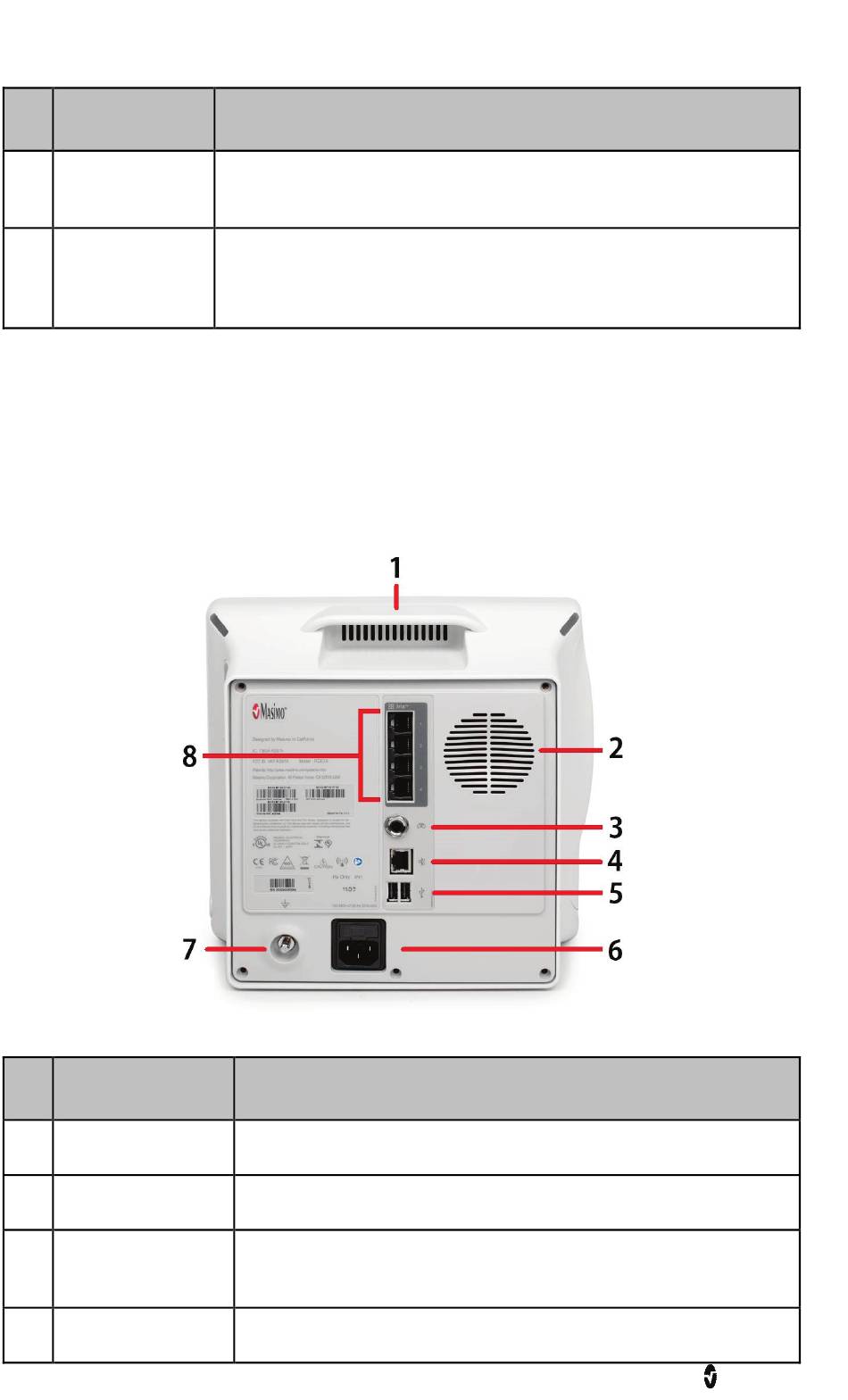

Back View
Ref. Feature
1 Handle
2
Speaker
Nurse Call
3
Connector
4 Ethernet Port
www.masimo.com
Description
Shows an indication of AC power connection Root.
Shows an indication of battery charge for the Radical-7 in the
Docking Station.
Description
Allows the user to transport Root.
Provides audible notification.
Provides a connection to a Nurse Call system.
Provides a network connection to Root using an RJ-45 cable.
22
Chapter 1: Description
Masimo
