Root NIBPT
Audio Pause
Audio Pause temporarily suspends all audible alarms on Root. When it is active, visual alarms
are not impacted and will still display. The Audio Pause icon is located on the left side of the
Status Bar – do not confuse with the Sounds icon on the right side of the Status Bar. See
About the Status Bar on page 34.

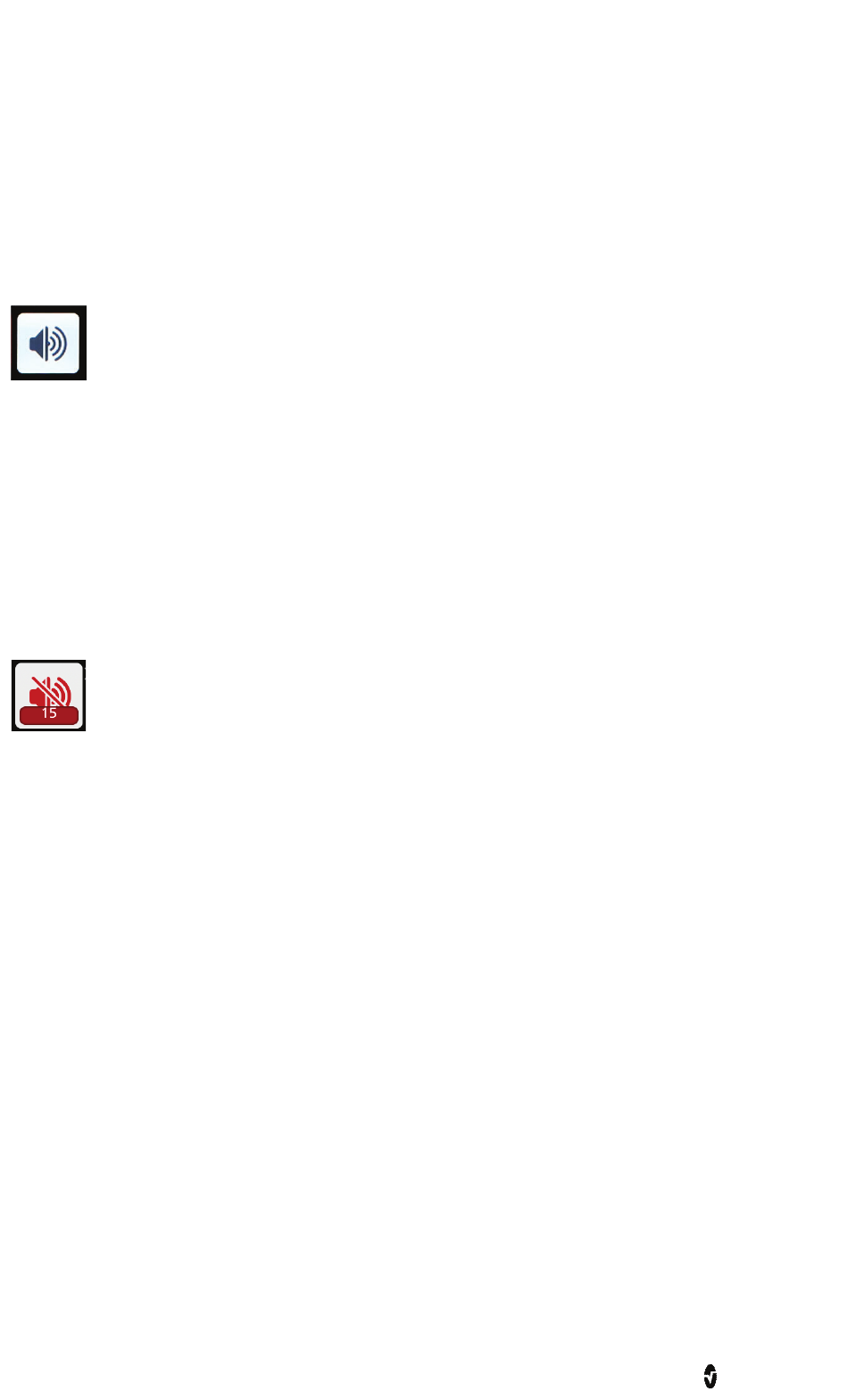

By default, Audio Pause is inactive, and the icon appears in the following way:
Audio Pause inactive
To activate Audio Pause, press the icon. It will turn red and the remaining Audio Pause
Duration time counts down next to the icon. The default duration for Audio Pause is 120
seconds. In the example below, Audio Pause is activated, and there are 15 seconds left until
Audio Pause is inactive again.
To configure Audio Pause, see Sounds on page 63.
Audio Pause active. 15 seconds until Audio Pause is inactive.
Note: When Audio Pause is activated, powering off and then powering on Root will return
Audio Pause to its default inactive state.
Standby Mode
Standby Mode allows for patient monitoring to be temporarily suspended. The Standby icon
(see image below) is located in the top-left corner of the screen.
To enable Standby Mode (suspend monitoring)
On Root, open the Access Control menu.
1.
Swipe the standby enabled button to ON. Return to the home screen on Root, and
2.
the Standby icon will appear on the screen in the top-left corner.
3. Press the Standby icon, and a notification message will appear on the screen
indicating that monitoring is suspended (see image below).
To exit Standby Mode (resume monitoring)
•
Tap anywhere on the screen.
WARNING: When Root is in Standby Mode, monitoring is suspended and no alarms will be
active, with the exception of the low battery alarm.
