Root NIBPT
Chapter 3: Operation
Available Layouts
From the Layout screen, touch Available Layouts.
When a Radical-7 or Radius-7 is docked to Root and/or multiple MOC-9 modules are
connected to Root, the user will have the option to select from several pre-configured layouts.

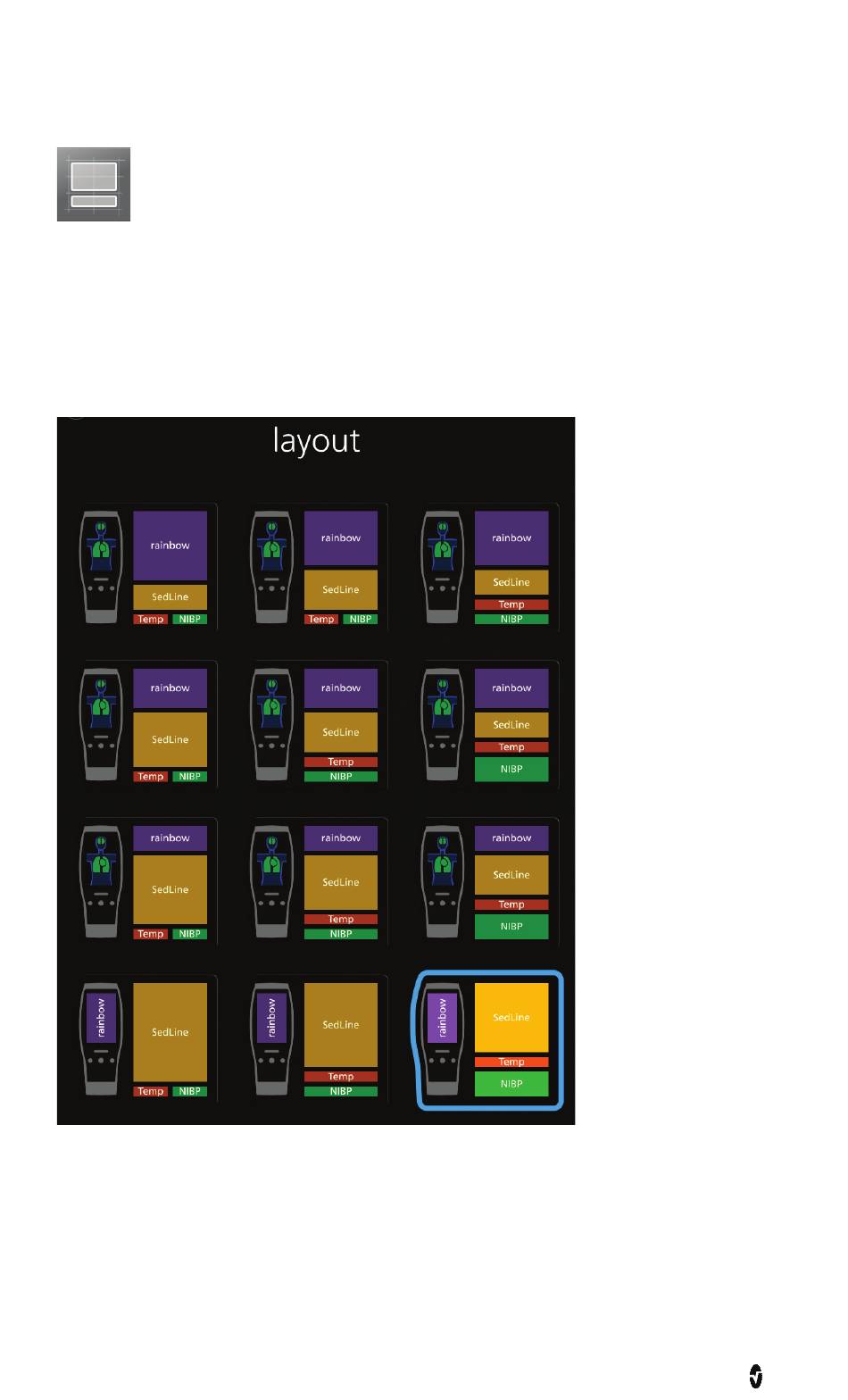

The image below is an example of Available Layouts in Root with Radical-7 docked.
Note: The rainbow window can be viewed on a Radical-7, using software v1.5.3.5 or greater, in
several of the pre-configured layouts.
www.masimo.com
51
