Root NIBPT Chapter 2: Setting Up

Power On

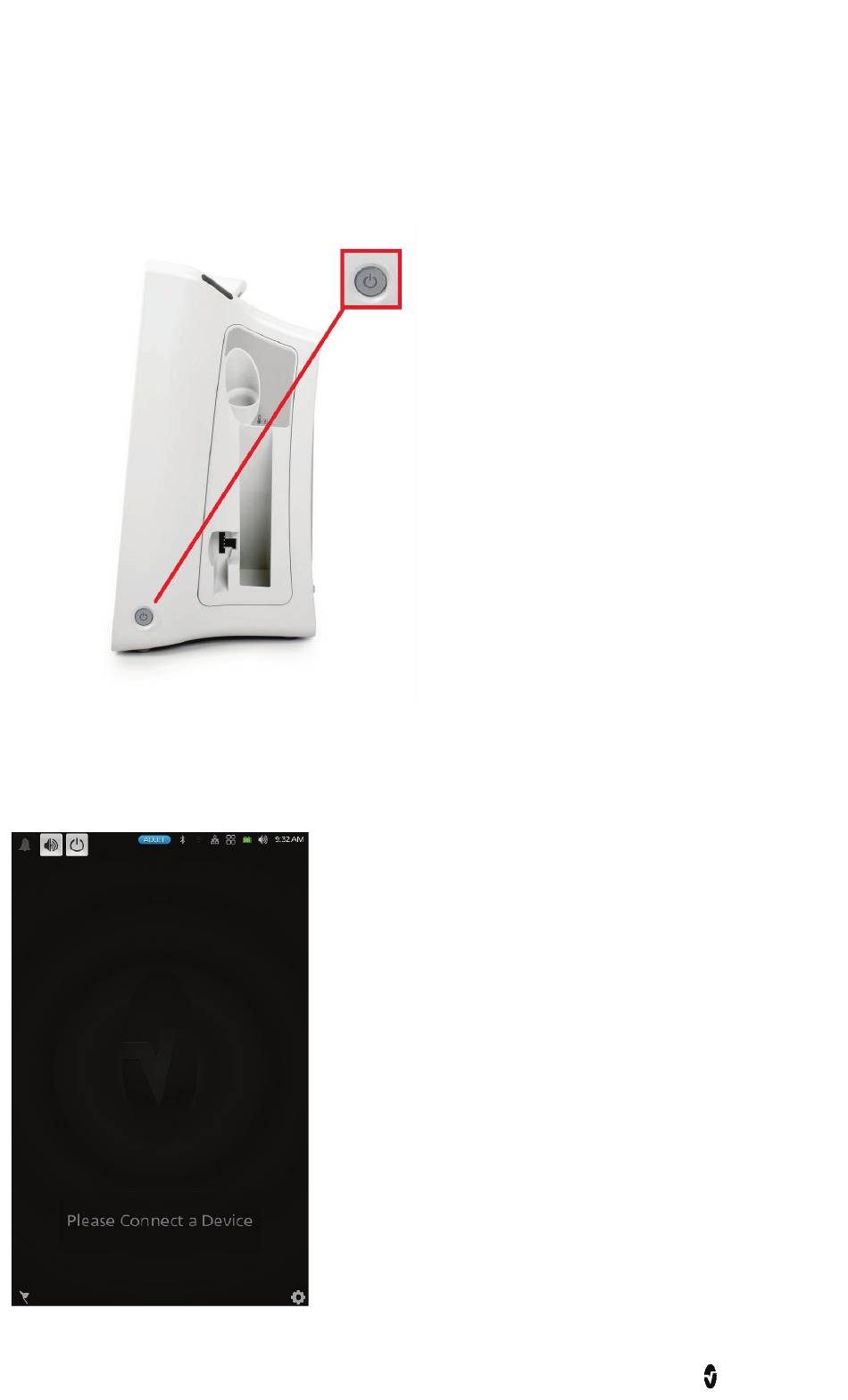

The Power Button can be used for Power On, Sleep, and Power Off. To Power On, press the
Power Button for two (2) seconds until a single audible tone sounds.
Once Root turns on, if no Radical-7, Radius-7, or MOC-9 module is connected, the Root display
shows the following message: Please Connect a Device. The user is now able to connect
Radical-7, Radius-7, and MOC-9 module.
For information about Sleep Mode and Power Off, see Sleep and Power Off on page 88.
www.masimo.com 26 Masimo
