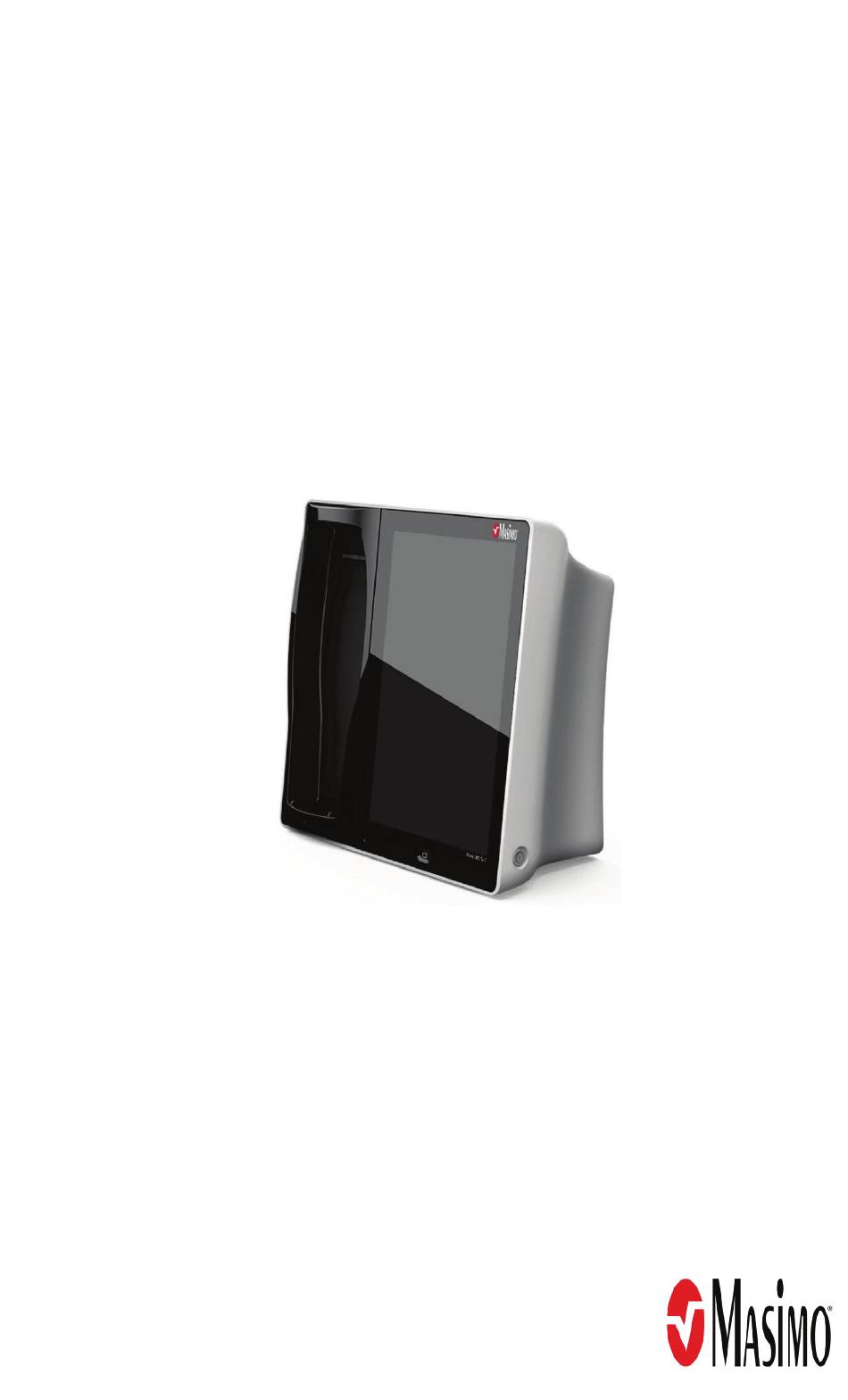

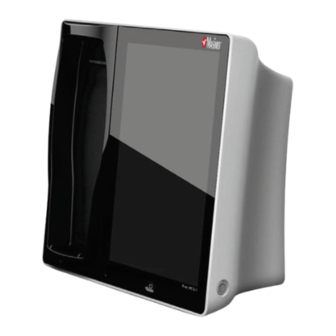

  • Page 1 Addendum ® Root with Pathway...
  • Page 3 These operating instructions provide the necessary information for proper operation of all models of the Root. There may be information provided in this manual that is not relevant for your system. General knowledge of pulse oximetry and an understanding of the features and functions of Root are prerequisites for its proper use.
  • Page 4 © 2019 Masimo Corporation www.masimo.com Masimo...

  • Page 5: Table Of Contents

    Contents Addendum, Root Operator's Manual: Root with Pathway-------------------------------------------- 5 Product Description, Features and Indications for Use ------------------------------------------------7 Key Feature Update --------------------------------------------------------------------------------------7 Safety Information, Warnings, and Cautions ----------------------------------------------------------- 9 Performance Warnings and Cautions ---------------------------------------------------------------- 9 Operation ---------------------------------------------------------------------------------------------------- 11 Accessing Main Menu Options for Pathway ------------------------------------------------------- 11...

  • Page 7: Addendum, Root Operator's Manual: Root With Pathway

    37705/LAB-8747 and equivalent translations • 38280/LAB-9274 and equivalent translations This addendum covers the Pathway feature of the Root device. For all other information, refer to the Operator's Manual, Root® or Operator's Manual, Root® with noninvasive blood pressure and temperature. www.masimo.com...

  • Page 9: Product Description, Features And Indications For Use

    Indications for Use The following information is an addendum to be used with the content in Product Description, Features and Indications for Use of the Operator's Manual, Root® or Operator's Manual, Root® with noninvasive blood pressure and temperature. Key Feature Update The following added feature is available for Root: •...

  • Page 11: Safety Information, Warnings, And Cautions

    Cautions The following information is an addendum to be used with the content in Safety Information, Warnings and Cautions of the Operator's Manual, Root® or Operator's Manual, Root® with noninvasive blood pressure and temperature. CAUTION: Before using Pathway on Root, completely read and understand the Operator's Manual, Radical-7, Operator's Manual, Root®...

  • Page 13: Operation

    See Pathway Settings on page 12. Sounds* Device Settings See Device Settings. About* * For Root settings not related to Pathway, refer to Chapter 3: Operation of the Operator's Manual, Root® or Operator's Manual, Root® with noninvasive blood pressure and temperature. www.masimo.com Masimo...

  • Page 14: Pathway Settings

    After 10 minutes of Pathway operation, the SpO2 Parameter Settings control the alarm limits. Parameter Settings Parameter Settings display only when Radical-7 is docked to Root. Note: The Neonatal profile is selected by default for all Radical-7 parameter settings during Pathway operation.
  • Page 15 Root with Pathway Operation Additional Settings From the Additional Settings screen, change any of the following options: Option Description Factory Default User Configurable Settings Settings SmartTone Allows the audible pulse to continue to On or Off beep when the pleth graph shows signs of motion.
  • Page 16 Root with Pathway Operation Options Description Factory Default User Configurable Settings Settings Alarm When an alarm condition is met, this 0, 5, 10, or 15 Delay feature delays the audible part of an alarm. SpO2 Target Range Use the SpO2 Target Range settings screen to configure the Glide Path visualization. See Pathway Screen on page 20.

  • Page 17: Device Settings

    ** Visual indicator only. Audible alarms only occur when the Radical-7 high and low alarm limits are reached. Refer to the Operator's Manual, Radical-7® Pulse CO-Oximeter®. Device Settings On Root equipped with Pathway, some Device Settings options change and are reflected below: Access Control See Access Control on page 16.
  • Page 18 Root with Pathway Operation Access Control Access Control contains configurable options and settings that require a password. To enter Access Control Press the key. When the numeric screen displays, enter the following numbers: 6 2 7 4 Asterisks (****) will be displayed.
  • Page 19 Press Restore. Defaults to factory value. *Changes to USB Ports baud rate will take effect after Root is power cycled (turned off then on again). Note: Restore Factory Defaults can only be performed during non-monitoring and when no cable connections are present.

  • Page 21: Pathway

    Pathway Before using Pathway on Root, completely read and understand the Operator's Manual, Radical-7, Operator's Manual, Root® or Operator's Manual, Root® with noninvasive blood pressure and temperature. Select the appropriate Masimo sensor and completely read and understand the Directions for Use of the Masimo sensor.
  • Page 22 Root with Pathway Pathway Ref. Feature Information Pathway Operation See Pathway Procedure on page 21. Start Button Main Menu See Accessing Main Menu Options for Pathway on page 11. Pathway Screen The Pathway screen details are described below. Item Name...

  • Page 23: Pathway Procedure

    Radical-7. Pathway Procedure To use Pathway, perform the following: Select the appropriate Masimo sensor and completely read and understand the Directions for Use of the Masimo sensor. Attach a cable and sensor to Radical-7 and the patient.
  • Page 24 Root with Pathway Pathway Note: If Radical-7 is not attached to Root, Please Connect a Device displays on the screen below the Start button. Once the sensor signal is acquired, measurement begins automatically. During the first minute of measurement, the glide path is not displayed. The glide path only displays from one (1:00) minute to ten (10:00) minutes.
  • Page 25 Root with Pathway Pathway • After 96 hours the Time Scrub Button displays >96:00:00. To stop the Pathway procedure, select the Stop button at the bottom of the screen. Confirm by selecting the Stop button again in the confirmation window. The screen returns to the Pathway Main Screen.
  • Page 26 Root with Pathway Pathway • Black - above the set PR Threshold Low Limit. • Yellow - below the set PR Threshold Low Limit but above the set Critical Limit. • Red - below the set PR Threshold Critical Limit.
  • Page 27 Root with Pathway Pathway • No audible alarms. SpO2 High When SpO is above the glide path: • Red SpO indicator and red glow from the top edge of the trend. • No message displays in the header. • No audible alarms.
  • Page 28 Root with Pathway Pathway PR Visual Indicators PR thresholds are configurable in the PR Threshold settings menu. See PR Threshold on page PR Low (Below 100 bpm) The PR trend and current indicator display yellow after breaching the 100 bpm dashed limit.
  • Page 29 Root with Pathway Pathway • No time adjustment can be made to greater than 10 minutes. • No time adjustment can be made after 10 minutes of the session elapses. To adjust the time during Pathway operation, perform the following: Press and hold the Time Scrub Button to activate the time adjustment.
  • Page 30 Root with Pathway Pathway Note: SpO visual indicators may display if the trend is not within the glide path. Select the OK button to confirm the new time or Cancel to return to the previous time. Note: After one (1) minute with no interaction, the adjustment times out and continues with the previous time.

  • Page 31: Messages

    Messages The following information is an addendum to be used with the content in the Messages Chapter of the Operator's Manual, Root® or Operator's Manual, Root® with noninvasive blood pressure and temperature. The following messages are specific to Pathway operation:...

  • Page 33: Troubleshooting

    Troubleshooting The following information is an addendum to be used with the content in Troubleshooting chapter of the Operator's Manual, Root® or Operator's Manual, Root® with noninvasive blood pressure and temperature. Root Troubleshooting Symptom Possible Cause Correction Radical-7 Not When Radical-7 is not docked to Root, the Pathway...
