Root NIBPT
Radical-7 Connection
It is recommended that Root be powered on before performing the steps below.
1.

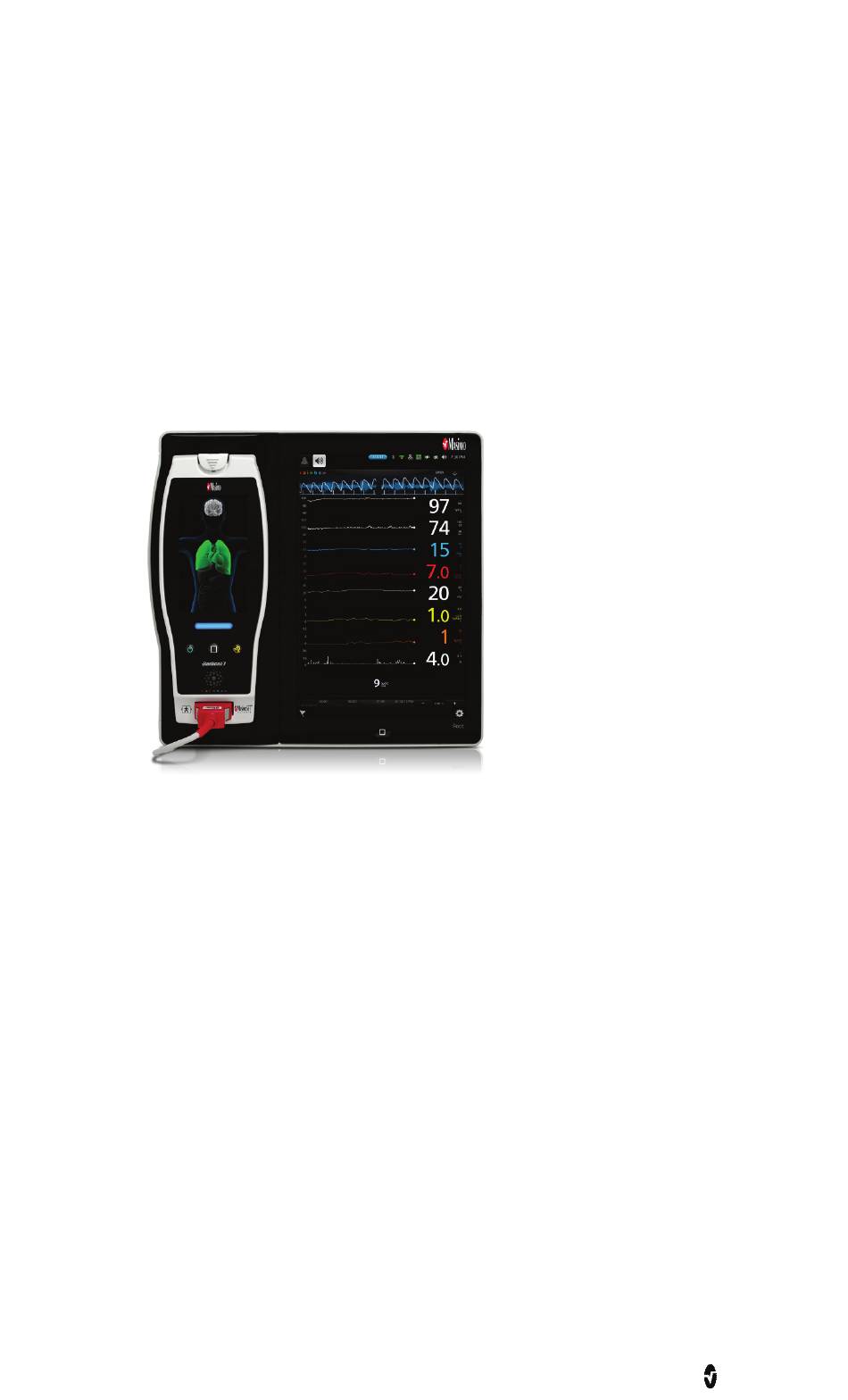

Snap the Radical-7 into the Docking Station.
2.
If the Radical-7 is not yet turned on, press the power button on the Radical-7 to
power it on.
3.
When properly connected, the Radical-7 Charging Indicator light will illuminate.
An illuminated Radical-7 Battery icon will also appear in the Status Bar. See About
the Status Bar on page 34
4.
Root display will show active measurements and parameters.
For Radical-7 charging conditions, see Radical-7 and Radius-7 Charging Indicator on page 87.
Radius-7 Connection
It is recommended that Root be powered on before performing the steps below.
1.
Ensure the Radius-7 Battery Charging Adapter is properly docked in the Docking
Station area of Root.
2.
Activate the Bluetooth radio on Root. (for more information see Operator's Manual
for Radius-7).
3.
Place the Radius-7 Battery Module into the charging area of the Radius-7 Battery
Charging Adapter.
4.
Root will emit a tone when pairing has completed (see Operator's Manual for
Radius-7 for more information).
www.masimo.com
28
Chapter 2: Setting Up
