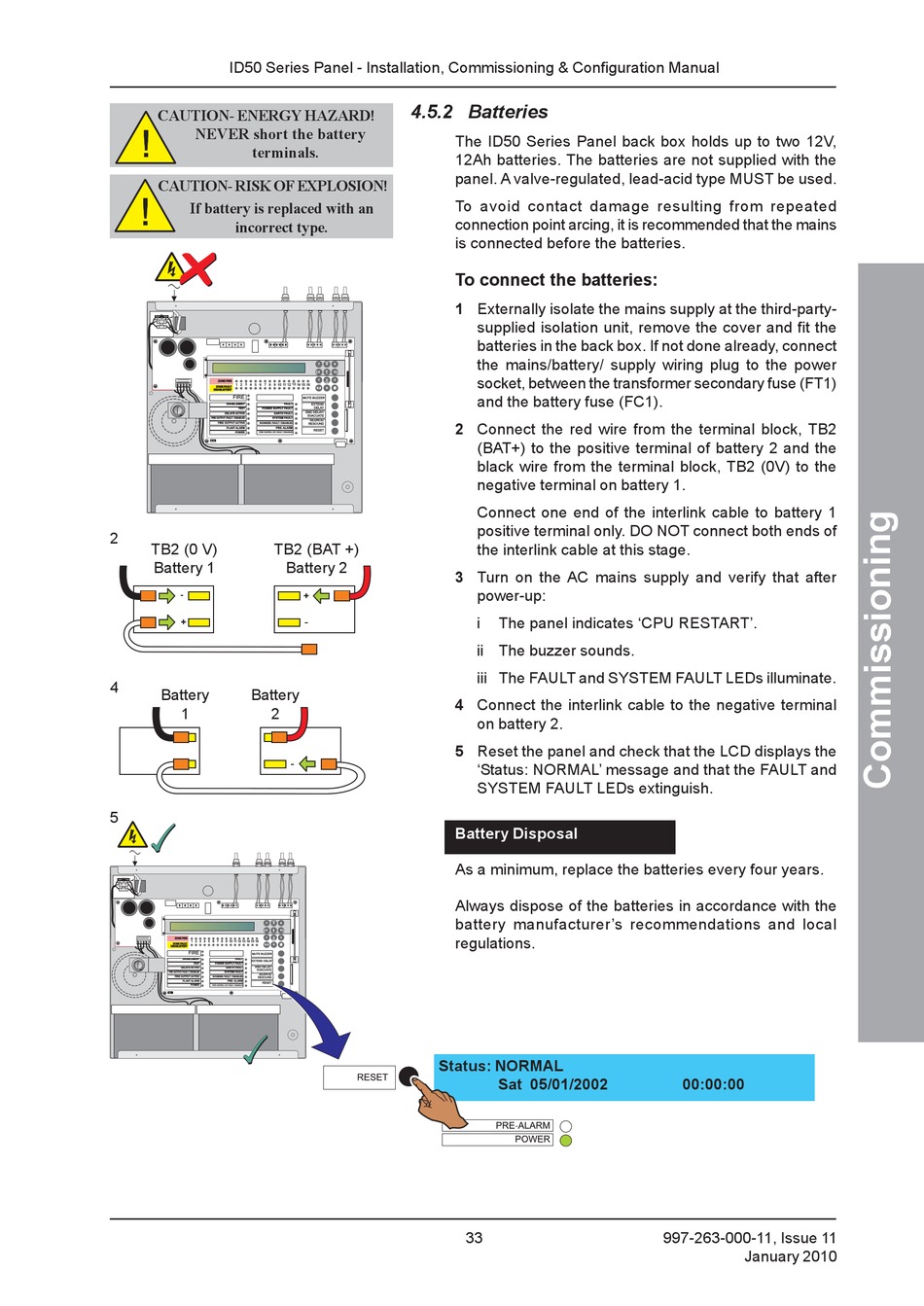

4.5.2 Batteries

The ID50 Series Panel back box holds up to two 12V,
12Ah batteries. The batteries are not supplied with the
panel. A valve-regulated, lead-acid type MUST be used.
To avoid contact damage resulting from repeated
connection point arcing, it is recommended that the mains
is connected before the batteries.
To connect the batteries:
1 Externally isolate the mains supply at the third-party-
7
8
9
5
4
[
6
1
2
3
0..9
0
4
MUTE BUZZER
FAULT
EXTEND
DELAY
END DELAY/
EVACUATE
SILENCE/
2 Connect the red wire from the terminal block, TB2
RESOUND
RESET
Battery 2
3 Turn on the AC mains supply and verify that after
4 Connect the interlink cable to the negative terminal
5 Reset the panel and check that the LCD displays the
Battery Disposal
As a minimum, replace the batteries every four years.
Always dispose of the batteries in accordance with the
battery manufacturer's recommendations and local
regulations.
Status: NORMAL
supplied isolation unit, remove the cover and fit the
batteries in the back box. If not done already, connect
the mains/battery/ supply wiring plug to the power
socket, between the transformer secondary fuse (FT1)
and the battery fuse (FC1).
(BAT+) to the positive terminal of battery 2 and the
black wire from the terminal block, TB2 (0V) to the
negative terminal on battery 1.
Connect one end of the interlink cable to battery 1
positive terminal only. DO NOT connect both ends of
the interlink cable at this stage.
power-up:
i
The panel indicates 'CPU RESTART'.
ii The buzzer sounds.
iii The FAULT and SYSTEM FAULT LEDs illuminate.
on battery 2.
'Status: NORMAL' message and that the FAULT and
SYSTEM FAULT LEDs extinguish.
Sat 05/01/2002
33
00:00:00
997-263-000-11, Issue 11
January 2010
