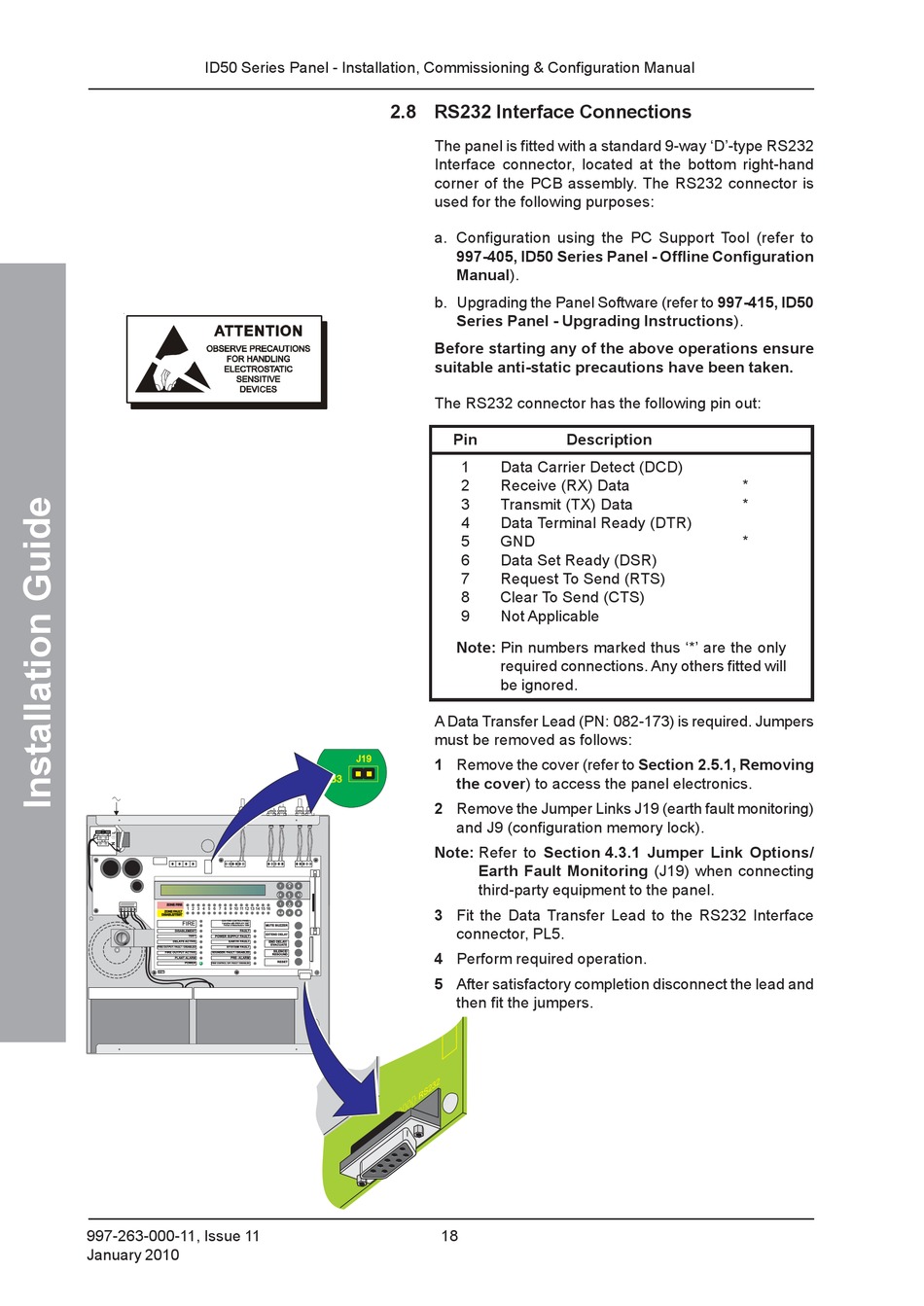

2.8 RS232 Interface Connections

The panel is fitted with a standard 9-way 'D'-type RS232
Interface connector, located at the bottom right-hand
corner of the PCB assembly. The RS232 connector is
used for the following purposes:
a. Configuration using the PC Support Tool (refer to
b. Upgrading the Panel Software (refer to 997-415, ID50
Before starting any of the above operations ensure
suitable anti-static precautions have been taken.
The RS232 connector has the following pin out:
A Data Transfer Lead (PN: 082-173) is required. Jumpers
must be removed as follows:
J19
1 Remove the cover (refer to Section 2.5.1, Removing
TB3
2 Remove the Jumper Links J19 (earth fault monitoring)
Note: Refer to Section 4.3.1 Jumper Link Options/
7
8
9
4
5
6
[
1
2
3
3 Fit the Data Transfer Lead to the RS232 Interface
4
0..9
0
MUTE BUZZER
EXTEND DELAY
END DELAY/
EVACUATE
SILENCE/
4 Perform required operation.
RESOUND
RESET
5 After satisfactory completion disconnect the lead and
2
2 3
R S
997-405, ID50 Series Panel - Offline Configuration
Manual).
Series Panel - Upgrading Instructions).
Pin
Description
1
Data Carrier Detect (DCD)
2
Receive (RX) Data
3
Transmit (TX) Data
4
Data Terminal Ready (DTR)
5
GND
6
Data Set Ready (DSR)
7
Request To Send (RTS)
8
Clear To Send (CTS)
9
Not Applicable
Note: Pin numbers marked thus '*' are the only
required connections. Any others fitted will
be ignored.
the cover) to access the panel electronics.
and J9 (configuration memory lock).
Earth Fault Monitoring (J19) when connecting
third-party equipment to the panel.
connector, PL5.
then fit the jumpers.
