HE CHANNEL SCREEN
The status area of the screen provides six separate areas in which you can show
information that is relevant for your operations. Your system administrator can choose
the information that is shown in each status area. If encryptor/scrambler options are
enabled, this information is shown in the top line of the status area.
Your transceiver may have the option of selecting high, medium, or low power. Hi,
Med, or Lo is shown respectively to the right of the signal strength indicator. If an
external power amplifier is connected, PA may also be selected.
While a call is being established, the transceiver shows that calling activity is in
progress by flashing
indicators are replaced with an icon that represents the type of call being sent or
received.
When the transceiver is scanning, the channel screen is replaced by the scanning
screen.

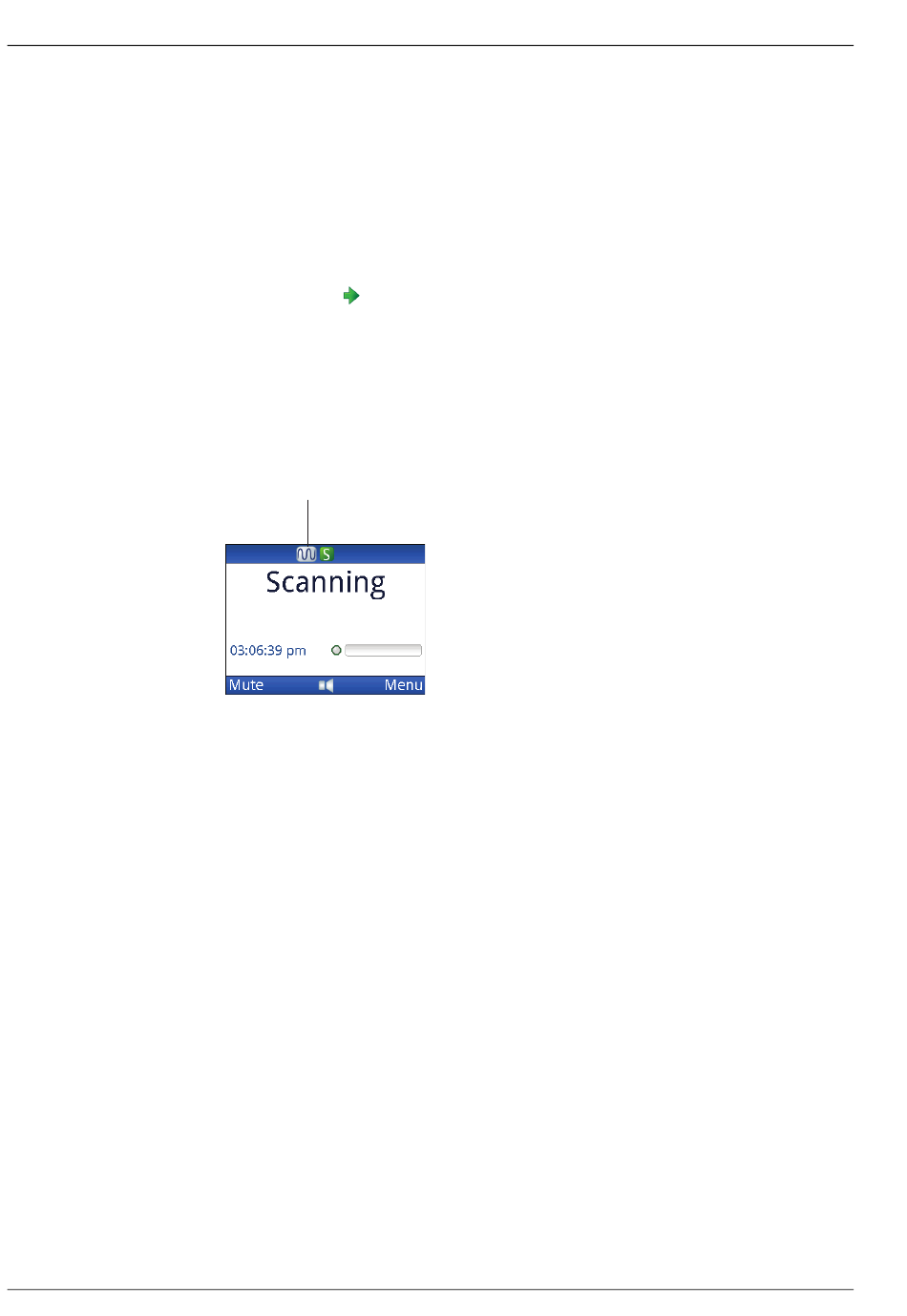

Figure 9:
Related links:
26
in place of the scan indicator. Once a call is established, these
Scanning screen
scan indicator
Call types on page 434
Selecting information to be shown in a status area on page 28
Overview of the 3031 Crosspatch on page 82
Using the clarifier on page 67
