Antenna

The Antenna entry sets the antenna that is used with this channel when a Dual
Antenna Adaptor is attached to the transceiver at the base station. The Dual Antenna
Adaptor may be used with two broadband antennas, or a broadband antenna and a
9103 tuner with a tuned whip antenna, in either position. If both antennas are
broadband antennas, select User Data > Peripherals > Antenna Type >
Broadband. If one of the antennas is a tuned whip with a 9103 tuner, select User
Data > Peripherals > Antenna Type > 9103.
A possible scenario for setting up channels is to have two identical frequencies, with
either 1 or 2 selected for the antenna, then name the channels to reflect the antenna
selection, for example Ch 1 A1 and Ch 1 A2.

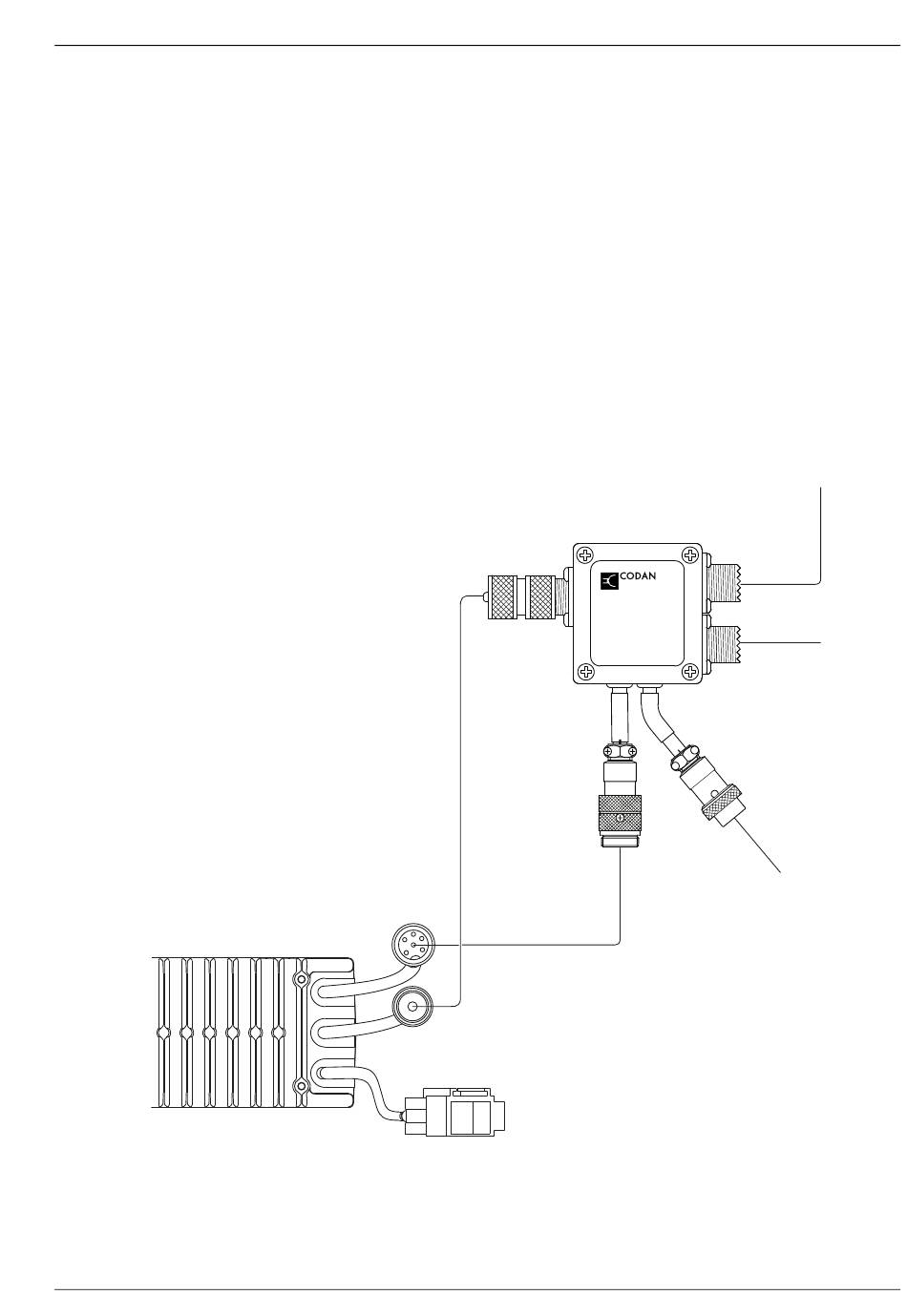

Figure 40:
2210 RFU
E ™ T R
NVOY RANSCEIVER EFERENCE
Connection diagram for dual antennas
antenna control
connector
RF
connector
M
ANUAL
E
Dual Antenna Adaptor
08–06262–001
C
HANNELS
NTRIES FOR A CHANNEL
Antenna 1
Antenna 2
antenna control
(used by 9103 to
control tuned whip
antenna)
