Dc Supply Connector; Rf Connector; Fan Connector; Figure 75: Front View Of The Fan Connector - Codan Envoy Reference Manual

C
ONNECTORS
C RFU
ONNECTORS ON THE

DC supply connector

The DC supply connector is on a flying lead located on the right side of the back panel.
The DC supply connector supplies power to the transceiver system and ancillary
products.

Table 17: Pinouts of the DC supply connector

RF connector

The RF connector is on a flying lead located on the right side of the back panel. It is
used to connect to an antenna.

Fan connector

The fan connector is on a flying lead located at the top left of the back panel. The fan
connector is used when additional cooling is required for the heatsink, for example,
for continuous data communication.

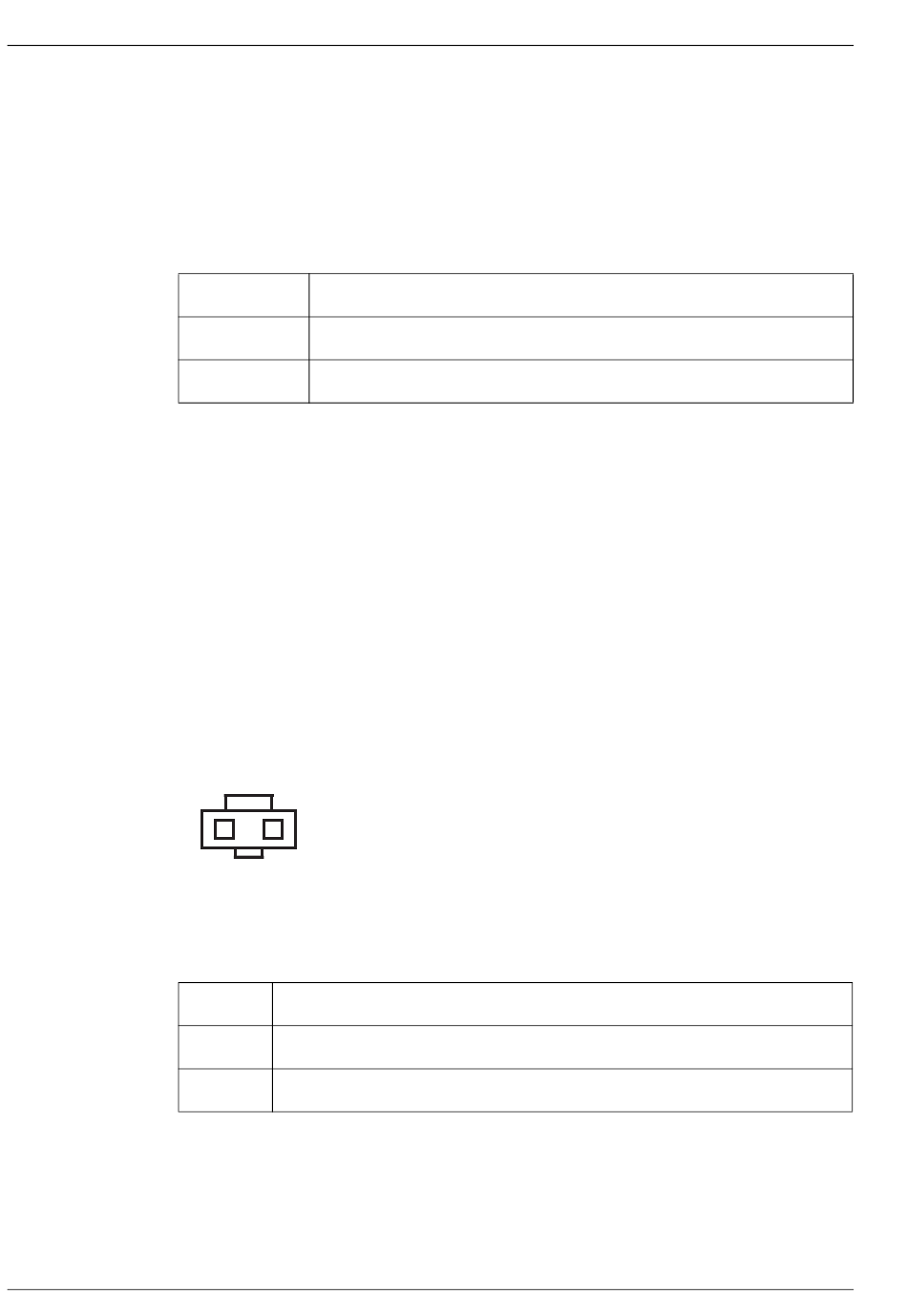

Figure 75:

Table 18: Pinouts of the fan connector

364
Pin Function
+ +13.6 V nominal (10.8 to 16 V DC)
– Ground (0 V)
Front view of the fan connector
– +
Pin Function
– 0 V (when fan is activated)
+ +13.6 V nominal
