The 2230 Desk Console

The 2230 Desk Console is a control point for the Envoy™ Transceiver. The user
interface provides an icon-based menu structure for easy setup and operation of the
transceiver. The desk console is standard for a fixed station.

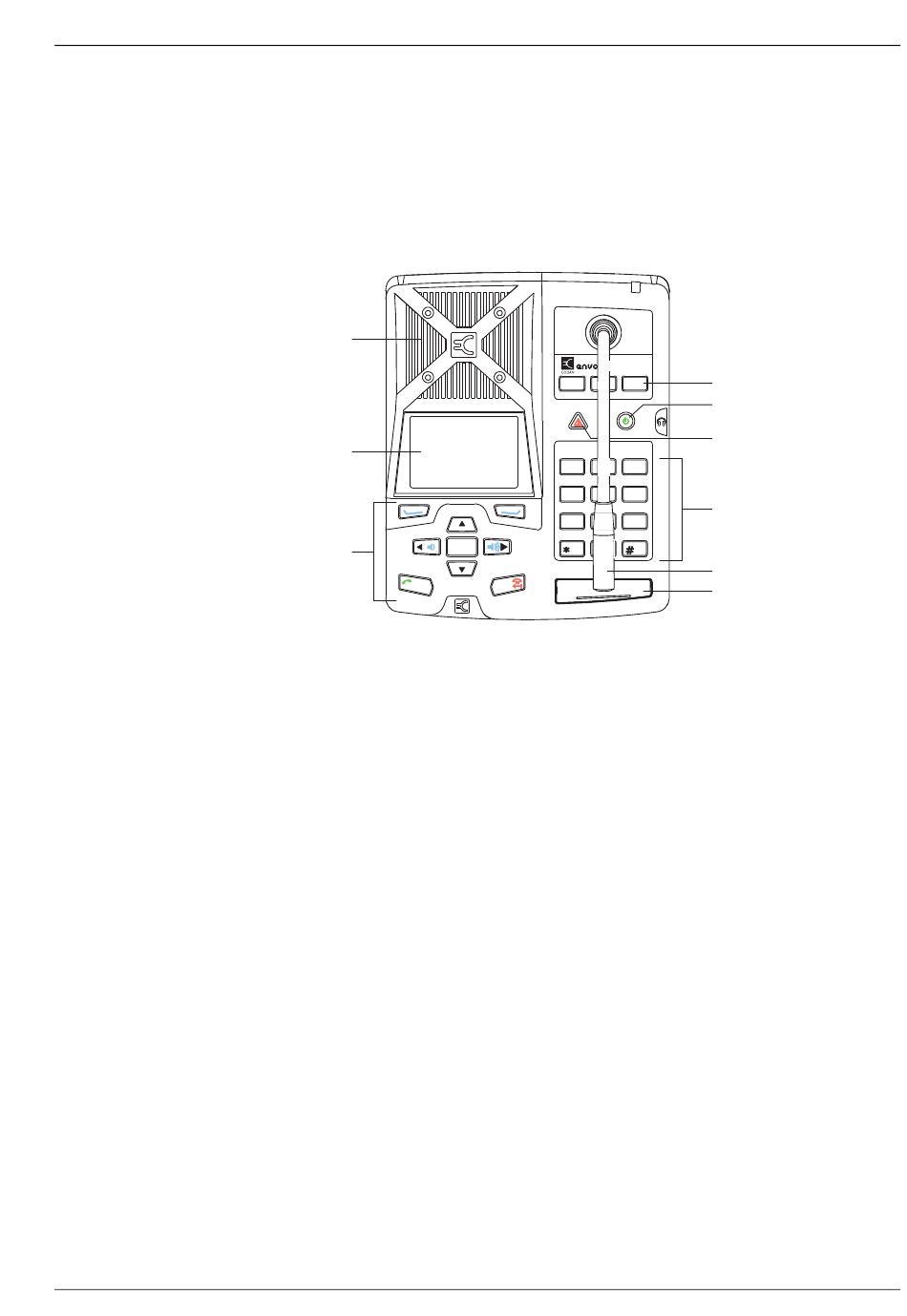

Figure 4:
The 2230 Desk Console has an optional boom microphone, a built-in speaker, a PTT
button, a screen, navigation keys, function keys, and numeric keys. The desk console
also supports the use of headphones, a foot-switched PTT device, and a separate hand
microphone with PTT. The keypad enables you to control and configure the
transceiver system via the user interface.
The 2230 Desk Console is shipped from the factory with standard hot keys
programmed to the numeric keys. The function that each standard hot key performs is
written on the numeric key in blue text. New user-defined functions may be assigned
to most of the keys.
