The 2230 Desk Console

The 2230 Desk Console is a control point for the Envoy Transceiver.
The user interface provides an icon-based menu structure for easy setup
and operation of the transceiver. The desk console is standard for a fixed
station.

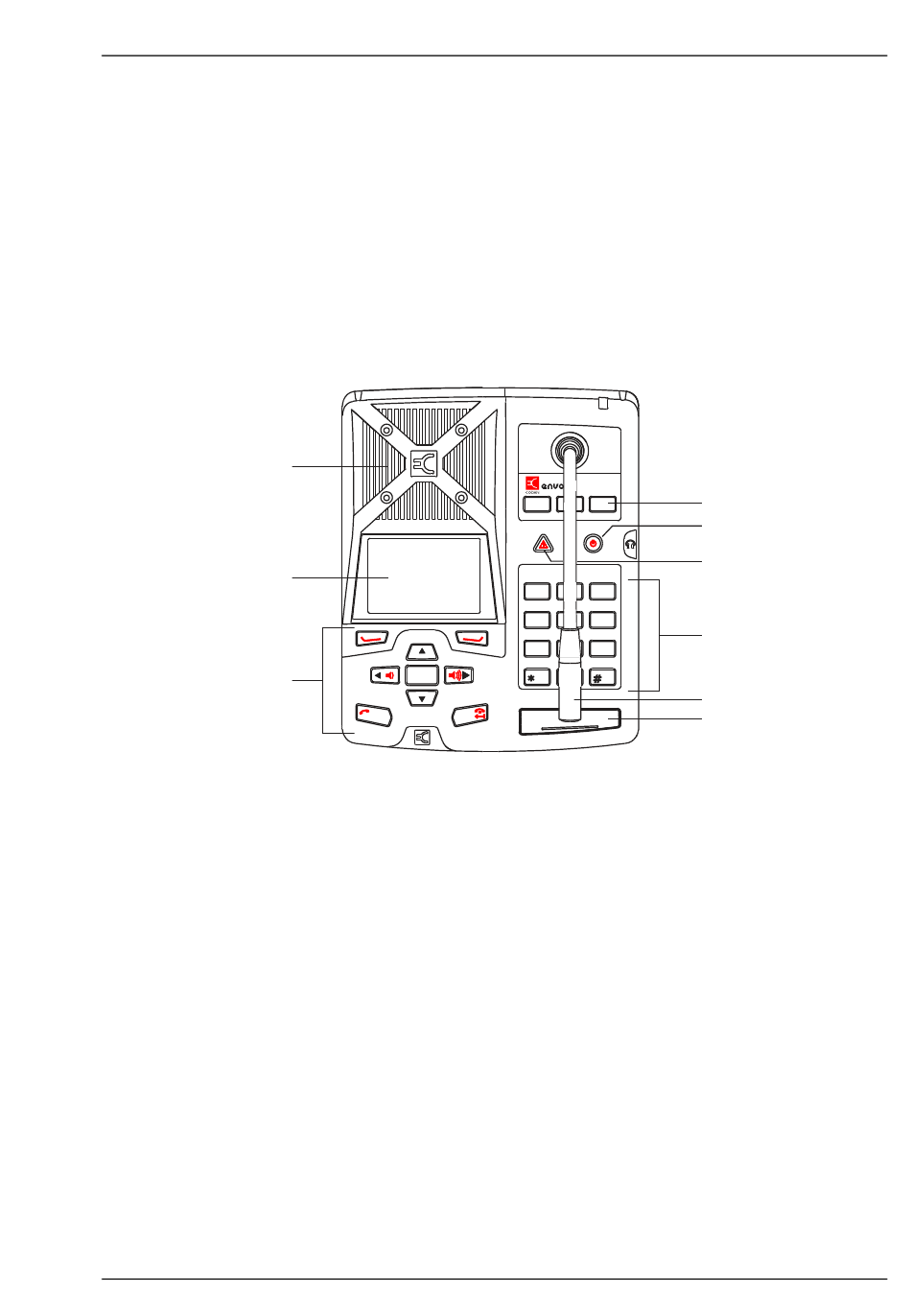

Figure 3:
speaker
screen
navigation and
software keys
The 2230 Desk Console has an optional boom microphone, a built-in
speaker, a PTT button, a screen, navigation keys, function keys, and
numeric keys. The desk console also supports the use of headphones, a
foot-switched PTT device, and a separate hand microphone with PTT.
The keypad enables you to control and configure the transceiver system
via the user interface.
The 2230 Desk Console is shipped from the factory with standard hot
keys programmed to the numeric keys. The function that each standard
hot key performs is written on the numeric key in
user-defined functions may be assigned to most of the keys.
Related links:
E ™ T
NVOY RANSCEIVER
2230 Desk Console
OK
CALL SCAN
Keypad on page 8
Navigating the menu structure on page 127
G S G
ETTING TARTED UIDE
T
HE
Desk Console
F1 F2 F3
TUNE FUNC MODE
1 2 3
ABC DEF
FREE Rx
4 5 6
GHI JKL MNO
V/S SEC GPS
7 8 9
PQRS TUV WXYZ
VIEW
EASI
0
TALK
BLUE
I
NTRODUCTION
2230 D C
ESK ONSOLE
function keys
Power key
Emergency key
numeric keys
boom microphone
PTT
text. New
