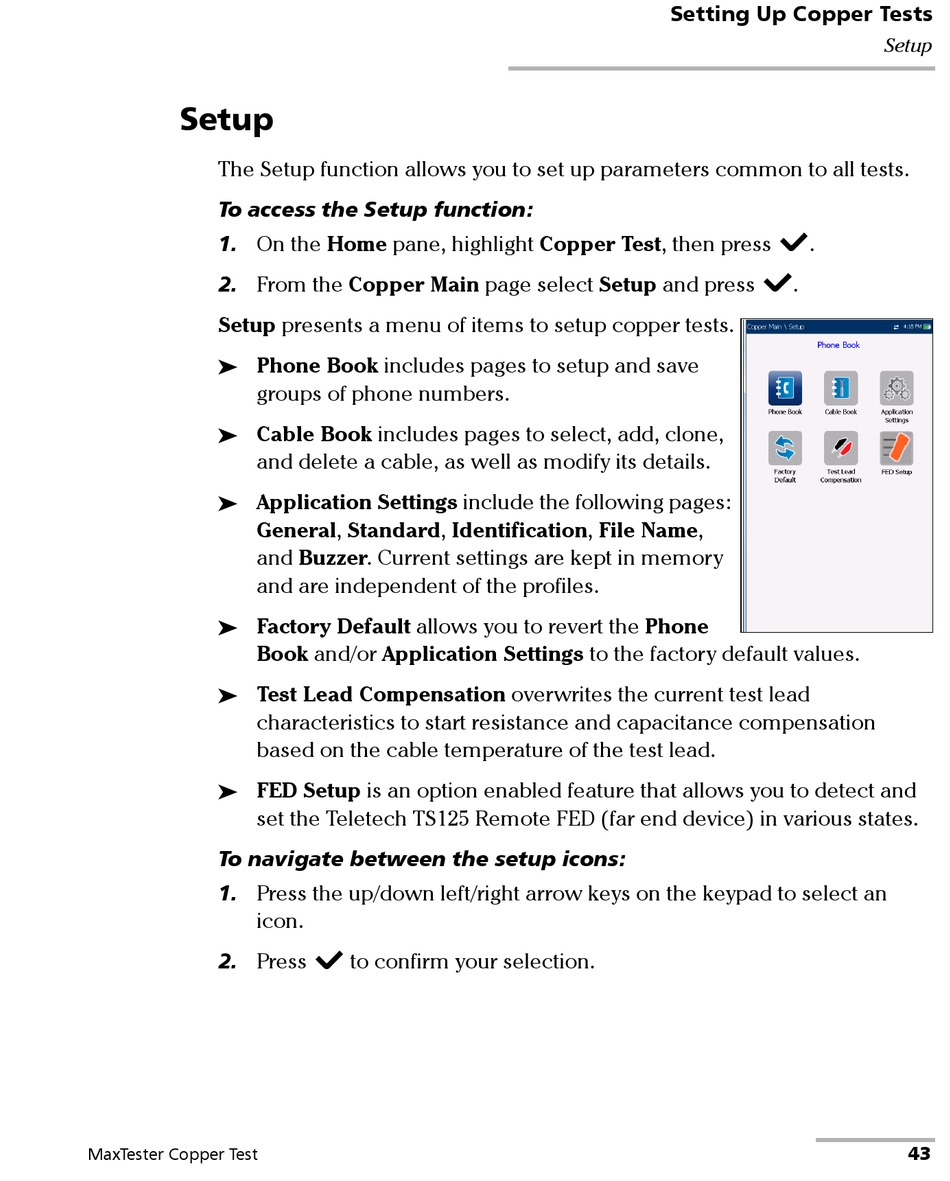

Setup

The Setup function allows you to set up parameters common to all tests.
To access the Setup function:
1. On the Home pane, highlight Copper Test, then press
2. From the Copper Main page select Setup and press
Setup presents a menu of items to setup copper tests.
Phone Book includes pages to setup and save

groups of phone numbers.
Cable Book includes pages to select, add, clone,

and delete a cable, as well as modify its details.
Application Settings include the following pages:

General, Standard, Identification, File Name,
and Buzzer. Current settings are kept in memory
and are independent of the profiles.
Factory Default allows you to revert the Phone

Book and/or Application Settings to the factory default values.
Test Lead Compensation overwrites the current test lead

characteristics to start resistance and capacitance compensation
based on the cable temperature of the test lead.
FED Setup is an option enabled feature that allows you to detect and

set the Teletech TS125 Remote FED (far end device) in various states.
To navigate between the setup icons:
1. Press the up/down left/right arrow keys on the keypad to select an
icon.
2. Press
MaxTester Copper Test
to confirm your selection.
