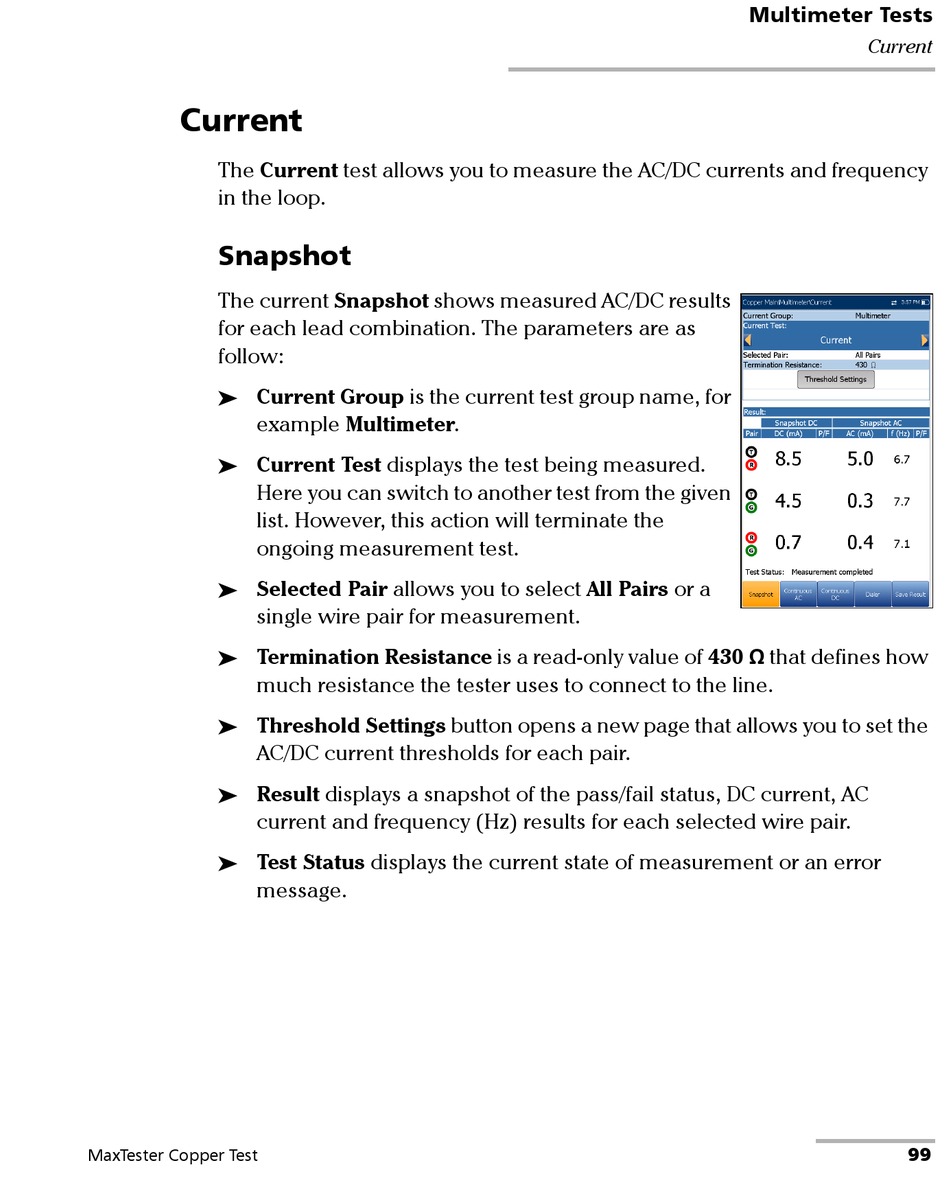

The Current test allows you to measure the AC/DC currents and frequency
in the loop.
Snapshot
The current Snapshot shows measured AC/DC results
for each lead combination. The parameters are as
follow:
Current Group is the current test group name, for

example Multimeter.
Current Test displays the test being measured.

Here you can switch to another test from the given
list. However, this action will terminate the
ongoing measurement test.
Selected Pair allows you to select All Pairs or a

single wire pair for measurement.
Termination Resistance is a read-only value of 430

much resistance the tester uses to connect to the line.
Threshold Settings button opens a new page that allows you to set the

AC/DC current thresholds for each pair.
Result displays a snapshot of the pass/fail status, DC current, AC

current and frequency (Hz) results for each selected wire pair.
Test Status displays the current state of measurement or an error

message.
