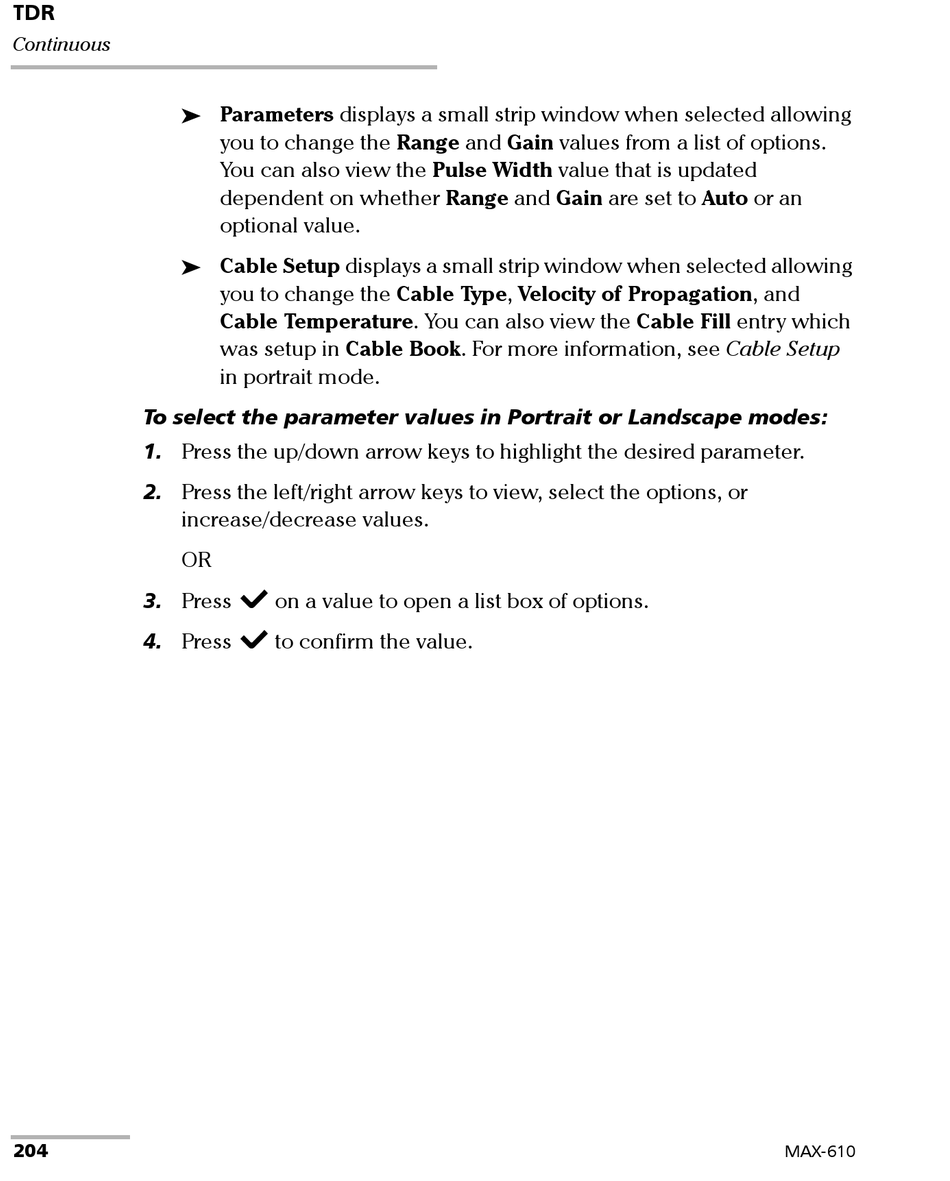

TDR
Continuous


To select the parameter values in Portrait or Landscape modes:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view, select the options, or
increase/decrease values.
OR
3. Press
4. Press
204
Parameters displays a small strip window when selected allowing
you to change the Range and Gain values from a list of options.
You can also view the Pulse Width value that is updated
dependent on whether Range and Gain are set to Auto or an
optional value.
Cable Setup displays a small strip window when selected allowing
you to change the Cable Type, Velocity of Propagation, and
Cable Temperature. You can also view the Cable Fill entry which
was setup in Cable Book. For more information, see Cable Setup
in portrait mode.
on a value to open a list box of options.
to confirm the value.
MAX-610
