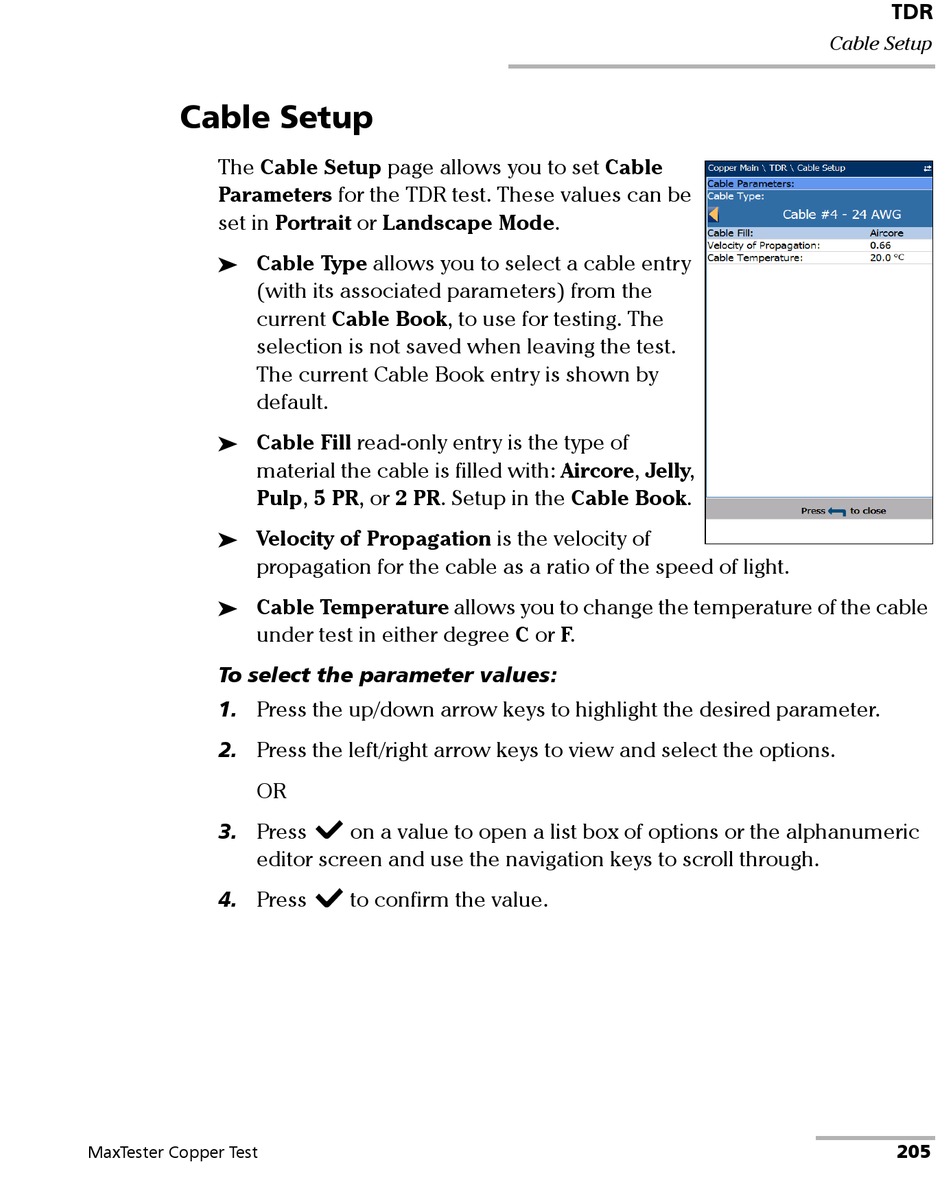

Cable Setup

The Cable Setup page allows you to set Cable
Parameters for the TDR test. These values can be
set in Portrait or Landscape Mode.
Cable Type allows you to select a cable entry

(with its associated parameters) from the
current Cable Book, to use for testing. The
selection is not saved when leaving the test.
The current Cable Book entry is shown by
default.
Cable Fill read-only entry is the type of

material the cable is filled with: Aircore, Jelly,
Pulp, 5 PR, or 2 PR. Setup in the Cable Book.
Velocity of Propagation is the velocity of

propagation for the cable as a ratio of the speed of light.
Cable Temperature allows you to change the temperature of the cable

under test in either degree C or F.
To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press
editor screen and use the navigation keys to scroll through.
4. Press
MaxTester Copper Test
on a value to open a list box of options or the alphanumeric
to confirm the value.
TDR
Cable Setup
205
