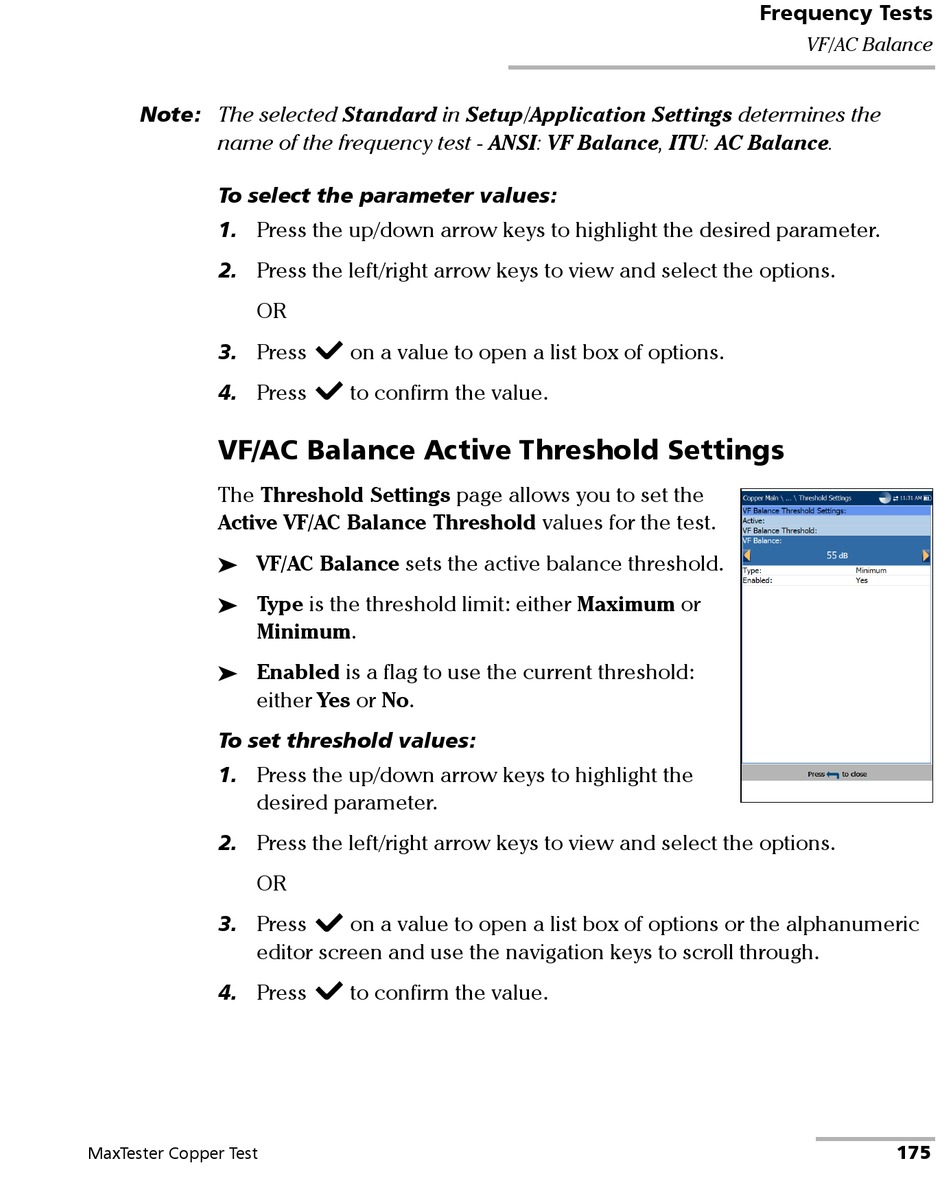

EXFO MaxTester Max-610 User Manual page 183

Note: The selected Standard in Setup/Application Settings determines the
name of the frequency test - ANSI: VF Balance, ITU: AC Balance.
To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press
4. Press
VF/AC Balance Active Threshold Settings
The Threshold Settings page allows you to set the
Active VF/AC Balance Threshold values for the test.
VF/AC Balance sets the active balance threshold.

Type is the threshold limit: either Maximum or

Minimum.
Enabled is a flag to use the current threshold:

either Yes or No.
To set threshold values:
1. Press the up/down arrow keys to highlight the
desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press
editor screen and use the navigation keys to scroll through.
4. Press
MaxTester Copper Test
on a value to open a list box of options.
to confirm the value.
on a value to open a list box of options or the alphanumeric
to confirm the value.
Frequency Tests
VF/AC Balance
175
