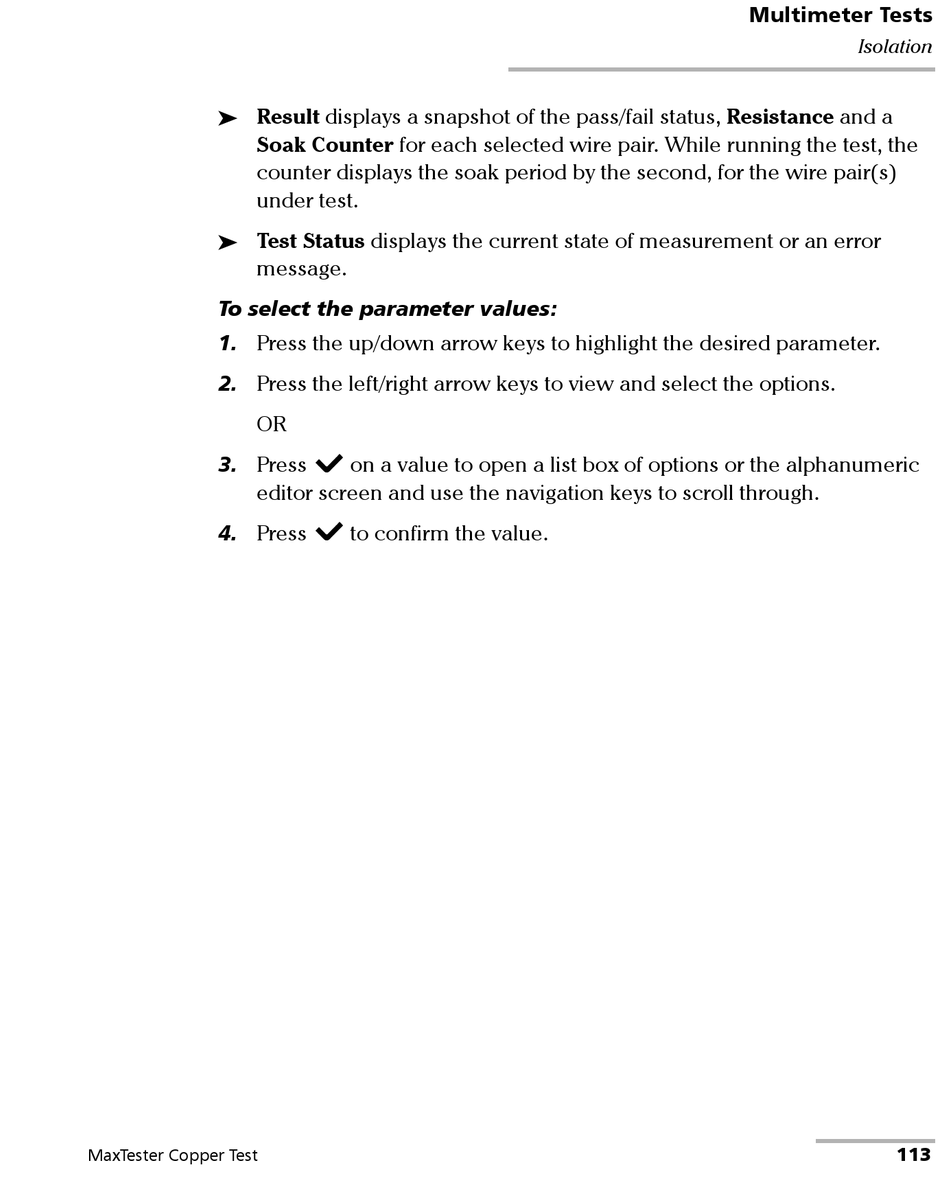

EXFO MaxTester Max-610 User Manual page 121

Result displays a snapshot of the pass/fail status, Resistance and a

Soak Counter for each selected wire pair. While running the test, the
counter displays the soak period by the second, for the wire pair(s)
under test.
Test Status displays the current state of measurement or an error

message.
To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press
editor screen and use the navigation keys to scroll through.
4. Press
MaxTester Copper Test
on a value to open a list box of options or the alphanumeric
to confirm the value.
