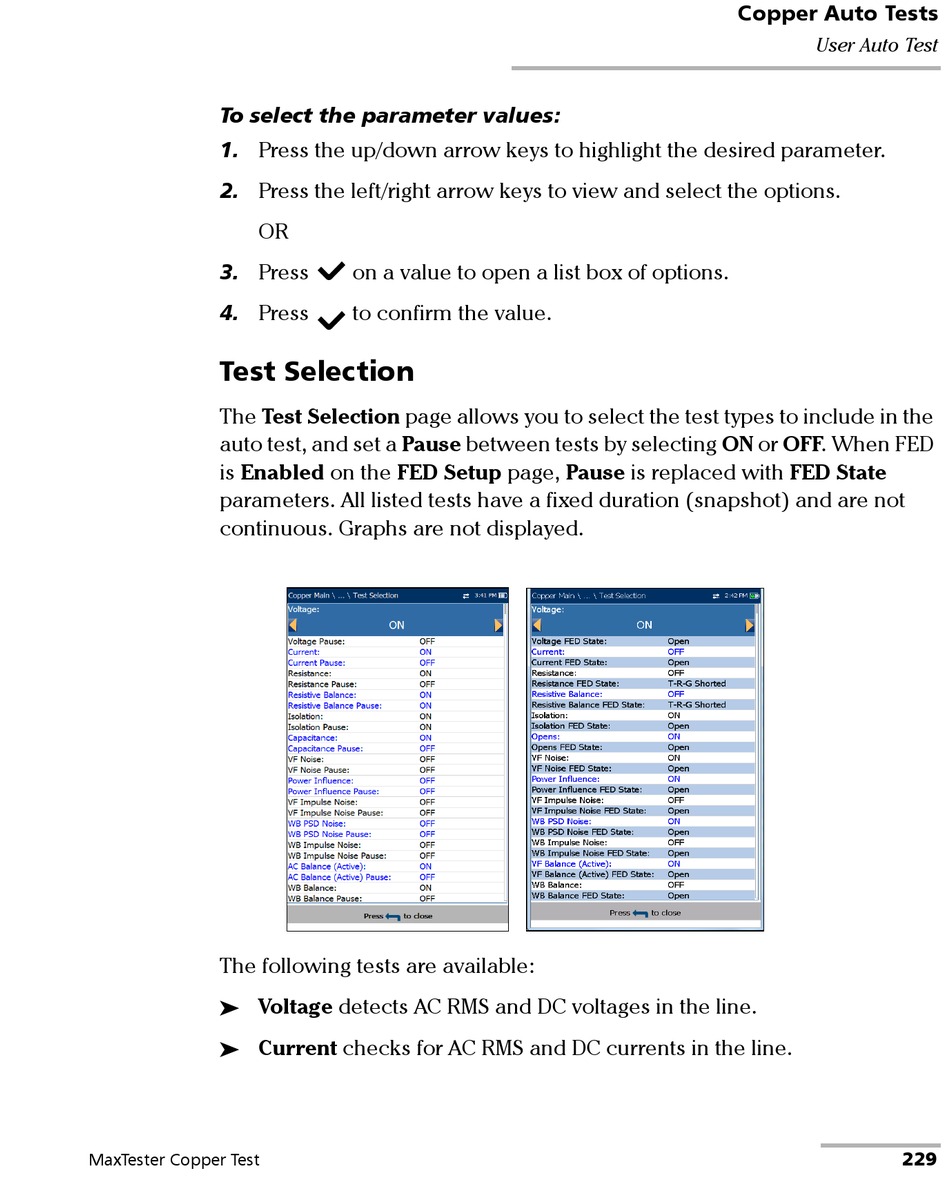

EXFO MaxTester Max-610 User Manual page 237

To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press
4. Press
Test Selection
The Test Selection page allows you to select the test types to include in the
auto test, and set a Pause between tests by selecting ON or OFF. When FED
is Enabled on the FED Setup page, Pause is replaced with FED State
parameters. All listed tests have a fixed duration (snapshot) and are not
continuous. Graphs are not displayed.
The following tests are available:
Voltage detects AC RMS and DC voltages in the line.

Current checks for AC RMS and DC currents in the line.

MaxTester Copper Test
on a value to open a list box of options.
to confirm the value.
Copper Auto Tests
User Auto Test
229
