Reading Saved Copper Test Results

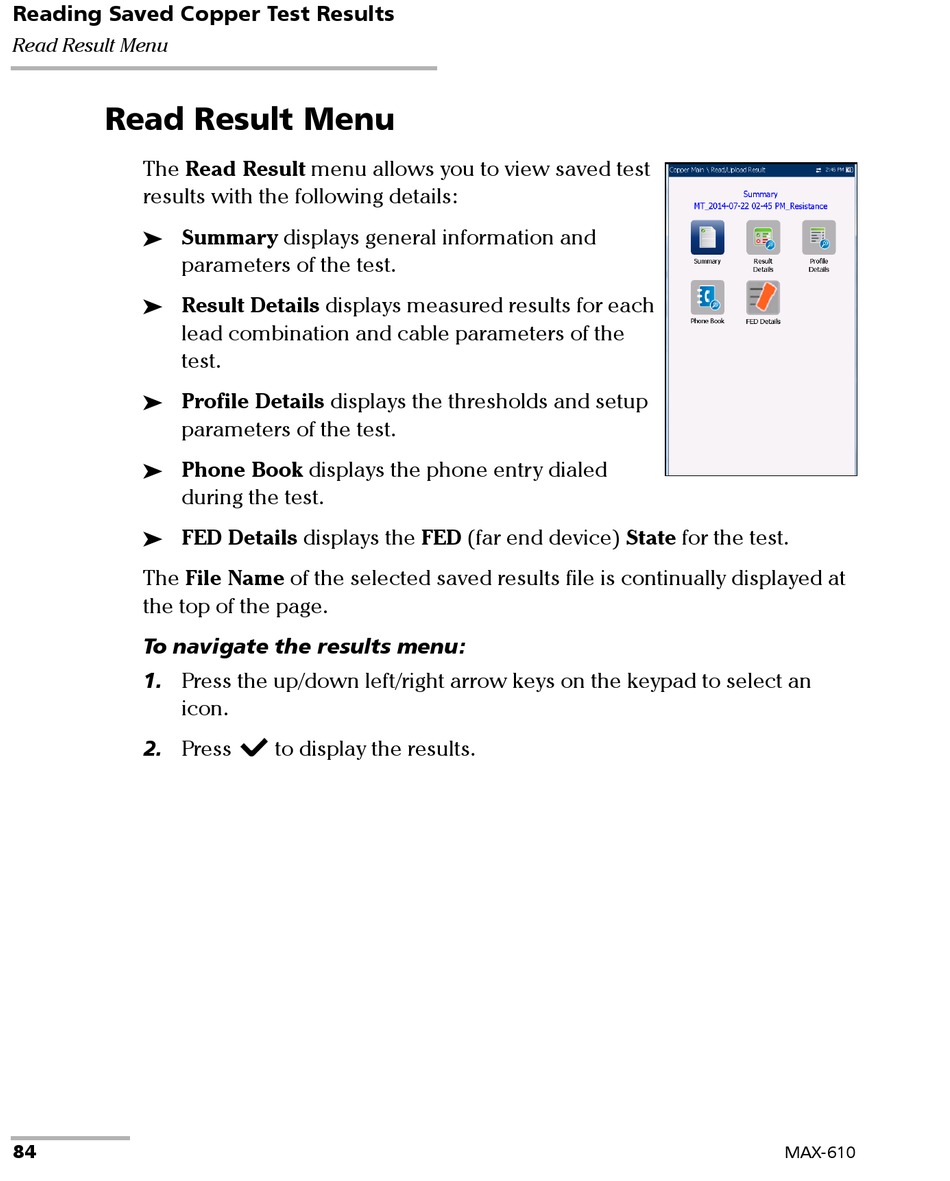

Read Result Menu

Read Result Menu
The Read Result menu allows you to view saved test
results with the following details:
Summary displays general information and

parameters of the test.
Result Details displays measured results for each

lead combination and cable parameters of the
test.
Profile Details displays the thresholds and setup

parameters of the test.
Phone Book displays the phone entry dialed

during the test.
FED Details displays the FED (far end device) State for the test.

The File Name of the selected saved results file is continually displayed at
the top of the page.
To navigate the results menu:
1. Press the up/down left/right arrow keys on the keypad to select an
icon.
2. Press
84
to display the results.
MAX-610
