Multimeter Tests

Station Ground

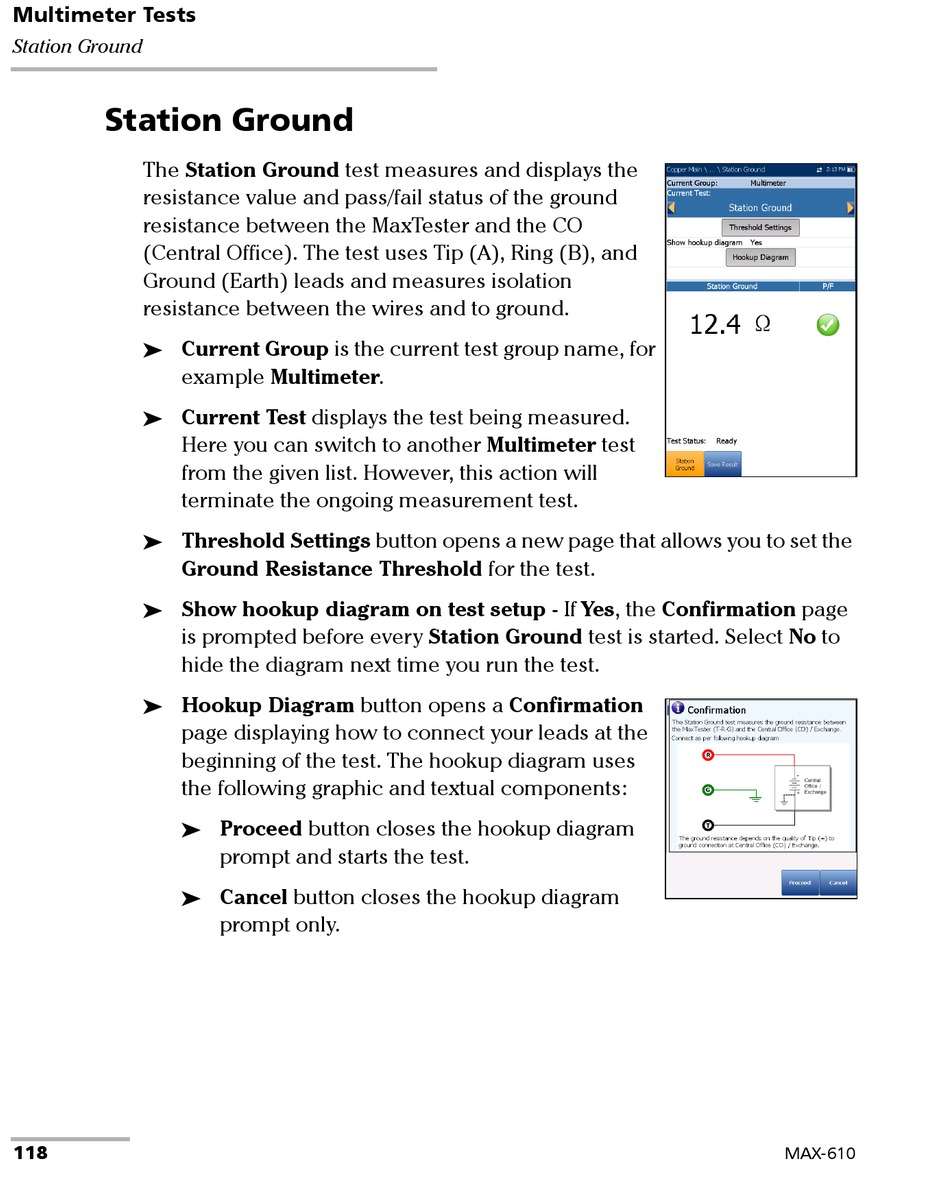

Station Ground
The Station Ground test measures and displays the
resistance value and pass/fail status of the ground
resistance between the MaxTester and the CO
(Central Office). The test uses Tip (A), Ring (B), and
Ground (Earth) leads and measures isolation
resistance between the wires and to ground.
Current Group is the current test group name, for

example Multimeter.
Current Test displays the test being measured.

Here you can switch to another Multimeter test
from the given list. However, this action will
terminate the ongoing measurement test.
Threshold Settings button opens a new page that allows you to set the

Ground Resistance Threshold for the test.
Show hookup diagram on test setup - If Yes, the Confirmation page

is prompted before every Station Ground test is started. Select No to
hide the diagram next time you run the test.
Hookup Diagram button opens a Confirmation

page displaying how to connect your leads at the
beginning of the test. The hookup diagram uses
the following graphic and textual components:


118
Proceed button closes the hookup diagram
prompt and starts the test.
Cancel button closes the hookup diagram
prompt only.
