Summary of Contents for EXFO FLS-240
- Page 1 User Guide FLS-240 Pocket Pal Visual Fault Locator...
- Page 2 EXFO Inc. (EXFO). Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use.
-
Page 3: Table Of Contents
Contents Certification Information ....................... iv 1 Introducing the FLS-240 Pocket Pal Visual Fault Locator ......1 Main Features .........................1 Conventions ..........................3 2 Safety Information ..................5 3 Operating Your Pocket Pal ................7 4 Maintenance and Troubleshooting ............. 9 Cleaning the Connector Adapter ....................9 Replacing Batteries .........................9... -
Page 4: Certification Information
Electronic test and measurement equipment is exempt from FCC part 15, subpart B compliance in the United States of America and from ICES-003 compliance in Canada. However, EXFO Inc. makes reasonable efforts to ensure compliance to the applicable standards. The limits set by these standards are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 5 Tel.: +44 2380 246810 Equipment Type/Environment: Test & Measurement / Industrial Trade Name/Model No.: Visual Fault Locator / FLS-240 Pocket Pal Standard(s) to which Conformity is declared: Electrical equipment for measurement, control and laboratory use – EN 61326-1:2006 EMC requirements – Part 1: General requirements Safety of laser products –...
-
Page 7: Introducing The Fls-240 Pocket Pal Visual Fault Locator

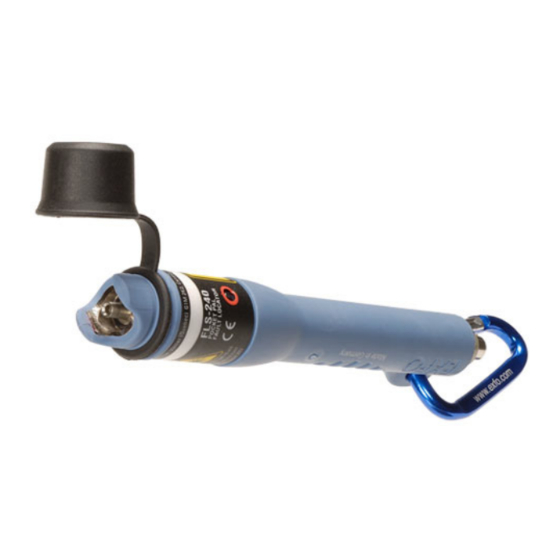

Introducing the FLS-240 Pocket Pal Visual Fault Locator Main Features The Pocket Pal is a visual fault locator that emits a pulsating or continuous (CW) bright red laser signal, often visible through the patchcord jacket, at the exact fault location, in both singlemode and multimode fibers. - Page 8 Introducing the FLS-240 Pocket Pal Visual Fault Locator Main Features Your Pocket Pal can be used in different ways, including the following: Detecting breaks in OTDR Detecting defective connectors dead zone Highlighting sharp bends Ensuring end-to-end fiber ...
-
Page 9: Conventions
Introducing the FLS-240 Pocket Pal Visual Fault Locator Conventions Conventions Before using the product described in this guide, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions. -
Page 11: Safety Information
Safety Information ARNING Do not install or terminate fibers while a light source is active. Never look directly into a live fiber and ensure that your eyes are protected at all times. ARNING The use of controls, adjustments and procedures other than those specified herein may result in exposure to hazardous situations or impair the protection provided by this unit. - Page 12 The following label(s) indicate that the product contains a Class 2M source: Sticker affixed on the unit’s laser head Wavelength: 635 nm ±10 nm Maximum output power at the connector: less than 1 mW FLS-240...
-
Page 13: Operating Your Pocket Pal
Operating Your Pocket Pal To activate the Pocket Pal’s VFL: 1. Remove the protective cap. 2. Connect the fiber you want to use to the adapter. Ensure that the connector is inserted all the way into the adapter. 3. Press the on/off button to turn the VFL laser on in pulsating mode. 4. -
Page 15: Maintenance And Troubleshooting
Maintenance and Troubleshooting Cleaning the Connector Adapter To prevent dust and dirt from entering the connector, always replace the protective cap on the adapter when not in use. Clean the adapter using a lint-free swab dipped in isopropyl alcohol (98 % pure or more). Then, blow-dry with compressed air. -
Page 16: Contacting The Technical Support Group
Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 8:00 a.m. to 7:00 p.m. -
Page 17: Recycling And Disposal (Applies To European Union Only)
Maintenance and Troubleshooting Recycling and Disposal (Applies to European Union Only) Recycling and Disposal (Applies to European Union Only) For complete recycling/disposal information as per European Directive WEEE 2012/19/UE, visit the EXFO Web site at www.exfo.com/recycle. Pocket Pal... -
Page 19: Warranty
Warranty General Information EXFO Inc. (EXFO) warrants this equipment against defects in material and workmanship for a period of one year from the date of original shipment. EXFO also warrants that this equipment will meet applicable specifications under normal use. -
Page 20: Liability
Liability Liability EXFO shall not be liable for damages resulting from the use of the product, nor shall be responsible for any failure in the performance of other items to which the product is connected or the operation of any system of which the product may be a part. -
Page 21: Exclusions
Warranty Exclusions Exclusions EXFO reserves the right to make changes in the design or construction of any of its products at any time without incurring obligation to make any changes whatsoever on units purchased. Accessories, including but not limited to fuses, pilot lamps, batteries and universal interfaces (EUI) used with EXFO products are not covered by this warranty. -
Page 22: Service And Repairs
5. Return the equipment, prepaid, to the address given to you by support personnel. Be sure to write the RMA number on the shipping slip. EXFO will refuse and return any package that does not bear an RMA number. -
Page 23: Exfo Service Centers Worldwide
Warranty EXFO Service Centers Worldwide EXFO Service Centers Worldwide If your product requires servicing, contact your nearest authorized service center. EXFO Headquarters Service Center 400 Godin Avenue 1 866 683-0155 (USA and Canada) Quebec (Quebec) G1M 2K2 Tel.: 1 418 683-5498... -
Page 25: A Technical Specifications
The following technical specifications can change without notice. The information presented in this section is provided as a reference only. To obtain this product’s most recent technical specifications, visit the EXFO Web site at www.exfo.com. SPECIFICATIONS GENERAL SPECIFICATIONS Operation (Hz) - Page 26 CHINESE REGULATION ON RESTRICTION OF HAZARDOUS SUBSTANCES NAMES AND CONTENTS OF THE TOXIC OR HAZARDOUS SUBSTANCES OR ELEMENTS CONTAINED IN THIS EXFO PRODUCT EXFO Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006...
- Page 27 MARKING REQUIREMENTS Product Environmental protection use period (years) Logo This Exfo product EXFO Battery If applicable.
- Page 28 Tel.: 1 978 367-5600 · Fax: 1 978 367-5700 EXFO FINLAND Elektroniikkatie 2 FI-90590 Oulu, FINLAND Tel.: +358 (0) 403 010 300 · Fax: +358 (0) 8 564 5203 TOLL-FREE (USA and Canada) 1 800 663-3936 © 2013 EXFO Inc. All rights reserved. Printed in Canada (2013-06) ...
