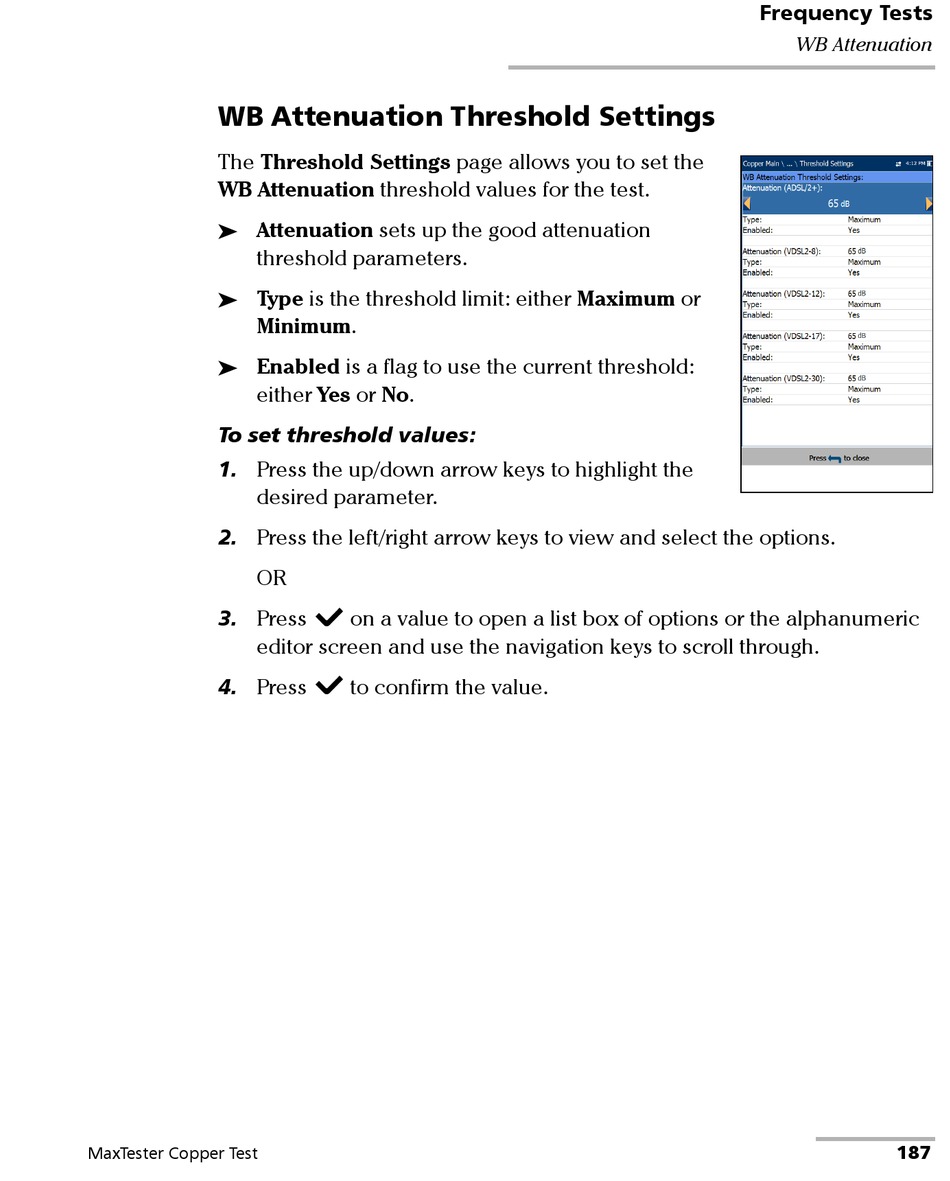

EXFO MaxTester Max-610 User Manual page 195

WB Attenuation Threshold Settings
The Threshold Settings page allows you to set the
WB Attenuation threshold values for the test.
Attenuation sets up the good attenuation

threshold parameters.
Type is the threshold limit: either Maximum or

Minimum.
Enabled is a flag to use the current threshold:

either Yes or No.
To set threshold values:
1. Press the up/down arrow keys to highlight the
desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press
editor screen and use the navigation keys to scroll through.
4. Press
MaxTester Copper Test
on a value to open a list box of options or the alphanumeric
to confirm the value.
Frequency Tests
WB Attenuation
187
