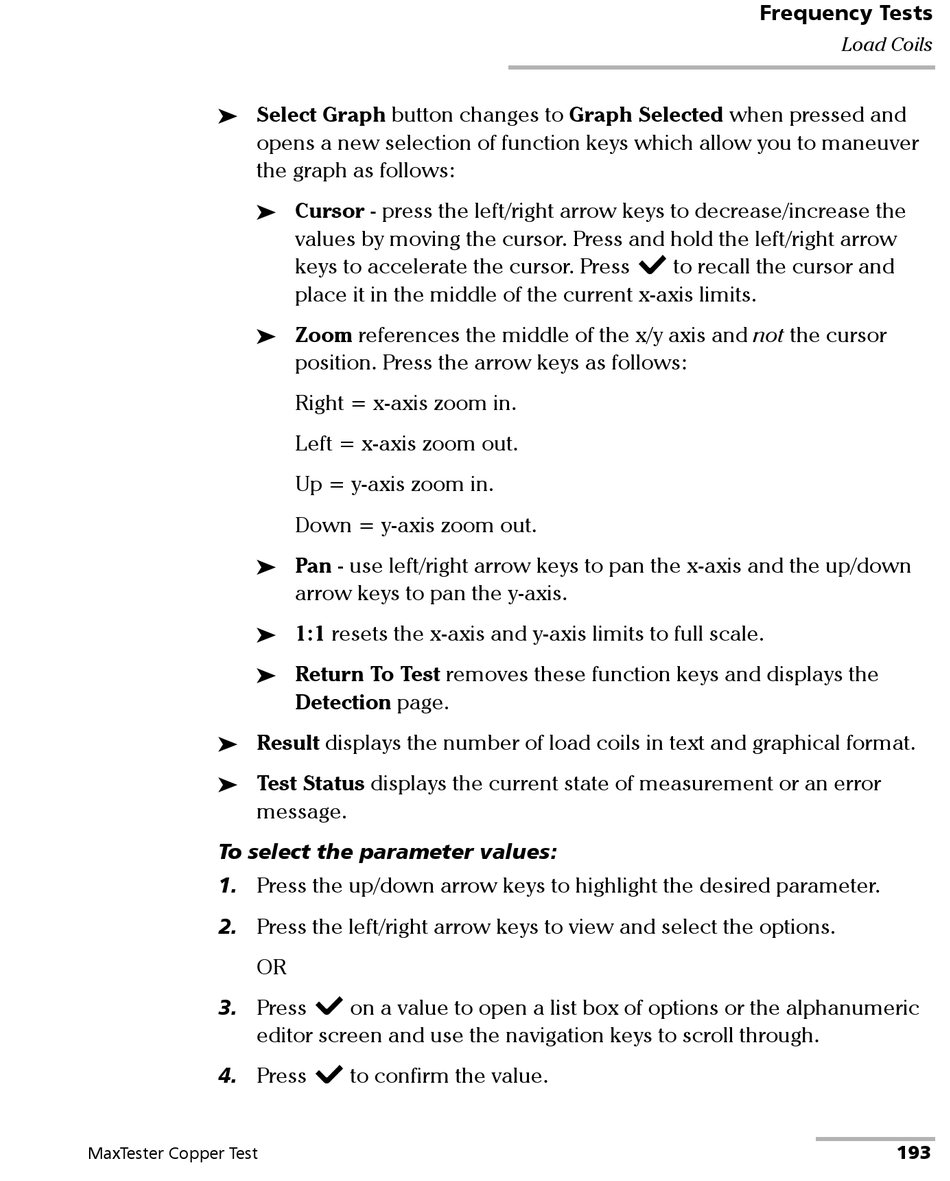

EXFO MaxTester Max-610 User Manual page 201

Select Graph button changes to Graph Selected when pressed and

opens a new selection of function keys which allow you to maneuver
the graph as follows:





Result displays the number of load coils in text and graphical format.

Test Status displays the current state of measurement or an error

message.
To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press
editor screen and use the navigation keys to scroll through.
4. Press
MaxTester Copper Test
Cursor - press the left/right arrow keys to decrease/increase the
values by moving the cursor. Press and hold the left/right arrow
keys to accelerate the cursor. Press
place it in the middle of the current x-axis limits.
Zoom references the middle of the x/y axis and not the cursor
position. Press the arrow keys as follows:
Right = x-axis zoom in.
Left = x-axis zoom out.
Up = y-axis zoom in.
Down = y-axis zoom out.
Pan - use left/right arrow keys to pan the x-axis and the up/down
arrow keys to pan the y-axis.
1:1 resets the x-axis and y-axis limits to full scale.
Return To Test removes these function keys and displays the
Detection page.
on a value to open a list box of options or the alphanumeric
to confirm the value.
Frequency Tests
Load Coils
to recall the cursor and
