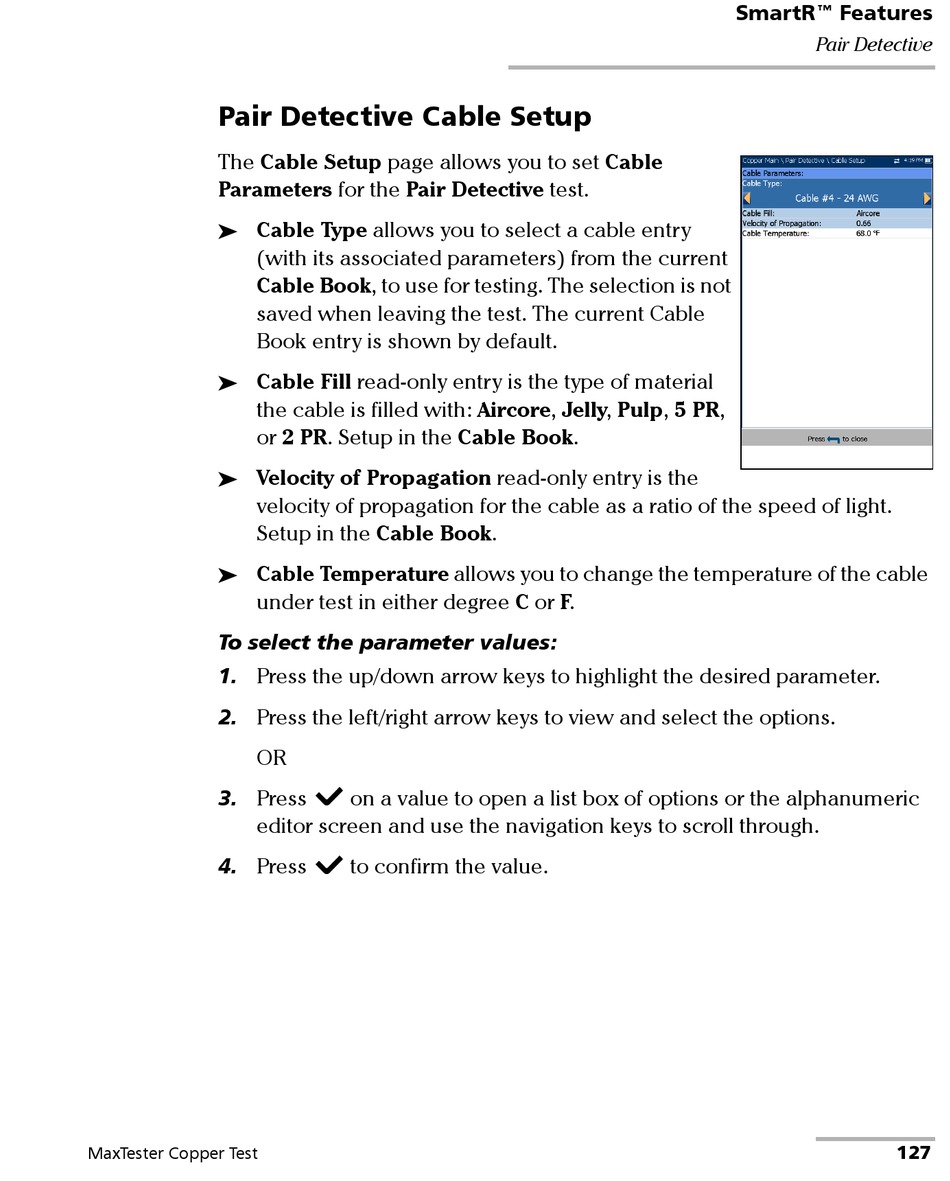

Pair Detective Cable Setup
The Cable Setup page allows you to set Cable
Parameters for the Pair Detective test.
Cable Type allows you to select a cable entry

(with its associated parameters) from the current
Cable Book, to use for testing. The selection is not
saved when leaving the test. The current Cable
Book entry is shown by default.
Cable Fill read-only entry is the type of material

the cable is filled with: Aircore, Jelly, Pulp, 5 PR,
or 2 PR. Setup in the Cable Book.
Velocity of Propagation read-only entry is the

velocity of propagation for the cable as a ratio of the speed of light.
Setup in the Cable Book.
Cable Temperature allows you to change the temperature of the cable

under test in either degree C or F.
To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press
editor screen and use the navigation keys to scroll through.
4. Press
MaxTester Copper Test
on a value to open a list box of options or the alphanumeric
to confirm the value.
