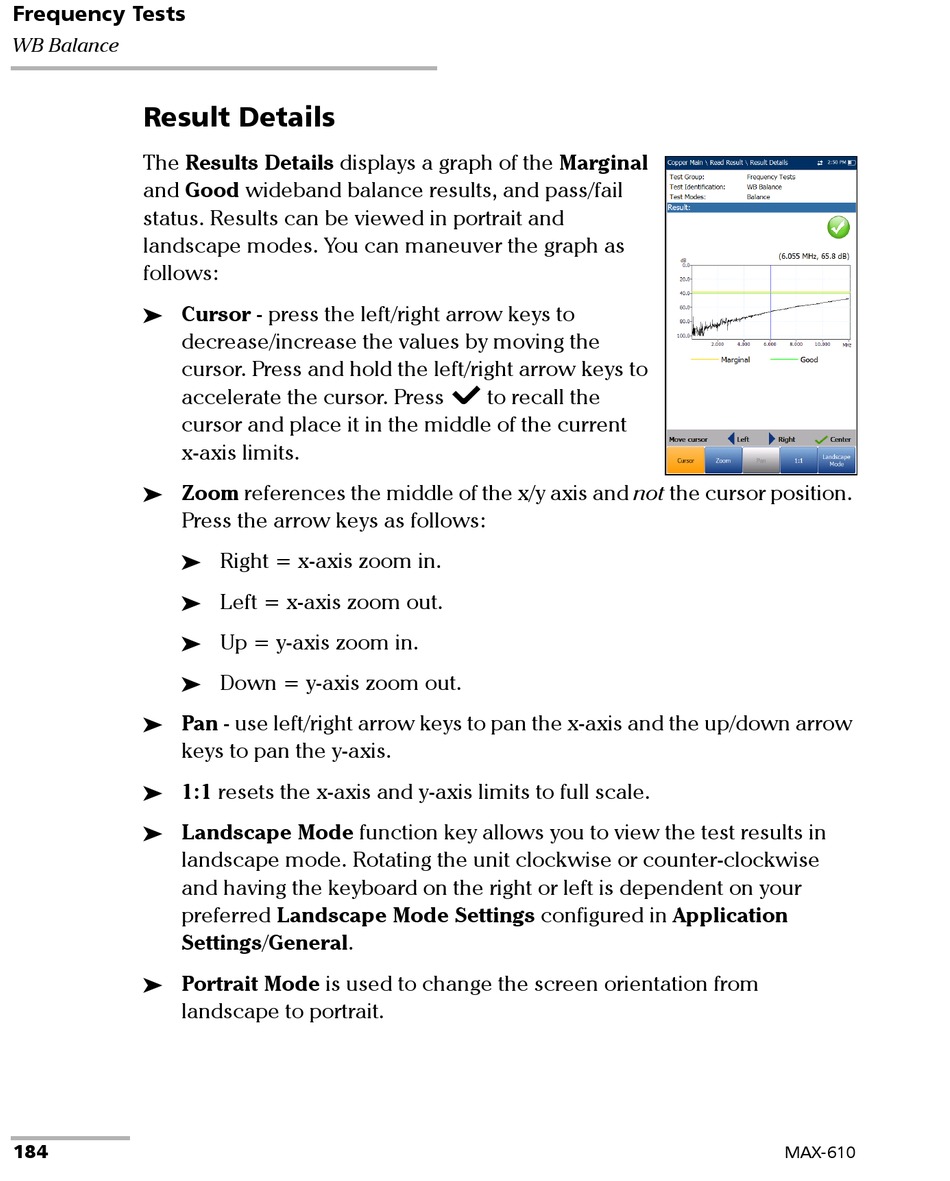

EXFO MaxTester Max-610 User Manual page 192

Frequency Tests
WB Balance
Result Details
The Results Details displays a graph of the Marginal
and Good wideband balance results, and pass/fail
status. Results can be viewed in portrait and
landscape modes. You can maneuver the graph as
follows:
Cursor - press the left/right arrow keys to

decrease/increase the values by moving the
cursor. Press and hold the left/right arrow keys to
accelerate the cursor. Press
cursor and place it in the middle of the current
x-axis limits.
Zoom references the middle of the x/y axis and not the cursor position.

Press the arrow keys as follows:




Pan - use left/right arrow keys to pan the x-axis and the up/down arrow

keys to pan the y-axis.
1:1 resets the x-axis and y-axis limits to full scale.

Landscape Mode function key allows you to view the test results in

landscape mode. Rotating the unit clockwise or counter-clockwise
and having the keyboard on the right or left is dependent on your
preferred Landscape Mode Settings configured in Application
Settings/General.
Portrait Mode is used to change the screen orientation from

landscape to portrait.
184
Right = x-axis zoom in.
Left = x-axis zoom out.
Up = y-axis zoom in.
Down = y-axis zoom out.
to recall the
