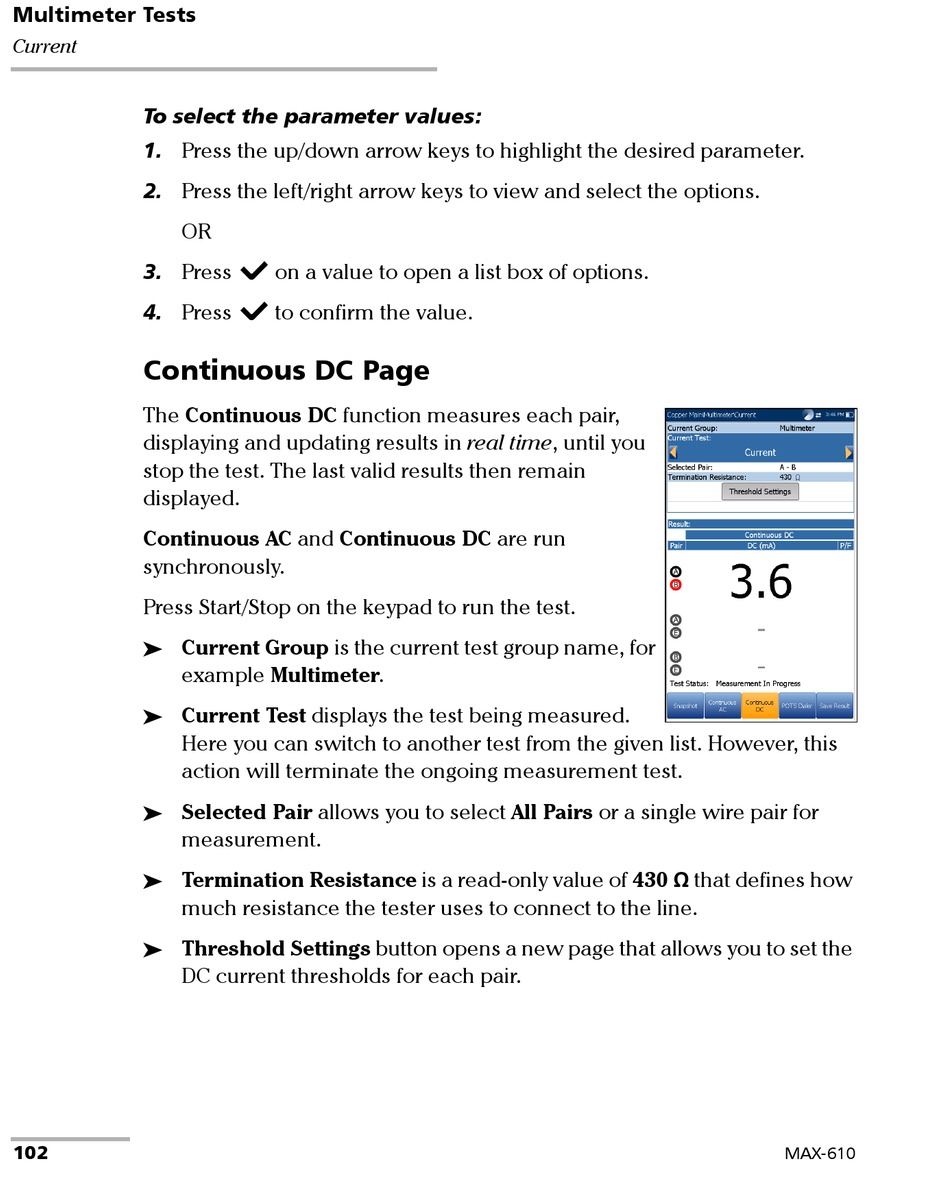

EXFO MaxTester Max-610 User Manual page 110

Multimeter Tests
Current
To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press
4. Press
Continuous DC Page
The Continuous DC function measures each pair,
displaying and updating results in real time, until you
stop the test. The last valid results then remain
displayed.
Continuous AC and Continuous DC are run
synchronously.
Press Start/Stop on the keypad to run the test.
Current Group is the current test group name, for

example Multimeter.
Current Test displays the test being measured.

Here you can switch to another test from the given list. However, this
action will terminate the ongoing measurement test.
Selected Pair allows you to select All Pairs or a single wire pair for

measurement.
Termination Resistance is a read-only value of 430

much resistance the tester uses to connect to the line.
Threshold Settings button opens a new page that allows you to set the

DC current thresholds for each pair.
102
on a value to open a list box of options.
to confirm the value.
that defines how
Ω
