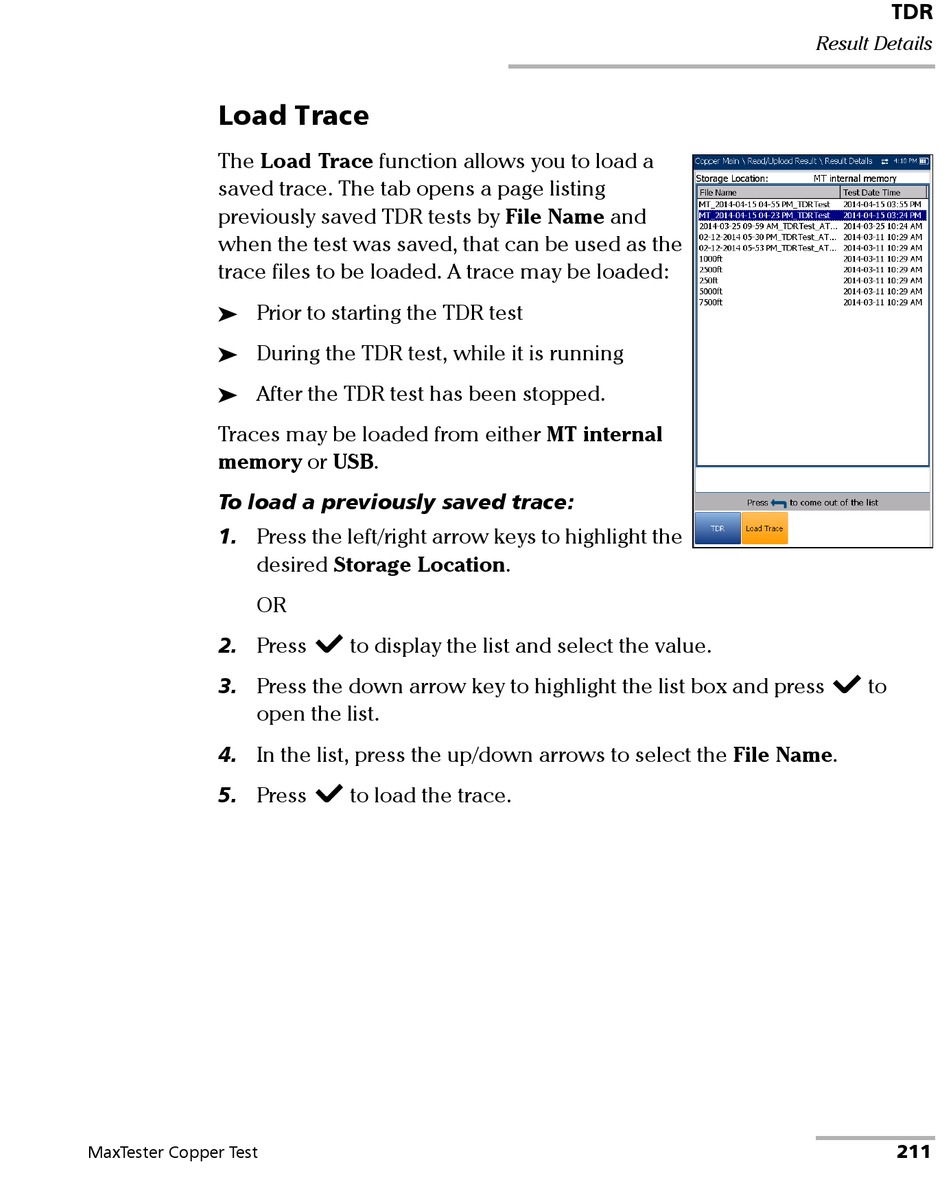

EXFO MaxTester Max-610 User Manual page 219

Load Trace
The Load Trace function allows you to load a
saved trace. The tab opens a page listing
previously saved TDR tests by File Name and
when the test was saved, that can be used as the
trace files to be loaded. A trace may be loaded:
Prior to starting the TDR test

During the TDR test, while it is running

After the TDR test has been stopped.

Traces may be loaded from either MT internal
memory or USB.
To load a previously saved trace:
1. Press the left/right arrow keys to highlight the
desired Storage Location.
OR
2. Press
3. Press the down arrow key to highlight the list box and press
open the list.
4. In the list, press the up/down arrows to select the File Name.
5. Press
MaxTester Copper Test
to display the list and select the value.
to load the trace.
