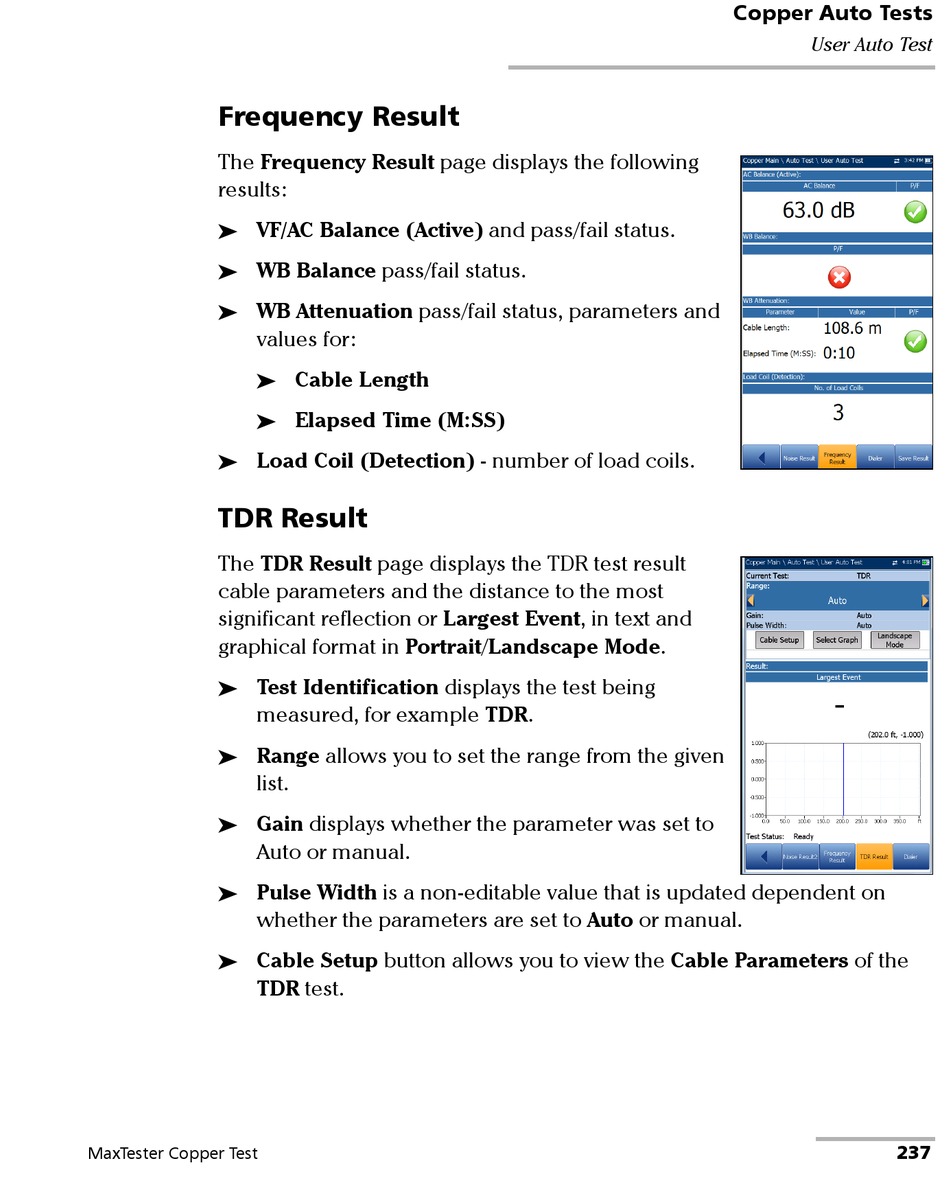

Frequency Result
The Frequency Result page displays the following
results:
VF/AC Balance (Active) and pass/fail status.

WB Balance pass/fail status.

WB Attenuation pass/fail status, parameters and

values for:


Load Coil (Detection) - number of load coils.

TDR Result
The TDR Result page displays the TDR test result
cable parameters and the distance to the most
significant reflection or Largest Event, in text and
graphical format in Portrait/Landscape Mode.
Test Identification displays the test being

measured, for example TDR.
Range allows you to set the range from the given

list.
Gain displays whether the parameter was set to

Auto or manual.
Pulse Width is a non-editable value that is updated dependent on

whether the parameters are set to Auto or manual.
Cable Setup button allows you to view the Cable Parameters of the

TDR test.
MaxTester Copper Test
Cable Length
Elapsed Time (M:SS)
