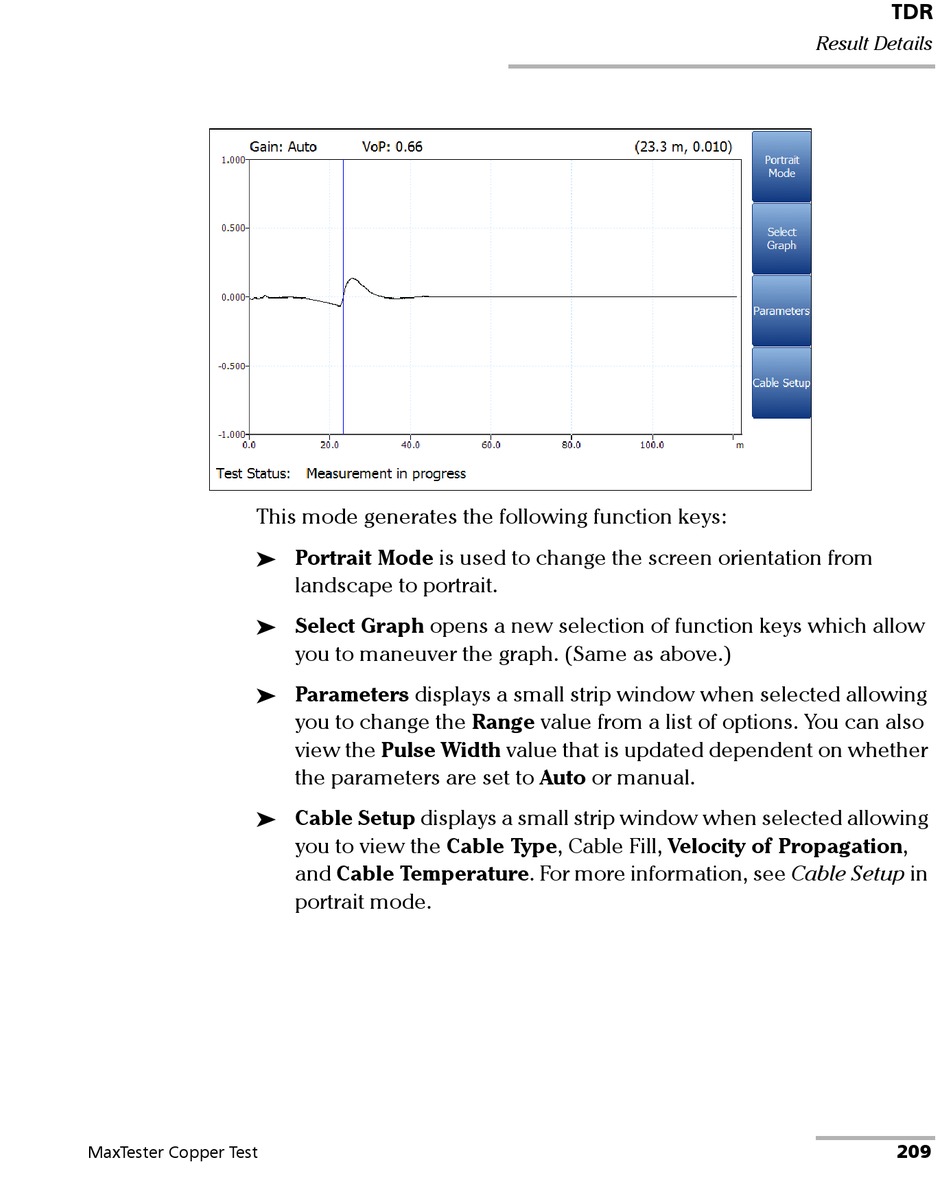

This mode generates the following function keys:




MaxTester Copper Test
Portrait Mode is used to change the screen orientation from
landscape to portrait.
Select Graph opens a new selection of function keys which allow
you to maneuver the graph. (Same as above.)
Parameters displays a small strip window when selected allowing
you to change the Range value from a list of options. You can also
view the Pulse Width value that is updated dependent on whether
the parameters are set to Auto or manual.
Cable Setup displays a small strip window when selected allowing
you to view the Cable Type, Cable Fill, Velocity of Propagation,
and Cable Temperature. For more information, see Cable Setup in
portrait mode.
