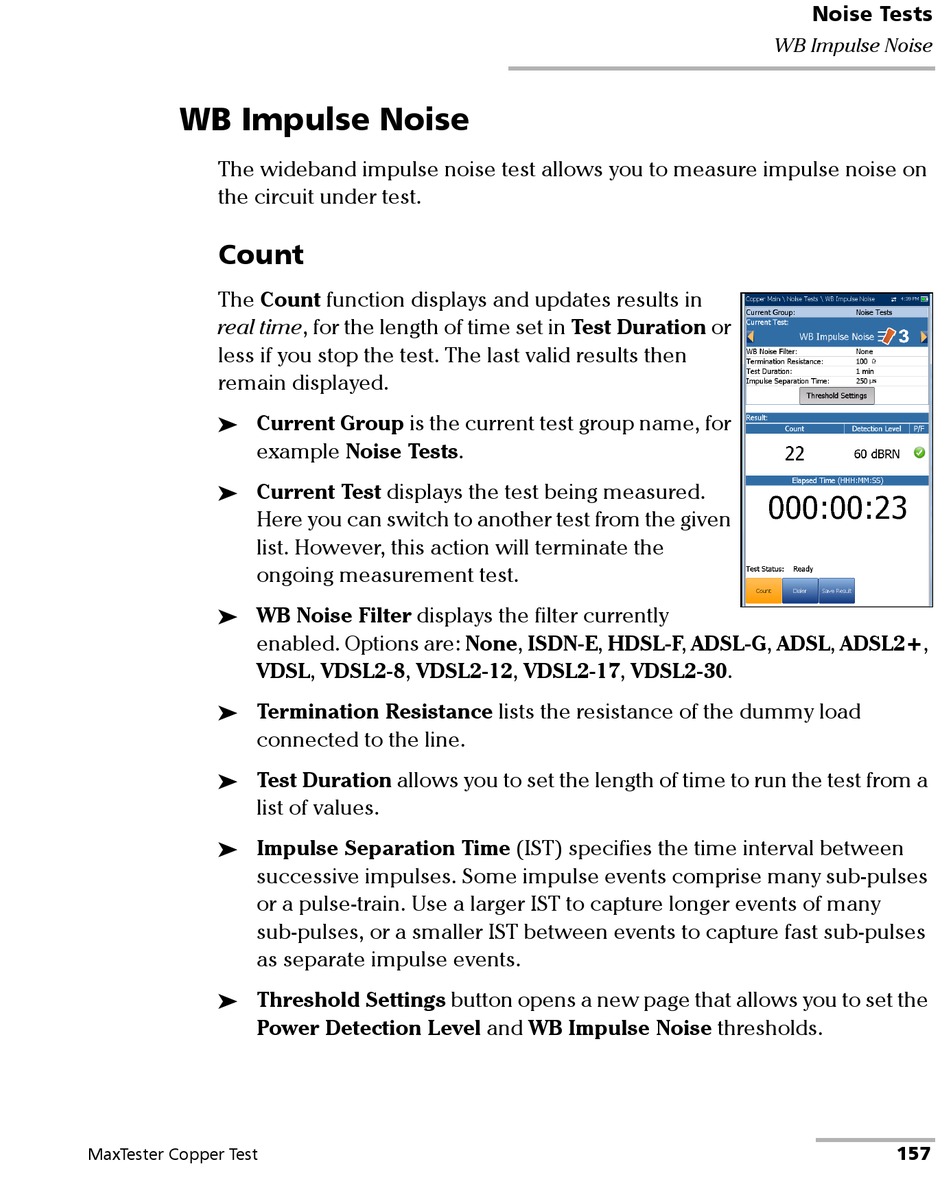

WB Impulse Noise

The wideband impulse noise test allows you to measure impulse noise on
the circuit under test.
Count
The Count function displays and updates results in
real time, for the length of time set in Test Duration or
less if you stop the test. The last valid results then
remain displayed.
Current Group is the current test group name, for

example Noise Tests.
Current Test displays the test being measured.

Here you can switch to another test from the given
list. However, this action will terminate the
ongoing measurement test.
WB Noise Filter displays the filter currently

enabled. Options are: None, ISDN-E, HDSL-F, ADSL-G, ADSL, ADSL2+,
VDSL, VDSL2-8, VDSL2-12, VDSL2-17, VDSL2-30.
Termination Resistance lists the resistance of the dummy load

connected to the line.
Test Duration allows you to set the length of time to run the test from a

list of values.
Impulse Separation Time (IST) specifies the time interval between

successive impulses. Some impulse events comprise many sub-pulses
or a pulse-train. Use a larger IST to capture longer events of many
sub-pulses, or a smaller IST between events to capture fast sub-pulses
as separate impulse events.
Threshold Settings button opens a new page that allows you to set the

Power Detection Level and WB Impulse Noise thresholds.
