Noise Tests
NEXT

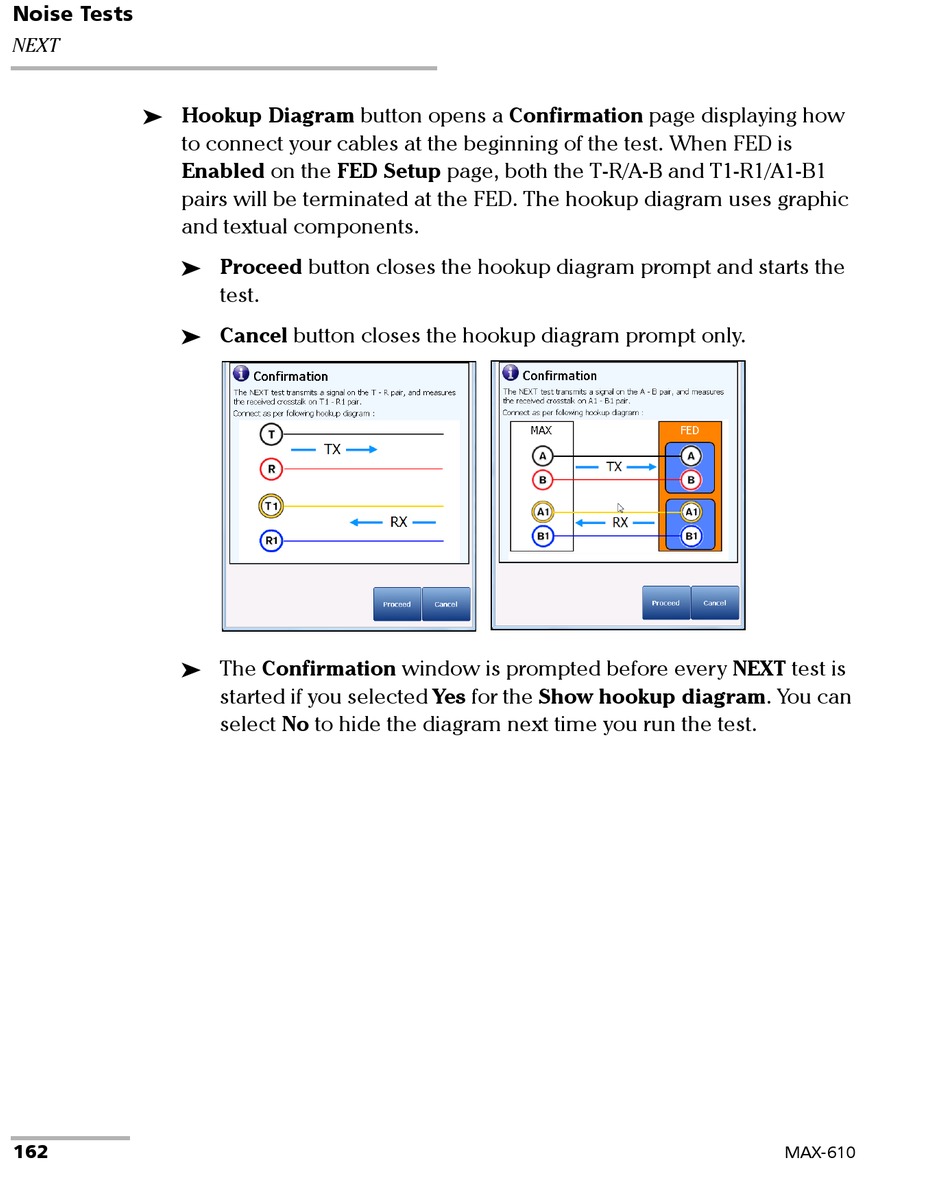

Hookup Diagram button opens a Confirmation page displaying how

to connect your cables at the beginning of the test. When FED is
Enabled on the FED Setup page, both the T-R/A-B and T1-R1/A1-B1
pairs will be terminated at the FED. The hookup diagram uses graphic
and textual components.



162
Proceed button closes the hookup diagram prompt and starts the
test.
Cancel button closes the hookup diagram prompt only.
The Confirmation window is prompted before every NEXT test is
started if you selected Yes for the Show hookup diagram. You can
select No to hide the diagram next time you run the test.
