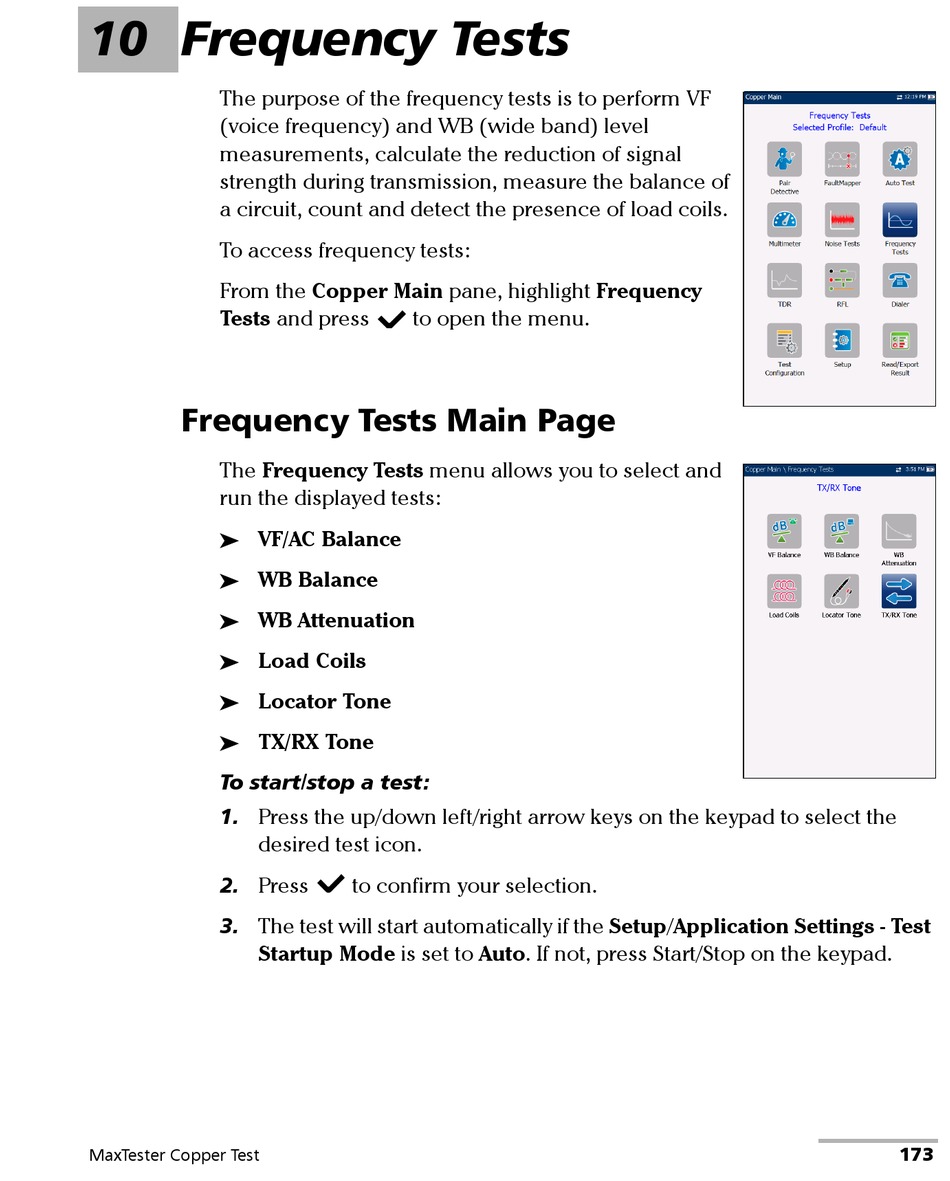

10 Frequency Tests

The purpose of the frequency tests is to perform VF
(voice frequency) and WB (wide band) level
measurements, calculate the reduction of signal
strength during transmission, measure the balance of
a circuit, count and detect the presence of load coils.
To access frequency tests:
From the Copper Main pane, highlight Frequency
Tests and press

Frequency Tests Main Page

The Frequency Tests menu allows you to select and
run the displayed tests:
VF/AC Balance

WB Balance

WB Attenuation

Load Coils

Locator Tone

TX/RX Tone

To start/stop a test:
1. Press the up/down left/right arrow keys on the keypad to select the
desired test icon.
2. Press
3. The test will start automatically if the Setup/Application Settings - Test
Startup Mode is set to Auto. If not, press Start/Stop on the keypad.
MaxTester Copper Test
to open the menu.
to confirm your selection.
173
