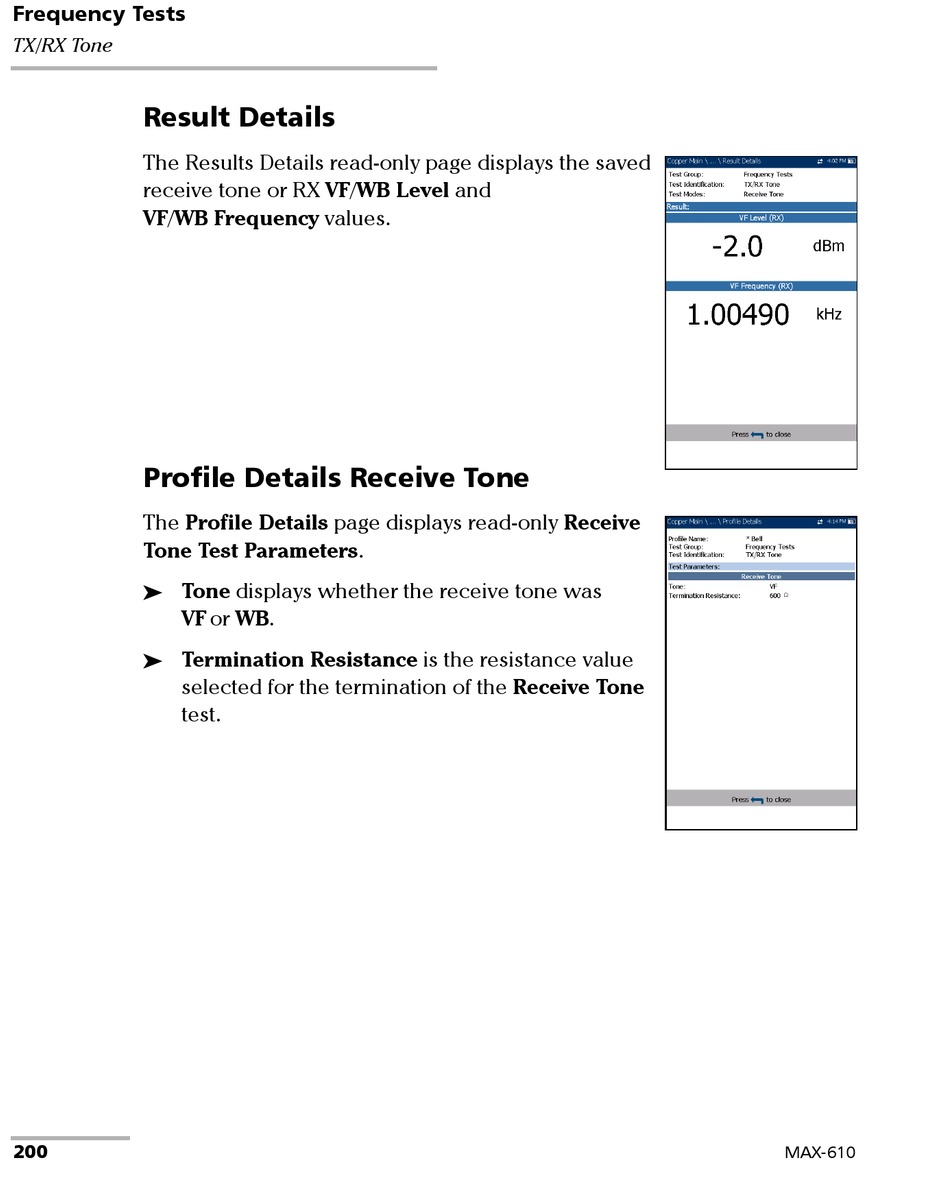

Frequency Tests
TX/RX Tone
Result Details
The Results Details read-only page displays the saved
receive tone or RX VF/WB Level and
VF/WB Frequency values.
Profile Details Receive Tone
The Profile Details page displays read-only Receive
Tone Test Parameters.
Tone displays whether the receive tone was
VF or WB.
Termination Resistance is the resistance value
selected for the termination of the Receive Tone
test.
200
MAX-610
