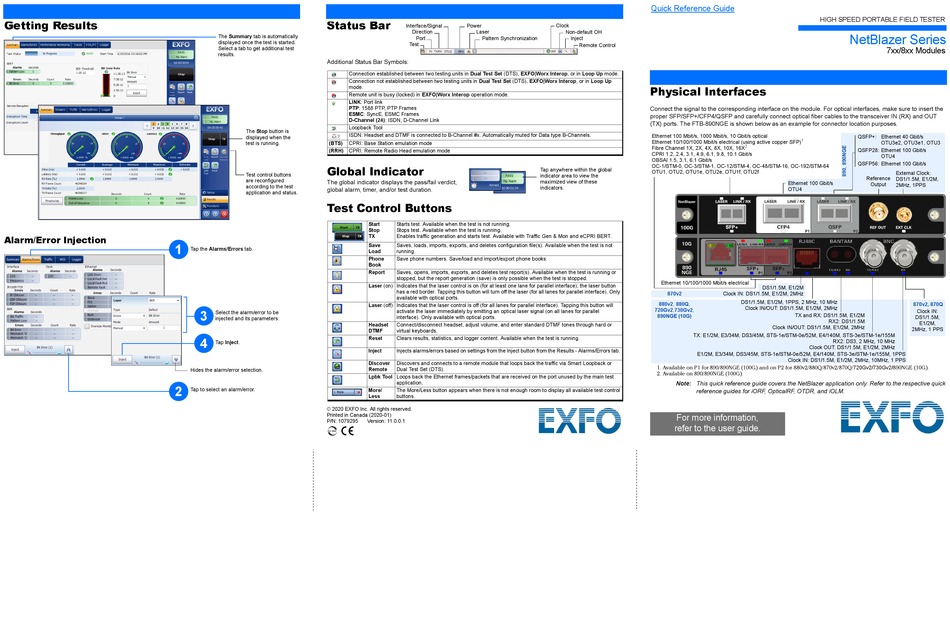

EXFO NetBlazer Series Quick Reference Manual

Getting Results
Alarm/Error Injection
1
2
Status Bar
The Summary tab is automatically
displayed once the test is started.
Select a tab to get additional test
results.
Additional Status Bar Symbols:
Connection established between two testing units in Dual Test Set (DTS), EXFO|Worx Interop, or in Loop Up mode.
Connection not established between two testing units in Dual Test Set (DTS), EXFO|Worx Interop, or in Loop Up
mode.
Remote unit is busy (locked) in EXFO|Worx Interop operation mode.
LINK: Port link
PTP: 1588 PTP, PTP Frames
ESMC: SyncE, ESMC Frames
D-Channel (24): ISDN, D-Channel Link
Loopback Tool
The Stop button is
ISDN: Headset and DTMF is connected to B-Channel #x. Automatically muted for Data type B-Channels.
displayed when the
test is running. (BTS) CPRI: Base Station emulation mode
(RRH) CPRI: Remote Radio Head emulation mode
Global Indicator
Test control buttons
are reconfigured
The global indicator displays the pass/fail verdict,
according to the test
global alarm, timer, and/or test duration.
application and status.
Test Control Buttons
Start
Stop
TX
Save
Tap the Alarms/Errors tab.
Load
Phone
Book
Report
Laser (on) Indicates that the laser control is on (for at least one lane for parallel interface); the laser button
Laser (off) Indicates that the laser control is off (for all lanes for parallel interface). Tapping this button will
3
Select the alarm/error to be
injected and its parameters.
Headset
DTMF
Reset
4
Tap Inject.
Inject
Discover
Remote
Hides the alarm/error selection.
Lpbk Tool Loops back the Ethernet frames/packets that are received on the port unused by the main test
Tap to select an alarm/error. More/
Less
© 2020 EXFO Inc. All rights reserved.
Printed in Canada (2020-01)
P/N: 1079295 Version: 11.0.0.1

Interface/Signal Power Clock
Direction Laser
Non-default OH
Port Pattern Synchronization Inject
Test
Tap anywhere within the global
indicator area to view the
maximized view of these
indicators.
Starts test. Available when the test is not running.
Stops test. Available when the test is running.
Enables traffic generation and starts test. Available with Traffic Gen & Mon and eCPRI BERT.
Saves, loads, imports, exports, and deletes configuration file(s). Available when the test is not
running.
Save phone numbers. Save/load and import/export phone books.
Saves, opens, imports, exports, and deletes test report(s). Available when the test is running or
stopped, but the report generation (save) is only possible when the test is stopped.
has a red border. Tapping this button will turn off the laser (for all lanes for parallel interface). Only
available with optical ports.
activate the laser immediately by emitting an optical laser signal (on all lanes for parallel
interface). Only available with optical ports.
Connect/disconnect headset, adjust volume, and enter standard DTMF tones through hard or
virtual keyboards.
Clears results, statistics, and logger content. Available when the test is running.
Injects alarms/errors based on settings from the Inject button from the Results - Alarms/Errors tab.
Discovers and connects to a remote module that loops back the traffic via Smart Loopback or
Dual Test Set (DTS).
application.
The More/Less button appears when there is not enough room to display all available test control
buttons.
Quick Reference Guide
Remote Control
Physical Interfaces
Connect the signal to the corresponding interface on the module. For optical interfaces, make sure to insert the
proper SFP/SFP+/CFP4/QSFP and carefully connect optical fiber cables to the transceiver IN (RX) and OUT
(TX) ports. The FTB-890NGE is shown below as an example for connector location purposes.
Ethernet 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s optical
Ethernet 10/100/1000 Mbit/s electrical (using active copper SFP)
2
Fibre Channel 1X, 2X, 4X, 8X, 10X, 16X
CPRI 1.2, 2.4, 3.1, 4.9, 6.1, 9.8, 10.1 Gbit/s
OBSAI 1.5, 3.1, 6.1 Gbit/s
OC-1/STM-0, OC-3/STM-1, OC-12/STM-4, OC-48/STM-16, OC-192/STM-64
OTU1, OTU2, OTU1e, OTU2e, OTU1f, OTU2f
Ethernet 10/100/1000 Mbit/s electrical
870v2 Clock IN: DS1/1.5M, E1/2M, 2MHz
DS1/1.5M, E1/2M, 1PPS, 2 MHz, 10 MHz
880v2, 880Q,
Clock IN/OUT: DS1/1.5M, E1/2M, 2MHz
720Gv2,730Gv2,
890NGE (10G)
TX: E1/2M, E3/34M, DS3/45M, STS-1e/STM-0e/52M, E4/140M, STS-3e/STM-1e/155M
E1/2M, E3/34M, DS3/45M, STS-1e/STM-0e/52M, E4/140M, STS-3e/STM-1e/155M, 1PPS
1. Available on P1 for 890/890NGE (100G) and on P2 for 880v2/880Q/870v2/870Q/720Gv2/730Gv2/890NGE (10G).
2. Available on 890/890NGE (100G).
Note: This quick reference guide covers the NetBlazer application only. Refer to the respective quick
reference guides for iORF, OpticalRF, OTDR, and iOLM.
For more information,
refer to the user guide.
HIGH SPEED PORTABLE FIELD TESTER
NetBlazer Series
7xx/8xx Modules
QSFP+: Ethernet 40 Gbit/s
1
OTU3e2, OTU3e1, OTU3
QSFP28: Ethernet 100 Gbit/s
OTU4
QSFP56: Ethernet 100 Gbit/s
External Clock:
Reference
DS1/1.5M, E1/2M,
Ethernet 100 Gbit/s
Output
2MHz, 1PPS
OTU4
DS1/1.5M, E1/2M
870v2, 870Q
Clock IN:
TX and RX: DS1/1.5M, E1/2M
DS1/1.5M,
RX2: DS1/1.5M
E1/2M,
Clock IN/OUT: DS1/1.5M, E1/2M, 2MHz
2MHz, 1 PPS
RX2: DS3, 2 MHz, 10 MHz
Clock OUT: DS1/1.5M, E1/2M, 2MHz
Clock IN: DS1/1.5M, E1/2M, 2MHz, 10MHz, 1 PPS
