User Guide
ETHERNET AND MULTISERVICE TESTER
NetBlazer for FTB-1
FTB-700G/800 Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTB-800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for EXFO FTB-800 Series

Summary of Contents for EXFO FTB-800 Series

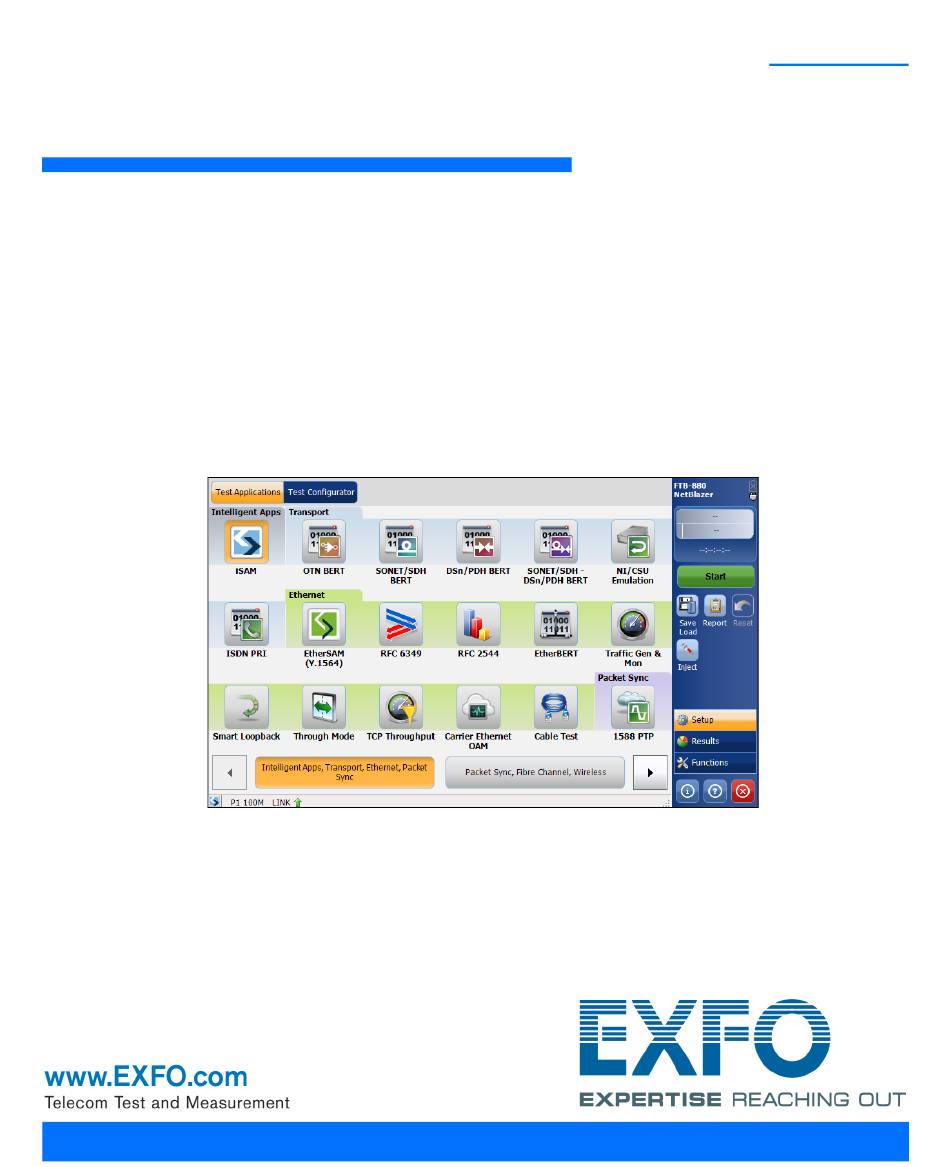

  • Page 1 User Guide ETHERNET AND MULTISERVICE TESTER NetBlazer for FTB-1 FTB-700G/800 Series...
  • Page 2 EXFO Inc. (EXFO). Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use.
  • Page 3 Electronic test and measurement equipment is exempt from FCC part 15, subpart B compliance in the United States of America and from ICES-003 compliance in Canada. However, EXFO Inc. makes reasonable efforts to ensure compliance to the applicable standards. The limits set by these standards are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Your product is compliant with industrial electromagnetic environments. The full text of the EU declaration of conformity is available at the following Internet address: www.exfo.com/en/resources/legal-documentation. Laser Your instrument is a Class 1 laser product in compliance with standards IEC 60825-1: 2007 and 21 CFR 1040.10, except for deviations pursuant to Laser Notice No.
  • Page 5 Contents Copyright Information ......................ii Certification Information ....................... iii 1 Introducing the Ethernet and Multiservice Tester ........1 Features ..........................1 Technical Specifications ......................1 Conventions ..........................2 2 Safety Information ..................3 Additional Laser Safety Information ..................5 Installation Instruction Warnings ....................6 3 Getting Started .................... 9 Turning On the Unit ........................9 Starting the FTB-700G/800 Series Application ................9 4 Physical Interfaces and LEDs ..............
  • Page 6 5 Graphical User Interface Overview ............27 Main Application Window ....................27 Main Window ........................27 Navigation Buttons .......................27 Status Bar ..........................28 Title Bar ..........................30 Global Indicator ........................31 Test Control .........................33 Test Menu ..........................33 Application Buttons ......................34 Zoomed-In/Zoomed-Out Views .....................36 Arrow Buttons ........................36 Keyboard Usage ........................37 6 Test Setup - Test Applications ..............41 iSAM .............................42...
  • Page 7 7 Selecting and Starting a Test ..............73 Intelligent Apps ........................73 Transport Test Applications ....................76 Ethernet Test Applications ....................78 Packet Sync Test Applications ....................80 Fibre Channel Test Application ....................82 Wireless Test Application ......................84 8 Test Setup - Test Configurator, Timer, and System ........87 Test Configurator Overview ....................92 Modify Structure Button ......................97 Signal Auto-Detect ......................111...
  • Page 8 Signal - Signal Configuration (SONET/SDH) ................258 Smart Loopback .........................262 Streams - Global ........................264 Streams - Profile ........................266 SyncE ..........................274 System ..........................276 TCP Throughput .........................277 Timer ..........................279 Traces (OTN) ........................281 Traces (SONET/SDH) ......................284 9 Test Results ....................287 Alarms/Errors Overview .......................290 Alarms/Errors ........................292 FTFL/PT ..........................349 Graph (RFC 2544) .......................351 ISDN Logger ........................352...
  • Page 9 Summary (RFC 2544) ......................424 Summary (RFC 6349) ......................427 Summary (S-OAM and MPLS-TP OAM) ................430 Summary (SyncE) .......................435 Summary (TCP Throughput) ....................438 Summary (Traffic Gen & Mon) ...................441 Traces - OTN ........................443 Traces - SONET/SDH ......................445 Traffic - Ethernet ........................446 Traffic - Flow Control ......................448 Traffic - Graph ........................450 Traffic - OAM, S-OAM, and MPLS-TP OAM .................451 Window Sweep ........................453...
  • Page 10 Solving Common Problems ....................569 Contacting the Technical Support Group ................570 Transportation ........................570 16 Warranty ....................571 General Information ......................571 Liability ..........................572 Exclusions ...........................572 Certification ........................572 Service and Repairs ......................573 EXFO Service Centers Worldwide ..................574 A Specifications ....................575 General Specifications ......................576 FTB-700G/800 Series...
  • Page 11 B Glossary ....................577 Acronym List ........................577 10G Ethernet Client ......................593 1588 PTP ..........................596 CPRI ...........................601 Ethernet Cables .........................606 G.709 Optical Transport Network (OTN) ................608 MPLS Labels ........................625 SONET/DSn/SDH/PDH ......................626 SyncE ..........................636 Unicast/Multicast Addresses for Ethernet OAM ..............638 VLAN ID and Priority ......................639 Index ......................
  • Page 13 720G 730G+ 860GL 860G 730G 730G+ 810G Intelligent Apps. Ethernet Packet Sync Fibre Channel Wireless SONET/SDH DSn/PDH ISDN PRI and NI/CSU OTDR and iOLM Technical Specifications To obtain this product’s technical specifications, visit the EXFO Web site at www.exfo.com. NetBlazer...
  • Page 14 Introducing the Ethernet and Multiservice Tester Conventions Conventions Before using the product described in this guide, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions.
  • Page 15 ARNING Use only accessories designed for your unit and approved by EXFO. For a complete list of accessories available for your unit, refer to its technical specifications or contact EXFO.
  • Page 16 Safety Information MPORTANT When you see the following symbol on your unit , make sure that you refer to the instructions provided in your user documentation. Ensure that you understand and meet the required conditions before using your product. MPORTANT When you see the following symbol on your unit , it indicates that the unit is equipped with a laser source, or that it can be used...
  • Page 17 Safety Information Additional Laser Safety Information Additional Laser Safety Information This product employs Class 1 Laser transceivers. ARNING When the LASER LED is on or flashing, the FTB-700G/800 Series is transmitting an optical signal on the SFP/SFP+ transceiver ports. Note: Refer to the OTDR, iOLM, and FTB-1 user guides for additional test equipment safety information and ratings.
  • Page 18 All wiring and installation must be in accordance with local building and electrical codes acceptable to the authorities in the countries where the equipment is installed and used. ARNING Use only accessories designed for your unit and approved by EXFO. FTB-700G/800 Series...
  • Page 19 Safety Information Installation Instruction Warnings AUTION Electrostatic Discharge (ESD) Sensitive Equipment: Plug-in modules can be damaged by static electrical discharge. To minimize the risk of damage, dissipate static electricity by touching a grounded unpainted metal object before removing, inserting, or handling the module. ...
  • Page 21 The module can be configured and controlled by starting the NetBlazer or OTDR application; only one application can run at once. To start the NetBlazer application: 1. For FTB-800 Series, from Mini ToolBox tap the NetBlazer application button. 2. For FTB-700G Series, from Mini ToolBox select the FTB-7xx Ethernet &...
  • Page 23 This section describes all connectors (ports) and LEDs available on the FTB-700G/800 Series. AUTION To prevent exceeding the maximum input/output power level, please refer to this product’s technical specifications at www.exfo.com. FTB-810 and FTB-810G Modules RJ-48C RJ-48C Port #1 Port #2...
  • Page 24 Physical Interfaces and LEDs FTB-860, FTB-720G, and FTB-730G Modules FTB-860, FTB-720G, and FTB-730G Modules RJ-45 Port #1 Port #2 Port #1 Port #2 1. Laser radiation emitted from this port when LASER LED is on. FTB-700G/800 Series...
  • Page 25 Physical Interfaces and LEDs FTB-860G Module FTB-860G Module RJ-45 SFP+ Port #1 Port #2 Port #1 Port #2 Port #1 1. Laser radiation emitted from this port when LASER LED is on. FTB-860GL Module RJ-45 SFP+ Port #1 Port #1 Port #1 1.
  • Page 26 Physical Interfaces and LEDs FTB-870, FTB-720G , and FTB-730G Modules FTB-870, FTB-720G , and FTB-730G Modules RJ-45 SFP+ Port #1 Port #2 Port #1 Port #2 Port #1 1. Laser radiation emitted from this port when LASER LED is on. FTB-700G/800 Series...
  • Page 27 Physical Interfaces and LEDs FTB-880 Module FTB-880 Module RJ-48C RJ-48C Port #1 Port #2 Bantam Bantam Port #1 Port #1 Port #2 Port #2 Port #1 Port #2 Port #1 Port #2 SFP+ RJ-45 Port #1 1. Laser radiation emitted from this port when LASER LED is on. NetBlazer...
  • Page 28 Physical Interfaces and LEDs Port Availability on the Visual Guardian Lite Port Availability on the Visual Guardian Lite The following table shows the list of available ports as well as a description and signals supported for each module. Connector Labelled Description and Supported signal(s) Module Bantam...
  • Page 29 Physical Interfaces and LEDs Port Availability on the Visual Guardian Lite Connector Labelled Description and Supported signal(s) Module SFP+ ETHERNET 10G Ethernet 10 Gbit/s FTB-860G/ 860GL PORT #1 CPRI 9.8304 Gbit/s Fibre Channel 8X/10X 8.5G-11.3G Ethernet 10 Gbit/s FTB-720G /730G PORT #1 CPRI 9.8304 Gbit/s / 870/880...
  • Page 30 OBSAI 3.1 Gbit/s. Plug the SFP transceiver into the PORT #1 or PORT #2 slot. ARNING Use only EXFO supported transceivers. Refer to this product’s technical specifications at www.exfo.com for the list of supported transceivers. Using non-supported transceivers can affect the performance and accuracy of the test.
  • Page 31 CPRI: 9.8304 Gbit/s Plug the SFP+ transceiver into the 8.5G-11.3G PORT #1 slot. ARNING Use only EXFO supported transceivers. Refer to this product’s technical specifications at www.exfo.com for the list of supported transceivers. Using non-supported transceivers can affect the performance and accuracy of the test.
  • Page 32 OC-1/STM-0, OC-3/STM-1, OC-12/STM-4, OC-48/STM-16. Plug the SFP transceiver into the 155M-2.5M PORT #1 slot. ARNING Use only EXFO supported transceivers. Refer to this product’s technical specifications at www.exfo.com for the list of supported transceivers. Using non-supported transceivers can affect the performance and accuracy of the test.
  • Page 33 OC-192/STM-64. Plug the SFP+ transceiver into the 10G PORT #1 slot. ARNING Use only EXFO supported transceivers. Refer to this product’s technical specifications at www.exfo.com for the list of supported transceivers. Using non-supported transceivers can affect the performance and accuracy of the test.
  • Page 34 CPRI: 9.8304 Gbit/s Plug the SFP+ transceiver into the ETHERNET 10G PORT #1 slot. ARNING Use only EXFO supported transceivers. Refer to this product’s technical specifications at www.exfo.com for the list of supported transceivers. Using non-supported transceivers can affect the performance and accuracy of the test.
  • Page 35 Plug the SFP transceiver into the ETHERNET 100/1000M PORT #1 or PORT #2 slot. ARNING Use only EXFO supported transceivers. Refer to this product’s technical specifications at www.exfo.com for the list of supported transceivers. Using non-supported transceivers can affect the performance and accuracy of the test.
  • Page 36 Physical Interfaces and LEDs ETHERNET 10/100/1000M ETHERNET 10/100/1000M This port can be used for electrical Intelligent Apps, Ethernet, or Packet Sync test applications. Supported electrical rates are 10Mbits/s, 100Mbit/s, and 1000Mbit/s. 10Mbits/s is not supported for SyncE. Plug the 10/100/1000 electrical interface or the cable to be tested to the ETHERNET 10/100/1000M (PORT #1 or PORT #2) connector.
  • Page 37 AUTION When using speech over ISDN (ISDN PRI test application), use only the headset supplied by EXFO to ensure adequate protection. The headset port can be used with the ISDN PRI test application to connect a headset allowing to talk and listen when calls are made and received.
  • Page 38 Physical Interfaces and LEDs AUX Connection AUX Connection The AUX port is reserved for future use to attach a buttset or telephone to talk and listen over an ISDN PRI line. Fibre Cables Connection Carefully connect optical fibre cables to the SFP/SFP+’s IN and OUT ports. To ensure good signal quality, make sure that the optical fibre connector is fully inserted into the optical connector port.
  • Page 39 Graphical User Interface Overview This chapter describes the FTB-700G/800 Series graphical user interface. Main Application Window The following main application window is displayed when the NetBlazer application is started. Title Bar Global Indicator Main Window Test Control Test Menu Navigation Buttons Application Status Bar...
  • Page 40 Graphical User Interface Overview Status Bar Status Bar The status bar displays the following information. Icon Description Test Application and/or text Test icon Icon representing the active test application. P1, P2 Port number (Port 1 or Port 2) TX/RX, TX, RX Indicates the direction of the signal per port. Transport Interface/ The interface or signal rate per port: 1GE Optical, OTU1, OTU2, etc.
  • Page 41 Graphical User Interface Overview Status Bar Icon Description Test Application and/or text Power level The received signal level per port in dBdsx for DSn signal or dBm for All except for Cable PDH and optical signals. For Transport electrical interface, LOS on red Test background indicates that there is no electrical signal power.
  • Page 42 Graphical User Interface Overview Title Bar Icon Description Test Application and/or text Alarm/error is currently injected. Not displayed when there is no Transport alarm/error injection. EtherBERT Carrier Ethernet OAM Fibre Channel Wireless The following status are also displayed: Battery/AC icons indicate the battery level and if the FTB-1 is ...
  • Page 43 Graphical User Interface Overview Global Indicator Global Indicator The global indicator area displays the global pass/fail verdict, global alarm, and the test duration. Global indicator area Global Verdict Current Global Alarm History Test Timer Timer The global indicator area can be maximized for distant viewing. Tap anywhere within the global indicator area to display a maximized view.
  • Page 44 Graphical User Interface Overview Global Indicator Global Verdict Reports the global test verdict status when supported by the test application and enabled (when applicable). Verdict Description PASS is displayed with a green background when all result values meet the configured threshold PASS criteria.
  • Page 45 Graphical User Interface Overview Test Control Test Timer The test timer without the timer icon indicates the time elapsed since the beginning of the test. No timer action is active. The test timer format is “day hour:minute:second”. Timer The timer icon with Armed indicates that a start time is active. The timer icon with the Test Timer indicates that a duration and/or a stop time is active.
  • Page 46 Graphical User Interface Overview Application Buttons Application Buttons Help (?) displays the help information related to the content of the  active main window. It is also possible to navigate through the remainder of the help information. Exit (x) closes the application. ...
  • Page 47 Graphical User Interface Overview Application Buttons Software Option Description OTU2 Optical Transport Unit-2 (10.7 Gbit/s) OTU1 Optical Transport Unit-1 (2.7 Gbit/s) 52 Mbit/s 155M 155 Mbit/s 622M 622 Mbit/s 2488M 2.488 Gbit/s 9953M 9.953 Gbit/s 100optical 100 Mbit/s optical interfaces. GigE _Optical 1000Base-T and GigE optical interfaces.
  • Page 48 Graphical User Interface Overview Zoomed-In/Zoomed-Out Views Software Option Description LINK-OAM Link OAM TST-OAM Test Over Service OAM RFC6349 RFC 6349 test application (10GE and less) ETH-CAPTURE Ethernet Frame Capture ADV-FILTERS Advanced filtering Zoomed-In/Zoomed-Out Views Some configuration and result blocks give access to zoomed views allowing more detailed configurations/results.
  • Page 49 Graphical User Interface Overview Keyboard Usage Keyboard Usage The GUI pops up different keyboards to modify data. Following are the usual keyboard keys: Left arrow moves the cursor one position to the left.  Right arrow moves the cursor one position to the right. ...
  • Page 50 Graphical User Interface Overview Keyboard Usage For multiplexing keyboard, tap on all mapped signals that have to be added/removed to/from the test path. A mapped signal with an orange background color is part of the test path. A mapped signal with a gray background color is not part of the test path.
  • Page 51 Graphical User Interface Overview Keyboard Usage The Trace message keyboard allows entering alphanumerical characters (ITU T.50) required for Trace fields. Tap the Control Characters button to access these characters. ITU T.50 Characters b7 to b1 Character Description b7 to b1 Character Description 000 0000 Null...

  • Page 53: Table Of Contents

    Test Setup - Test Applications The NetBlazer offers the following test applications. Available on FTB-... Type Application 720G, 730G, 810, 720G+, 860GL 880 Page 860, 860G 810G 730G+, 870 Intelligent iSAM Apps Transport OTN BERT SONET/SDH BERT DSn/PDH BERT SONET/SDH - DSn/PDH BERT NI/CSU Emulation ISDN PRI Ethernet...
  • Page 54 Test Setup - Test Applications iSAM iSAM iSAM is a simplified version of EtherSAM that is centered around addressing turn-up of E-Line circuits (EVC). The objective of the test is to validate Carrier Ethernet-based services key performance indicators defined in MEF: Frame Delay (FD), Inter-Frame Delay Variation (IFDV), and Frame Loss Ratio (FLR).

  • Page 55: Otn Bert

    Test Setup - Test Applications OTN BERT OTN BERT Allows OTN (framed and unframed) traffic generation with specific test pattern for Bit Error Rate analysis. Typical OTN BERT test applications:  FTB-700G/800 Series Network under test Testing Unit DUT Loopback FTB-700G/800 Series FTB-700G/800 Series Network...
  • Page 56 Test Setup - Test Applications OTN BERT Path/Mapping  The OTN BERT test application offers the following path/mapping structures depending on the inserted SFP/SFP+ transceiver, and enabled options. FTB-700G/800 Series...

  • Page 57: Sonet/Sdh Bert

    Test Setup - Test Applications SONET/SDH BERT SONET/SDH BERT Allows the validation of the SONET or SDH transport protocol by performing a BERT test to check the traffic or payload stability over a network facility. Typical SONET/SDH BERT test applications: ...
  • Page 58 Test Setup - Test Applications SONET/SDH BERT Path/Mapping  The SONET/SDH BERT test application offers the following path/mapping structures depending on the inserted SFP/SFP+ transceiver, and enabled options. For SONET BERT FTB-700G/800 Series...
  • Page 59 Test Setup - Test Applications SONET/SDH BERT For SDH BERT NetBlazer...

  • Page 60: Dsn/Pdh Bert

    Test Setup - Test Applications DSn/PDH BERT DSn/PDH BERT Allows validation of the DSn or PDH transport protocol by performing a BERT test to check the traffic or payload stability over a network facility. Typical DSn/PDH BERT test applications:  FTB-700G/800 Series Network under test...
  • Page 61 Test Setup - Test Applications DSn/PDH BERT Path/Mapping  The DSn/PDH BERT test application offers the following path/mapping structures depending on model and enabled options. For DSn: For PDH: NetBlazer...

  • Page 62: Sonet/Sdh - Dsn/Pdh Bert

    Test Setup - Test Applications SONET/SDH - DSn/PDH BERT SONET/SDH - DSn/PDH BERT Allows validation of the DSn or PDH embedded in SONET or SDH transport protocol by performing a BERT test to check the traffic or payload stability over a network facility. Typical SONET/SDH - DSn/PDH BERT test applications: ...
  • Page 63 Test Setup - Test Applications SONET/SDH - DSn/PDH BERT Path/Mapping  The SONET/SDH - DSn/PDH BERT test application offers the following path/mapping structures depending on the model and enabled options. For SONET: NetBlazer...
  • Page 64 Test Setup - Test Applications SONET/SDH - DSn/PDH BERT For SDH: FTB-700G/800 Series...

  • Page 65: Ni/Csu Emulation

    Test Setup - Test Applications NI/CSU Emulation NI/CSU Emulation Allows DS1 testing in NI/CSU (Network Interface/Customer Service Unit) emulation mode. Typical NI/CSU Emulation test applications: FTB-700G/800 Series Network under test Test Head NI/CSU Emulation FTB-700G/800 Series FTB-700G/800 Series DSn/PDH BERT Network under test Testing Unit...

  • Page 66: Isdn Pri

    Test Setup - Test Applications ISDN PRI ISDN PRI Allows to test and troubleshoot North American or European ISDN PRI configurations by calling one or all 23 DS1 or 30 E1 PRI channels. Once connected, the user can perform a channel-by-channel BERT, or talk and listen via a headset.

  • Page 67: Ethersam (Y.1564)

    Test Setup - Test Applications EtherSAM (Y.1564) EtherSAM (Y.1564) EtherSAM can simulate all types of services that will run on the network and simultaneously qualify all key SLA parameters for each of these services. Moreover, it validates the QoS mechanisms provisioned in the network to prioritize the different service types, resulting in more accurate validation and much faster deployment and troubleshooting.

  • Page 68: Rfc 6349

    Test Setup - Test Applications RFC 2544 RFC 2544 RFC 2544 allows Ethernet Throughput, Back-to-Back, Frame Loss, and Latency performance testing in accordance with RFC 2544 specifications. The RFC 2544 test has to be executed in conjunction with a remote module.

  • Page 69: Rfc 2544

    Test Setup - Test Applications RFC 6349 RFC 6349 RFC 6349 is used to confirm that the Ethernet service is able to properly carry TCP traffic. The RFC 6349 test has to be executed in conjunction with a remote compatible module in RFC 6349 Dual Test Set mode allowing bidirectional testing.

  • Page 70: Etherbert X

    Test Setup - Test Applications EtherBERT EtherBERT Allows Ethernet Layer 1 up to Layer 4 and Unframed Layer 1 traffic generation with specific test pattern for Bit Error Rate analysis. Typical EtherBERT test applications:  FTB-700G/800 Series FTB-700G/800 Series Network under test Testing Unit Loopback Unit...

  • Page 71: Traffic Gen & Mon

    Test Setup - Test Applications Traffic Gen & Mon Traffic Gen & Mon Allows Ethernet traffic generation and analysis of up to 16 streams. Typical Traffic Gen & Mon test applications:  FTB-700G/800 Series FTB-700G/800 Series Network under test Testing Unit Loopback Unit FTB-700G/800 Series FTB-700G/800 Series...

  • Page 72: Smart Loopback

    The Smart Loopback test can be created locally (refer to Ethernet Test Applications on page 78) or remotely using an EXFO unit (refer to Discover Remote Button on page 530) or a Third-Party device (see Third-Party Remote Loopback on page 61).
  • Page 73 This feature is used for unidirectional testing, where the test stream is transmitted from the third party device to a remote EXFO device. The looped back test stream is received and analyzed by the third-party device.

  • Page 74: Through Mode

    Test Setup - Test Applications Through Mode Through Mode The Through Mode test application allows traffic to pass through the FTB-700G/800 Series unit using two electrical or optical ports for in-service troubleshooting of live traffic between the carrier/service provider network and the customer’s network.

  • Page 75: Tcp Throughput

    Test Setup - Test Applications TCP Throughput TCP Throughput The objective of this test is to find the TCP throughput based on the successfully transported bytes over the test time. Two units running a TCP Throughput test are required. One unit will act as the source (Local) and the other one as the destination (Remote).

  • Page 76: Carrier Ethernet Oam

    Test Setup - Test Applications Carrier Ethernet OAM Carrier Ethernet OAM The Carrier Ethernet OAM test application supports the following tests: Ethernet OAM (S-OAM), MPLS-TP OAM, and Link OAM. Ethernet OAM and MPLS TP OAM The Ethernet Service OAM tests are divided in two main categories: Performance Monitoring measures parameters such as frame delay, ...
  • Page 77 Test Setup - Test Applications Carrier Ethernet OAM Link OAM The Link OAM test validates the Link OAM protocol capabilities and the Ethernet link connection of a remote equipment. Typical Link OAM test application:  FTB-700G/800 Series NID/Switch Testing Equipment Supported Interfaces/Rates: 10M to 10G LAN/WAN.

  • Page 78: Cable Test

    Test Setup - Test Applications Cable Test Cable Test The cable test application is used to diagnose un-shielded twisted pairs (UTP) cables (up to Category 6e/Class E). Cable test can be performed everywhere in the network where an electrical 10/100/1000 Mbit/s Ethernet interface is available for testing. Only the pairs used by the Ethernet signal will be tested.
  • Page 79 Test Setup - Test Applications 1588 PTP 1588 PTP The 1588 PTP (Precision Time Protocol) test application handles the 1588 PTP communication with the Grand Master (GM) clock, collects statistics related to packets, and monitors the clock Quality Level. Typical 1588 PTP test application: ...

  • Page 80: Synce

    Test Setup - Test Applications SyncE SyncE The Synchronous Ethernet (SyncE) test application provides elementary test primitives to interactively validate the clock management functions of a SyncE capable network equipment. Typical SyncE test applications:  FTB-700G/800 Series Network under test Testing Unit Network Equipment FTB-700G/800 Series...
  • Page 81 Test Setup - Test Applications FC BERT FC BERT The FC BERT (Fibre Channel BERT) application provides full wire-speed traffic generation at the FC-2 layer allowing BER testing for link integrity measurements, latency, buffer-to-buffer credit measurements for optimization as well as login capabilities. Typical Fibre Channel BERT test applications: ...

  • Page 82: Cpri/Obsai Bert

    Test Setup - Test Applications CPRI/OBSAI BERT CPRI/OBSAI BERT The CPRI/OBSAI BERT test application offers the capability to test the fronthaul and dark fiber for CPRI/OBSAI and in addition supports detailed CPRI L2 protocol testing, round trip delay, and Service Disruption Time measurements.
  • Page 83 Test Setup - Test Applications CPRI/OBSAI BERT Typical CPRI/OBSAI BERT test applications:  FTB-700G/800 Series FTB-700G/800 Series CPRI/OBSAI Network Unframed, under test CPRI Framed L2 Testing Unit Testing Unit FTB-700G/800 Series CPRI/OBSAI Network Unframed under test Testing Unit Physical Loopback FTB-700G/800 Series FTB-700G/800 Series CPRI Framed L2...
  • Page 85 Selecting and Starting a Test A test can be created either by selecting the test from the Test Applications tab or by loading a previously saved configuration (refer to Save/Load Button on page 552 for more information). Intelligent Apps To select, configure, and start an Intelligent Application: 1.
  • Page 86 Selecting and Starting a Test Intelligent Apps 3b. From the Network block, either select the basic test parameters or click on More for all settings (refer to Network Details (iSAM) on page 191). The total bandwidth and the estimated test duration are displayed.
  • Page 87 Selecting and Starting a Test Intelligent Apps 4. Tap the Start button from the right navigation bar to start the test (refer to Start/Stop|TX Button on page 558). If the connection with the remote module is not established with either DTS or Remote Loopback mode, the automatic remote connection process is performed before starting the test.
  • Page 88 Selecting and Starting a Test Transport Test Applications Transport Test Applications To select, configure, and start a Transport test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Transport, tap a test icon. 3. From the Test Configurator tab configure the signal structure and its parameters.
  • Page 89 Selecting and Starting a Test Transport Test Applications 3d. Tap the test block to configure the specific test settings (refer to page 87). Not available with NI/CSU Emulation test application. 3e. Tap the clock block to configure the clock synchronization (refer to Clock on page 125).
  • Page 90 Selecting and Starting a Test Ethernet Test Applications Ethernet Test Applications To select, configure, and start an Ethernet test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Ethernet, tap a test icon. 3. From the Test Configurator tab configure the interface structure and its parameters.
  • Page 91 Selecting and Starting a Test Ethernet Test Applications 3c. Tap the protocol block to configure the frame structure and its parameters (refer to page 89). 3d. Tap the test block to configure the specific test settings (refer to page 89). 3e.
  • Page 92 Selecting and Starting a Test Packet Sync Test Applications Packet Sync Test Applications To select, configure, and start a Packet Sync test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Packet Sync, tap a test icon. 3.
  • Page 93 Selecting and Starting a Test Packet Sync Test Applications 4. Tap the Timer tab to automatically start and/or stop the test at a given time or for a specific duration (refer to Timer on page 279). 5. For additional test configurations refer to Test Functions on page 455. 6.
  • Page 94 Selecting and Starting a Test Fibre Channel Test Application Fibre Channel Test Application To select, configure, and start a Fibre Channel test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Fibre Channel, tap the FC BERT test icon.
  • Page 95 Selecting and Starting a Test Fibre Channel Test Application 3d. Tap the test block to configure the specific test settings (refer to page 129). 3e. Tap the clock block to configure the clock synchronization (refer to Clock on page 125). 4.
  • Page 96 Selecting and Starting a Test Wireless Test Application Wireless Test Application To select, configure, and start a Wireless test: 1. From the test menu, tap Setup. 2. From the Test Applications tab, under Wireless, tap the CPRI/OBSAI BERT test icon. 3.
  • Page 97 Selecting and Starting a Test Wireless Test Application 3c. Tap the test block to configure the specific test settings (refer to page 129). 3d. For Framed L2 in Base Station emulation mode, tap the clock block to configure the clock synchronization (refer to Clock on page 125).
  • Page 99 Test Setup - Test Configurator, Timer, and System The Setup menu offers the following structure: Test Configurator for Intelligent Apps test application.  Test Application Block Subtab or Pop Up Page iSAM Local Interface SFP/SFP+ Network Network Details Remote Remote Details NetBlazer...
  • Page 100 Test Setup - Test Configurator, Timer, and System Test Configurator for Transport test applications.  Test Application Block Subtab or Pop Up Page Button Modify Structure Signal Auto-Detect Interface FTFL/PT Labels SFP/SFP+ Signal Traces <--- Protocol Signal Test BERT ISDN PRI - Call Management ISDN PRI - ISDN Settings Clock Clock...
  • Page 101 Test Setup - Test Configurator, Timer, and System Test Configurator for Ethernet test applications.  Test Application Block Subtab or Pop Up Page Button Modify Structure Interface Interface Network SFP+ Protocol MAC/IP/UDP Services - Global Services - Profile Streams - Global Streams - Profile Test Cable Test...
  • Page 102 Test Setup - Test Configurator, Timer, and System Test Configurator for Packet Sync test applications.  Test Application Block Subtab or Pop Up Page 1588 PTP SyncE Button Modify Structure Interface Interface Network SFP/SFP+ Test 1588 PTP SyncE Test Configurator for Fibre Channel test application. ...
  • Page 103 Test Setup - Test Configurator, Timer, and System Test Configurator for Wireless test application.  Test Application Block Subtab or Pop Up Page CPRI/OBSAI BERT Button Modify Structure Interface Interface SFP/SFP+ Test BERT and Unframed BERT Timer, see page 279. ...
  • Page 104 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Test Configurator Overview The Test Configurator tab displays the interconnected blocks composing the test structure. Each block of the test structure gives an overview of its configuration/status. Availability of each block depends on the selected test application and its structure.
  • Page 105 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Remote operation mode allows to select the remote operation  mode. Tap on the button to change the remote operation mode. Remote block displays and allows to change basic remote settings. ...
  • Page 106 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Packet Sync Test Applications:  Modify Structure Test Application Interface Block Test Block Physical Interface Port Arrows Fibre Channel Test Application:  Modify Structure Test Application Interface Block Protocol Block Physical Interface Port Test Block...
  • Page 107 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Test Application indicates the selected test application.  Topology, for Transport Test Applications, indicates the selected  test topology. Modify Structure button, allows the configuration of the physical  port and the signal interface structure.
  • Page 108 Test Setup - Test Configurator, Timer, and System Test Configurator Overview Test Block displays an overview of the test settings and status. Tap  on the test block to change the settings and to see detailed status. Clock Block displays an overview of the clock settings and status. ...
  • Page 109 Test Setup - Test Configurator, Timer, and System Modify Structure Button Modify Structure Button From the Test menu, tap Setup, Test Configurator, and the Modify Structure button. For Transport Test Applications TX/RX allows the configuration of the following parameters for either TX/RX, TX1/RX1 and RX2, TX, or RX depending on the selected topology.
  • Page 110 Test Setup - Test Configurator, Timer, and System Modify Structure Button Test Interface/Rate NI/CSU Emulation ISDN PRI DS1 [1.544 Mbit/s] E1 [2.048 Mbit/s] Connector allows the selection of the NetBlazer’s port.  Interface/Rate Connector OTU2 [10.709 Gbit/s] Port 1 - SFP+ OTU1e [11.049 Gbit/s] OTU2e [11.096 Gbit/s] OTU1f [11.270 Gbit/s]...
  • Page 111 Test Setup - Test Configurator, Timer, and System Modify Structure Button Framing: For OTN BERT, and SONET/SDH BERT test applications, the  framing is set to Framed. OTN Multiplexing, only available with OTN BERT, indicates the OTN  test mapping. Interface/Rate OTN Multiplexing OTU1 [2.666 Gbit/s]...
  • Page 112 Test Setup - Test Configurator, Timer, and System Modify Structure Button SONET/SDH Multiplexing allows the selection of SONET/SDH  multiplexing. Only available with SONET/SDH BERT test application. Embedded SONET/SDH Multiplexing SONET/SDH OC-192 STS-192c, STS-48c, STS-12c, STS-3c, STS-1, STS-1/VT2, STS-1/VT1.5 STM-64 AU-4-64c, AU-4-16c, AU-4-4c, AU-4, AU-4/TU-3, AU-4/TU-12, AU-4/TU-11, AU-3, AU-3/TU-12, AU-3/TU-11 OC-48...
  • Page 113 Test Setup - Test Configurator, Timer, and System Modify Structure Button DSn/PDH Multiplexing, available with SONET/SDH - DSn/PDH BERT  and DSn/PDH test application applications, allows the selection of the DSn/PDH multiplexing. Interface/Rate DSn/PDH Multiplexing None (default), DS1, E1 None None (default), E3, E3/E2/E1 None (default), E2/E1 None...
  • Page 114 Test Setup - Test Configurator, Timer, and System Modify Structure Button Topology allows the selection of the network test topology.  Coupled (TX=RX) uses the same settings for both the TX and RX  signals. Decoupled (TX≠RX) uses independent settings for TX and RX ...
  • Page 115 Test Setup - Test Configurator, Timer, and System Modify Structure Button For Ethernet Test Applications Interface/Rate choices depend on the selected test and the rates  available on the NetBlazer. Test Interface/Rate EtherSAM 10GE WAN RFC 2544 10GE LAN RFC 6349 1GE Optical EtherBERT 100M Optical...
  • Page 116 Test Setup - Test Configurator, Timer, and System Modify Structure Button Primary Port / Secondary Port, available with Through Mode test  application, allows to select the NetBlazer’s ports that are respectively used as primary (Port 1) and secondary (Port 2) port. The configuration of the network configuration parameters will be available on the Primary Port only.
  • Page 117 Test Setup - Test Configurator, Timer, and System Modify Structure Button Framing, available for EtherBERT test application, allows the selection  of the test framing type; otherwise the framing is set to Framed Layer 2. See Network on page 185 for more information on frame format. Framed Layer 1: Frame of x bytes that allows connection to any ...
  • Page 118 Test Setup - Test Configurator, Timer, and System Modify Structure Button Unframed (Interop) is only available with optical interface up to  10G LAN: For Seed A and Seed B, only available for 10G LAN, the pattern is generated by the PCS scrambler from a specific seed. The pattern is not encoded.
  • Page 119 Test Setup - Test Configurator, Timer, and System Modify Structure Button Loopback Mode  Note: Only available for Smart Loopback Ethernet test application. Transparent (Pseudo-Physical) check box when selected (cleared by default), determines that the Smart Loopback operates as a physical loopback by transmitting all received frames unaltered and without discrimination.
  • Page 120 Test Setup - Test Configurator, Timer, and System Modify Structure Button For Packet Sync Test Applications Interface/Rate: Select the desired interface rate. Choices depend on  the selected test and the rates available on the NetBlazer. Test Interface/Rate 1588 PTP 10GE LAN SyncE 1GE Optical...
  • Page 121 Test Setup - Test Configurator, Timer, and System Modify Structure Button For Fibre Channel Test Application Interface/Rate: Select the desired interface rate. Choices depend on  the rates available on the NetBlazer. Interface/Rate Model FTB-860, FTB-860G, FTB-720G, FTB-720G+, FTB-730G, FTB-730G+, FTB-870, FTB-880 FTB-860G, FTB-720G+, FTB-730G+,...
  • Page 122 Test Setup - Test Configurator, Timer, and System Modify Structure Button For Wireless Test Application Interface/Rate allows the selection of the interface rate.  Interface Rate Connector CPRI - 1.2G Port 1 - SFP CPRI - 2.4G Port 2 - SFP CPRI - 3.1G OBSAI - 3.1G CPRI - 4.9G...
  • Page 123 Test Setup - Test Configurator, Timer, and System Signal Auto-Detect Signal Auto-Detect The Signal Auto-Detect allows the detection of the DS1/DS3 interface Line Coding (DS1), Framing, and Test Pattern. Signal Auto-Detect is only available: with DS1 and DS3 interfaces.  when the test is stopped.
  • Page 124 Test Setup - Test Configurator, Timer, and System 1588 PTP 1588 PTP From the Test menu, tap Setup, Test Configurator, and the 1588 PTP test block. Profile is not configurable and is set to ITU G.8265.1, also called  Telecom Profile, which is for frequency synchronization. Mode is not configurable and is set to Unicast which implies a ...
  • Page 125 Test Setup - Test Configurator, Timer, and System 1588 PTP Negotiation Status is displayed during the Unicast negotiation process  which is initiated when either the test is started or the Connect button is activated. See Negotiation Status on page 398 for more information. Message Rate ...
  • Page 126 Test Setup - Test Configurator, Timer, and System 1588 PTP GM Info  Note: Only available when Grand Master clock information is available. The Grand Master Information window displays the decoded clock information. Identity report the 8-byte identification code of the Grand Master ...
  • Page 127 Test Setup - Test Configurator, Timer, and System 1588 PTP PTSF Alarm Timeout/Threshold Note: The following parameters are also used to declared the Pass/Fail verdict. Receipt Timeout defines the threshold used to declare a Loss  Announce or Loss Sync message alarm: 2 to 255 messages (default is 3 messages).
  • Page 128 Test Setup - Test Configurator, Timer, and System 1588 PTP Pass/Fail Verdict Pass/Fail Verdict check box when selected (default) enables the use of the pass/fail verdict. The global pass/fail verdict is based on the following criteria: alarms (Link Down, Loss Sync, Loss Announce, Unusable, and/or QL Mismatch (when QL Mismatch Monitoring is enabled)), or the test is automatically aborted (service request denied, session canceled, or no reply).
  • Page 129 Test Setup - Test Configurator, Timer, and System BERT BERT From the Test menu, tap Setup, Test Configurator, and tap on the BERT block. Pattern The icon next to the Pattern label indicates the status of the received pattern signal. Refer to Status Bar on page 28 for more information. Coupled RX to TX check box, when selected (default), allows ...
  • Page 130 Test Setup - Test Configurator, Timer, and System BERT TX Pattern/RX Pattern sets respectively the TX and RX test pattern.  Pattern DS0, E0 DS1 DS3, E1 E3, E4 SONET/SDH OTN 0000 1010 1100 1111 1in8 1in16 2in8 3in24 X (E3 only) T1 DALY 55 OCTET Multi-Pattern...
  • Page 131 Test Setup - Test Configurator, Timer, and System BERT Invert check box, when selected (cleared by default), inverts the test  pattern meaning that every 0 will be changed for 1 and every 1 for 0. For example, the pattern 1100 will be sent as 0011. Not available when pattern is Multi-Pattern.
  • Page 132 Test Setup - Test Configurator, Timer, and System BERT Service Disruption The Service Disruption Time (SDT) corresponds to the duration associated to a defect that occurred in the network. For example a disruption that occurs during a network switching from the active channels to the backup channels or vice versa.
  • Page 133 Test Setup - Test Configurator, Timer, and System BERT Note: The Service Disruption Time measurement supports a parent defect approach where the SDT measurement is triggered when the selected defect or a higher defect in the signal structure hierarchy is detected. For example, if Bit Error is selected, an OPU AIS error will trigger a SDT event.
  • Page 134 Test Setup - Test Configurator, Timer, and System BERT Multi-Pattern Configuration Note: Multi-Pattern Configuration is only available for DSN/PDH BERT test application with DS1 signal (DS0 disabled) and when the pattern is Multi-Pattern. This feature allows sending each pattern for a specific duration, sequentially and continuously.
  • Page 135 Test Setup - Test Configurator, Timer, and System Cable Test Cable Test From the Test menu, tap Setup, Test Configurator, and the test block. Global Options Wiring Standard is the pin-to-pair assignment corresponding to the  UTP cable used: T568A (default) or T568B. Length Unit is the unit used for cable length and distance to fault ...
  • Page 136 Test Setup - Test Configurator, Timer, and System Cable Test Delay Skew Threshold (ns) is the maximum time between the  fastest and slowest pairs of a 1000 Base-T signal: 0 to 120 ns (default is 50 ns). Length Threshold (m) is the maximum acceptable cable length: ...
  • Page 137 Test Setup - Test Configurator, Timer, and System Clock Clock Allows the configuration of the clock synchronization. From the Test menu, tap Setup, Test Configurator, and tap on the clock block. Clock Synchronization Clock Mode allows to select the source clock that will be used for transmission (TX).
  • Page 138 Test Setup - Test Configurator, Timer, and System Clock Ext Clock In Note: Available when the Clock Mode is set to External. Allows to set the external clock for test synchronization. Interface Type allows the selection of the clock interface: ...
  • Page 139 Test Setup - Test Configurator, Timer, and System Clock For E1: TERM provides an input that terminates the E1 signal.  MON provides high-input impedance and compensation for  resistive loss. This setting is useful for monitoring E1 signals at monitor points, which are resistor-isolated.
  • Page 140 Test Setup - Test Configurator, Timer, and System Clock Ext Clock Out Note: Available when the Clock Mode is set to Internal, or Recovered. Allows to set the clock that will be generated. Interface Type allows the selection of the clock interface: ...

  • Page 141: Etherbert And Unframed Bert

    Test Setup - Test Configurator, Timer, and System EtherBERT, FC BERT, BERT (CPRI), and Unframed BERT EtherBERT, FC BERT, BERT (CPRI), and Unframed BERT From the Test menu, tap Setup, Test Configurator, and tap on the EtherBERT, FC BERT, BERT, or Unframed BERT block. Pattern Coupled RX to TX check box, when selected (default), couples both ...
  • Page 142 Test Setup - Test Configurator, Timer, and System EtherBERT, FC BERT, BERT (CPRI), and Unframed BERT Bit/Pattern Error The configuration of Bit Error is available with all patterns at the exception of Seed A and Seed B for which Pattern Error is available. Pass/Fail Verdict allows to enable and configure bit/pattern error ...
  • Page 143 Test Setup - Test Configurator, Timer, and System EtherBERT, FC BERT, BERT (CPRI), and Unframed BERT Service Disruption Note: Not available for FC BERT. No Traffic Time (ms) represents the time between two Ethernet  Frames that is acceptable without raising an alarm including a Service Disruption event: 0.005 ms to 1000 ms in step of 0.005 ms (default is 50 ms).
  • Page 144 Test Setup - Test Configurator, Timer, and System EtherBERT, FC BERT, BERT (CPRI), and Unframed BERT FC Frame Note: Only available with FC BERT. Frame Size (Bytes) allows to enter the frame size (in step of 4 bytes) for FC BERT test application: 40 to 2148 bytes (default).
  • Page 145 Test Setup - Test Configurator, Timer, and System EtherBERT, FC BERT, BERT (CPRI), and Unframed BERT Shaping TX Rate allows the selection of the transmission rate in percentage of  utilization (100 percent by default), Mbit/s, Gbit/s, Frame/s, or IFG for Ethernet;...
  • Page 146 Test Setup - Test Configurator, Timer, and System EtherBERT, FC BERT, BERT (CPRI), and Unframed BERT Ethernet Frame Frame Size (Bytes) allows to enter the frame size for Ethernet test applications. The range is from 64 to 16000 The following table lists each component that may affect the minimum frame size values.

  • Page 147: Ethersam - Burst X

    Test Setup - Test Configurator, Timer, and System EtherSAM - Burst EtherSAM - Burst Note: The Burst settings are only available for configuration when the Burst Test check box is selected (see page 137). From the Test menu, tap Setup, Test Configurator, tap on the test block, and on the Burst tab.
  • Page 148 Test Setup - Test Configurator, Timer, and System EtherSAM - Burst Parameters Number of Burst Sequence is the number of times, 1 to 100 (default  is 2), the burst sequence will be repeated for the CBS and EBS tests. Refill Delay Ratio (%) is the percentage of time required to refill the ...

  • Page 149: Ethersam - Global X

    Test Setup - Test Configurator, Timer, and System EtherSAM - Global EtherSAM - Global From the Test menu, tap Setup, Test Configurator, tap on the test block, and on the Global tab. Dual Test Set Dual Test Set (DTS) check box when selected (cleared by default) ...
  • Page 150 Test Setup - Test Configurator, Timer, and System EtherSAM - Global Subtests Service Configuration Test verifies if the network configuration is  correct for each service before starting a long term test (Service Configuration Test). To test the network configuration, a ramp test and/or a burst tests is/are generated for each configured service.
  • Page 151 Test Setup - Test Configurator, Timer, and System EtherSAM - Global Burst Test check box when selected (cleared by default) verifies  that the expected burst size can be transmitted at maximum burst rate with minimal loss. CBS (Committed Burst Size) check box when selected (see SLA Parameters on page 238), verifies the performance of a committed burst size at CIR’s average TX rate.
  • Page 152 Test Setup - Test Configurator, Timer, and System EtherSAM - Global Global Options Per Direction Configuration check box when selected (default)  specifies that the values can be configured independently for each direction (local to remote and remote to local) for Dual Test Set. When the Per Direction Configuration check box is cleared the configuration will be coupled and the values apply to both directions.

  • Page 153: Ethersam - Ramp X

    Test Setup - Test Configurator, Timer, and System EtherSAM - Ramp EtherSAM - Ramp Note: The Ramp tab is only available for configuration when the Ramp Test check box is selected (see page 137). From the Test menu, tap Setup, Test Configurator, tap on the test block, and on the Ramp tab.
  • Page 154 Test Setup - Test Configurator, Timer, and System EtherSAM - Ramp Delete Step Allows to delete a step from the ramp. Select the step from the list and tap on Delete. Defaults Reverts the ramp configuration to its default factory settings. FTB-700G/800 Series...
  • Page 155 Test Setup - Test Configurator, Timer, and System Fibre Channel Fibre Channel From the Test menu, tap Setup, Test Configurator, and the Fibre Channel block. World Wide Name (WWN) The following WWN settings are only available when the Login - Enable check box is selected (see page 144).
  • Page 156 Test Setup - Test Configurator, Timer, and System Fibre Channel Login After a link is established, it is possible to login to the Fibre Channel Network to send and receive data between a local and remote fibre channel port. Enable check box when selected (default) allows to press the Login ...
  • Page 157 Test Setup - Test Configurator, Timer, and System Fibre Channel Fabric Status indicates the status of the Fabric switching network. The  status is not available when the discovered topology is Point-to-Point. Logged-in indicates that the login process has completed ...
  • Page 158 Test Setup - Test Configurator, Timer, and System FTFL/PT FTFL/PT From the Test menu, tap Setup, Test Configurator, tap on the signal block, and on the FTFL/PT tab. FTFL Allows the configuration of the Forward and Backward ODU Fault Type Fault Location (FTFL) to be generated.
  • Page 159 Test Setup - Test Configurator, Timer, and System FTFL/PT Note: Changing the payload type (PT) does not alter the signal structure; it only modifies the OH value that is generated. Payload Type and Code  Generated: Allows to select the payload signal type to be generated either by selecting the payload type from the list or by entering its code in hexadecimal (00 to FF.).
  • Page 160 Test Setup - Test Configurator, Timer, and System FTFL/PT Payload type Hex Code 1234 5678 IB SDR mapping into ODUflex 0001 0010 IB DDR mapping into ODUflex 0001 0011 IB QDR mapping into ODUflex 0001 0100 ODU Multiplex with ODTUjk 0010 0000 ODU Multiplex with ODTUk.ts/ODTUjk...
  • Page 161 Test Setup - Test Configurator, Timer, and System Interface (Ethernet, Packet Sync, Fibre Channel, and Wireless) Interface (Ethernet, Packet Sync, Fibre Channel, and Wireless) From the Test menu, tap Setup, Test Configurator, the interface block, and the Interface tab. LINK An arrow is used to indicate the status of the test link.
  • Page 162 Test Setup - Test Configurator, Timer, and System Interface (Ethernet, Packet Sync, Fibre Channel, and Wireless) Speed, available with 10/100/1000M Electrical interface, allows the  selection of the interface rate: 10M, 100M, 1GE, or Auto . The negotiated speed will be displayed next to the Speed field selection. The 10M speed is not available with SyncE test application.
  • Page 163 Test Setup - Test Configurator, Timer, and System Interface (Ethernet, Packet Sync, Fibre Channel, and Wireless) For Fibre Channel test application: PSP (Link Protocol) (Primitive Sequence Protocol) check box when  selected (default) allows link management by activating the port. For CPRI Unframed test application: Scrambling check box when selected (default) enables the scrambler.
  • Page 164 Test Setup - Test Configurator, Timer, and System Interface (Ethernet, Packet Sync, Fibre Channel, and Wireless) C&M Channel defines the kind of channel that will be used by the  startup sequence for negotiation. Auto (default): Overhead byte #Z.66.0 can use any of the HDLC ...
  • Page 165 Test Setup - Test Configurator, Timer, and System Interface (Ethernet, Packet Sync, Fibre Channel, and Wireless) Rate (Mbit/s) is available with HDLC and Ethernet C&M Channel.  For HDLC: Allows the selection of the HDLC bit rate. Choices depend on the selected CPRI interface rate. HDLC Proprietary is used to exercise a case where the Base Station is aware in advance of the HDLC rate to use.
  • Page 166  up to 15 bytes (a CRC-7 byte will be added in front for a total of 16 bytes). Default is EXFO 10GigE. Note: J0 and J1 values should be 7-bit T.50 suitable characters. The Padding drop list from the message keyboard allows to select Null or Space to fill up the J0 Trace and J1 Trace up to15 byte value.
  • Page 167 Test Setup - Test Configurator, Timer, and System Interface (Ethernet, Packet Sync, Fibre Channel, and Wireless) Physical Interface Laser indicates the status of the laser: ON with the laser pictogram  (emitting an optical laser signal) or OFF. TX Power (dBm) indicates, when supported, the transmit power level ...
  • Page 168 Test Setup - Test Configurator, Timer, and System Interface (Ethernet, Packet Sync, Fibre Channel, and Wireless) TX Frequency TX Frequency (GHz) indicates the frequency (actual frequency +  Frequency offset) used for transmission. Note: Frequency offset is not available with Wireless or RFC 6349 test application. Offset (ppm) check box, when selected (cleared by default), allows to ...
  • Page 169 Test Setup - Test Configurator, Timer, and System Interface (Ethernet, Packet Sync, Fibre Channel, and Wireless) RX Frequency Frequency (GHz) indicates the frequency of the input signal.  Offset (ppm) indicates the frequency offset between the standard rate  specification and the rate at the input signal. Note: For both Frequency and Offset the following background colors are used.
  • Page 170 Test Setup - Test Configurator, Timer, and System Interface (iSAM) Interface (iSAM) From the Test menu, tap Setup, Test Configurator, and the More button from the Local block. LINK An arrow is used to indicate the status of the test link. A green arrow indicates that the link is up.
  • Page 171 Test Setup - Test Configurator, Timer, and System Interface (iSAM) Connector allows the selection of the module’s port.  Interface/Rate Connector 10GE WAN Port 1 - SFP+ 10GE LAN 1GE Optical Port 1 - SFP 100M Optical Port 2 - SFP 10/100/1000M Electrical Port 1 - RJ45 Port 2 - RJ45...
  • Page 172 Test Setup - Test Configurator, Timer, and System Interface (iSAM) Address indicates the default and unique Media Access Control (MAC)  address given to the Ethernet port. VLAN ID/Priority check box when selected, cleared by default,  enables C-VLAN with VLAN Ethernet type of 8100 and allows to set both VLAN ID and priority.
  • Page 173 Test Setup - Test Configurator, Timer, and System Interface (iSAM) IP Version is set to IPv4.  Automatic IP (DHCP) check box, when selected (cleared by default),  allows to dynamically obtain an IP address from a DHCP (Dynamic Host Configuration Protocol) server. Note: IP Address, Subnet Mask, and Default Gateway are not available when the Automatic IP (DHCP) check box is selected.
  • Page 174 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management ISDN PRI - Call Management From the Test menu, tap Setup, Test Configurator, the test block, and the Call Management tab. Call Origination Settings Channel Identification  The channel buttons allow the selection of a channel for call ...
  • Page 175 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management Interface/ Switch Type Numbering Types for ... Numbering Plan Rate ISDN Unknown Private Telephony National ISDN Unknown International, Subscriber National, Local Nortel DMS-100/250 Unknown International, Subscriber National, AT&T 4ESS/5ESS Subscriber Euro VN6...
  • Page 176 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management Call  Type selects the service type: 3.1 kHz, Speech, or Data (default).  Rate is only configurable for Data type: 56K or 64K (default). The  rate is set 64K for 3.1 kHz and Speech types as well as for Euro Q.SIG switch type.
  • Page 177 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management Call Establishment/Termination Pass/Fail Verdict Call Establishment/Termination Pass/Fail Verdict check box when  selected (cleared by default) enables call establishment and termination pass/fail verdict for each channel and globally for the test. No verdict is provided on the D-Channel.
  • Page 178 Test Setup - Test Configurator, Timer, and System ISDN PRI - Call Management Call/Hang-Up and Hang-Up All buttons are available depending on the status of the call. Call initiates a call on the selected channel.  Hang-Up terminates a call on the selected channel. ...
  • Page 179 Test Setup - Test Configurator, Timer, and System ISDN PRI - ISDN Settings ISDN PRI - ISDN Settings From the Test menu, tap Setup, Test Configurator, the test block, and the ISDN Settings tab. D-Channel Channel indicates the channel selected to establish the ISDN signalling ...
  • Page 180 Test Setup - Test Configurator, Timer, and System ISDN PRI - ISDN Settings Threshold allows to enter the threshold value that will be used to  declare the pass/fail verdict. For Count, enter the maximum bit error count allowed before declaring a fail verdict: 0 (default) to 999999.
  • Page 181 Test Setup - Test Configurator, Timer, and System Labels Labels From the Test menu, tap Setup, Test Configurator, the interface block, and on the Labels tab. Note: Selecting a Label byte to be generated will automatically update the corresponding OH byte. Refer to OH - SONET/SDH on page 487 for more information.
  • Page 182 Test Setup - Test Configurator, Timer, and System Link OAM Link OAM From the test menu, tap Setup, Test Configurator, and the Link-OAM (802.3) test block. OAM Mode Allows the selection of the OAM mode: Active (default) initiates the OAM discovery and send OAMPDU ...
  • Page 183 Test Setup - Test Configurator, Timer, and System Link OAM OAM Discovery Status Local reports the local OAM discovery status as follows:  Status Description Evaluating OAM discovery is started. Stable OAM discovery is completed. Local OAM is satisfied with the remote OAM settings.
  • Page 184 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP MAC/IP/UDP Note: Only available with Framed Layer 2 (see Framing from the Modify Frame Structure). For Traffic Gen & Mon all parameters are configurable per stream. For EtherSAM all parameters are configured per service. From the Test menu, tap Setup, Test Configurator, and...
  • Page 185 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Modify Frame Structure Allows to modify the structure of the frame. Global Option is only available with EtherSAM and Traffic Gen & Mon  test applications. S-OAM check box when selected, enables EtherSAM over service ...
  • Page 186 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP is disabled when the Network Layer is None. Transport Layer  Test Application Transport Layer EtherSAM None, UDP (default), TCP RFC 2544 EtherBERT UDP (default), TCP Traffic Gen & Mon None, UDP (default), TCP MPLS - The MPLS Label check box, when selected (cleared by ...
  • Page 187 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Source MAC Address indicates the default and unique Media Access  Control (MAC) address given to the Ethernet port. Destination MAC Address: Enter the destination MAC address for the  stream. The default setting is the source MAC address. The destination MAC Address field is not accessible when the Resolve MAC Address check box is selected.
  • Page 188 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP OUI, available when the frame format 802.3 SNAP is selected, allows  the selection of the Organizationally Unique Identifier (OUI): RFC1042 (0x000000) - (default) User Defined, available when Network Layer is set to None, allows to enter the OUI value: 0x000000 (default) to 0xFFFFFF.
  • Page 189 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Type, VLAN Ethernet Type, choices are 8100 (default for C-VLAN),  88A8 (default for S-VLAN), 9100 (default for E-VLAN), 9200, and 9300. Drop Eligible:, when set to Yes (DEI = 1), the transmitted frames will ...
  • Page 190 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP For IPv4 the following configuration parameters are available. Automatic IP (DHCP) check box, when selected (cleared by default),  allows to dynamically obtain an IP address from a DHCP (Dynamic Host Configuration Protocol) server. Source IP Address allows to enter the source IP address for the ...
  • Page 191 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Global IPv6 Address (GUA) is used to communicate with on-link  neighbors and for global communication with hosts outside the subnet. Mode  None disables the Global IPv6 Address and the Default Gateway Address.
  • Page 192 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Prefix Mask, available with Static mode, allows to specify a prefix  that defines the subnet. The accepted range is 0000:0000:0000:0000:0000:0000:0000:0000 to FFFF:FFFF:FFFF:FFFF:0000:0000:0000:0000. For example: Global Address: 2001:0DB8:0001:0002:02AA:00FF:FE11:1111 Prefix Mask: FFFF:FFFF:FFFF:0000:0000:0000:0000:0000 Corresponding Prefix: 2001:0DB8:0001.
  • Page 193 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP The following configuration parameters are available for both IPv4 and IPv6 unless otherwise specified. Quick Ping button automatically starts the quick Ping utility for the  stream destination IP address and provides either a successful or failed result.
  • Page 194 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP TTL (IPv4) or HOP Limit TTL (IPv6) sets the Time To Live value: 1 to  255 (default is 128). Flow Label (IPv6) is a number used to identify a series of related ...
  • Page 195 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Reliability allows the selection of the reliability level:  Normal (default) or High. Monetary Cost allows the selection of the monetary cost level:  Normal (default) or Low. Reserved Bit allows the selection of the reserved bit value: ...
  • Page 196 Test Setup - Test Configurator, Timer, and System MAC/IP/UDP Allows the selection of the source and destination UDP port number. Source Port is configurable from 0 to 65535; the default is 49184.  Destination Port is configurable from 0 to 65535; the default is ...

  • Page 197: Network

    Test Setup - Test Configurator, Timer, and System Network Network From the test menu tap Setup, Test Configurator, the interface block, and the Network tab. Note: For Through Mode test application, the Network tab is only available for the Primary Port but the configured parameters apply to both ports. MAC Address indicates and allows to change, when the Factory ...
  • Page 198 Test Setup - Test Configurator, Timer, and System Network IP Version allows the selection of either IPv4 (default) or IPv6. Only IPv4 is supported for TCP Throughput test application. For IPv4 the following configuration parameters are available. Automatic IP (DHCP) check box, when selected (cleared by default), ...
  • Page 199 Test Setup - Test Configurator, Timer, and System Network For IPv6 the following configuration parameters are displayed: Link-Local IPv6 Address, Global IPv6 Address, and Default Gateway. Tap on the Config button to access all settings. Link-Local IPv6 Address (LLA) is used for local communication ...
  • Page 200 Test Setup - Test Configurator, Timer, and System Network Global IPv6 Address (GUA) is used to communicate with on-link  neighbors and for global communication with hosts outside the subnet. Mode  None disables the Global IPv6 Address and the Default Gateway Address.
  • Page 201 Test Setup - Test Configurator, Timer, and System Network Prefix Mask, available with Static mode, allows to specify a prefix  that defines the subnet. The accepted range is 0000:0000:0000:0000:0000:0000:0000:0000 to FFFF:FFFF:FFFF:FFFF:0000:0000:0000:0000. For example: Global Address: 2001:0DB8:0001:0002:02AA:00FF:FE11:1111 Prefix Mask: FFFF:FFFF:FFFF:0000:0000:0000:0000:0000 Corresponding Prefix: 2001:0DB8:0001.
  • Page 202 Test Setup - Test Configurator, Timer, and System Network VLAN VLAN Tag check box, when selected (cleared by default), enables and allows to set up to 3 stacked VLANs. For each VLAN tag enabled, C-VLAN / S-VLAN / E-VLAN, the following parameters are configurable.
  • Page 203 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Network Details (iSAM) Either select the Layer parameter, the number of services, for each service the profile and CIR settings, or click on More for all settings. The total bandwidth (when the Performance Test is enabled) and the estimated test duration are also displayed.
  • Page 204 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Performance Test check box when selected (default) verifies that the  SLA parameters (FD, IFDV, and FLR) are met over time by running multiple services simultaneously. Results are measured and compared to the configured thresholds to declare the pass/fail verdicts.
  • Page 205 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Services Allows the selection of the number of services: 1 (default) to 4. The following parameters are configurable individually for each service: Profile  Two profiles are defined by default as well as User Profile. Profiles are user definable and up to 25 profiles can be predefined (see Customizable Profiles on page 198).
  • Page 206 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Note: At least one check box (CIR or CIR+EIR) has to be selected. Thus, clearing the CIR check box while CIR+EIR check box is cleared, will automatically select the CIR+EIR check box and vice versa. Note: For Dual Test Set, the CIR and CIR+EIR values are the same (Symmetric) for both L->R and R->L directions.
  • Page 207 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Frame Size  Type Frame Size (bytes) Fixed (default) (default) to 16000 EMIX to 16000 The minimum value is adjusted according to the frame structure and components selected as shown in the following table. The maximum frame size is limited to 10000 for 10/100/1000Mbps electrical interface.
  • Page 208 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Classification  Allows the selection of the value for the selected classification: Classification Value VLAN ID 0 through 4095 (default is 2). Refer to VLAN ID and Priority on page 639. VLAN Priority 0 (default) to 7.
  • Page 209 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Performance Criteria  The following performance criteria are available by default: Name ≤ FD (ms) ≤ IFDV (ms) ≤ FLR (%) MEF Metro High 0.01 MEF Metro Med 0.01 MEF Metro Low Disabled MEF Regional High...
  • Page 210 As mentioned above, 2 profiles are available by default and up to 25 profiles can be predefined by editing the profile’s text file (iSAMProfilesTemplate.ini) using a word processor like Notepad. The file is located under Documents and Settings\All Users\Application Data\EXFO\ProtocolProducts\ Example of profile’s text file: [Priority] Frame Type = EMIX...
  • Page 211 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) Each profile entry has the following parameters. Profile Name: 1 to 16 characters. All ASCII characters from 32 to 126  decimal are supported. Frame Type: Enter Fixed or EMIX. When the frame type is missing ...
  • Page 212 25 performance criteria can be defined by editing the performance criteria text file (iSAMPerformanceCriteriaTemplate.ini) using a word processor application like Notepad. The file is located under Documents and Settings\All Users\Application Data\EXFO\ProtocolProducts\ Example of performance criteria’s text file: [MEF Metro High]...
  • Page 213 Test Setup - Test Configurator, Timer, and System Network Details (iSAM) If the threshold value for a parameter is not defined, it is considered as disabled (as in the example above for IFDV =). The value of a parameter is validated to ensure it is within the supported range;...
  • Page 214 Test Setup - Test Configurator, Timer, and System Remote Details (iSAM) Remote Details (iSAM) The remote block automatically scan the remote modules for DTS and Remote Loopback modes and allows the selection of the remote module that is used to loop back the traffic via Smart Loopback or EtherSAM in Dual Test Set (DTS) mode for simultaneous bidirectional results.
  • Page 215 Test Setup - Test Configurator, Timer, and System Remote Details (iSAM) Preferred check box when selected indicates that this module is  part of the preferred module’s list. Preferred remote modules will be considered first during the automatic connection process as follows: Priority Preferred or not...
  • Page 216 Test Setup - Test Configurator, Timer, and System Remote Details (iSAM) For Remote Loopback Operation Mode Loop-Up button establishes the connection with the selected remote  module and sets the remote module into Smart Loopback test application. Following a successful loop-up, the IP address of the remote module will be used as the destination IP address for the test.
  • Page 217 Test Setup - Test Configurator, Timer, and System Remote Details (iSAM) For Manual Loopback Operation Mode MAC, available with layer L2, allows to enter the destination MAC  address of the remote. IP , available with L3/L4, allows to enter the destination IP address of ...

  • Page 218: Rfc 2544 - Global - - X

    Test Setup - Test Configurator, Timer, and System RFC 2544 - Global RFC 2544 - Global From the Test menu, tap Setup, Test Configurator, tap on the RFC 2544 block, and on the Global tab. Dual Test Set Dual Test Set (DTS) check box when selected (cleared by default) ...
  • Page 219 Test Setup - Test Configurator, Timer, and System RFC 2544 - Global Subtests and Estimated Time Subtests allows to individually enable the Throughput, Back-to-Back,  Frame Loss, and Latency subtests. Estimated Time (H:MM) indicates the estimated time required to  complete each subtest at best conditions.
  • Page 220 Test Setup - Test Configurator, Timer, and System RFC 2544 - Global The following table lists each component that may affect the minimum size value. Component Description VLAN 4 bytes per VLAN tag (up to 3 VLAN tags) LLC and SNAP Headers 8 bytes IPv4 20 bytes...

  • Page 221: Rfc 2544 - Subtests - - X

    Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests RFC 2544 - Subtests From the Test menu, tap Setup, Test Configurator, tap on the RFC 2544 block. and on the Subtests tab. Allows the configuration of each enabled subtest. Throughput The objective of this test is to find the throughput of the device under test for which there is no frame loss.
  • Page 222 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Trial Duration is the time for each trial in minutes:seconds: 1 second  (default) to 30 minutes. Accuracy is the accuracy measurement in percentage of the line rate ...
  • Page 223 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Back-to-Back The objective of this test is to find the maximum number of frames that can be sent at maximum throughput without frame loss. A burst of frames (Burst Time) is sent with minimum inter-frame gaps to the device under test and the number of forwarded frames is counted.
  • Page 224 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Frame Loss Configuration The objective of this test is to find the percentage of frames that are lost due to lack of resources. Starting at the specified maximum rate (Max. Rate), the test is performed for a specific frame size and for the specified duration (Trial Duration).
  • Page 225 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Latency Configuration The objective of the test is to measure the time required for the frame to go through the device under test and return back to source. Starting by sending a stream of frames for the predefined duration (Trial Duration) and throughput (Max.
  • Page 226 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Measurement Mode, available with Dual Test Set for rates from 10M  to 10GE, allows the selection of the latency measurement mode: Round-Trip (default) or One-Way. Synchronization with an external 1PPS clock is required to perform One-Way Latency measurement.
  • Page 227 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Thresholds Button Note: For Dual Test Set, thresholds are configurable for Local to Remote and Remote to Local directions at the exception of Round-Trip Latency Threshold for which the value is unique. Throughput Threshold sets the threshold value used to declare a ...
  • Page 228 Test Setup - Test Configurator, Timer, and System RFC 2544 - Subtests Latency Threshold / Round-Trip Latency Threshold sets the  threshold value as the maximum delay in ms or μs. The range is from 0.5 to 8000.0 ms (default is 125.0 ms) and it applies to all frame sizes when applicable.

  • Page 229: Rfc 6349 - X

    Test Setup - Test Configurator, Timer, and System RFC 6349 RFC 6349 From the Test menu, tap Setup, Test Configurator, and the RFC 6349 block. Connection Operation Mode indicates the test operation mode: Dual Test Set  (DTS). It is possible to select a remote unit by clicking on the Discover Remote button.
  • Page 230 Test Setup - Test Configurator, Timer, and System RFC 6349  The Local-to-Remote CIR and Remote-to-Local CIR represent the Committed Information Rate of the Ethernet Service under test: 1.0 Mbit/s to Line Rate. The CIR is not used to actually transmit frames at this rate but to calculate a Bandwidth Delay Product (BDP) which in turn is used to set the Max Window Size of the TCP connections.
  • Page 231 Test Setup - Test Configurator, Timer, and System RFC 6349 TCP Throughput Duration is the duration of the TCP Throughput phase per direction:  1 minute (default) to 30 days. Pass/Fail Verdict check box when selected (default) enables the use ...
  • Page 232 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM S-OAM and MPLS-TP OAM From the test menu, tap Setup, Test Configurator, and the S-OAM (Y.1731/802.1ag/MEF) or MPLS-TP OAM (G.8113.1) test block. OAM Mode Allows the selection of the OAM mode. OAM Type OAM Mode S-OAM...
  • Page 233 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM S-OAM and MPLS-TP OAM Responder S-OAM Responder or MPLS-TP OAM Responder check box when selected (default) allows to respond to LBM, LTM, DMM, LMM, and SLM valid messages (test running or not). LTM and SLM are only available with Ethernet OAM.
  • Page 234 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Pass/Fail Verdict Pass/Fail Verdict check box when selected (default) enables the use of the pass/fail verdict. A global fail verdict is declared when any of the following condition is met: Link Down alarm, Loss Continuity alarm, or any fail verdict for Frame Delay, Frame Loss, Synthetic Loss (Only applicable to Ethernet OAM), Frame Delay Failure, Frame Loss Failure, Synthetic Loss Failure (Only applicable to Ethernet OAM), Loopback Failure, or Test...
  • Page 235 MA Name (Short MA Name) is a Maintenance Association Name  text field set to EXFO MA Name by default. The length of the MA Name field is from 1 to either 44 bytes minus the Domain ID field length when Domain ID is present or 45 bytes when not present.
  • Page 236 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM MEG Level (Y.1731, MEF, and G.8113.1) is the Maintenance Entity  Group Level configurable from 0 to 7 (default). MD Level (802.1ag) is the Maintenance Domain Level and is ...
  • Page 237 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Drop Eligible, available with S-OAM Mode or when VLAN is enabled  (see VLAN on page 190), is set to No (no frames will be dropped when congestion occurs) and is not configurable. Period determines the transmission period of the CCM frame: 3.33 ms, ...
  • Page 238 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Test Function Note: Test Function parameters are not configurable when the TX Enable check box is selected. Function allows the selection of the test function to be performed. ...
  • Page 239 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Requesting MEP ID TLV (G.8113.1) check box when selected (default)  determines if the Requesting MEP ID TLV is present in the LBM frame. The Requesting MEP ID TLV check box is cleared and not selectable when the Continuous check box is selected.
  • Page 240 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Frame Size allows to enter the frame size. The frame size range for  Ethernet II frame format is as follows: S-OAM Mode: 64 to 1518 . The minimum frame size is adjusted ...
  • Page 241 Test Setup - Test Configurator, Timer, and System S-OAM and MPLS-TP OAM Parameter Number of bytes to be added Apply to Label 2 4 bytes G.8113.1 18 bytes for Data TLV Type Continuous 21 bytes for Test TLV Type Requesting MEP ID TLV 56 bytes Note: Sending traffic with frame size >1518 in switched network may result in losing all frames.

  • Page 242: Services - Global X

    Test Setup - Test Configurator, Timer, and System Services - Global Services - Global From the Test menu, tap Setup, Test Configurator, tap on the services block, the Global tab, and on the General button. General Button The following parameters are displayed and configurable per service. Check boxes: ...
  • Page 243 Test Setup - Test Configurator, Timer, and System Services - Global Framing indicates the framing of each service. Tap on the Framing  button to modify the Frame Format, Network Layer, Transport Layer, VLAN, S-OAM MEG/MD Level, and MPLS when applicable (see Modify Frame Structure from the MAC/IP/UDP on page 172).
  • Page 244 Test Setup - Test Configurator, Timer, and System Services - Global Total TX Rate Note: Only available when the Service Performance Test check box is selected (see EtherSAM - Global on page 137). For Dual Test Set, the total TX rates are displayed for both Local and Remote directions.

  • Page 245: Services - Profile X

    Test Setup - Test Configurator, Timer, and System Services - Profile Services - Profile The EtherSAM test application supports the configuration of up to 10 different services individually. All parameters are configurable per service. From the Test menu, tap Setup, Test Configurator, tap on the services block, and on the Profile tab.
  • Page 246 Test Setup - Test Configurator, Timer, and System Services - Profile Total TX Rate Note: Only available when the Service Performance Test check box is selected (see EtherSAM - Global on page 137). Indicates the total transmit rate of all services enabled for transmission. Unit selection is available from the SLA Parameters on page 238.
  • Page 247 Test Setup - Test Configurator, Timer, and System Services - Profile Note: The CIR value will be calculated on the basis of the selected service profile and the value entered in the Number of Calls or Number of Channels field. Frame Size (Bytes) indicates the frame size for Voice and Video ...
  • Page 248 Test Setup - Test Configurator, Timer, and System Services - Profile The following table lists each component that may affect the minimum frame size value. Component Description VLAN 4 bytes per VLAN (up to 2 VLAN) MPLS 4 bytes per label (up to two labels) 8 bytes 20 bytes Ethernet Header...
  • Page 249 Test Setup - Test Configurator, Timer, and System Services - Profile Test Parameters Note: Unit selection is available from the SLA Parameters on page 238. For Dual Test Set, parameters are configurable for both local to remote (L->R) and remote to local (R->L) directions. Traffic Policing check box when selected (default) allows to stress the ...
  • Page 250 Test Setup - Test Configurator, Timer, and System Services - Profile SLA Parameters The Service-Level Agreement (SLA) parameters allow enabling and defining the pass/fail verdict thresholds for the service. For Dual Test Set, parameters are configurable for both local to remote (L->R) and remote to local (R->L) directions at the exception of Max Round-Trip Latency for which the value is unique.
  • Page 251 Test Setup - Test Configurator, Timer, and System Services - Profile CBS check box when selected (default) sets the maximum committed  burst size to which services’ frames will be sent and be CIR-compliant (default is 12144 bytes). The CBS minimum and maximum values are affected by the CIR, Burst Max Rate, and Frame Size values.
  • Page 252 Test Setup - Test Configurator, Timer, and System SFP/SFP+ SFP/SFP+ The SFP/SFP+ tab gives hardware information related to the inserted SFP/SFP+ module. For iSAM: From the Test menu, tap Setup, Test Configurator, tap on the Local block, and on the SFP/SFP+ tab. For all other tests: From the Test menu, tap Setup, Test Configurator, tap on the interface block, and on the SFP/SFP+ tab.
  • Page 253 Test Setup - Test Configurator, Timer, and System Signal (Transport) Signal (Transport) From the Test menu, tap Setup, Test Configurator, the interface block, and the Signal tab. Physical Interface - Optical Note: For electrical interface, see Physical Interface - Electrical on page 242. Laser indicates the status of the laser: ON with the laser pictogram ...
  • Page 254 Test Setup - Test Configurator, Timer, and System Signal (Transport) Lasers OFF at Start-Up check box when selected automatically turns  OFF the laser when starting the NetBlazer or when switching from one test application to another. However the laser remains ON, on a remote module receiving a request for a DTS connection or a loopback command.
  • Page 255 Test Setup - Test Configurator, Timer, and System Signal (Transport) Line Coding  Signal Line Coding AMI and B8ZS B3ZS AMI and HDB3 HDB3 STS-1e/STM-0e B3ZS STS-3e/STM-1e Default value. RX Termination  Signal Termination DS1/E1 Term , Mon, and Bridge. DS3/E3/E4/STS-1e/STM-0e/STS-3e/STM-1e Term , and Mon...
  • Page 256 Test Setup - Test Configurator, Timer, and System Signal (Transport) TX Frequency TX Frequency (GHz) indicates the frequency (actual frequency +  Frequency offset) used for transmission. Offset (ppm) check box, when selected (cleared by default), allows to  set the frequency offset that will be generated. Use the “+” or “-” button to respectively increment or decrement the frequency offset value based on the defined Increment/Decrement Size, or directly type the frequency offset value in the field.
  • Page 257 Test Setup - Test Configurator, Timer, and System Signal (Transport) Step Size (ppm) allows to set the increment/decrement value (from 0.1 to the maximum offset) that will be used when changing the frequency offset with the “+” or “-” button. RX Frequency Frequency (GHz) indicates the frequency of the input signal.
  • Page 258 Test Setup - Test Configurator, Timer, and System Signal (Transport) Signal Configuration For OTN, refer to Signal - Signal Configuration (OTN) on page 256 for  more information. For SONET/SDH, refer to Signal - Signal Configuration (SONET/SDH) on  page 258 for more information. For DSn/PDH, refer to Signal - Signal Configuration (DSn/PDH) on ...
  • Page 259 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Signal - Signal Configuration (DSn/PDH) For SONET/SDH - DSn/PDH BERT, from the test menu, tap Setup, Test Configurator, and the protocol block. Only Framing setting and the Loopback button are available.
  • Page 260 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Background For multiplex test case, allows the selection of the default timeslot background traffic: AIS (default) or All Zeros. The diagram above shows a test case defined with DSn/PDH traffic where the background traffic is also inserted for the unused timeslots in a test case data path.
  • Page 261 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Modify DS0/E0 Modify DS0/E0 button is only available when the DS0/E0 check box is selected. Note: For DS0, the framing structure have 23 timeslots. For E0, the framing structure PCM-30 and PCM30 CRC-4 have 30 channel timeslots while PCM-31 and PCM-31 CRC-4 have 31 channel timeslots.
  • Page 262 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Note: Bit 8 is the Least-Significant Bit (LSB) and bit 1 is the Most-Significant Bit (MSB). Payload Content and Set All  Payload Content allows the selection of the payload content that will be applied to all TX timeslots when tapping the Set All button: Pattern, Idle, or Tone.
  • Page 263 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH)  Apply Channel TX to RX, available for decoupled test, allows to apply the RX payload content based on the TX settings. None will be used when TX is set to either Idle or Tone. Note: The RX timeslot selection is only configurable in a Decoupled topology when the Apply Channel TX to RX check box is cleared.
  • Page 264 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Loopback button The Loopback feature generates a code that is interpreted by the DUT. The DUT interprets the command and implements the loopback. Select the type of loopback that will be used to overwrite the traffic that will be generated.
  • Page 265 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Modify Loop Codes button  Allows the configuration of 10 DS1 loop code pairs. Configure each loop code name, Loop-Up and Loop-Down values. The name field allows up to 16 characters long. Loop-Up and Loop-Down range is from 3 to 16 bits (000 to 1111111111111111).
  • Page 266 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) DS1 Loopback - for NI/CSU Emulation Test The Loopback feature generates a code that is interpreted by the DUT. The DUT interprets the command and implements the loopback. Mode selects the loopback control Mode;...
  • Page 267 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (DSn/PDH) Out-of-Band loop code Loop-UP Code Loop-Down Code Line 00001110 11111111 00111000 11111111 Payload 00010100 11111111 00110010 11111111 Reserved For Network Use 00010010 11111111 00100100 11111111 ISDN Line (NT2) 00101110 11111111 00100100 11111111 CI/CSU Line(NT1)
  • Page 268 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (OTN) Signal - Signal Configuration (OTN) Note: The following signal configuration parameters are available from the interface block. From the Test menu, tap Setup, Test Configurator, the interface block, and on the Signal tab.
  • Page 269 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (OTN) ODU2, ODU2f, ODU1f, ODU2e, ODU1e, or ODU1  OPU Tributary Port, available for each OPU level of a mapped  signal, indicates the OPU tributary port used for the test. Tap the Modify Trib Slots/Port button to change the OPU tributary port.
  • Page 270 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (SONET/SDH) Signal - Signal Configuration (SONET/SDH) From the Test menu, tap Setup, Test Configurator, the interface block, and the Signal tab. OC/STM Signal Synchronization Status Message (S1): Bits 5 through 8 of the S1 byte ...
  • Page 271 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (SONET/SDH) REI-L/MS-REI Computation Method (OC-192/STM-64 only): Allows to  select the default method used to calculate the REI-L/MS-REI error for OC-192 and STM-64 signals. Choices are M1 Only and both M0 and M1. The default setting is M1 only.
  • Page 272 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (SONET/SDH) STS/AU Path (SONET/SDH HOP): The following diagram shows a test case data path that is terminated right after SONET/SDH high order path. High order background traffic is automatically adapted to the rate (STS-1, AU-3, or AU-4) signal level for the paths that are not defined in the test case.
  • Page 273 Test Setup - Test Configurator, Timer, and System Signal - Signal Configuration (SONET/SDH) VT/TU Path (SONET/SDH LOP) The following diagram shows a test case data path that is terminated at the SONET/SDH low order path. The remaining STS-1 or AU-3 timeslot not involved in the test case are filled with background traffic of STS-1 or AU-3 level depending on the interface being SONET or SDH.

  • Page 274: Smart Loopback

    Test Setup - Test Configurator, Timer, and System Smart Loopback Smart Loopback Note: The Smart Loopback block is only displayed when the Transparent (Pseudo-Physical) check box is cleared (see Loopback Mode on page 107). From the Test menu, tap Setup, Test Configurator, and the Smart Loopback block.
  • Page 275 Test Setup - Test Configurator, Timer, and System Smart Loopback S-OAM Responder The S-OAM Responder check box when selected (default) allows to respond to LBM, LTM, DMM, LMM, and SLM valid messages (test running or not). Traffic statistics are also monitored (refer to Responder on page 452). Respond to...

  • Page 276: Streams - Global

    Test Setup - Test Configurator, Timer, and System Streams - Global Streams - Global From the Test menu, tap Setup, Test Configurator, the protocol block, and the Global tab. The following parameters are displayed and configurable per stream. Check boxes: ...
  • Page 277 Test Setup - Test Configurator, Timer, and System Streams - Global Addressing indicates the source and destination IP addresses for each  stream. Tap on the Addressing button to modify the addressing (see MAC and IP from the MAC/IP/UDP tab). Batch button allows bulk configuration for stream addressing.

  • Page 278: Streams - Profile

    Test Setup - Test Configurator, Timer, and System Streams - Profile Streams - Profile The Traffic Gen & Mon test application supports the configuration of up to 16 different streams individually. From the Test menu, tap Setup, Test Configurator, the protocol block, and the Profile tab.
  • Page 279 Test Setup - Test Configurator, Timer, and System Streams - Profile Profile Profile button allows the selection and configuration of either Voice,  Video, or Data (default) emulation profile. The selected profile icon and its Codec for Voice and Video are displayed next to the Profile button.
  • Page 280 Test Setup - Test Configurator, Timer, and System Streams - Profile Frame Size (Bytes) for Data profile is selectable: Fixed (default),  Random, or Sweep. The Frame Size is forced to Fixed for Voice and Video profiles. For Fixed type, the frame size is as follow. ...
  • Page 281 Test Setup - Test Configurator, Timer, and System Streams - Profile For Sweep type, the first frame is generated starting with the  minimum number of bytes defined then each subsequent frame is incremented by 1 byte until the maximum number of bytes is reached and start over with minimum.
  • Page 282 Test Setup - Test Configurator, Timer, and System Streams - Profile Shaping TX Mode allows the selection of the transmission mode for the  selected stream when Data profile is selected. The TX Mode is forced to Continuous for Voice and Video profiles. Continuous (default) transfers the selected frame continuously according to the selected percentage of bandwidth.
  • Page 283 Test Setup - Test Configurator, Timer, and System Streams - Profile TX Rate / Max TX Rate indicates the transmission rate for Voice and  Video profiles, and allows to enter the transmission rate for Data profile. The available stream transmission rate will be calculated according to the selected TX Mode.
  • Page 284 Test Setup - Test Configurator, Timer, and System Streams - Profile Total TX Rate indicates the percentage of the total line utilization  which is the sum of all TX rate enabled streams. Note: The Individual stream can be enabled/disabled even when the test is started and running.
  • Page 285 Test Setup - Test Configurator, Timer, and System Streams - Profile Frame Loss Count/Rate check box when selected enables the Frame  Loss pass/fail verdict and allows to set threshold of frame that are lost. For Count, enter the maximum count of frame that are lost before declaring a fail verdict: 0 (default) to 9999999999.
  • Page 286 Test Setup - Test Configurator, Timer, and System SyncE SyncE From the Test menu, tap Setup, Test Configurator, and the SyncE test block. ESMC Monitoring ESMC (Ethernet Synchronization Message Channel) is a live value  monitored even when the test is not started. An arrow next to the ESMC label indicates that ESMC valid information frames are received or not.
  • Page 287 Test Setup - Test Configurator, Timer, and System SyncE Pass/Fail Verdict check box when selected (default) enables the use  of the pass/fail verdict. The global pass/fail verdict is based on the following criteria: ESMC Rate Threshold (when enabled), QL Mismatch Monitoring (when enabled), ESMC Loss, or Link Down.
  • Page 288 Test Setup - Test Configurator, Timer, and System System System From the Test menu, tap Setup, and System. Factory Default Restore Default button restores the factory default settings for all test  applications. Restore Default at Start-Up check box when cleared (default), ...

  • Page 289: Tcp Throughput

    Test Setup - Test Configurator, Timer, and System TCP Throughput TCP Throughput From the Test menu, tap Setup, Test Configurator, and tap on the test block. TCP Mode Since two units are required to perform a TCP Throughput test, one unit must be the source (Local) unit and the other one the destination (Remote).
  • Page 290 Test Setup - Test Configurator, Timer, and System TCP Throughput TCP Throughput Configuration Note: TCP Throughput Configuration is only available on the local unit. Initial Window Size is the window size that is used when the test is  started: 1024 Bytes to 65536 KBytes (default is 2 KBytes). The Initial Window Size value must be between the Minimum Window Size and the Maximum Window Size values.
  • Page 291 Test Setup - Test Configurator, Timer, and System Timer Timer Allows to automatically start and/or stop the test at a given time or for a specific duration. From the Test menu, tap Setup, and Timer. Timer Note: For RFC 2544 and RFC 6349, only Start Time and the ARM button are available.
  • Page 292 Test Setup - Test Configurator, Timer, and System Timer Stop Time selects the time the test will automatically stop. The Stop  Time check box has to be selected to be included in the test timer. Note: A valid stop time has to be subsequent to the current time or to the start time, when enabled.
  • Page 293 Test Setup - Test Configurator, Timer, and System Traces (OTN) Traces (OTN) From the Test menu, tap Setup, Test Configurator, tap on the signal block, and on the Traces tab. OTUx, ODUx, and TCM Buttons Tap on either OTUx or ODUx button. For ODUx when TCM is enabled (see Modify TCM on page 257), tap on a TCMx button to select a TCM level.
  • Page 294 EXFO ODU DAPI EXFO TCMi DAPI Operator Specific corresponds to the TTI bytes 32 to 63. A maximum  of 32 characters are allowed. TTI Traces Default Message EXFO OTU OPERATOR SPECIFIC EXFO ODU OPERATOR SPECIFIC EXFO TCMi OPERATOR SPECIFIC FTB-700G/800 Series...
  • Page 295 Test Setup - Test Configurator, Timer, and System Traces (OTN) SAPI OTU/ODU/TCM-TIM check box, when selected (cleared by  default), allows editing the expected Source Access Point Identifier (SAPI) and also enables OTU/ODU/TCM-TIM alarm monitoring. DAPI OTU/ODU/TCM-TIM check box, when selected (cleared by ...
  • Page 296 J0/J1/J2 EXFO SONET/SDH J0/J1/J2 EXFO SONET/SDH Analyzer Section/RS trace test message EXFO SONET/SDH Analyzer high order path trace test message J1 (STS/AU) EXFO SONET/SDH Analyzer low order path trace test message J1 (TU-3)/J2 Hexadecimal value. Refer to OH - SONET/SDH on page 487 to change this value.
  • Page 297 Test Setup - Test Configurator, Timer, and System Traces (SONET/SDH) ITU T.50 Characters on page 39. TIM-S/RS-TIM, TIM-P/HP-TIM, TIM-V/LP-TIM: Enables the  corresponding Trace Identifier Mismatch for the expected message defined. These settings are coupled with the Result - Traces/Labels configuration (refer to Traces - SONET/SDH on page 445).
  • Page 299 Test Results The Test Results menu offers the following structure: Intelligent Apps test application Test Application Page iSAM Logger Summary Transport test applications Available with Page Alarms/Errors Alarms/Errors Logger FTFL/PT ISDN Logger Labels Logger Performance Monitoring Summary <--- Traces <--- OTN BERT SONET/SDH BERT DSn/PDH BERT...
  • Page 300 Test Results Ethernet test applications Test Application Tab - Subtab Page Alarms/Errors Graph Link OAM Logger S-OAM / MPLS-TP OAM Service Configuration - Burst Service Configuration - Ramp Service Performance Streams - Frame Loss / Out-of-Sequence Streams - Jitter Streams - Latency Streams - MPLS Streams - Throughput Summary...
  • Page 301 Test Results Packet Sync test applications Test Application Page 1588 PTP SyncE Alarms/Errors Logger PTP Stats Quality Level (1588 PTP) Quality Level (SyncE) Summary <--- Traffic - Ethernet Fibre Channel test application Test Application Page Fibre Channel BERT Alarms/Errors Logger Summary Wireless Test Application Test Application...
  • Page 302 Test Results Alarms/Errors Overview Alarms/Errors Overview Current and history alarms/errors are displayed using different background colors as defined in the following table. Background Alarm/ Description color Error Gray Current No test result available. History Green Current No alarm/error has occurred in the last second. History No alarm/error has occurred during the test.
  • Page 303 Test Results Alarms/Errors Overview Pass/Fail Verdict Note: The verdict is not displayed when disabled or unavailable. The Pass/Fail verdict is represented by the following icons: Icon Verdict Description PASS Result value meet the configured threshold criterion. FAIL Result value does not meet the configured threshold criterion. Statistic Values Current indicates the average measurements in the last second.
  • Page 304 Test Results Alarms/Errors Alarms/Errors From the Test menu, tap Results, and the Alarms/Errors tab. Depending on the test structure, the Alarms/Errors page may be split in different tabs such as OTN and Ethernet; tap on the desired tab when required. Alarms/errors blocks containing the magnifier (+) icon in its title, opens a zoomed view giving more details like errors in seconds, count, and rate.
  • Page 305 Test Results Alarms/Errors The following table lists the availability of alarms/errors per layer for TX and RX. Layer Alarms/Errors Page TX/RX RX only Pattern Loss No Traffic Bit Error, Pattern Error Mismatch ‘0’, Mismatch ‘1’, Frame Loss, Out-of-Seq. CLOCK LOC, LOPPS-L, LOPPS-R CPRI LOF, R-LOS, R-LOF, RAI, SDI Link Down...
  • Page 306 Test Results Alarms/Errors Layer Alarms/Errors Page TX/RX RX only ODUx LOFLOM, AIS, OCI, LCK, BDI, FSF, BSF, FSD, BEI, BIP-8 ODUx-TCM BDI, BIAE, IAE, LTC BEI, BIP-8 OPUx AIS, MSIM, CSF OTUx AIS, BDI, BIAE, IAE, LOF, LOM, OOF, OOM FAS, MFAS, BIP-8, BEI Loss Sync, Loss Announce, Unusable, QL Mismatch...
  • Page 307 Test Results Alarms/Errors Layer Alarms/Errors Page TX/RX RX only VT/TU AIS-V/TU-AIS, LOP-V/TU-LOP, RDI-V/LP-RDI, TIM-V/LP-TIM, PLM-V/LP-PLM RFI-V/LP-RFI, UNEQ-V/LP-UNEQ, ERDI-VSD/LP-ERDI-SD, ERDI-VCD/LP-ERDI-CD, ERDI-VPD/LP-ERDI-PD BIP-2, REI-V/LP-REI SEF, LOP, AIS-L, RDI-L, AIS-P, RDI-P, LCD-P, WIS Link Down, PLM-P LOP-P, UNEQ-P, ERDI-PSD, ERDI-PCD, ERDI-PPD Available in TX only. NetBlazer...
  • Page 308 Test Results Alarms/Errors Alarms No Traffic (Available with EtherBERT)  Ethernet: No pattern traffic has been received in the last second. Fibre Channel: No traffic is being transmitted when Login Management fails; a pop up displays No Data is being transmitted on Port(s) <port number>.
  • Page 309 Test Results Alarms/Errors Errors Bit Error  RX: There are logic errors in the bit stream (i.e., zeros that should be ones and vice versa). Pattern Error  RX: Indicates a block mismatch. Only available with Seed A or Seed B pattern.
  • Page 310 Test Results Alarms/Errors Clock LOC (Loss Of Clock)  RX: The NetBlazer is unable to synchronize with the selected Clock Mode. No valid clock is generated/extracted to/from the EXT CLK port. LOPPS-L and LOPPS-R (Loss Of Pulse Per Second - Local/Remote) is ...
  • Page 311 Test Results Alarms/Errors CPRI Note: CPRI alarms/errors are only available for Framed L2. Alarms Link Down  RX: Indicates that the start-up sequence is not in F (Operation) or G (Passive) link state. LOF (Loss Of Frame)  RX: The hyperframe alignment cannot be achieved or is lost. R-LOS (Remote - Loss Of Signal) ...
  • Page 312 Test Results Alarms/Errors Alarms AIS (Alarm Indication Signal)  RX: An unframed all-ones signal is received. OOF (Out-OF-Frame)  RX: Four consecutive frame bit errors are detected. RAI (Yellow) (Remote Alarm Indication)  SF framing: Bit 2 in each timeslot contains “0”. ESF framing: Eight “ones”...
  • Page 313 Test Results Alarms/Errors Alarms AIS (Alarm Indication Signal)  RX: The M-frame contains zeros (0) for C-bits, ones (1) for X-bits, 1010... repeating sequence with a one (1) immediately following any of the control bit positions for the information bits. Idle (DS3 Idle) ...
  • Page 314 Test Results Alarms/Errors Alarms Note: Only AIS is available when the framing is set to Unframed. AIS (Alarm Indication Signal)  RX: An unframed all-ones signal is received. LOF (Loss Of Frame)  RX: Three consecutive incorrect frame alignment signals is received. RAI (Yellow) (Remote Alarm Indication) ...
  • Page 315 Test Results Alarms/Errors Errors FAS (Frame Alignment Signal) is only available with PCM30 CRC-4 or  PCM31 CRC-4 framing. RX: Bits 2 to 8 of the frame containing the FAS differ from 0011011. CRC-4 (Cyclical Redundancy Check)  RX: One or more bit errors are detected in a block of data through cyclical redundancy check.
  • Page 316 Test Results Alarms/Errors Alarms Note: Only AIS is available when the framing is set to Unframed. AIS (Alarm Indication Signal)  RX: An unframed all-ones signal is received. LOF (Loss Of Frame)  RX: Four consecutive incorrect frame alignment signals is received. RAI (Remote Alarm Indication) ...
  • Page 317 Test Results Alarms/Errors Alarms Note: Only AIS is available when the framing is set to Unframed. AIS (Alarm Indication Signal)  RX: An unframed all-ones signal is received. LOF (Loss Of Frame)  RX: Four consecutive incorrect frame alignment signals is received. RAI (Remote Alarm Indication) ...
  • Page 318 Test Results Alarms/Errors Ethernet Alarms Link Down  RX: The Ethernet connection is down meaning that there is a local or a remote fault condition. Local Fault Det. (Local Fault Detected)  RX: At least one of the following events is detected: Loss of bit synchronization, Loss of Block synchronization, WIS Link down, or High BER.
  • Page 319 Test Results Alarms/Errors Errors Symbol  RX/TX: Invalid code-group is detected/generated in the code. Idle  RX: An error is detected between the end of a frame and the beginning of the next frame. False Carrier  RX: Data is being received with invalid start of frame. Block (available with Ethernet 10G LAN/WAN interface) ...
  • Page 320 Test Results Alarms/Errors Undersize  RX: Frames smaller than 64 bytes with a valid FCS. Oversize Monitoring check box, when selected (cleared by default),  allows monitoring the Oversize frame errors. The following errors are only available with Half Duplex mode (only for electrical interface at speeds of 10 Mbit/s and 100 Mbit/s).
  • Page 321 Test Results Alarms/Errors Fibre Channel Alarms Link Down  RX: The Fibre Channel connection is down meaning that there is a local or a remote fault condition. Local Fault Detected (FC 10X)  RX: Indicates that at least one of the following events is detected: LOS, Loss of bit synchronization, Loss of Block synchronization, Link down, or High BER (High BER is true when the bit error ratio >...
  • Page 322 Test Results Alarms/Errors Error Symbol (FC 1X/2X/4X/8X)  RX/TX: Invalid code-group is detected/generated in the code. Block (FC 10X)  RX: The number of frames received with an errored block condition. FCS (Frame Check Sequence)  RX: Frames with an invalid FCS are received. Oversize ...
  • Page 323 Test Results Alarms/Errors Interface Alarms LOS (Loss Of Signal)  RX: Absence of an input signal or an all-zeros pattern is received. For CPRI Framed L2: Absence of an input signal or at least 16 8B/10B code violations occur in one hyperframe. Frequency ...
  • Page 324 Test Results Alarms/Errors Error BPV (Bipolar Violation), available with DS1 and DS3, pulses of the  same consecutive polarity were detected, in violation with the bipolar signal format. BPV/CV (Bipolar Violation/Code Violation), available with STS-1e and  STS-3e, pulses of the same consecutive polarity were detected, in violation with the bipolar signal format.
  • Page 325 Test Results Alarms/Errors IP/UDP/TCP Errors IP Chksum (IP Checksum)  RX: The IP datagrams received have invalid IP header checksum. Only available for IPv4. UDP Chksum (UDP Checksum)  RX: The UDP segments received have invalid UDP checksum. TCP Chksum (TCP Checksum) ...
  • Page 326 Test Results Alarms/Errors ODUx Note: For OPUx alarms see page 319. Alarms AIS (Alarm Indication Signal)  RX: The STAT information in the PM byte 3, bits 6 to 8 is “111” for at least 3 consecutive frames. TX: Generates an all "1"s pattern in the entire ODUk signal, excluding the frame alignment overhead (FA OH), OTUk overhead (OTUk OH) and ODUk FTFL.
  • Page 327 Test Results Alarms/Errors FSF (Forward Signal Fail)  RX: The FTFL byte 0 is “00000001”. TX: Generates a “00000001” pattern in the FTFL Byte 0 continuously. LCK (Lock)  RX: STAT information in the PM byte 3, bits 6 to 8 is “101” for at least 3 consecutive frames.
  • Page 328 Test Results Alarms/Errors Errors BIP-8 (Bit Interleave Parity-8)  RX: There is a PM BIP-8 mismatch between the received value and locally computed value (0 to 8). BEI (Backward Error Indication)  RX: Interleaved block in error detected by the corresponding ODU path monitoring sink using the BIP-8 code.
  • Page 329 Test Results Alarms/Errors ODUx-TCM Alarms BDI (Backward Defect Indication)  RX: The BDI bit in the TCM overhead field Byte 3, bit 5 is “1” for at least 5 consecutive frames. TX: Generates a "1" in the BDI bit of the TCM overhead field (byte 3, bit 5) continuously.
  • Page 330 Test Results Alarms/Errors Errors BIP-8 (Bit Interleave Parity-8)  RX: There is a TCM BIP-8 mismatch between the received value and locally computed value (0 to 8). BEI (Backward Error Indication)  RX: Interleaved block in error detected by the corresponding ODU tandem connection monitoring sink using the BIP-8 code.
  • Page 331 Test Results Alarms/Errors OPUx Note: OPUx is displayed under ODUx alarms/errors group. Alarms AIS (Alarm Indication Signal)  RX: A PRBS11 pattern is received indicating a failure of the client signal. TX: Generates a PRBS11 pattern. CSF (Client Signal Fail) ...
  • Page 332 Test Results Alarms/Errors OTUx Note: Available for OTU2, OTU2f, OTU1f, OTU2e, OTU1e, and OTU1. Alarms AIS (Alarm Indication Signal)  RX: Polynomial number 11 (PN-11) is over all OTU frame bits including FAS and MFAS for at least 3 consecutive 8192 bit-interval. TX: Generates polynomial number 11 (PN-11) over all OTU frame bits including FAS and MFAS continuously.
  • Page 333 Test Results Alarms/Errors LOF (Loss of Frame)  RX: OOF is present for at least 3 ms. TX: Generates error in all FAS bits continuously. LOM (Loss Of Multiframe)  RX: OOM is present for at least 3 ms TX: Generates error in MFAS bits continuously. OOF (Out-Of-Frame) ...
  • Page 334 Test Results Alarms/Errors Errors BEI (Backward Error Indication)  RX: SM BEI errors are received from the DUT (value 0 to 8). OTU BEI bits ODUk BEI bits BIP violations BIP violations (1234) (1234) 0000 0101 0001 0110 0010 0111 0011 1000 0100...
  • Page 335 Test Results Alarms/Errors FEC-UNCORR (FEC - Uncorrectable)  RX: Statistics on the detected codewords (CW) having uncorrectable errors. TX: FEC-UNCORR-CW (Forward Error Correction - Uncorrectable - Codeword) generates 16 symbol (bytes) containing 8 bits in error each, in each codeword. FEC-STRESS (Forward Error Correction - Stress) ...
  • Page 336 Test Results Alarms/Errors Alarms Loss Sync  RX: The Slave Clock does not receive packet timing signal messages (Sync, Follow Up, Delay Resp) within their expected arrival time for a duration exceeding the configured Receipt Timeout (refer to PTSF Alarm Timeout/Threshold on page 115). Loss Announce ...
  • Page 337 Test Results Alarms/Errors QoS Metrics Note: Only available with Traffic Gen & Mon test application. Errors Frame Loss  RX: A sequence number is missing in the received frames. Out-of-Seq. (Out-of-Sequence)  RX: The received frame sequence number is either smaller than the expected frame sequence number or is a duplicate number.
  • Page 338 Test Results Alarms/Errors S-OAM and MPLS-TP OAM Alarms Note: The following alarms are available when the CC Function check box is selected (refer to page 224). Loss Continuity  RX: No CCM frames with same or lower MEG/MD Level were received from the peer MEP within an interval equal to 3.5 times the configured CCM transmission period.
  • Page 339 Test Results Alarms/Errors Unexp MEP (Unexpected MEP)  RX: A CCM frame was received from the peer MEP with same MEG/MD Level, correct MEG ID/MAID, and correct source MAC Address (corresponds to the peer MEP) but with unexpected MEP ID. The alarm is cleared when no CCM frames with same MEG/MD Level, correct MEG ID/MAID, correct source MAC Address (corresponds to the peer MEP) but with an unexpected MEP ID are received within an interval...
  • Page 340 Test Results Alarms/Errors Note: The following alarms are available with G.8113.1, Y.1731 and MEF modes. AIS (Alarm Indication Signal)  RX: A valid AIS frame is received. A valid frame has its destination MAC address matching either the unit port Unicast MAC address or a Multicast class 1 address (refer to page 638), VLANs matching the unit port VLANs, and MEG level matching the local MEG level.
  • Page 341 Test Results Alarms/Errors C-FDI (Client Signal Fail - Forward Defect Indication)  RX: A CSF frame is received with CSF type equal to 001.The alarm is cleared when no CSF (C-FDI) frames are received during an interval equal to 3.5 times the CSF transmission period indicated in the last received CSF (C-FDI) frame, or when a CSF frame is received with Client Defect Clear Indication (C-DCI) information (CSF Type 011).
  • Page 342 Test Results Alarms/Errors Section/Line / RS/MS Alarms LOF-S (Loss Of Frame - Section) - SONET  RS-LOF (Regeneration Section - Loss Of Frame) - SDH RX: A SEF (SONET)/RS-OOF (SDH) defect on the incoming optical signal persists for at least 3 milliseconds. TX: Generates non-valid framing bytes (A1 and A2).
  • Page 343 Test Results Alarms/Errors RDI-L (Remote Defect Indication - Line) - SONET  MS-RDI (Multiplex Section - Remote Defect Indication) - SDH RX: Bits 6, 7, and 8 of the K2 byte contain the “110” pattern in five consecutive frames. TX: Generates a “110” pattern for the bits 6, 7 and 8 of the K2 byte. Errors FAS-S (Frame Alignment Signal - Section) - SONET ...
  • Page 344 Test Results Alarms/Errors STS-x/AU-x Alarms AIS-P (Alarm Indication Signal - Path) - SONET  AU-AIS (Administrative Unit - Alarm Indication Signal) - SDH RX: The H1 and H2 bytes contain an all-ones pattern in three consecutive frames or more. TX: Generates an all-ones pattern over H1, H2, H3, and SPE. LOP-P (Loss Of Pointer - Path) - SONET ...
  • Page 345 Test Results Alarms/Errors PLM-P (Payload Label Mismatch - Path) - SONET  HP-PLM (HP - Payload Label Mismatch) - SDH RX: Five consecutive frames have mismatched STS/VC signal labels (C2 byte). Only available when PLM-P/UNEQ-P / HP-PLM/HP-UNEQ is enabled (refer to Labels on page 169). PDI-P (Payload Defect Indication - Path) - SONET ...
  • Page 346 Test Results Alarms/Errors ERDI-PSD (Enhanced RDI - Path Server Defect) - SONET  ERDI-SD (Enhanced RDI - Server Defect) - SDH RX: Bits 5, 6 and 7 of the G1 byte contain the “101” pattern in five consecutive frames. TX: Generates a “101” pattern for bits 5, 6 and 7 of the G1 byte. Errors B3 (BIP-8, Bit-Interleave Parity - 8 bits) ...
  • Page 347 Test Results Alarms/Errors SyncE Alarms ESMC Loss  RX: No ESMC valid information frames were received for more than 5 seconds. QL Mismatch (available when the QL Mismatch Monitoring check  box is selected) RX: The received QL value does not match the Expected QL (refer to page 274 or page 376).
  • Page 348 Test Results Alarms/Errors TCM (SONET/SDH) Note: TCM is displayed for rates up to OC-192/STM-64 under the STS-x/AU-x or VT/TU alarms/errors group when TCM is enabled. Alarms TC-UNEQ-P / HPTC-UNEQ (Unequipped)  RX/TX: An all “0”s pattern is received/generated in the higher order path signal label byte (C2), the TCM byte (N1) and the path trace byte (J1), and a valid BIP-8 bytes (B3).
  • Page 349 Test Results Alarms/Errors TC-TIM-P / TC-TIM-V / HPTC-TIM / LPTC-TIM (Trace Identifier  Mismatch) RX: The received message differs from the defined expected message. The TC-TIM is also declared when receiving invalid ASCII characters or when errors are detected with CRC-7. TC-RDI-P / TC-RDI-V / HPTC-RDI / LPTC-RDI (Remote Defect ...
  • Page 350 Test Results Alarms/Errors TC-IEC-P / HPTC-IEC (Incoming Error Count)  RX: The TC-IEC indicates the number of B3 parity violations detected at the TC Source for STS-1 SPE/VC-3 and above (bits 1 to 4 of the N1 byte). Number of Number of BIP-8 violations BIP-8 violations...
  • Page 351 Test Results Alarms/Errors VT/TU Alarms AIS-V (Alarm Indication Signal - VT) - SONET  TU-AIS (Tributary Unit - Alarm Indication Signal) - SDH RX: V1 and V2 bytes for the VT/TU path contain an all-ones pattern in three (SONET) / five (SDH) consecutive superframes. TX: Generates an all-ones pattern for the V1 and V2 bytes of the VT/TU path and payload.
  • Page 352 Test Results Alarms/Errors TIM-V (Trace Identifier Mismatch - VT) - SONET  LP-TIM (LOP - Trace Identifier Mismatch) - SDH SONET: The J2 Trace doesn’t match the expected message value.  Only available when the TIM-V check box is selected (refer to page Traces (SONET/SDH) on page 284).
  • Page 353 Test Results Alarms/Errors ERDI-VCD (Enhanced RDI - VT Connectivity Defect) - SONET  LP-ERDI-CD (LOP - Enhanced RDI - Connectivity Defect) - SDH RX: Bits 5, 6, and 7 of the Z7 (SONET) / K4 (SDH) byte contain the “110” pattern, and bit 8 of the V5 byte contain “1”, in five consecutive VT/LP superframes.
  • Page 354 Test Results Alarms/Errors Note: Available under the WIS sub tab for 10G WAN interface only. Alarms WIS Link Down  RX: At least one of the following errors is present: AIS-P, LOF, PLM-P , SEF, LOP, or AIS-L. SEF (Severely Errored Framing) ...
  • Page 355 Test Results Alarms/Errors RDI-P (Remote Defect Indication - Path)  RX: Bits 5, 6 and 7 of the G1 byte contain the “100" or “111" pattern in ten consecutive frames. TX: Generates a “100” pattern for bits 5, 6 and 7 of the G1 byte. LCD-P (Loss of Code-Group Delineation - Path) ...
  • Page 356 Test Results Alarms/Errors ERDI-PCD (Enhanced RDI - Path Connectivity Defect)  RX: Bits 5, 6 and 7 of the G1 byte contain the “110” pattern in five to ten consecutive frames. TX: Generates a “110” pattern for bits 5, 6 and 7 of the G1 byte. ERDI-PPD (Enhanced RDI - Path Payload Defect) ...
  • Page 357 Test Results Alarms/Errors REI-L (Remote Error Indicator - Line)  RX: Bits 5 through 8 of the M0 byte contain one pattern from the following binary range: “0001" through “1000" (1 to 8) (located in the first STS-1 of an STS-n signal). REI-P (Remote Error Indicator - Path) ...
  • Page 358 Test Results Alarms/Errors Inject Button Open/Close pop-up button Selected Alarm/Error and status Layer: Allows to select on which layer is the alarm/error to be  generated. Choices depend on the test application and its interface. Type: Allows to select the type of injection, either Alarms or Errors. ...
  • Page 359 Test Results Alarms/Errors The following settings are only available with Carrier Ethernet OAM test application. Address Type defines the destination address type of the frame:  Unicast or Multicast (default). Priority allows to select the VLAN user priority: 0 (default) to 7. ...
  • Page 360 Test Results Alarms/Errors Inject button  For Manual mode: Manually generates the selected errors according to the defect and the amount selected. For Rate and Max Rate: Generates respectively the selected error at the rate specified or at its theoretical maximum rate. Note: The selected alarm/error as well as its injection mode and status are displayed next to the Inject button.
  • Page 361 Test Results FTFL/PT FTFL/PT From the Test menu, tap Results, and the FTFL/PT tab. FTFL Indicates the Forward and Backward ODU Fault Type Fault Location. Fault Indication and Code displays the FTFL fault indicator message  and its code in hexadecimal format (byte 0 for forward, byte 128 for backward).
  • Page 362 Test Results FTFL/PT PT (Payload Type) Payload Type and Code  Received displays the received payload signal type and its code in hexadecimal format. Expected allows to select the expected payload signal type either by selecting the payload from the list or by typing its hexadecimal code. Note: Refer to PT on page 147 for the list.
  • Page 363 Test Results Graph (RFC 2544) Graph (RFC 2544) Displays the graph showing the Throughput, Back-to-Back, Frame Loss, and Latency measurements. For Dual Test Set the graph shows results from Local to Remote and Remote to Local using distinctive colors. From the Test menu, tap Results, and the Graphs tab. All button allows to view the graphs of all subtests simultaneously.
  • Page 364 Test Results ISDN Logger ISDN Logger The ISDN Logger page displays color-coded ISDN messages and pass/fail verdict. From the Test menu, tap Results, and the ISDN Logger tab. Sort By selects the event sorting order: ID/Time (default), Message  Type, Dir., Call Ref., Ch#, or Call Type. Filter selects the filtering criterion: All (default), Layer 2, or Layer 3.
  • Page 365 Test Results ISDN Logger UI (Unnumbered Information) command is used to send  information. DISC (Disconnect) command is used to terminate the multiple  frame operation. DM (Disconnect Mode) response is used to report that the data link  layer is in a state such that multiple frame operation cannot be performed.
  • Page 366 Test Results ISDN Logger Layer 3 messages SETUP message is sent by the calling user to the network and by  the network to the called user to initiate call establishment. CALL PROCEEDING message is sent by the called user to the ...
  • Page 367 Test Results ISDN Logger SATUS ENQUIRY message is sent by the user or the network at any  time to solicit a STATUS message from the peer layer 3 entity. Sending a STATUS message in response to a STATUS ENQUIRY message is mandatory.
  • Page 368 Test Results ISDN Logger Cause Value reports the reason why a call has been terminated, or  a problem with a received message. (7 bits). Supported Cause Value range: 1 to 127. Cause Definition is associated with each Cause Value but the ...
  • Page 369 Test Results Labels Labels From the Test menu, tap Results, and Labels. Note: Selecting a Label byte to be generated will automatically update the corresponding OH byte. Refer to OH - SONET/SDH on page 487 for more information. Labels STS/AU Path (C2): The C2 byte is allocated to indicate the content of ...
  • Page 370 Test Results Link OAM Link OAM From the Test menu, tap Results, and the Link OAM tab. Remote MAC Address Indicates the remote OAM link partner MAC address. Remote OAM Information OAM Version indicates the protocol version supported by the DTE. ...
  • Page 371 Test Results Link OAM Vendor Specific Information reports the 32-bit Vendor Specific  Information field identifying the vendor’s product model and version. Unidirectional reports unidirectional support capability:  Supported indicates that the DTE is capable of sending OAMPDUs when the receive path is non-operational. Unsupported indicates that the DTE is not capable of sending OAMPDUs when the receive path is non-operational.
  • Page 372 Test Results Link OAM Remote Error Event Statistics Date Stamp indicates the date the last Event Notification OAMPDU  frame was received. Time Stamp indicates the time the last Event Notification OAMPDU  event was received by the test equipment. Window ...
  • Page 373 Test Results Link OAM Error Running Total  Symbol Period The number of symbol errors since the last reset Frame The number of frame event errors since the last reset Frame Period The number of frame period errors since the last reset Frame Seconds The number of frame seconds summary errors since the last reset Event Running Total...
  • Page 374 Test Results Logger and Alarms/Errors Logger Logger and Alarms/Errors Logger The Logger page displays color-coded events and pass/fail verdict. From the Test menu, tap Results, and the Logger or Alarms/Errors Logger tab. Sort By Sort By: Select the sorting order of the event logger entries: ...
  • Page 375 Test Results Logger and Alarms/Errors Logger The following table displays the nature of information reported by type of event: Type of Event Nature of Information Test Started Start Date Test Stopped Pass/Fail Verdict Alarm Events Count value Error Events Current Count and Total Count SDT Events Service Disruption Time Threshold Crossing Event...
  • Page 376 Test Results MPLS MPLS From the Test menu, tap Results, and... for Traffic Gen and Mon, the Streams, and the MPLS tab.  for Though Mode, the Traffic, and the MPLS tab.  Label 1 and Label 2 The number of MPLS frames transmitted (TX) and received (RX) are displayed for both Label 1 and Label 2 for each Stream.
  • Page 377 Test Results Performance Monitoring Performance Monitoring Note: This tab is only available with Transport test applications with Pattern client. The Performance Monitoring tab gives error performance events and parameters for the circuit under test. From the Test menu, tap Results, and the Performance Monitoring tab. Each button on top of the window represents a level of the analyzed signal for which the Performance Monitoring (PM) is available.
  • Page 378 Test Results Performance Monitoring Near-End EFS (Error Free Second) (G.821, G.826, G.828, and G.829): Gives the  number of seconds within which no error occurred. EC (Error Count) (G.821 only): Gives the number of bit errors.  EB (Errored Block) (G.826, G.828, and G.829): Gives the count of ...
  • Page 379 Test Results Performance Monitoring For M.2100 ISM: Gives the count of the seconds within which anomalies (frame bit errors, CRC block errors, etc.) are  Y or at least one defect occurred. Y depends on the type of DSn/PDH signal as described in the following table.
  • Page 380 Test Results Performance Monitoring UAS (Unavailable Second): Gives the count of the seconds  corresponding to the periods of unavailable time that begins at the onset of 10 consecutive SES events, including these 10 seconds. A period of available time shall begin at the onset of 10 consecutive non-SES events, including these 10 seconds.
  • Page 381 Test Results Performance Monitoring SEP (Severely Errored Period) (G.828 only): A sequence between  3 to 9 consecutive SES. The sequence is terminated by a second which is not a SES. SEPI (Severely Errored Period Intensity) (G.828 only): Gives the count ...
  • Page 382 Test Results Performance Monitoring For M.2100 ISM: Gives the count of the seconds within which anomalies (frame bit errors, CRC block errors, etc.) are  Y or at least one defect occurred. Y depends on the type of DSn/PDH signal as described in the following table.
  • Page 383 Test Results Performance Monitoring UAS (Unavailable Second): Gives the count of the seconds  corresponding to the period of unavailable time that begins at the onset of 10 consecutive SES events, including these 10 seconds. A period of available time shall begin at the onset of 10 consecutive non-SES events, including these 10 seconds.
  • Page 384 Test Results PTP Stats PTP Stats From the Test menu, tap Results, and the PTP Stats tab. TX/RX PTP Message Count/Rate Gives the transmitted/received count and average rate for each PTP message, and the total count for all messages. Signaling Announce Req Signaling Announce Grant Signaling Sync Req Signaling Sync Grant...
  • Page 385 Test Results PTP Stats IPDV Inter Packet Delay Variation (IPDV) is available for Sync and Delay Req messages and is measured for all valid in-sequence messages (see Delay Measurement on page 400). Current, Average, Minimum, Maximum, and Standard Deviation measurement values are displayed. The Standard Derivation is the measure of the dispersion of messages from its mean.
  • Page 386 Test Results Quality Level (1588 PTP) Quality Level (1588 PTP) The quality level characterizes the clock quality in terms of network synchronization. From the Test menu, tap Results, and the Quality Level tab. Last QL Received indicates the last Quality Level value received. The ...
  • Page 387 Test Results Quality Level (1588 PTP) Quality Level PTP Clock Description value Class QL-EEC1/SEC Ethernet Equipment Clock Option 1 Synchronous Equipment Clock (G.813 or G.8262, Option 1) QL-SMC Traceable to SONET Minimum Clock (G.813 or G.8262, Option 2) QL-PROV Provisionable by the Network Operator (PNO) QL-DNU/DUS Do Not Use Do Not Use for Synchronization...
  • Page 388 Test Results Quality Level (SyncE) Quality Level (SyncE) The quality level characterizes the clock quality in terms of network synchronization. From the Test menu, tap Results, and the Quality Level tab. Generated QL indicates the Quality Level value that is generated. ...
  • Page 389 Test Results Quality Level (SyncE) Quality Level Description value QL-SSU-B Type VI slave clock (G.812) QL-INV9 Quality Level Invalid 9 QL-EEC2/ST3 Ethernet Equipment Clock Option 2 (default) Traceable to Stratum 3 (G.812 Type IV) QL-EEC1/SEC Ethernet Equipment Clock Option 1 Synchronous Equipment Clock (G.813 or G.8262, Option 1) QL-SMC Traceable to SONET Minimum Clock (G.813 or G.8262, Option 2)
  • Page 390 Test Results Quality Level (SyncE)  Information gives the count of information frames generated for  each Quality Level as well as the total of all Quality Level values. For 1GE Electrical interface using Slave as Master-Slave Clock, only the count for QL-DNU/DUS is reported. Event gives the count of event frames generated for each Quality ...
  • Page 391 Test Results S-OAM and MPLS-TP OAM S-OAM and MPLS-TP OAM From the Test menu, tap Results, and the S-OAM or MPLS-TP OAM tab. Loopback Status displays the status of the test function (refer to page 433).  TX LBM indicates the count of transmitted LBM frames. ...
  • Page 392 Test Results S-OAM and MPLS-TP OAM Invalid Payload indicates the count of received LBR frames having  either a TLV type different than the one transmitted, Bit error or wrong data value detected in the data payload of a Data TLV, Bit error, Pattern Loss, or Pattern Type mismatch of a Test TLV.
  • Page 393 Test Results S-OAM and MPLS-TP OAM Frame Delay Status displays the status of the test function (refer to page 433).  TX DMM indicates the count of transmitted DMM frames.  RX DMR indicates the count of valid DMR frames received. A valid ...
  • Page 394 Test Results S-OAM and MPLS-TP OAM Frame Loss Status displays the status of the test function (refer to page 433).  TX LMM indicates the count of transmitted LMM frames.  RX LMR indicates the count of valid LMR frames received. A valid ...
  • Page 395 Test Results S-OAM and MPLS-TP OAM Synthetic Loss Note: Only available with Ethernet OAM. Status displays the status of the test function (refer to page 433).  TX SLM indicates the count of transmitted SLM frames.  RX SLR indicates the count of valid SLR frames received. A valid frame ...
  • Page 396 Test Results Service Configuration - Burst Service Configuration - Burst From the Test menu, tap Results, Service Configuration, and the Burst tab. Service Name and Selection Service Name indicates the name of the selected service. Select the service to be displayed by either using the left/right arrow or by tapping over the service numbers area then tapping on a specific service number.
  • Page 397 Test Results Service Configuration - Ramp Service Configuration - Ramp From the Test menu, tap Results, Service Configuration, and the Ramp tab. Service Name and Selection Service Name indicates the name of the selected service. Select the service to be displayed by either using the left/right arrow or by tapping over the service numbers area then tapping on a specific service number.
  • Page 398 Test Results Service Performance Service Performance From the Test menu, tap Results, and the Service Performance tab. Service Name and Selection Service Name indicates the name of the selected service. Select the service to be displayed by either using the left/right arrow or by tapping over the service numbers area then tapping on a specific service number.
  • Page 399 Test Results Service Performance Note: Delay variation measurements smaller than 15 μs will be discarded, not used for the sampling process, and “< 0.015” is displayed as the minimum value. For the Current value, Not measurable is displayed when no delay has been measured in the last second.
  • Page 400 Test Results Streams - Frame Loss / Out-of-Sequence Streams - Frame Loss / Out-of-Sequence From the Test menu, tap Results, Streams, and the Frame Loss / Out-Of-Sequence tab. Stream: Indicates the stream identification number.  Thresholds button allows to set the pass/fail thresholds (refer to QoS ...
  • Page 401 Test Results Streams - Latency Streams - Latency From the Test menu, tap Results, Streams, and the Latency tab. Stream: Indicates the stream identification number.  Latency (ms) is measured for each stream on all valid frames (valid  Latency tag, expected originator identifier value, and no FCS error) received.
  • Page 402 Test Results Streams - Throughput Streams - Throughput From the Test menu, tap Results, Streams, and the Throughput tab. Stream indicates the stream identification number.  TX Rate indicates the transmitted throughput rate.  RX Rate is measured for each stream on all valid frames (valid ...
  • Page 403 Test Results Summary Summary Note: Available with Transport, Ethernet (EtherBERT, Through Mode, Smart Loopback), and Wireless test applications. For other test applications see the corresponding test summary page. From the Test menu, tap Results, and the Summary tab. Status indicates the actual test status as follows. ...
  • Page 404 Test Results Summary Interface Note: Only available with CPRI/OBSAI Unframed test application. Alarms  LOS indicates that there is no input signal. Errors  CV (Code Violation) indicates that invalid 10B code word are received. BER and Multi-Pattern BER Note: See BER on page 296 for a description of each alarm/error. Note: For Multi-Pattern, alarms/errors are available for each pattern.
  • Page 405 Test Results Summary Bit/Pattern Error Rate/Count graphically displays a meter  representing either the bit/pattern error rate or the bit/pattern error count depending on the Pass/Fail Verdict selection When the verdict is enabled , the values under the threshold are presented in green while the values above are in red.
  • Page 406 Test Results Summary Service Disruption Note: Service Disruption results are only available with Transport, CPRI, and EtherBERT test applications when Disruption Monitoring is enabled (refer to BERT on page 117 or EtherBERT, FC BERT, BERT (CPRI), and Unframed BERT on page 129). When Service Disruption is disabled, the message Service disruption monitoring disabled is displayed.
  • Page 407 Test Results Summary Traffic / Traffic Ethernet Note: The Traffic statistics are available for Smart Loopback and Through Mode test applications. See Traffic - Ethernet on page 446 for more information. CPRI Note: Available with CPRI Framed L2. Sequence indicates the last Sequence State parameter: Standby (A), ...
  • Page 408 Test Results Summary RX Frequency Note: RX Frequency is available for Through Mode test application on both ports (Port 1 and Port 2). Frequency (GHz) indicates the frequency of the input signal.  Offset (ppm) indicates the frequency offset between the standard rate ...
  • Page 409 Test Results Summary (1588 PTP) Summary (1588 PTP) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the 1588 PTP test. The global  test pass/fail verdict is displayed next to the Test Status field when enabled (see Pass/Fail Verdict on page 116).
  • Page 410 Test Results Summary (1588 PTP) Negotiation Status  The status of the PTP Negotiation is displayed while in Unicast negotiation. Negotiation Background Description Status Color Request Granted All the Signaling request types have been granted. Green [Message type] The Signaling grant message has not been granted. Request Denied Session Canceled The Grand Master has canceled the Unicast session.

  • Page 411: Clock Clock

    Test Results Summary (1588 PTP) GM Info  Note: Only available when Grand Master clock information is available. The Grand Master Information window displays the decoded clock information. Identity report the 8-byte identification code of the Grand Master  Clock. Clock Class reports the description and code of the Grand Master ...
  • Page 412 Test Results Summary (1588 PTP) Delay Measurement Sync IPDV meter displays the average of the inter packet delay  variation of consecutive Sync messages in the last second. The value and the pass/fail verdict is also displayed when enabled. Delay Req IPDV meter displays the average of the inter packet delay ...
  • Page 413 Test Results Summary (Cable Test) Summary (Cable Test) From the Test menu, tap Results, and the Summary tab. Test Status Test Status indicates the progress of the cable test as follows: Idle (test has not started)  In Progress  Completed ...
  • Page 414 Test Results Summary (Cable Test) Delay Skew (ns) indicates the delay skew value for the pair having the  worst delay skew. The Pass/Fail verdict is also displayed when enabled. The Delay Skew result is only available for 1000 Base-T interface when the link is up.
  • Page 415 Test Results Summary (Cable Test) Wire Map Test Result gives the wire map test result for each pair.  When the link is up: The wire map result for each pair is given as seen by the FTB-700G/800 Series to get a link up. This means that the wire map result may not correspond to the type of cable tested depending on the cable(s) used and/or the configuration of the cable mode (MDI, MDIX, or auto-detection) on both the FTB-700G/800 Series and the far...
  • Page 416 Test Results Summary (Cable Test) When the link is down: Short Short-circuit between Tip and Ring wires of a pair or Tip or ring wire of a pair is connected with an alien wire grounded. Open No cable plugged in, remote end open, or either one or two wires of a pair are not connected.
  • Page 417 Test Results Summary (EtherSAM) Summary (EtherSAM) From the Test menu, tap Results, and the Summary tab. Note: For Dual Test Set, only Start Time is displayed on the remote module. Service Configuration/Performance Test Status indicates the actual  test status as follows: Test Status Description “--”...
  • Page 418 Test Results Summary (EtherSAM) Remote unit in Dual Test Set Mode indicates that this module is set as  remote but the DTS Connection is not established. Service Configuration/Performance Test: Tap Service Configuration  Test or Service Performance Test button to view the result summary of the corresponding test.
  • Page 419 Test Results Summary (EtherSAM) Committed Frame Loss indicates the percentage of frames that are lost. The  reported value is the maximum percentage of Frame Loss from all burst sequences and ramp steps excluding the CIR+EIR, EBS, and Traffic Policing steps. Max.
  • Page 420 Test Results Summary (FC BERT) Summary (FC BERT) From the Test menu, tap Results, and the Summary tab. Test Status indicates the actual test status as follows.  “--”: The test is not running or results are not available.  In Progress: The test is running.
  • Page 421 Test Results Summary (FC BERT) Note: See BER on page 296 for a description of each alarm/error. BER Threshold is available when Pass/Fail Verdict is enabled (refer to  page 130). Bit Error Rate/Count graphically displays a meter representing either ...
  • Page 422 Test Results Summary (FC BERT) Round-Trip Latency Round Trip Latency (ms) is measured for each local and remote port.  Current, Average, Minimum, and Maximum indicates respectively the current, average, minimum, and the maximum round trip latency from the local to the remote port in the last one second. The pass/fail verdict is also displayed for the maximum round trip latency.
  • Page 423 Test Results Summary (iSAM) Summary (iSAM) From the Test menu, tap Results, and the Summary tab. Start Time indicates the date and time the test has been started. The  date and time is reset every time the test is restarted. Configuration/Performance Results and RFC 6349 Results buttons ...
  • Page 424 Test Results Summary (iSAM) For Dual Test Set the following values are reported for both local to remote (L->R) and remote to local (R->L). Service indicates the service’s number and name.  The pass/fail verdict icon is displayed next to the service name indicating if the service complies to the configured SLA parameters.
  • Page 425 Test Results Summary (iSAM) RFC 6349 Test Test Status indicates the actual test status as follows.  Test Status Description “--” Test has not started. In Progress The test is running. Completed, <Verdict> Test has completed and the test pass/fail verdict is displayed when enabled.
  • Page 426 Test Results Summary (iSAM) Ideal L4 indicates the ideal TCP throughput metric.  Actual L4 indicates the average of actual TCP Throughput metric.  The pass/fail verdict icon is displayed next to the this metric. A value greater or equal to the defined threshold gives a pass verdict. TCP Efficiency (%) indicates the TCP Efficiency metric based on ...
  • Page 427 Test Results Summary (ISDN PRI) Summary (ISDN PRI) From the Test menu, tap Results, and the Summary tab. Status indicates the actual test status as follows.  “--”: The test is not running or results are not available.  In Progress: The test is running. ...
  • Page 428 Test Results Summary (ISDN PRI) Channel Buttons The channel buttons allow the selection of a channel for which the information is displayed. The selected channel has its button highlighted with a blue border. The top left corner of each button indicates the channel number on a background color as follows.
  • Page 429 Test Results Summary (ISDN PRI) The Pass/Fail verdict icon is displayed on the top right corner of a channel button as follows. Verdict Call Description Pass Data BER result value meets the configured threshold criterion and the call establishment/termination succeeded. Speech or 3.1 kHz The call establishment/termination succeeded.
  • Page 430 Test Results Summary (ISDN PRI) EFS (Error Free Second) gives the number of seconds within which no error occurred. ES (Errored Second) gives the number of seconds in which one or more bits are in error. SES (Severely Errored Second) gives the number of seconds in which bit error ratio is ≥...
  • Page 431 Test Results Summary (ISDN PRI) Statistics Active Call column displays the quantity of active calls.  Active Call Description Data Number of active Data calls Speech Number of active Speech calls 3.1 kHz Number of active 3.1 kHz calls Total Total number of active calls Total Calls Count column displays statistics of Connected, Cleared, ...
  • Page 432 Test Results Summary (ISDN PRI) Frequency column displays the following information:  RX (MHz) indicates the monitored frequency of the input signal. The following table lists the supported frequency monitoring range: Interface Standard Rate Specification 1544000 ±140 ppm 2048000 ±100 ppm Offset (ppm) indicates the offset between the standard rate specification and the rate of the input signal.
  • Page 433 Test Results Summary (Link OAM) Summary (Link OAM) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the Link OAM test. The global  test pass/fail verdict is displayed next to the Test Status when enabled (see Pass/Fail Verdict on page 275).
  • Page 434 Test Results Summary (Link OAM) Dying Gasp: Indicates that the OAM link partner has sent an  unrecoverable local failure notification (bit 1 of the Flags field is set to 1). Link Fault: Indicates that the OAM link partner has sent a link fault ...
  • Page 435 Test Results Summary (NI/CSU Emulation) Summary (NI/CSU Emulation) From the Test menu, tap Results, and the Summary tab. Status Status indicates the progress of the cable test as follows: Idle (test has not started)  In Progress  Completed  The Pass/Fail verdict is displayed next to the Test Status field, when enabled, based on the following criteria: The worst pair’s Wire Map, Prop.
  • Page 436 Test Results Summary (RFC 2544) Summary (RFC 2544) From the Test menu, tap Results, and the Summary tab. Start Time indicates the date and time the test has been started. The  date and time is reset every time the test is restarted or reset. For Dual Test Set, this is the only information available on the remote module.
  • Page 437 Test Results Summary (RFC 2544) Throughput, Back-to-Back, Frame Loss, and Latency Subtests Throughput, Back-to-Back, Frame Loss, and Latency  For each subtest, its status (-- (Idle), In Progress, Completed, or Aborted - (reason)) and duration are displayed. TX Frames and RX Frames display the transmitted and received ...
  • Page 438 Test Results Summary (RFC 2544) Unit: Select the subtest result unit:  For Throughput: Mbit/s, Gbit/s, frame/s, and %. For Back-to-Back: Mbit/s, Gbit/s, frame/burst, and %. Frame Loss: %. Latency: ms, and μs. Layer: For Throughput and Back-to-Back subtests, select the ...
  • Page 439 Test Results Summary (RFC 6349) Summary (RFC 6349) From the Test menu, tap Results, and the Summary tab. Status indicates the actual test status as follows.  Test Status Description “--” Test has not started. In Progress The test is running. Completed, <Verdict>...
  • Page 440 Test Results Summary (RFC 6349) , when displayed, indicates that the logger is full. Refer to Logger Full  Logger and Alarms/Errors Logger on page 362. Remote unit in use and locked for Dual Test Set indicates that this  module is used for Dual Test Set as the remote module.
  • Page 441 Test Results Summary (RFC 6349) Buffer Delay (%) indicates the Buffer Delay percentage metric which  represents the increase in RTT during a TCP Throughput test versus the Minimum RTT. TCP Throughput Threshold (% of ideal) allows to enter the TCP ...
  • Page 442 Test Results Summary (S-OAM and MPLS-TP OAM) Summary (S-OAM and MPLS-TP OAM) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the S-OAM / MPLS-TP OAM  test. The global test pass/fail verdict is displayed next to the Test Status when enabled (see Pass/Fail Verdict on page 275).
  • Page 443 Test Results Summary (S-OAM and MPLS-TP OAM) Continuity Check (Peer MEP) Status displays the status of the continuity check with the peer MEP.  Status Description Loss Continuity Loss of Continuity alarm is active. Mismerge Mismerge alarm is active. Unexpected MEG Level Unexpected MEG Level alarm is active.
  • Page 444 Test Results Summary (S-OAM and MPLS-TP OAM) CCM indicates the content of the last received CCM frame including  MEG ID (Y.1731 and G.8113.1), Domain ID (802.1ag and MEF), MA Name (802.1ag and MEF), MEG Level (Y.1731, MEF, and G.8113.1), MD Level (802.1ag), MEP ID, and Period.
  • Page 445 Test Results Summary (S-OAM and MPLS-TP OAM) Loopback / Test / Frame Delay / Frame Loss / Synthetic Loss Note: Either Loopback, Test, Frame Delay, Frame Loss, or Synthetic Loss (available with Ethernet OAM) statistics are displayed according with the selected test function (refer to Test Function on page 226).
  • Page 446 Test Results Summary (S-OAM and MPLS-TP OAM) RX Line Utilization meter and value, available with Loopback  function, indicate the line rate utilization percentage (only LBR frames are considered) received in the last second. TST RX Rate meter and value, available with Test function, indicate the ...
  • Page 447 Test Results Summary (SyncE) Summary (SyncE) From the Test menu, tap Results, and the Summary tab. Test Status displays the current status of the SyncE test. The global test  pass/fail verdict is displayed next to the Test Status when enabled (see Pass/Fail Verdict on page 275).
  • Page 448 Test Results Summary (SyncE) ESMC Indicates the current (meter and value), average, minimum, and maximum ESMC frame rate (including information and event frames) received in frame/s. A fail verdict is also displayed beside the minimum and/or maximum values when the ESMC frame rate is outside the range while the Pass/Fail Verdict is enabled.
  • Page 449 Test Results Summary (SyncE) Last QL Message indicates the last Quality Level value received. The  pass/fail verdict is also displayed when both QL Mismatch Monitoring and Pass/Fail Verdict check boxes are selected. Last Change indicates the date and time of the Last QL Message has changed.
  • Page 450 Test Results Summary (TCP Throughput) Summary (TCP Throughput) From the Test menu, tap Results, and the Summary tab. Test Status indicates the actual test status as follows.  Test Status Description “--” The test is not running or results are not available. In Progress The test is running.
  • Page 451 Test Results Summary (TCP Throughput) TCP Throughput TCP Connection Status indicates the actual TCP connection status.  Test Status Description “--” The test is not running or results are not available. In Progress The TCP initialization algorithm is in progress. Waiting Indicates on the remote unit that the test is started but the TCP initialization algorithm is not initiated by the local unit.
  • Page 452 Test Results Summary (TCP Throughput) TCP Throughput displays respectively the last, minimum, maximum,  and average TCP Throughput measurement. Window Size displays respectively the last, minimum, and maximum  TCP window size. Round Trip Latency (ms) displays respectively the last, minimum, ...
  • Page 453 Test Results Summary (Traffic Gen & Mon) Summary (Traffic Gen & Mon) From the Test menu, tap Results, and the Summary tab. Test Status indicates the actual test status as follows. The global test  pass/fail verdict is displayed next to the Test Status when enabled (see QoS Metrics on page 272).
  • Page 454 Test Results Summary (Traffic Gen & Mon) Out-of-Sequence: See Streams - Frame Loss / Out-of-Sequence on  page 388. Stream indicates the stream number and provides stream detailed  statistics when tapping on its button. The following statistics are displayed for the selected stream. Stream Selection: Select a stream by either using the left/right ...
  • Page 455  (TTI bytes 17 to 31). Available when the DAPI OTU/ODU-TIM check box is selected. The default setting is EXFO OTU DAPI for OTUx, and EXFO ODU DAPI for ODUx. The TTI byte 16 is set to NULL (all 0’s).
  • Page 456 Test Results Traces - OTN SAPI OTU/ODU-TIM check boxes, when selected (cleared by default),  allows editing the expected Source Access Point Identifier (SAPI) and also enables OTU/ODU-TIM alarm monitoring. DAPI OTU/ODU-TIM check box, when selected (cleared by default),  allows editing the expected Destination Access Point Identifier (SAPI) and also enables the OTU/ODU/TCM-TIM alarm monitoring.
  • Page 457 Test Results Traces - SONET/SDH Traces - SONET/SDH From the Test menu, tap Results, Traces, and the SONET/SDH sub-tab. Note: Selecting a Trace byte to be generated will automatically update the corresponding OH byte. Refer to OH - SONET/SDH on page 487 for more information.

  • Page 458: Traffic - Ethernet

    Test Results Traffic - Ethernet Traffic - Ethernet From the Test menu, tap Results, Traffic, and when applicable the Ethernet tab. Note: For Through Mode test application, the traffic statistics are displayed for both port directions (P1->P2 and P2->P1). Traffic Line Utilization (%) indicates the current percentage of the ...
  • Page 459 Test Results Traffic - Ethernet Unicast indicates the number of unicast frames transmitted/received  without FCS errors. Non-Unicast indicates the number of multicast and broadcast frames  transmitted/received without FCS errors. Total indicates the total number of all frames transmitted/received ...

  • Page 460: Traffic - Flow Control

    Test Results Traffic - Flow Control Traffic - Flow Control From the Test menu, tap Results, Traffic, and the Flow Control tab. Frame Count - RX Pause Frames indicates the number of received valid flow-control  frames. Frames that have a type/length field equal to 0x8808 will be counted as a pause frame.
  • Page 461 Test Results Traffic - Flow Control Pause Injection Note: Pause injection is only available for Traffic Gen & Mon test application. Packet Pause Time: Enter the pause time value to be transmitted in  Quanta or Microsecond (default is 100 Quanta). Range Interface Quanta...

  • Page 462: Traffic - Graph

    Test Results Traffic - Graph Traffic - Graph From the Test menu, tap Results, Traffic, and the Graph tab. The graph displays the received line utilization. The X axis shows the time in seconds while the Y axis shows the percentage utilization. FTB-700G/800 Series...
  • Page 463 Test Results Traffic - OAM, S-OAM, and MPLS-TP OAM Traffic - OAM, S-OAM, and MPLS-TP OAM From the Test menu, tap Results, Traffic, and the OAM, S-OAM, or MPLS-TP OAM tab. Traffic Monitoring Note: Only available with Carrier Ethernet OAM test application. In TX, reports counts of CCM, LBM, LTM, DMM, LMM, SLM, TST, AIS, ...
  • Page 464 Test Results Traffic - OAM, S-OAM, and MPLS-TP OAM Responder Note: Available when the S-OAM Responder or MPLS-TP OAM Responder check box is selected (refer to S-OAM and MPLS-TP OAM Responder on page 221). For Carrier Ethernet OAM test application: In TX, reports counts of LBR, LTR, DMR, LMR, and SLR total frames ...

  • Page 465: Window Sweep - X

    Test Results Window Sweep Window Sweep Displays the graph showing the Ideal L4 and Actual L TCP Throughput measured for each Window Sweep step. The number of connections and KiB per connection is also displayed in parenthesis as follows: (n conn.@ n KiB) From the Test menu, tap Results, and the Window Sweep tab.
  • Page 466 Test Results From the Test menu, tap Results, and the WIS tab. Traces/Label J0 Trace displays the J0 Trace value in 16-bytes format.  J1 Trace displays the J1 Trace value in 16-bytes format.  Path Signal Label (C2) displays the content of the STS SPE including ...
  • Page 467 10 Test Functions The Test Functions menu offers the following structure: Transport Test Applications Available with Page FDL - Bit-Oriented Message FDL - Performance Report Message FEAC OH - OTN OH - SONET/SDH Pointer Adjustment Signaling Bits Spare Bits OTN BERT SONET/SDH BERT DSn/PDH BERT SONET/SDH - DSn/PDH BERT...

  • Page 468: Rfc 6349 Rfc 2544

    Test Functions Ethernet Test Applications Test Application Tab - Sub Tab Page Filters Packet Capture Ping & Trace Route S-OAM Link Trace EtherSAM RFC 6349 RFC 2544 EtherBERT Traffic Gen & Mon Smart Loopback Through Mode TCP Throughput Carrier Ethernet OAM Cable Test Packet Sync Test Applications Test Application...

  • Page 469: Aps

    Test Functions From the Test menu, tap Functions, and the APS tab. TX/RX Switching Mode, available for both TX and RX, selects the switching  mode: Linear (default) or Ring.  Request: Bits 1 through 4 of the K1 byte. Request Bits 1 to 4...
  • Page 470 Test Functions Channel (Linear switching mode) or Destination Node ID (Ring switching mode): Bits 5 through 8 of the K1 byte. Bits Channel ID Destination Node ID Bits Channel ID Destination Node ID 5 to 8 (Linear mode) (Ring mode) 5 to 8 (Linear mode) (Ring mode)
  • Page 471 Test Functions Architecture (Linear switching mode) or Bridge Request (Ring switching mode): Bit 5 of the K2 byte. The default setting is 1+1 for Linear switching mode and Short Path Request for Ring switching mode. Architecture Bridge Request Bit 5 (Linear mode) (Ring mode) Short Path...

  • Page 472: Fdl - Bit-Oriented Message

    Test Functions FDL - Bit-Oriented Message FDL - Bit-Oriented Message Allows to set and configure the Bit-Oriented Messages (BOM) of the Extended Super-Frame (ESF). Note: FDL is only available for DS1 interface with ESF framing. For Dual RX test, FDL is only available for the DS1 TX/RX port 1. From the Test menu, tap Functions, FDL, and the Bit-Oriented Message tab.
  • Page 473 Test Functions FDL - Bit-Oriented Message Codeword Command/Response Command/Response Pattern Pattern Codeword Codeword Line Loopback Activate 00001110 11111111 Protection Switch Line 22 01101100 11111111 Line Loopback Deactivate 00111000 11111111 Protection Switch Line 23 01101110 11111111 Payload Loopback Activate 00010100 11111111 Protection Switch Line 24 01110000 11111111 Payload Loopback Deactivate 00110010 11111111...
  • Page 474 Test Functions FDL - Bit-Oriented Message Receive Messages Link Activity indicates the activity of the following parameters during  the last second of measurement. Idle indicates that only idle codes have been detected in the last  second. Priority indicates that at least one valid priority message has been ...
  • Page 475 Test Functions FDL - Bit-Oriented Message Command/Response  Current indicates the command/response message detected in the last second. If no priority message has been detected, “--” is displayed. Previous indicates the last command/response message detected excluding the current message. If no command/response message has been detected since the beginning of the test, “--”...

  • Page 476: Fdl - Performance Report Message

    Test Functions FDL - Performance Report Message FDL - Performance Report Message Note: FDL PRM is only available for DS1 interface with ESF framing. For Dual RX test, FDL is only available for the DS1 TX/RX port 1. For NI/CSU Emulation, only available in the RX direction.
  • Page 477 Test Functions FDL - Performance Report Message Received Messages Event Counts lists received PRM bit event counts.See PRM Bit Events  below. Report Content lists received performance information. See  Performance Information below. Circuit indicates the selected circuit type: CI to Network or ...
  • Page 478 Test Functions FDL - Performance Report Message Performance Information table, available when the Report Content  button is selected, reports the time t0, t0-1, t0-2, and t0-3 for each PRM. Time T0 represents the valid PRM message received in the last second of ...

  • Page 479: Feac

    Test Functions FEAC FEAC The Far-End Alarm and Control signal (FEAC) provides Communication Channel capability over a DS3 in a network applications using C-bit Parity configuration (see page 247). From the test menu, tap Functions, and the FEAC tab. Generated Messages Allows to configure and send alarms/status information and control signals (loopback commands) to other network elements.
  • Page 480 Test Functions FEAC Amount is the amount of codeword to be generated: 1 to15  (default is 10). Inject generates error(s) according to the Codeword and mode  selected. Loopback Commands  Control  Codeword is the loopack control codeword to be generated: Line Loopback Activate (00001110) - (Default) or Line Loopback Deactivate (00111000).
  • Page 481 Test Functions FEAC Received Messages Displays current and previous alarms/status and loopback commands as well as the link activity for the received DS3 signal. Link Activity  None (All 1’s): An all ones pattern (11111111 11111111) has been  detected in the last second. Alarm/Status: An Alarm/Status codeword has been detected in the ...
  • Page 482 Test Functions FEAC Loopback Commands  Current displays the valid message received in the last second of  measurement. A valid message is detected only when receiving 10 consecutive occurrences of a specific Loopback Command immediately followed by 10 occurrences of a specific Channel Codeword.
  • Page 483 Test Functions Filters Filters Allows gathering statistics according to the programmed filters. Filters provide the capability to analyze a specific stream’s behavior in order to monitor a single protocol’s behavior, perform SLA verification, or precisely troubleshoot unwanted behavior. Up to 4 filters having up to four operands each can be defined and enabled.
  • Page 484 Test Functions Filters Assign to Capture Note: Only available when the ETH-CAPTURE software option is enabled. Refer to Software Option on page 34 for more information. Assigns the selected filter for packet capture. See Packet Capture on page 475. Filter Configuration Note: Multiple filter criteria is only available when the ADV-FILTERS option is enabled;...
  • Page 485 Test Functions Filters Filter specifies the filter to be used (None by default).  Category Filter Ethernet MAC Destination Address, MAC Source Address, EtherType , C-VLAN ID, S-VLAN ID, E-VLAN ID, C-VLAN Priority, S-VLAN Priority, E-VLAN Priority IPv4 IPv4 Destination Address, IPv4 Source Address, IPv4 TOS, IPv4 Precedence, IPv4 Protocol, IPv4 DiffServ IPv6 IPv6 Destination Address, IPv6 Source Address,...
  • Page 486 Test Functions Filters Mask allows masking the defined filter value. A bit mask of 1  indicates that the corresponding bit in the value is compared for the match. A bit mask of 0 indicates that the corresponding bit in the value is ignored.
  • Page 487 Test Functions Packet Capture Packet Capture Capture is used to analyze all or filtered data traffic and save complete or truncated frames into a buffer. It allows to precisely observe network truncated data, or to understand errors and unwanted behavior. From the Test menu, tap Functions, and the Packet Capture tab.
  • Page 488 Test Functions Packet Capture Frame Length Specifies the length of the frame that will be saved in the capture buffer. Complete captures the entire frames.  Truncated captures only the first specified number of bytes per frame.  Use either the Bytes field to manually enter the number of bytes per frame or tap on the Truncation Calculator button for automatic bytes per frame calculation.
  • Page 489 Test Functions Packet Capture Trigger Trigger Type defines the trigger source criterion that will be used to  automatically start/stop the capture when a received frame matches the filter and the trigger criteria. Manual automatically starts the frame capture when the Capture ...
  • Page 490 Test Functions Packet Capture Trigger Position selects the triggered frame position within the buffer.  Post-Trigger for a trigger frame located at the beginning of the  buffer. The buffer will contain the triggered frame with the following frames. Mid-Trigger for a trigger frame located at the middle of the buffer. ...
  • Page 491 Test Functions Packet Capture Triggered Frame - Details gives details on the triggered frame.  The triggered frame corresponds to the first received frame that matches the filter and the trigger settings. Frame Number indicates the triggered frame position in the buffer. The framing MAC/IP/UDP/TCP source and destination addresses are displayed in a table.
  • Page 492 Test Functions Packet Capture Generate & Save  Allows to generate and save the capture data. The name of the captured file is automatically selected and contains the date and time of the capture. Capture file bigger than 100Mbytes will be split into multiple files.

  • Page 493: Oh - Otn

    Test Functions OH - OTN OH - OTN From the Test menu, tap Functions, and the OH tab. TX and RX buttons Allows to respectively modify (TX button) the overhead information to be transmitted or to view (RX button) the overhead information received. Default OTN OH Returns all TX overhead bytes to their factory default values.
  • Page 494 Test Functions OH - OTN The third SM byte (column 10) contains the following sub-fields. This byte is configurable from 00 (default) to FF. Bit 1-4 Bit 5 Bit 6 Bit 7-8 BEI/BIAE GCC0, columns 11-12, OTU OH: The two General Communication ...
  • Page 495 Test Functions OH - OTN Row 2 RES, columns 1-2, ODU OH: The two Reserved (RES) bytes are  configurable from 00 (default for each byte) to FF. PM & TCM, column 3, ODU OH: The Path Monitoring and Tandem ...
  • Page 496 Test Functions OH - OTN JC, column 16, OPU OH:  Bits 1-6, Reserved (RES), are configurable from binary 000000  (default) to 111111. Bits 7-8, Justification Control (JC), are configurable from binary  00 (default) to 11. Not available with ODU mux. Changing the JC value will corrupt the payload.
  • Page 497 Test Functions OH - OTN JC, column 16, OPU OH:  Bits 1-6, Reserved (RES), are configurable from binary 000000  (default) to 111111. Bits 7-8, Justification Control (JC), are configurable from binary  00 (default) to 11. Not available with ODU mux. Changing the JC value will corrupt the payload.
  • Page 498 Test Functions OH - OTN RX OH Byte Details displays the content of the selected OH RX byte.  Tap on any OH RX byte to see its content Legend TX/RX indicates the path level for all OH bytes.  FTB-700G/800 Series...

  • Page 499: Oh - Sonet/Sdh

    Test Functions OH - SONET/SDH OH - SONET/SDH The SONET/SDH OH page allows to modify (TX) the overhead information to be transmitted and to view (RX) the overhead information received. From the Test menu, tap Functions, and the OH tab. Tap on any overhead byte in TX to modify its value.
  • Page 500 Test Functions OH - SONET/SDH Transport OH - Section/RS A1 and A2: Framing. The value should be hexadecimal F6 for A1 and  28 for A2. They must appear in every STS-1/STM-1 frame of a composite signal. SONET: Provide frame alignment of each STS-1 frame within a composite signal (STS-1 to STS-n).
  • Page 501 Test Functions OH - SONET/SDH F1: User/User Channel. This byte is reserved for user purposes. This  byte is only defined for the first STS-1/STM-1 frame of a composite signal. D1, D2, and D3: Data Communications Channel (DCC). Provides a ...
  • Page 502 Test Functions OH - SONET/SDH B2: BIP-8  SONET: The BIP-8 (Bit-Interleaved Parity) byte provides line error monitoring. This byte is only defined for the first STS-1/STM-1 frame of a composite signal. The byte is calculated by performing a routine even-parity check over all bits of the LOH and the STS-1 frame capacity of the previous frame of a composite signal (STS-1 to STS-n).
  • Page 503 Test Functions OH - SONET/SDH M0 or M1/Z2 (SONET)  M0: REI-L: The M1 byte is used for line Remote Error Indication (REI-L) For STS-1e and OC-1: The M0 byte located in the STS-1 indicates  BIP violations. M0, bits Indicates 234 5678 000 0000...
  • Page 504 Test Functions OH - SONET/SDH For OC-12: The M1 byte located in the STS-1 #7 indicates BIP  violations. M1, bits 234 5678 Indicates 000 0000 0 BIP violation 000 0001 1 BIP violation 110 0000 96 BIP violations 110 0001 to 0 BIP violation 1111 1111 For OC-48: The M1 byte located in the STS-1 #7 indicates BIP...
  • Page 505 Test Functions OH - SONET/SDH For OC-192: Either the M1 byte located in the STS-1 #7, or the  combination of the M0 and M1 bytes indicates BIP violations (refer to REI-L Computation Method on page 259). For M1 Only computation method: Indicates 0000 0000 0 BIP violation...
  • Page 506 Test Functions OH - SONET/SDH M0 or M1 (SDH)  M0: MS-REI. STM-1 channel #1 of a STM-0e and STM-0 signal. M1:MS-REI. STM-1 channel #1 of a STM-1e and STM-1 signal; channel #3 of an STM-N signal (N>1). Undefined “--” for all other channels not covered by M0, and M1. E2: Orderwire.
  • Page 507 Test Functions OH - SONET/SDH C2: Signal Label. Entering a C2 byte value will automatically update the  Path Signal Label (C2) selection and vice versa. Refer to STS/AU Path (C2) on page 169 for more information. Description (Hex.) SONET Unequipped UNEQ or supervisory-UNEQ Equipped - Non-Specific...
  • Page 508 Test Functions OH - SONET/SDH G1: Path Status. The G1 byte provides a method to communicate the  far-end path status back to the path originating equipment. REI: Bits 1 to 4 of G1 Description 0000 No error 0001 1 error 0010 2 errors 1000...
  • Page 509 Test Functions OH - SONET/SDH Z3 and Z4:  SONET only: Growth.  SDH only: User Channel. The Path User Channel provides a channel for communication purposes between path elements and is payload dependent.  SDH only: Automatic Protection Switching (APS). Bits 1 to 4 of the K3 byte are used for APS signaling.
  • Page 510 Test Functions OH - SONET/SDH VT/TU V5 VT/TU Path Overhead  The V5 byte is allocated to indicate the content of the VT/TU path, including the status of the mapped payloads. It provides the same functions for VT/VC paths that the B3, C2, and G1 bytes provide for STS/STM paths.
  • Page 511 Test Functions OH - SONET/SDH If the signal label in V5 (bits 5, 6, and 7) is 101 the contents of the extended signal label is valid and contains in a 32 bit multiframe as shown below. See Z7/K4 Structure shown below. Z7/K4 Structure J2 Trace.
  • Page 512 Test Functions OH - SONET/SDH Z7 /K4 : Extended signal label  Description Bits Z7 (SONET) K4 (SDH) Extended signal label. Bits 12 to 19 of the 32 bit frame multiframe (see Z7/K4 Structure on page 499) contain the extended signal label. Virtual concatenation.
  • Page 513 Test Functions Ping & Trace Route Ping & Trace Route From the Test menu, tap Functions, and the Ping & Trace Route tab. Source IP Address Displays the configured Source IP Address. Refer to MAC/IP/UDP on page 172 for RFC 2544 and EtherBERT tests, and to Smart Loopback on page 262 for Smart Loopback test.
  • Page 514 Test Functions Ping & Trace Route Ping Data Size (Bytes): Enter the data size that will be sent to the network  device to be detected. Choices are 0 to 1452 bytes; 32 bytes by default. TTL for IPv4 and Hop Limit (TTL) for IPv6: Enter the maximum ...
  • Page 515 Test Functions Ping & Trace Route Trace Route Max Hop Count: Enter the maximum network device the packet is  allowed to go through. Choices are 1 to 255; 128 by default. Timeout (ms): Enter the maximum time allowed between an ICMP ...
  • Page 516 Test Functions Ping & Trace Route Status: Indicates the status of the attempt as follows:  Status Description Successful Valid ICMP echo reply received. User Aborted When a user has manually stopped the ping/trace route function before the end of attempts.
  • Page 517 Test Functions Ping & Trace Route Replied Details  For ping, indicates the IP address of the replier, the buffer size of the ICMP echo response, the time of response in milliseconds, and the TTL of the ICMP echo response. For trace route, indicates the IP address of the replier, and the time of response in milliseconds.

  • Page 518: Pointer Adjustment

    Test Functions Pointer Adjustment Pointer Adjustment From the Test menu, tap Functions, and the Pointer Adjustment tab. TX Pointer Adjustment Note: Only available in Coupled topology. The pointer adjustment supports two modes of operation: Manual and Sequence. Both modes offer the generation of pointer events even when the test is not started.
  • Page 519 Test Functions Pointer Adjustment Jump New Pointer allows to select a new pointer value:  For STS/AU: 0 (default) to 782 For VT/TU: Path Range VT1.5 0 to 103 0 to 139 TU-3 0 to 764 TU-11 0 to 103 TU-12 0 to 139 Inject button sends the new pointer value.
  • Page 520 Test Functions Pointer Adjustment TX Pointer Adjustment - Sequence Button Note: The pointer sequence is only supported on one test layer; either on VT/TU layer or on STS/AU when the test doesn’t contain VT/TU mapping. The field next to the Sequence operation mode button indicates the path level used for the sequence pointer adjustment.
  • Page 521 Test Functions Pointer Adjustment Initialization / Cool Down / Sequence  The following time line examples show the initialization, cool down, and the pointer sequence according to the selected sequence and parameters. Example 1: Periodic 87-3 with Cancel Example 2: Regular pointers plus one double pointer Legend: Description When located at the end (right) of the sequence, indicates a continuous repetition of the pointer...
  • Page 522 Test Functions Pointer Adjustment T1 to T6 are configurable duration parameters. The range of the  duration parameters as well as their availability versus pointer sequence are described in the following table. Pointer Sequence Pattern Parameter Duration range Single pointers of opposite polarity 10 to 30 s (default 10 s) Regular pointers plus one double pointer AU/TU-3: 7.5 ms to 30 s (default 0.333 s)
  • Page 523 Test Functions Pointer Adjustment T1 (s) represents the interval between two pointer events.  Example of Single pointer of opposite polarity sequence. T2 (s) represents the interval between successions of pointer  events. Example of Regular pointers with one missing pointer sequence.
  • Page 524 Test Functions Pointer Adjustment T4 (ms) represents the interval between back to back pointer  events in periodic pointer sequence. Example of Burst pointer adjustment sequence. T5 (s) represents the interval between successions of pointer  events in a Periodic pointer sequence. Example of Periodic 87-3 with Cancel sequence.
  • Page 525 Test Functions Pointer Adjustment Increment/Decrement allows to determine if the pointer sequence  will increment (positive) or decrement (negative) the pointer values. Periodic check box when selected, generates the pointer sequence  continuously. The pointer sequence is generated only once when the Periodic check box is cleared.
  • Page 526 Test Functions Pointer Adjustment Sequence button when enabled, generates pointer events on a regular  basis. The initialization and cool down sequence are described below for each pointer sequence pattern. Pointer Sequence Pattern Initialization Cool down Single pointers of opposite polarity Basic sequence Basic sequence ...
  • Page 527 Test Functions Pointer Adjustment RX Pointer Adjustment Pointer Value  For STS/AU: Displays the value for the pointer, H1 and H2, indicating the offset in bytes between the pointer and the first byte of the STS-n (SONET) or AU-n (SDH). For VT/TU: Displays the value of the pointer, V1 and V2, indicating the offset in bytes between the pointer and the first byte of the VTn (SONET) or TU-n (SDH) of the high order path.

  • Page 528: Rtd

    Test Functions Note: Not available in Decoupled, or Through mode. Round Trip Delay (RTD) measurements are needed to quantify the time it takes for a signal to cross the network and come back. Usually, transport delay is due to two factors: long configured paths and transit times through the network elements along the path.
  • Page 529 Test Functions Measure Delay Button Allows enabling the round trip delay measurement. For Single mode, the test is performed once and stops (the Measure Delay button turns off by itself). The Measure Delay button is only available when the test is running. For Continuous mode, the test is performed continuously until the RTD test or the test case itself is stopped.
  • Page 530 Test Functions Disabled: Indicates that the RTD feature is disabled. For example, this  condition occurs for DS0/E0 test case having all its timeslots set to Idle/Tone. --: Indicates that the RTD measurement is not ready.  Reset Resets the RTD results and measurement counts. Delay Indicates the time required for a bit to travel from the transmitter back to its receiver after crossing a far-end loopback.
  • Page 531 Test Functions RTD (CPRI Framed L2) RTD (CPRI Framed L2) Note: Only available with CPRI Framed L2 in Base Station emulation mode. Round Trip Delay (RTD) measurements are needed to quantify the time it takes for a signal to cross the remote radio head and come back. Note: Be aware that RTD requires error free operation conditions to provide reliable results.
  • Page 532 Test Functions RTD (CPRI Framed L2) Round Trip Delay Indicates the time required for a bit to travel from one point to another. Delay T14 indicates the round trip delay measurement from the Base  Station going through the Remote Radio Head (including Toffset) and back to the Base Station.
  • Page 533 Test Functions S-OAM Link Trace S-OAM Link Trace From the Test menu, tap Functions, and the S-OAM Link Trace tab. Link Trace Priority allows to select the VLAN user priority: 0 (default) to 7. Refer  to VLAN ID and Priority on page 639 for more information. is set to No (no frames will be dropped when Drop Eligible ...
  • Page 534 Test Functions S-OAM Link Trace RX LTR indicates the count of received LTR frames having their  destination MAC address matching the unit port MAC address, and VLANs matching the unit port VLANs. LTR Timeout indicates the count of LTR Timeout event which occurs if ...

  • Page 535: Signaling Bits

    Test Functions Signaling Bits Signaling Bits Signaling Bits is only available for DSn/PDH BERT test with DS1 interface, DS0 enabled, and SF, ESF, or SLC-96 framing. From the Test menu, tap Functions and the Signaling Bits tab. The monitoring of signaling bits of the 24 - DS0 channels is performed when test is running.

  • Page 536: Spare Bits

    Test Functions Spare Bits Spare Bits Note: Spare Bits are not available when the framing is set to Unframed. From the Test menu, tap Functions, tap the Spare Bits tab. Tap a spare bits field to set its value. Note: All spare bits are reserved for national use and should be set to 1 when not used.
  • Page 537 Test Functions Spare Bits  G.751 Bit 14, 15, 16 are reserved for national use.  G.751 Bit 12 is reserved for national use.  G.742 Bit 12 represents Bit 12 from Timeslot 1, 2, 3, and 4 respectively.  is located in the bit 1 of the frame containing the frame ...
  • Page 538 Test Functions Traffic Scan Traffic Scan The traffic scan tool provides the capability to discover and monitor VLAN traffic flows on the network. Not available with Framed Layer 1.From the Test menu, tap Functions, and the Traffic Scan tab. Level Allows the selection of the criteria that will be used to filter the incoming VLAN traffic flows.
  • Page 539 Test Functions Traffic Scan Rate Layer Allows the selection of the rate unit used for Link Rate and Rate statistics. Line Utilization is used to express the real line rate including the  Preamble, SFD, and IFG. Ethernet BW (Bandwidth) is used to express the Ethernet bandwidth ...
  • Page 540 Test Functions Traffic Scan Monitored Frames Table Statistics are gathered for each different traffic flow matching the scan criteria. Each different monitored traffic flow creates a separate entry in the scan table. When the limit is reached, new traffic flows are not considered in the table but the existing traffic flows are still monitored.
  • Page 541 11 Test Control This chapter describes the test control buttons available on the right navigation bar of the application. Button For more information, see: Discover Remote Discover Remote Button on page 530 Headset DTMF Headset/DTMF Button on page 533 Inject Inject Button on page 535 Laser Laser Button on page 535...
  • Page 542 The Discover Remote function allows to perform Ethernet tests in conjunction with a second test set (module) by scanning and connecting to any available EXFO Datacom remote module. The remote module is used to loop back the traffic via Smart Loopback or Dual Test Set (DTS) for simultaneous bidirectional RFC 2544, RFC 6349, or EtherSAM results.
  • Page 543 Test Control Discover Remote Button Status indicates the status of the remote module.  Status Description Idle-<test application> The specified test application is selected but not running. Busy-<test application> The specified test application is running. Not Responding No response from the specified IP address (only possible when Target is set to Specific IP).
  • Page 544 Test Control Discover Remote Button Connect and Disconnect buttons are only available with RFC 2544,  RFC 6349, and EtherSAM test applications. Connect establishes the connection with the selected remote  module and sets the remote module into either DTS RFC 2544, DTS RFC 6349, or DTS EtherSAM test application, depending on the active test on the local module.
  • Page 545 Test Control Headset/DTMF Button Headset/DTMF Button Note: Only available with ISDN PRI test application. The Headset/DTMP allows to connect a B-Channel (Speech or 3.1 kHz) to the headset and DTMF tones can be generated using the keyboard. Enable/Disable Headset and DTMF Enable Headset and DTMF button is used to enable the Headset and ...
  • Page 546 Test Control Headset/DTMF Button Headset Note: The settings here and on the platform are independent but platform settings may limit level control. For more information, refer to Adjusting Microphone and Speaker Volume from the platform user guide. Speaker Volume: The slide bar and +/- buttons are used to increase or ...
  • Page 547 Test Control Inject Button Inject Button Injects alarms/errors based on settings from the Inject Button on page 346. Laser Button The Laser button enables or disables the laser for optical interfaces. Laser Button Border Color Description Black Laser is off. Laser is on.
  • Page 548 Test Control Lpbk Tool Button (Loopback Tool) Lpbk Tool Button (Loopback Tool) The Loopback Tool provides the capability of looping back the Ethernet frames/packets that are received on the loopback tool port. Pressing the Lpbk Tool button opens the Loopback Tool pop-up and powers up the port unused by the main test application (it does not start looping back the frames yet).
  • Page 549 Test Control Lpbk Tool Button (Loopback Tool) Loopback Tool tab The Loopback Tool tab allows the configuration of the loopback parameters and displays the traffic statistics as well as the S-OAM Responder statistics. Press the Lpbk Tool button and select the Loopback Tool tab. Status: The status field displays the current status of the Loopback test.
  • Page 550 Test Control Lpbk Tool Button (Loopback Tool) Loopback Mode determines at which layer the address/port swapping  is limited. Ethernet swaps the MAC addresses of received packets having  their Destination MAC address matching the MAC address of the loopback port. Ethernet (All Unicast) swaps the MAC addresses of received ...
  • Page 551 Test Control Lpbk Tool Button (Loopback Tool) S-OAM Responder check box when selected (default) allows to  respond to LBM, LTM, DMM, LMM, and SLM valid messages (Lpbk Tool must be started, see Loopback button below). Traffic statistics are also monitored (refer to Responder on page 452). Responds to...
  • Page 552 Test Control Lpbk Tool Button (Loopback Tool) Interface Tab Physical Interface  Interface/Rate allows the selection of the loopback tool interface  rate: 10/100/1000M Electrical (default), 100M Optical, 1GE Optical, or 10GE LAN. 10GE LAN is only available when the loopback tool runs on Port #1.
  • Page 553 Test Control Lpbk Tool Button (Loopback Tool) LINK  Auto-Negotiation check box when selected, enables the link  auto-negotiation and allows to set the port Speed, Duplex, Flow Control, and Local Clock parameters. Those settings are not applied immediately to the port, they are used only when the negotiation process is started and take effect only when the auto-negotiation succeeds.
  • Page 554 Test Control Lpbk Tool Button (Loopback Tool) Cable Mode is available with 10/100/1000M Electrical interface.  Manual mode is selected when the Auto-Negotiation check box is cleared and allows to select the type of cable: MDI (default) for straight through cable or MDIX for crossover cable. Automatic mode is selected when the Auto-Negotiation check box is selected and allows to automatically detect the MDI or MDIX cable type.
  • Page 555 Test Control Phone Book Button Phone Book Button Note: Only available with ISDN PRI test application. The Phone Book is used to configure, save, load, import, and export phone numbers and phone books. Configure tab The Configure tab allows to save a phone number and associate a name to it.
  • Page 556 Test Control Phone Book Button Save/Load tab The save function stores the phone book. To save a phone book: 1. From the Save/Load tab, select the media where the file will be saved: or Removable Drives (USB media for example) if Internal Storage present.
  • Page 557 Test Control Phone Book Button To rename a phone book file: 1. From the Save/Load tab, select the media from where the file is located: Internal Storage or Removable Drives (USB media for example) if present. 2. Select the file from the list. 3.
  • Page 558 Test Control Phone Book Button Import/Export tab The import/export function allows to copy multiple files from a Removable Drives to Internal Storage (Import) or from Internal Storage to Removable Drives (Export). To import/export phone book file(s): 1. From the Import/Export tab, select the media from where the files are located: Internal Storage or Removable Drives (USB media for example) if present.
  • Page 559 Test Control Report Button Report Button The report contains all information about the current test including its setup and results. Note: Nothing prevents the configuration and alarm/error injection setup while the test has been stopped; thus, the report should be saved/printed before changing any test parameters to avoid printing discrepancy between the configuration and results.
  • Page 560 Test Control Report Button Report Headlines and Content parameters are used to identify the  report and are not mandatory. Up to 30 characters are allowed for each parameter. Report Header could be the company name.  Report Title could be the name of the product, name of test, test ...
  • Page 561 Test Control Report Button Turn on Report Generation Prompt check box when selected  (default) displays a pop-up every time a test case is stopped or completed to ask if a report generation is desired. Format is the file format for the report: PDF (default) and Text. ...
  • Page 562 Test Control Report Button Import/Export Tab Allows to transfer and delete report files from an external USB media. Also allows to import images that can used as the Logo for reports. Tap the Report button and select the Import/Export tab. To import/export a report or image: 1.
  • Page 563 Test Control Reset Button Reset Button Tap the Reset button to clear results, statistics, and logger content. The Reset button is only available when the test is running. Note: The Reset button is not available for EtherSAM, RFC 2544, RFC 6349, Cable Test, and Smart Loopback test applications.
  • Page 564 Test Control Save/Load Button Save/Load Button The Save/Load button allows to save, load, import, export, and delete configuration file(s). Note: Save/Load is only possible when the test is stopped. Save/Load Tab Tap the Save/Load button and the Save/Load tab. The save function stores the configuration of the NetBlazer including all test settings to a file.
  • Page 565 Test Control Save/Load Button The load function opens and applies the test configuration from a previously saved configuration file. To load a configuration: 1. Select the media from where the file will be loaded; Favorites, Factory Defined, Others, or a removable drive (USB key for example) if present.
  • Page 566 Test Control Save/Load Button To rename a configuration file: 1. Select the media where the file is located: Favorites, Others, or a removable drive (USB key for example) if present. Favorites lists configuration files from: Documents\810-880-NetBlazer\Configuration\Favorites. Others lists configuration files from: Documents\810-880-NetBlazer\Configuration.
  • Page 567 Test Control Save/Load Button To delete a configuration file: 1. Select the media where the file is located: Favorites, Others, or a removable drive (USB key for example) if present. Favorites lists configuration files from: Documents\810-880-NetBlazer\Configuration\Favorites. Others lists configuration files from: Documents\810-880-NetBlazer\Configuration.
  • Page 568 Test Control Save/Load Button Import/Export Tab Configuration files can be transferred to and from an external USB media as well as deleted. Tap the Save/Load button and the Import/Export tab. To import/export a test configuration: 1. Select the media from where the test configuration file(s) will be copied: Favorites, Others, or a removable drive (USB media for example) if present.
  • Page 569 Test Control Save/Load Button To delete a test configuration: 1. Select the media from where the file(s) will be deleted: Favorites, Others, or a removable drive (USB media for example) if present. Favorites lists configuration files from: Documents\810-880-NetBlazer\Configuration\Favorites. Others lists configuration files from: Documents\810-880-NetBlazer\Configuration.
  • Page 570 Test Control Start/Stop|TX Button Start/Stop|TX Button The Start/Stop|TX button allows to manually start or stop any test as well as to enable traffic generation (Traffic Gen & Mon). To start the test: Tap the Start button to start the test. Start is available when the test is not running.
  • Page 571 12 Power Failure Recovery The automatic power failure recovery is used to select, configure, and restart the test that was running before the power failure; a test that was not running will be selected and configured but not started. To provide this level of protection, the configuration of the current test is automatically saved;...
  • Page 572 Power Failure Recovery Enabling Power Failure Recovery Enabling Power Failure Recovery To enable the automatic power failure recovery: 1. Enable launching the application when starting the FTB-1 (Refer to the FTB-1 user guide for more information): From Mini ToolBox, tap on the System Settings button, the Startup Applications button, and select the NetBlazer’s check box.
  • Page 573 Power Failure Recovery When Using the Test Timer When Using the Test Timer Refer to Timer on page 279 for more information on test timer. The test that was running will be re-created and started after a power failure if conditions described above are met in addition with the following test time conditions: The start time has not expired during the power failure.
  • Page 575 13 Suspend and Resume Suspend and Resume allow respectively the FTB-1 and its running applications to stop (Suspend) and to be quickly re-initialized (Resume) when the unit is turned back on. Suspend Mode To enter the suspend mode, refer to the FTB-1 user guide. In Suspend Mode, the NetBlazer module is directly turned off and its configuration and injection information are kept.
  • Page 576 Suspend and Resume Resume Operation Resume Operation To enter the resume operation, turn on the FTB-1 by pressing the power button. During the resume operation, the module is re-initialized. Note: In the event a manual shutdown of the FTB-1 occurs, while the resume operation is in-progress, the resume operation is terminated and all the test configuration information is lost.
  • Page 577 14 Maintenance To help ensure long, trouble-free operation: Always inspect fiber-optic connectors before using them and clean  them if necessary. Keep the unit free of dust.  Clean the unit casing and front panel with a cloth slightly dampened ...
  • Page 578 Maintenance Cleaning LC Connectors Cleaning LC Connectors Under normal circumstances the cleaning of the LC connector is not required. However if the connector shows signs of debris or contamination, cleaning may be required. To clean a LC/SC/MPO-24 connector 1. Use a clean dry air (CDA) or a air gun to blow out the dust or contamination.
  • Page 579 Under normal use, the recommended interval for your FTB-700G/800 Series is: 2 years. For newly delivered units, EXFO has determined that the storage of this product for up to six months between calibration and shipment does not affect its performance (EXFO Policy PL-03).
  • Page 580 (2 years) To ensure that your unit conforms to the published specifications, calibration may be carried out at an EXFO service center or, depending on the product, at one of EXFO’s certified service centers. Calibrations at EXFO are performed using standards traceable to national metrology institutes.
  • Page 581 15 Troubleshooting Solving Common Problems Before calling EXFO’s technical support, please read the following common problems that can occur and their respective solution. Problem Possible Cause Solution Optical Laser LED is off and the The Laser On option is disabled.
  • Page 582 Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 8:00 a.m. to 7:00 p.m.
  • Page 583 16 Warranty General Information EXFO Inc. (EXFO) warrants this equipment against defects in material and workmanship for a period of one year from the date of original shipment. EXFO also warrants that this equipment will meet applicable specifications under normal use.
  • Page 584 Liability Liability EXFO shall not be liable for damages resulting from the use of the product, nor shall be responsible for any failure in the performance of other items to which the product is connected or the operation of any system of which the product may be a part.
  • Page 585 5. Return the equipment, prepaid, to the address given to you by support personnel. Be sure to write the RMA number on the shipping slip. EXFO will refuse and return any package that does not bear an RMA number.
  • Page 586 Warranty EXFO Service Centers Worldwide EXFO Service Centers Worldwide If your product requires servicing, contact your nearest authorized service center. EXFO Headquarters Service Center 400 Godin Avenue 1 866 683-0155 (USA and Canada) Quebec (Quebec) G1M 2K2 Tel.: 1 418 683-5498...
  • Page 587 The following technical specifications can change without notice. The information presented in this section is provided as a reference only. To obtain this product’s most recent technical specifications, visit the EXFO Web site at www.exfo.com. AUTION The operation and storage temperatures, as well as the altitude, humidity and IP rating of some modules may differ from those specified for your FTB-1.
  • Page 588 Specifications General Specifications General Specifications Size (H x W x D) - 860/860G/860GL/870: 130 mm x 252 mm x 36 mm (5 1/8 in x 9 15/16 in x 1 7/16 in) - 810/880/720G/720G+/ 130 mm x 252 mm x 56 mm 730G/730G+: (5 1/8 in x 9 15/16 in x 2 3/16 in) Weight (without transceiver)
  • Page 589 Glossary Acronym List 10B_ERR 10B_Error Help Alternating Current Associated Channel Header Activity Alarm Indication Signal Alternate Mark Inversion Automatic Protection Switching Asynchronous Transfer Mode AU-n Administrative Unit-n Attachment Unit Interface B8ZS Bipolar with 8 zero substitution Buffer to Buffer Background Block Error BBER Background Block Error Ratio Backward Defect Indication...
  • Page 590 Glossary Acronym List Bit-Interleaved Parity bit/s Bit per second Backward Signal Degrade Backward Signal Fail Base Station (Base Transceiver Station) Current C-DCI Client - Defect Clear Indication C-FDI Client - Forward Defect Indication C-LOS Client - Loss Of Signal C-RDI Client - Remote Defect Indication C&M Control &...
  • Page 591 Glossary Acronym List Class Of Service CPRI Common Public Radio Interface Cyclic Redundancy Check CRC-4 Cyclic Redundancy Check on 4 bits CRITIC Critical Client Signal Fail Comma Separated Value Code Violation Code Word Destination MAC Address DAPI Destination Access Point Identifier Distributed Antenna Systems Decibel - milliwatts Data Communications Channel...
  • Page 592 Header Error Check Excess Information Rate EoOTN Ethernet over OTN ERDI Enhanced RDI Errored Second ESMC Ethernet Synchronization Message Channel Extended Superframe Errored Second Ratio EXFO Universal Interfaces Extension Header Identifier Extension Header Mismatch EXT CLK External Clock FTB-700G/800 Series...
  • Page 593 Glossary Acronym List Frame Alignment Signal Fibre Channel Federal Communications Commission Frame Check Sequence Federal Communications Commission Frame Delay Forward Defect Indication Forward Error Correction FLOGI Fabric Login Frame Loss Ratio Frame Per Second Forward Signal Degrade Forward Signal Fail Generic Associated Channel Label Gigabit Ethernet Gbit/s...
  • Page 594 Glossary Acronym List Global IPv6 Address Graphical User Interface History HDB3 High Density Bipolar 3 Code HDLC High-level Data Link Control HDMI High Definition Multimedia Interface HDTV High Definition Television Hi-BER High-Bit Error Ratio Hi-BER1027B High-Bit Error Ratio 1027 Blocks High Order Path - Hertz Incoming Alignment Error...
  • Page 595 Glossary Acronym List IPv4 Internet Protocol version 4 IPv6 Internet Protocol version 6 IQ Data In-Phase and Quadrature modulation data (digital baseband signal) ISDN Integrated Services Digital Network In-Service Monitoring Justification Control Line CPRI Layer 1 CPRI Layer 2 Local Area Network Loopback Message Loopback Reply Loss of Code-Group Delineation...
  • Page 596 Glossary Acronym List Loss Of Alignment LOAML Loss of Alignment Marker Lock LOAML1027B Loss of Alignment Marker Lock 1027 Blocks LOBL Loss of Block Lock LOBL1027B Loss of Block Lock 1027 Blocks Loss Of Clock LOCS CSF Loss of Client Signal - Client Signal Fail LOCCS CSF Loss of Client Character Synchronization - Client Signal Fail Loss Of Frame...
  • Page 597 Glossary Acronym List Media Access Control MAID Maintenance Association Identification Mbit/s Megabit per second Maintenance Domain Media Dependant Interface (straight through Ethernet cable) MDIO Management Data Input/Output MDIX Media Dependant Interface Crossover (crossover Ethernet cable) Maintenance Entity ME Group MEG ID MEG Identification MEG End Point MFAS...
  • Page 598 Glossary Acronym List Network Element Network Interface Device Negative Justification Opportunity Nanometer Operation, Administration, and Maintenance OBSAI Open Base Station Architecture Initiative Optical Carrier- Open Connection Indication Outgoing Defect Indication Optical Data Unit Outgoing Error Indication Overhead Out-Of-Frame Out-Of-Multiframe Out-Of-Recovery Generic Mapping Procedure Out Of Synchronization Out-Of-Sequence OOSM...
  • Page 599 Glossary Acronym List Path Personal Computer Path Connectivity Defect Physical Coding Sublayer Payload Defect Payload Defect Indication Protocol Data Unit Provider Edge pFCS payload Frame Check Sequence Payload Frame Check Sequence Identifier Physical Layer Device Payload Length Indicator Payload Label Mismatch PLOGI Port Login Performance Monitoring...
  • Page 600 Glossary Acronym List Ptr. Incr. Pointer Increment Ptr. Decr. Pointer Decrement PTSF Packet Timing Signal Fail Pseudo-Wire Quality Level Quality of Service QSFP Quad Small Form Factor Pluggable R-LOF Remote - Loss Of Frame R-LOS Remote - Loss Of Signal Remote Alarm Indication Reverse Defect Indication Remote Defect Indication...
  • Page 601 Glossary Acronym List second Section S-OAM Service - OAM Source MAC Address SAPI Source Access Point Identifier Superblock Server Defect Synchronous Digital Hierarchy Service Access Point Defect Indication Service Disruption Time SDTV Standard Digital Television Severely Errored Framing Severely Errored Period SEQV Sequence Violation Severely Errored Second...
  • Page 602 Glossary Acronym List SONET Synchronous Transport Signal Service Provider Synchronous Payload Envelope Source Synchronization Status Messaging Stratum 1 Traceable Stratum 2 Traceable Stratum 3 Traceable ST3E Stratum 3E Traceable Synchronous Transport Module Synchronous Transport Signal Synchronized - Traceability Unknown SYMB Symbol Traffic Class Tandem Connection Monitoring...
  • Page 603 Glossary Acronym List Tributary Unit Group Transmit Unavailable Second end-User Equipment User Data Protocol UNCORR Uncorrectable UNEQ Unequipped User Payload Identifier User Payload Mismatch μs microsecond United States of America Unshielded Twisted Pairs Virtual Container VIOL Violation VLAN Virtual Local Area Network VoIP Voice over Internet Protocol Virtual Tributary...
  • Page 604 Glossary Acronym List Wide Area Network WAN Interface Sublayer World Wide Name FTB-700G/800 Series...
  • Page 605 Glossary 10G Ethernet Client 10G Ethernet Client The OTN Overclocked technology provides the capability to transparently transport 10G base-R Ethernet signals into OPU2 as specified in ITU-T. Two optical rates are provided: 11.0957 Gbits/s, +/- 100 ppm, designated OTU2e  11.0491 Gbits/s, +/- 100 ppm, designated OTU1e ...
  • Page 606 Glossary 10G Ethernet Client The following figure presents a typical network application. FTB-700G/800 Series...
  • Page 607 The following figure presents a typical test application. The Ethernet layer provides the equivalent functionality of the BERT Framed Layer 2 Test application supported on EXFO’s Datacom product family with the particularity that there is no Ethernet Physical port as such.
  • Page 608 Glossary 1588 PTP 1588 PTP The goal of the IEEE 1588 Precision Time Protocol (PTP) is to provide Network Synchronization using a packet based distribution mechanism. Depending on the system application the Network Synchronization may require phase and frequency synchronization. 1588 PTP has the capability to deliver both by allowing a Client clock to track a Master clock in phase (time of day) and in frequency.
  • Page 609 Glossary 1588 PTP Peer Delay mechanism uses message Pdelay Request, Pdelay  Response, and if required Pdelay Response Follow Up. This mechanism is restricted to topologies where each peer-to-peer port communicates PTP messages with, at most, one other such port. Peer Delay is not supported by the Telecom Profile.
  • Page 610 Glossary 1588 PTP The 1588 PTP supports the following Master/Client communication; however Unicast is used for the Telocom Profile. Multicast: A Master clock sends its Sync/Follow Up and Delay  Response in a multicast mode. A Client can collect information from many Master clocks and select the Master clock that is best suited for its application.
  • Page 611 Glossary 1588 PTP If the Master Clock has sufficient capacity to handle the Client Clock request, it responds with a signaling message containing a GRANT UNICAST TRANSMISSION TLV. The REQUEST UNICAST TRANSMISSION TLV contains several parameters: messageType is the type of service being requested: Announce, ...
  • Page 612 Glossary 1588 PTP The following diagram shows the sequence of message exchange between a Client Clock and a Master Clock. First, the Client request Unicast Announce message service. When this is granted and the first Announce message is received, the Client can check the QL value conveyed in the clockClass field of the message.
  • Page 613 Glossary CPRI CPRI Overview Traditional mobile installations are bulky (use thick coaxial cables) and require a lot of power to operate (there is a huge power loss in the coaxial cabling which often requires the use of Tower Mounted Amplifiers) as outlined in the following figure.
  • Page 614 Glossary CPRI This protocol called Common Public Radio Interface (CPRI) separates a traditional radio base station configuration into two separate elements: Radio Equipment Control (REC) and the Radio Equipment (RE). The REC processes the baseband radio digital information and performs the control of the Radio Equipment.
  • Page 615 Glossary CPRI Functional Description As mentioned earlier, CPRI remotely locates the RE from the REC. This means that the RE must be controlled, managed and synchronized from the REC in addition to transporting the User information (Voice and user application data) and all that on the same digital link. As such, CPRI is composed of 3 communication flows multiplexed into a single serial signal transmitted in the same optical fiber as illustrated in the following figure.
  • Page 616 Glossary CPRI CPRI Model The CPRI Model revolves around the 3 communication flows described above. CPRI defines only the Layer 1 and Layer 2 associated to these communication flows as outlined in the following figure. The User Data Plane contains mostly voice/data traffic in the form of IQ Data samples.
  • Page 617 Glossary CPRI Physical Interface CPRI offers 8 options in terms of interface rates. Rates below 10G uses 8B/10B line coding as per CPRI V6.0 while rates above 10G use 64B/66B coding. Depending on the rates used, scrambling is optional. Depending on the CPRI signal structure (Framed or Unframed) the scrambling is either manually configured or negotiated.
  • Page 618 Glossary Ethernet Cables Ethernet Cables Minimum Category 3 cable is required for 10Base-T connection while Category 5 cable is required for 100Base-TX and 1000Base-T connections. Maximum cable length (between two nodes) for 10Base-T, 100Base-TX, or 1000Base-T connection is 328 feet (100 meters). Straight Through Cable (10/100 Mbit/s) ...
  • Page 619 Glossary Ethernet Cables Straight Through Cable (1000 Mbit/s)  Crossover Cable (1000 Mbit/s)  NetBlazer...
  • Page 620 Glossary G.709 Optical Transport Network (OTN) G.709 Optical Transport Network (OTN) Overview The optical transport network (OTN) combines the benefits of SONET/SDH technology with the bandwidth expansion capabilities offered by dense wavelength-division multiplexing (DWDM) technology. The OTN consists of the following layers: Optical Transport Section (OTS) ...
  • Page 621 Glossary G.709 Optical Transport Network (OTN) Each of these layers and their functions are distributed along the network and activated when they reach their termination points, which are illustrated in the following figure. OTN Layer Termination Points The termination of the OTS, OMS and OCh layers is performed at the optical level of the OTN.
  • Page 622 Glossary G.709 Optical Transport Network (OTN) The OTU, ODU (including the ODU tandem connection) and OPU layers can all be analyzed and monitored. As per ITU G.709, current test solutions offer these possibilities using the following line rates: OTU1 (255/238 x 2.488 320 Gbit/s ≈ 2.666057143 Gbit/s) also referred to ...
  • Page 623 Glossary G.709 Optical Transport Network (OTN) In order to map client signals via ITU G.709, they are encapsulated using the structure illustrated in the following figure. Basic OTN Transport Structure NetBlazer...
  • Page 624 Glossary G.709 Optical Transport Network (OTN) As depicted above, to create an OTU frame, a client signal rate is first adapted at the OPU layer. The adaptation consists of adjusting the client signal rate to the OPU rate. Its overhead contains information to support the adaptation of the client signal.
  • Page 625 Glossary G.709 Optical Transport Network (OTN) OTU Frame Structure and Overhead As shown in the figure below, the OTU frame is broken down into the following components: Framing  OTL, OTU, ODU, OPU overhead  OTU FEC  OTU Frame Description NetBlazer...
  • Page 626 Glossary G.709 Optical Transport Network (OTN) Framing  The OTU framing is divided into two portions: FAS and MFAS. The frame alignment signal (FAS) uses the first six bytes and, similarly to SONET/SDH, it is used to provide framing for the entire signal. In order to provide enough 1/0 transitions for synchronization, scrambling is used over the entire OTU frame, except for the FAS bytes.
  • Page 627 Glossary G.709 Optical Transport Network (OTN) Optical Transport Unit (OTU)  The OTU overhead is comprised of the SM, GCC0 and RES bytes. The section monitoring (SM) bytes are used for the trail trace identifier (TTI), parity (BIP-8) and the backward error indicator (BEI), or backward incoming alignment error (BIAE), backward defect indicator (BDI), and incoming alignment error (IAE).
  • Page 628 Glossary G.709 Optical Transport Network (OTN) Optical Data Unit (ODU)  The ODU overhead is broken into several fields: RES, PM, TCMi, TCM ACT, FTFL, EXP , GCC1/GCC2 and APS/PCC. The reserved (RES) bytes are undefined and are set aside for future applications.
  • Page 629 Glossary G.709 Optical Transport Network (OTN) Optical Payload Unit (OPU)  The primary overhead field associated to the OPU is the Payload Structure Identifier (PSI). This is a 256 bytes multi-frame where its first byte is defined as the Payload Type (PT). The remaining 255 bytes are currently reserved.
  • Page 630 Glossary G.709 Optical Transport Network (OTN) Tandem Connection Monitoring (TCM) TCM enables the user and its signal carriers to monitor the quality of the traffic that is transported between segments or connections in the network. SONET/SDH allowed a single level of TCM to be configured, while ITU G.709 allows six levels of tandem connection monitoring to be configured.
  • Page 631 Glossary G.709 Optical Transport Network (OTN) Each of the six TCMi fields in the ODU overhead is assigned to a monitored connection. There can be from zero to six connections that can be configured for each connection. In the figure Tandem Connection Monitoring on page 618, there are three different connections that are actually monitored.
  • Page 632 Glossary G.709 Optical Transport Network (OTN) The FEC uses a Reed-Solomon RS (255/239) coding technique. This means that 239 bytes are required to compute a 16-byte parity check. The FEC can correct up to eight (bytes) errors per sub-row (codeword) or detect up to 16 byte errors without correcting any.
  • Page 633 Glossary G.709 Optical Transport Network (OTN) ODU Multiplexing The ODU multiplexer is a function that allows the multiplexing of ODU tributary signals into higher OTN signal rates. The G.709 standard supports 2 types of ODU multiplexer which can be classified as follows: Legacy architecture is based on multi-stage architecture to bring an ...
  • Page 634 Glossary G.709 Optical Transport Network (OTN) The main attributes of the ODU multiplexer functionality are as follows: The Asynchronous Mapping Procedure (AMP) is used for multiplexing  the tributary signals; this method uses a modified Justification Control mechanism which has 2 positive Justification Control bytes and one negative Justification Control byte.
  • Page 635 Glossary G.709 Optical Transport Network (OTN) ODUflex ODUflex provides the capability to carry client payload of variable size with a container size of 1.244 Gbit/s granularity. An ODUflex (L) signal can be transported once multiplexed in an ODUk (H) signal, the multiplexer in this case handles tributary slots of 1.244 Gbit/s and has a Payload Type 21.
  • Page 636 Glossary G.709 Optical Transport Network (OTN) OTN Signal Rates Rate Signal 2.666057143 Gbit/s OTU1 10.709225316 Gbit/s OTU2 11.0491 Gbit/s OTU1e 11.0957 Gbit/s OTU2e 11.2701 Gbit/s OTU1f 11.3176 Gbit/s OTU2f FTB-700G/800 Series...
  • Page 637 Glossary MPLS Labels MPLS Labels The MPLS labels are listed in the following table. Label Description IPv4 explicit null Router alert IPv6 explicit null Implicit null OAM alert 4 to 13, and 15 Unassigned 16 to 1048575 Label ID NetBlazer...
  • Page 638 Glossary SONET/DSn/SDH/PDH SONET/DSn/SDH/PDH SONET/DSn/SDH/PDH Nomenclature The GUI will used the International or European nomenclature based on the SONET and SDH software options installed on the FTB-700G/800 Series. Software option Nomenclature SONET only International SDH only European SONET and SDH International Signal Rates SDH/PDH Rate...
  • Page 639 Glossary SONET/DSn/SDH/PDH SONET/SDH High and Low Order Path Nomenclature Path Type SONET High Order AU-3 STS-1 AU-4 STS-3c AU-4-4c STS-12c AU-4-16c STS-48c AU-4-64c STS-192c Low Order TUG-3 TUG-2 TU-11 VT1.5 TU-12 TU-3 NetBlazer...
  • Page 640 Glossary SONET/DSn/SDH/PDH SONET/SDH Alarms and Errors Nomenclature Layer SONET Physical BPV/CV Section / Regenerator Section LOF-S RS-LOF RS-OOF TIM-S RS-TIM FAS-S RS-FAS Line / Multiplex Section AIS-L MS-AIS RDI-L MS-RDI REI-L MS-REI High Order Path AIS-P AU-AIS LOP-P AU-LOP H4-LOM H4-LOM PDI-P RDI-P...
  • Page 641 Glossary SONET/DSn/SDH/PDH Layer SONET Low Order Path AIS-V TU-AIS LOP-V TU-LOP RDI-V LP-RDI ERDI-VCD ERDI-CD ERDI-VPD ERDI-PD ERDI-VSD ERDI-SD RFI-V LP-RFI UNEQ-V LP-UNEQ TIM-V LP-TIM PLM-V LP-PLM BIP-2 BIP-2 REI-V LP-REI NetBlazer...
  • Page 642 Glossary SONET/DSn/SDH/PDH SONET Numbering Convention The FTB-700G/800 Series supports the Timeslot (default) and hierarchical two-level numbering conventions as per GR-253. Hierarchical Notation: The FTB-700G/800 Series supports numbering SONET high order path STS-1s and STS-3c using the two-level “STS-3#,STS-1#”convention in an OC-N.
  • Page 643 Glossary SONET/DSn/SDH/PDH The FTB-700G/800 Series supports numbering SONET low order path using the two-level “VTGroup#,VT#” convention for numbering VTs within an STS-1. For example: VT1.5 [1,3], VT2 [3,2], VT6 [6,1]. The FTB-700G/800 Series supports numbering SONET high order path STS-nc within an OC-N using the two-level “STS-3#,STS-1#”. For example: STS-12c [5,1].
  • Page 644 Glossary SONET/DSn/SDH/PDH [D,C,B,A] for STM-64  [C,B,A] for STM-16  [B,A] for STM-4  [0] for AU-4 in STM-1  [A] for AU-3 in STM-1  [A] for the AU-3 in STM-0e, A=0.  FTB-700G/800 Series...
  • Page 645 Glossary SONET/DSn/SDH/PDH The low order paths are defined using a 2 or 3 level convention K,L,M depending on the rate of the AU-4 or AU-3 used to multiplex the low order signals. K: the TUG-3 are numbered 1 to 3 ...
  • Page 646 Glossary SONET/DSn/SDH/PDH The GUI Grid indicates the TUG-2 [x] and TUG-3 [x] values. FTB-700G/800 Series...
  • Page 647 Glossary SONET/DSn/SDH/PDH DSn/PDH Numbering Convention The DS1 numbering in DS3 shall be numbered with respect to the DS2 muxing [DS2,DS1]. For example a DS3 has 7 DS2 and a DS2 has 4 DS1, so an example would be for a DS1 number [3,2]. The DS3 shall have a single number to represent its position.
  • Page 648 Glossary SyncE SyncE Synchronous Ethernet or SyncE enables a traceable network timing reference frequency to be distributed node-by-node across a chain of Ethernet devices (SyncE compliant devices only). The network timing reference is typically hierarchically traceable to a Primary Reference Source/Clock (PRS/PRC) in a unidirectional flow.
  • Page 649 Glossary SyncE In order for an Ethernet interface to be considered Synchronous Ethernet compliant it needs to be upgraded as shown in the following diagram. In addition to supporting the ESMC channel, this upgrade consists in allowing the recovered clock from the CDR to be propagated to a function called the Ethernet Equipment Clock (EEC).
  • Page 650 Glossary Unicast/Multicast Addresses for Ethernet OAM Unicast/Multicast Addresses for Ethernet OAM Unicast or multicast address can be used for most of S-OAM functions. Unicast addresses a unique destination address of the MEP.  Multicast Class 1 addresses all MEPs in the MEG. The address value is ...
  • Page 651 Glossary VLAN ID and Priority VLAN ID and Priority Special VID values (IEEE Std 802.1Q-1998) Description The null VLAN ID. Indicates that the tag header contains only user priority information; no VLAN identifier is present in the frame. This VID value must not be configured as a PVID, configured in any Filtering Database entry, or used in any Management operation.
  • Page 653 Index Index ALERTING ..........354 Alignment..........307 1.5M/2M ............. 24 All.............. 351 10G ............. 21 Amount ..........347, 468 155M-2.5G..........20 Announce ..........113 1588 PTP ..........67, 112 ANSI TI-403 ..........464 2M-155M ............ 24 Answer Mode ..........164 2M-52M ............
  • Page 654 Index Buffer Usage..........478 Burst..........270, 384 B1..........331, 344, 488 Burst Count ..........271 B2..........331, 344, 490 Burst Duty Cycle ........271 B3..........334, 344, 494 Burst Frames..........135 Background..........248 Burst Max Rate .......... 237 Background Traffic ........259 Burst Sequence..........
  • Page 655 Index Cause Definition ........356 Configuration/Performance Results ... 411 Cause Value..........356 CONNECT........... 354 caution Connect ........112, 204, 532 of personal hazard........2 CONNECT ACK ........... 354 of product hazard........2 Connected ......... 137, 206, 217 CBS............ 139, 239 Connection ..........
  • Page 656 Index D4 through D12 ........490 Disconnected......137, 206, 217 DAPI ..........282, 443 Discover Remote......137, 206, 217 DAPI ODU-TIM........283, 444 Discovered Topology ......... 144 DAPI OTU-TIM ........283, 444 Displayed Results ....... 351, 425 DAPI TCM-TIM ........... 283 Disruption Count ........
  • Page 657 Index Efficiency........... 439 Ethernet Frame .......... 134 EFS ............ 369, 418 Ethernet OAM ........... 107 EMIX ..........194, 236 Ethernet Traffic.......... 440 EMIX Frame Sizes ........236 EtherSAM ............ 55 Emulation Mode........110 EtherType ..........175 Enable ........233, 266, 471 Event ..........
  • Page 658 Index FD ............. 197, 412 Frame Loss Rate......... 441 FEAC............467 Frame Loss Ratio........434 FEBE ............301 Frame Loss Threshold ........ 222 FEC ............ 256, 619 Frame Number .......... 479 FEC-CORR ..........322 Frame Rate ....364, 410, 446, 474, 538 FEC-CORR-BIT ..........
  • Page 659 Index Generated QL ........275, 376 HPTC-LTC ........... 336 Global HPTC-ODI........... 336 EtherSAM ..........137 HPTC-OEI ........... 338 RFC 2544 ..........206 HPTC-RDI ........... 337 Services..........230 HPTC-REI............ 338 Streams ..........264 HPTC-TIM........... 337, 445 Global alarm..........32 HPTC-UNEQ ........259, 336 Global indicator...........
  • Page 660 Index Invalid LMR ..........382 K4.............. 500 Invalid LTR ..........522 Keyboard usage........... 37 Invalid Payload .......... 380 Invalid SLR..........383 Invalid TST ..........380 L1 Reset ............. 395 Invert......... 119, 129, 167 L2 .............. 191 IP........178, 205, 262, 538 L2 Only ............
  • Page 661 Index LED.............. 26 LOMF............302 Legend TX/RX ..........486 Loop Down..........531 Length..........402, 404 Loop UP............. 531 Length Threshold ........124 Loopback... 226, 252, 262, 379, 469, 539 Length Unit ..........123 Loopback Commands ......468, 470 Line ............330 Loopback Mode.........
  • Page 662 Index MEG Level.......... 224, 347 MEP ID............224 M0 ............ 491, 494 Message Rate ..........113 M1 ............ 491, 494 Message Type ..........352 MA Name ..........223 Metrics ............386 MAC ............205 MFAS..........323, 481 MAC Address......185, 223, 224 Mid-Trigger ..........
  • Page 663 Index Multicast ........... 446 OAM Mode........ 170, 220, 358 Multipexer Action........358 OAM Quick Ping ........ 175, 224 Multiple Connections ........ 217 OAM Type..........107 OAM Version ..........358 OCI ............315 ODU............616 N1 ............. 497 ODU Multiplexing ........621 N2 .............
  • Page 664 Index OTU2............256 PD.............. 197 OTU2e ............256 PDI-P............333 OTU2f............256 Peer MEP Parameters......... 224 OTUx ............320 Per Direction Configuration ....... 140 OUI............ 176, 358 Percentage Lost ......... 505 Out-of-Seq..........325 Performance ..........417 Out-of-Sequence ..272, 273, 387, 388, 442 Performance Criteria......
  • Page 665 Index Primary Port / Secondary Port....104 Quantity ............ 207 Priority ..160, 176, 190, 224, 227, 347, 460, Quick Ping ......... 112, 181, 277 462, 521 PRM........... 462, 466 PRM Bit Events ........464, 465 RAI..... 299, 300, 302, 303, 304, 305 product RAI MF............
  • Page 666 Index Remote............217 Revision ............. 358 Remote block ..........93 RFC 2544 ............. 56 Remote Fault ........306, 309 Global ..........206 Remote IP Address ........277 RFC 6349 ..........57, 217 Remote Loopback ........359 RFC 6349 Results ........411 Remote Modules Discovery .......
  • Page 667 SFP+............240 SATUS ENQUIRY ........355 Shaping ............. 270 Save/Load button ........552 Shaping button ......... 271 Save/Load tab..........552 shipping to EXFO........573 Scrambler ..........256 Si0 ............. 524, 525 Scrambling ..........151 Si1 ............. 524, 525 SDI ............299 Signal ............
  • Page 668 Index Smart Loopback ........60, 262 Laser ............29 S-OAM ...... 177, 220, 326, 358, 379 LINK ............28 Traffic ..........451 Loopback ..........29 S-OAM Link Trace ........521 Loopback mode ........29 S-OAM Responder ..... 221, 263, 539 OH ............
  • Page 669 Index ISDN PRI..........415 TCM3............484 MPLS-TP OAM......421, 430 TCM4............483 NI/CSU Emulation ........ 423 TCM5............483 RFC 2544 ..........424 TCM6............483 RFC 6349 ..........427 TC-ODI-P ............ 336 S-OAM ......... 421, 430 TC-ODI-V............ 336 SyncE ........... 435 TC-OEI-P ............
  • Page 670 Index Overview..........92 TOS/DS ..........182, 218 Packet Sync Test Applications ....94 TOS/DS Config ........... 182 Transport Test Applications ....93 Total Burst Test Time ......... 136 Wireless Test Applications...... 94 Total Calls Count ........419 Test Control..........33 Total Frame ..........
  • Page 671 Index DAPI TCM-TIM ........283 UDP ........... 184, 262 PM ............281 UDP Checksum .......... 313 SAPI ODU-TIM........283 UDP/TCP............. 538 SAPI OTU-TIM ........283 UI............... 353 SAPI TCM-TIM ........283 Unassigned........462, 469 SM ............281 Undersize........... 308, 310 TCM .............
  • Page 672 Index Video Codec ........234, 267 View File After Generation ......479 Y.1731............220 VLAN ..........176, 264 VLAN (ID/Priority) ........231 VLAN ID........160, 176, 190 Z0 .............. 488 VLAN ID/Priority......... 160 Z1 .............. 490 VLAN Priority ..........639 Z2 ..............
  • Page 675 Tel.: 1 978 367-5600 · Fax: 1 978 367-5700 EXFO FINLAND Elektroniikkatie 2 FI-90590 Oulu, FINLAND Tel.: +358 (0) 403 010 300 · Fax: +358 (0) 8 564 5203 TOLL-FREE (USA and Canada) 1 800 663-3936 © 2018 EXFO Inc. All rights reserved. Printed in Canada (2018-09) ...

This manual is also suitable for:

Ftb-810NetblazerFtb-700g seriesFtb-810gFtb-860Ftb-720g ... Show all

Table of Contents
