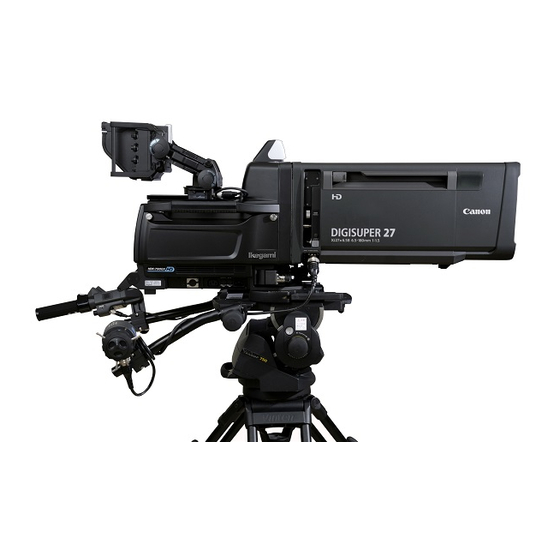

HDK-790GX
HIGH DEFINITION CAM ERA SYSTEM
OPERATION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Ikegami HDK-790GX

Summary of Contents for Ikegami HDK-790GX

  • Page 1 HDK-790GX HIGH DEFINITION CAM ERA SYSTEM OPERATION MANUAL...
  • Page 3 OUTLINE NAME and FUNCTION HDK-790GX INSTALLATION and CONNECTION HIGH DEFINITION CAMERA SYSTEM OPERATION MANUAL OPERATION CAMERA SETTINGS and ADJUSTMENT TROUBLE SHOOTING and MAINTENANCE SPECIFICATIONS CHANGING INFORMATION 1403 Edition (U)
  • Page 4 Copyright © 2014 Ikegami Tsushinki Co., Ltd. Copyright © 2014 Ikegami Tsushinki Co., Ltd. We reserve the copyright on the software we create. We reserve the copyright on the software we create. No part of this publication may be modi ed or reproduced in any form, or by any means, without prior written permission from No part of this publication may be modi ed or reproduced in any form, or by any means, without prior written permission from Ikegami Tsushinki Co., Ltd.

  • Page 5: Products Conforming To Rohs Directive

    80% and less than 85% by weight 14. Lead in solders to complete a viable electrical connection between semiconductor die and carrier within integrated circuit Flip Chip packages 15. Decabrominated diphenyl ether (Deca-BDE) in polymeric applications HDK-790GX 1403 VER1 (U)

  • Page 6: Maintenance Of Products Conforming To Rohs Directive

    - If the customer mixed the lead-solder with the main body wiring or the circuit board, it becomes guarantee off the subject. Ikegami doesn't guarantee to do the repair work. Because the solder polluted with lead cannot be removed. 3. Parts Be sure to use parts conforming to RoHS directive.

  • Page 7: Information To The User

    E4-E5, EN55103-2 E4-E5 (for EMC), EN60950-1 (for LVD). For European customer. 3. Rated current value of the camera when CCU-970 are used for the system operation is shown below. Rated current value : · CCU-970 AC220V (50-60Hz) 2.0A HDK-790GX 1403 VER1 (U)

  • Page 8: Safety Precautions

    Indicates that mishandling may cause an electric shock. Indicates that mishandling may cause a re. Indicates that mishandling may cause injury. The following symbol is used to indicate other precautions to prevent damage or hazard from occurring: Indicates prohibited action. HDK-790GX 1403 VER1 (U)
  • Page 9 - In direct sunlight for a long time, or near a heater - High humidity or dusty - Exposed to water or other liquid - Strong vibration or shock - Strong magnetic eld or radio waves - lightning - In rain without the rain cover HDK-790GX 1403 VER1 (U)
  • Page 10 Wrong usage of batteries may cause liquid leak, explosion, and heat, and at worst injury or re. When changing or discarding a battery, please contact Ikegami’s sales and service centers. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
  • Page 11 Forcible winding can break ber leads within the cable. Radius Approx. 60mm Fiber Optic Cable - When connecting a ber optic cable to a ber connector, anchor the ber optic cable with a cable clamp. CAMERA CABLE Clamp Optical Fiber Cable HDK-790GX 1403 VER1 (U)
  • Page 12 This product includes parts that wear out and have a limited life even in proper use or storage. Therefore, regular maintenance is recommended to extend the life and safe use of this product for a long time. Please contact Ikegami’s sales and service centers for the regular maintenance and repair of our products.

  • Page 13: How To Read The Operation Manual

    HOW TO READ THE OPERATION MANUAL HOW TO READ THE OPERATION MANUAL HOW TO READ THE OPERATION MANUAL This page explains general notes on reading the HDK-790GX Operation Manual, and the symbols and notations used in the manual. - - - Notes on the Manual - This manual is written for readers with a basic knowledge of handling broadcast cameras.
  • Page 14 Structure of Operation Manual This manual is intended to help you operate the HDK-790GX safely and smoothly. This manual consists of seven chapters. We recommend you read them in sequence from Chapter 1 to Chapter 7 so that you can carry out all the work smoothly through the installation to the operation of the camera equipment.

  • Page 15: Table Of Contents

    Make sure the Power Switch is OFF ..29 Connection Example for Each Operating System ....29 HDK-790GX 1403 VER1 (U)
  • Page 16 Replacing the fuse ....97 Chapter 7. SPECIFICATIONS HDK-790GX Specifi cations ... . 101 External Dimensions Diagram ..103 External Connections .

  • Page 17: Chapter 1. Outline

    OUTLINE OUTLINE...
  • Page 18 HDK-790GX 1403 VER1 (U)

  • Page 19: Features Of This Product

    Super KNEE Includes a super KNEE function which produces the KNEE process with less saturation loss, and without changing the hue of the highlighted parts. Produces a more natural highlight appearance, rather than washing out the color. HDK-790GX 1403 VER1 (U)

  • Page 20: Pursuit For Superb Operation And Ease Of Use

    This enables to initialize the camera status quickly even though the Product]” for the ENGINEER settings are changed due to causes such as wrong operation of the menu. SET FILE and FACTORY SET FILE. HDK-790GX 1403 VER1 (U)

  • Page 21: Operating Systems

    Used when controlling multiple CCU-8 PM, WFM, COMM cameras. With using a MCP, one CSU can control up to 8 cameras, and contains terminals through which video is output on the monitor from the selected camera. HDK-790GX 1403 VER1 (U)
  • Page 22 Term: CCU-2 BSH (Base Station Hub) It is designed as the HUB unit of which employs command MCP-200 converter for Ikegami's non- network capable camea head/ BS/CCU to use under network control system. HDK-790GX 1403 VER1 (U)
  • Page 23 CP cable ARC1 ARC1 ARC2 ARC2 ARC3 75Ω CPH-200 termination BSH-200 CCU-2 CCU-3 CP cable Coaxial cable OCP-200 75Ω termination ARC1 CP cable ARC2 CCU-4 ARC1 Coaxial cable ARC2 CPH-200 ARC3 75Ω termination CCU-5 BSH-200 CCU-6 HDK-790GX 1403 VER1 (U)
  • Page 24 1.2 Operating Systems HDK-790GX 1403 VER1 (U)
  • Page 25 OUTLINE...

  • Page 27: Chapter 2. Name And Function

    NAME and FUNCTION NAME and FUNCTION...
  • Page 28 HDK-790GX 1403 VER1 (U)

  • Page 29: Camera And Viewfi Nder

    Connect with the connector on the lens side when installing the lens. External connection ⑦ Lens mount connector]” for pin functions of You can use various 2/3-inch broadcast lenses. The BTA mount system is equipped as a lens connector. standard lens mount. HDK-790GX 1403 VER1 (U)

  • Page 30: Camera Rear View

    When all return signals are selected simultaneously, the signals are output in the following sequence: RET-1 > RET-2 > RET-3. ⑤ CALL button A button used to call VE (Video Engineer). When this button is pressed, the RED TALLY indicator on the CCU and control panel lights up and buzzer sounds. HDK-790GX 1403 VER1 (U)
  • Page 31 INCOM : A knob used to adjust the volume of intercom receiver for INCOM-1. PGM1 : A knob used to adjust the volume of PGM1 for the intercom system for INCOM-1. PGM2 : A knob used to adjust the volume of PGM2 for the intercom system for INCOM-1. HDK-790GX 1403 VER1 (U)

  • Page 32: Rear View Camera Control Panel

    A switch used to select the lter position. ND (Neutral Density) FILTER switch A switch used to select the ND lter from the camera side. 1 : 100% 2 : 25% 3 : 6.2% 4 : 1.6% 5 : CAP HDK-790GX 1403 VER1 (U)
  • Page 33 SLOW : Turns on the fan at the low speed. If a sense of serenity is required upon the operation, press down the switch for 2 seconds. The indicator lights up, and then it returns to the AUTO mode after 5 minutes. HDK-790GX 1403 VER1 (U)

  • Page 34: Camera Right View

    You can select the MIC ON/OFF, and LENS EXT-1/EXT-2 for RET-1, RET-2, and INCOM1/INCOM2. ⑤ Q-TV/GL IN and MON OUT selector switch A switch used to select the I/O signals for the Q-TV/GL IN and MON OUT connectors. HDK-790GX 1403 VER1 (U)
  • Page 35 : Does not supply power to the microphone. If the dynamic microphone or microphone includes a built-in power supply and does not require power supply, use it in this position. +48V : Supplies +48 V phantom power to the microphone. HDK-790GX 1403 VER1 (U)
  • Page 36 Turn off the CCU and then turn off the STBY power for the CCU operation. Remove the AC IN connector and then turn off the STBY power for the self-contained operation. ② HEAD BRAKER A breaker for the module power supply inside the camera. HDK-790GX 1403 VER1 (U)

  • Page 37: Camera Left View

    A fuse for the general AC output power supply (voltage rating: 100/117V-2A, 220/240V-1A). ⑤ UTILITY connector A connector for the general AC power supply. The output voltage is set to the voltage you are using at the time of shipment. Supported voltage: 100/117/220/240V HDK-790GX 1403 VER1 (U)
  • Page 38 A breaker for DC +12V power that is supplied to the lens. ② AUX BRAKER A breaker for DC +12V power that is supplied to the LCD view nder, SCRIPT lamp, I/O connector, REMOTE connector, etc. HDK-790GX 1403 VER1 (U)

  • Page 39: Displays In The Viewfi Nder

    - VF IND control : A knob used to adjust the contrast level of a cross, box cursor, and characters, etc. Turning it to the left makes it darker, and turning it to the right makes it brighter. HDK-790GX 1403 VER1 (U)

  • Page 40: Side Mask Function

    ⑭ Shutter speed/focus indicator/Zoom indicator 2BⅡ Ａ x1.5 1／１００ ⑮ Digital Extender ⑬ AWB memory channel ⑧ OPT level ⑫ Operational priority for filter control ⑪ ND, ECC and EFF filter indication ⑦ SKIN DTL ON/OFF HDK-790GX 1403 VER1 (U)
  • Page 41 - - - Auto Setup Display ② Auto setup function ＡＢＢ Ｏ Ｋ ③ Execution result of auto setup ＢＬＫＳＥＴ ④ Adjustment item of auto setup - - - Return Video Channel Display ⑯ Return video input channel ＲＥＴ−１ HDK-790GX 1403 VER1 (U)
  • Page 42 “OPT OK” is displayed for 2 seconds. ⑨ BARS TITLE The bar title is displayed when the color bar is output. ⑩ Temperature warning This warning is displayed when the temperature of the inside of the camera is high. HDK-790GX 1403 VER1 (U)

  • Page 43: Installation And Connection

    INSTALLATION INSTALLATION and CONNECTION and CONNECTION...
  • Page 44 HDK-790GX 1403 VER1 (U)

  • Page 45: Preparation

    Connection Example for Each Operating System The HDK-790GX be used in various operating systems in studio and in eld as a system camera in combination with peripheral equipment such as the CCU. This section shows a connection example of each operating system. Please refer to these examples when you connect the camera, shooting equipment, and peripheral equipment.
  • Page 46 3.1 Preparation HDK-790GX 1403 VER1 (U)
  • Page 47 INSTALLATION and CONNECTION...

  • Page 49: Camera And Peripheral Installation And Connection

    Safety lock knob Turn the safety lock knob of the cam head in a Lock counterclockwise direction to lock. Make sure that the camera is securely fi xed to the tripod and nothing is rattling. HDK-790GX 1403 VER1 (U)
  • Page 50 72.5 The bottom of the camera Symbol Screw diameter Tripod ∼ A VINTEN or equivalent ∼ B 3 / 8-16 UNC ITE or equivalent ∼ C SHOTOKU TE-05/TE-12 or equivalent ∼ D SHOTOKU TE-02/TE-12 or equivalent HDK-790GX 1403 VER1 (U)

  • Page 51: Mounting And Removing The Lens

    This section explains how to remove a lens from the camera. Lock the tilt lock of the cam head on the tripod and fi x it securely so that the camera cannot move. Remove the lens in a reverse order of mounting procedure. HDK-790GX 1403 VER1 (U)

  • Page 52: Connecting The Microphone

    : For a microphone that requires +48V MIC-2 POWER switch phantom power supply Reference: Set the GAIN setting for the microphone ampli er by the menu operation. See “Chapter 5. Setting with menu functions” for the setting menu. HDK-790GX 1403 VER1 (U)

  • Page 53: Connecting The Headset

    INCOM MIC SEL INCOM MIC SEL PROD PROD BOTH BOTH PGM-1 PGM-2 PGM-1 PGM-2 ① Plug the headset CAUTION : Ensure that the volume connector is initially set at a minimum level. ② Turn ON INCOM connector HDK-790GX 1403 VER1 (U)

  • Page 54: Power Connection

    Connect the CCU-970 and the camera via a fi ber cable. This completes the procedure for connecting power from the CCU-970 to the camera. Proceed to the next step if you want to control the power ON/OFF from the OCP. HDK-790GX 1403 VER1 (U)
  • Page 55 Set the CAM POWER switch on the OCP to “ON”. CAM POWER switch Note: When the CAM POWER switch on the OCP is turned “ON/OFF”, only power supply to the camera is turned “ON/OFF”, and the CCU power is not turned “ON/OFF”. HDK-790GX 1403 VER1 (U)

  • Page 56: Monitor Connection

    ・MON OUT : HDTV (B/W) SD CARD RET SW SCRIPT REMOTE HD TRUNK QTV-2 MONI-SDI Q-TV/GL Q-TV/GL, MON OUT MONI SDI OUT connector connector Via 5CFB coaxial cable with a maximum length of 100m VIDEO INconnector SDI-capable HDTV color monitor HDK-790GX 1403 VER1 (U)

  • Page 57: Ccu Connection

    3.5 CCU Connection 3.5 CCU Connection This section explains how to connect the HDK-790GX to the CCU. CCU-970 is used here as an example. Two types of ber cables are available in different shapes. - Fiber cable (2-core single mode) : Diameter 9.2mm or 16mm, Maximum length 2000m (when CCU-970 is used)
  • Page 58 Remove the cable from the CCU-970 while pushing the unlocking ring of the CAMERA connector on the rear of CCU-970. If the connector tip is locked, the ber cable will not be removed. If it is locked, push the ber cable toward the CAMERA connector, and then remove as described above. HDK-790GX 1403 VER1 (U)

  • Page 59: Chapter 4. Operation

    OPERATION OPERATION...
  • Page 60 HDK-790GX 1403 VER1 (U)

  • Page 61: Operating Procedures

    4.1 Operating Procedures 4.1 Operating Procedures This chapter explains how to operate the HDK-790GX camera. ■  Initial Operation Check ―――――――――――――― When you use the camera for the first time after purchase, ensure that it works properly. ◆ 4.2 Switch Position Check ◆...

  • Page 62: Switch Position Check

    Supplies no power to the microphone. Applicable for a dynamic microphone or a microphone with built-in power supply which requires no power supply. P.+48V Supplies +48V Phantom power Reference: For details on the microphone, refer to the instructions accompanying the microphone to be used. HDK-790GX 1403 VER1 (U)

  • Page 63: Turning On Power

    : Lights when the ber cable is not connected or there is an “open” in the ber cable. SHORT (red) : Lights when a short circuit occurs in the ber cable due to a cause such as water. HDK-790GX 1403 VER1 (U)
  • Page 64 It is possible to use the OCP to control the camera power source. When the CAM POWER switch of OCP has been turned ON/OFF, only the camera power supply is turned ON/OFF. The CCU power supply is not turned ON/OFF. HDK-790GX 1403 VER1 (U)

  • Page 65: Viewfi Nder Adjustment

    Rotate the tilt break knob to the left and loosen the break. LOCK DRAG DRAG DRAG Adjust the tilt of the VF with the handle. Rotate the tilt break knob to the right and apply the break. Handle HDK-790GX 1403 VER1 (U)

  • Page 66: Adjusting The Height Of The Viewfi Nder

    Rotate the pan lock knob to the RELEASE side and loosen the break. Adjust the direction of the VF with the handle. Rotate the pan lock knob to the LOCK side and apply the break. Rear Front RELEASE RELEASE RELEASE handle LOCK LOCK LOCK Pan lock knob HDK-790GX 1403 VER1 (U)

  • Page 67: Output Signal Check

    LCD panel Note: When no color bar signal is not displayed on the SDTV signal while you use MCP-200 and press the “Y” button of the MONITOR SELECT buttons, refer to the operation manual for MCP-200. HDK-790GX 1403 VER1 (U)

  • Page 68: Test Pulse (Cal Signal) Check

    RANGE SENS WFM/PM /Mix HEAD CLS OPEN ｱ1 ｱ2 CABLE OPEN SHORT ALARM CALL PREVIEW "R", "G", "B", "Y", "SEQ" LCD panel External Chart Check Shoot an external chart and ensure that the image is normal. HDK-790GX 1403 VER1 (U)

  • Page 69: Auto Setup

    Auto setup can be activated from the camera, OCP, and MCP. See the table in the next page for which device can activate which auto setup function. Reference: For how to execute auto setup from the OCP/MCP, refer to the relevant operation manual. HDK-790GX 1403 VER1 (U)
  • Page 70 - EXT (external reference) of REF is the value set by the reference set function. - The item for G channel with a circle only works when it is set with a diascope (lens option). When you use the external chart, set G channel to 100% level by IRIS. HDK-790GX 1403 VER1 (U)

  • Page 71: Full Auto Setup And Level Auto Setup

    1. Press the SETUP button in the function switch part. 2. Press the AUTO SETUP button on the LCD. 3. Press the Full or Level button on the LCD. 4. Press the Start button on the LCD. HDK-790GX 1403 VER1 (U)

  • Page 72: Full Quick Auto Setup And Quick Auto Setup

    Make sure that the R and B GAIN control knob of OCP or MCP is in the center position before performing the auto white balance. If the control knob is not in the center position, the control range will be biased to one side. HDK-790GX 1403 VER1 (U)

  • Page 73: Auto Black Balance

    The setting that has been corrected up to that point A. BLACK SHADE will be cleared, and returns to the state it was before performing the auto black shading. BLK SET A. BLK SHADE BLACK SHADE A. BLK SET HDK-790GX 1403 VER1 (U)

  • Page 74: Preparation For Shooting In Particular Environment

    When shooting where the electromagnetic eld is excessively strong, such as in airports, military bases or transmitting stations, completely shield the camera by thoroughly covering it with aluminum foil. It is necessary to take the same measure for other devices. HDK-790GX 1403 VER1 (U)

  • Page 75: Chapter 5. Camera Settings And Adjustment

    CAMERA SETTINGS CAMERA SETTINGS and ADJUSTMENT and ADJUSTMENT...
  • Page 76 HDK-790GX 1403 VER1 (U)

  • Page 77: Settings Using Switches On The Camera

    Turn the INCOM-1 PGM-1/2 control knob and INCOM-2 PGM-1/2 control knob on the rear of the camera to adjust the volume. Caution: Be sure to adjust the volume to the appropriate level while listening to sound through the headset. HDK-790GX 1403 VER1 (U)

  • Page 78: Marker Display In The Viewfi Nder

    SIZE control knobs, there are the following FILTER EFFECT HEAD three ways to display. AUTO SLOW - Displays two cross cursors. - Displays two box cursors. CAMERA control panel - Displays one cross cursor and one box cursor. HDK-790GX 1403 VER1 (U)

  • Page 79: Setting The Digital Extender

    Flashing stops automatically about 3 seconds after the setting procedure is completed. Reference: You can restrict the setting of ON/OFF and magni cation of the digital extender from the MENU SELECT switch. See “5.2 Settings from the Menu [Menu Confi guration and content]” in this chapter. HDK-790GX 1403 VER1 (U)

  • Page 80: Settings From The Menu

    ▲ side while pressing the MENU SELECT switch. ＶＦ ＤＩＳＰＬＡＹ ＶＦ ＤＴＬ The main menu screen will be displayed on the VF and ＶＦ ＭＯＤＥ ＦＯＣＵＳ ＡＳＳＩＳＴ monitor. Main Menu ＭＩＣ ＧＡＩＮ ＣＯＮＴＲＯＬ ＲＥＴＵＲＮ ＳＥＬＥＣＴ ＭＯＤＥ ＦＩＬＴＥＲ ＳＥＲＶＯ ＭＯＤＥ ＳＷ ＦＵＮＣＴＩＯＮ ＩＮＦＯＲＭＡＴＩＯＮ Shift to a menu (2/4). HDK-790GX 1403 VER1 (U)
  • Page 81 This section explains how to exit the main menu/submenu in the view nder or monitor. Press the CHARACTER switch toward the “MENU” side again. Or press it toward the “OFF” side. Exit the main menu screen/sub menu screen. HDK-790GX 1403 VER1 (U)

  • Page 82: Menu Confi Guration And Content

    The contents set in the ASSIST DATA SETTING menu are stored as ASSIST DATA. Select the numbers you wish to ― STORE DATA N0.1 to N0.4 store from No. 1 to No. 4 and write over the present data to store them. HDK-790GX 1403 VER1 (U)
  • Page 83 *1 : It is possible to determine when loading MENU DATA from the SD CARD whether to read the entire MENU or to read only items related to VF. The setting of an item having a checkmark is read. *2 : If the color VF is recognized automatically, the display switches to R/G/B. HDK-790GX 1403 VER1 (U)
  • Page 84 ― LENS ALL, SELECT NUMBER to load individual data from 1 to 8. Possible to select whether to load all menus from MENU ― MENU DATA ALL, VF DATA or only those menus related to VF. HDK-790GX 1403 VER1 (U)
  • Page 85 Attaching the lens model name, etc. will make it easier to know the correspondence between the lens number and lens. AUTO SEL name display ― ( (---------) Displays the lens name obtained from the serial lens. section HDK-790GX 1403 VER1 (U)
  • Page 86 V diminishes, making it possible to obtain an image with less noise. Can be turned on only when operating in 1080P29SF and ― LINE MIX ON, OFF 1080P25SF formats. Can reduce resolution in the vertical direction. HDK-790GX 1403 VER1 (U)
  • Page 87 MENU MODE If set to ON, possible to display engineer menu. ― ENGINEER MENU OFF, ON If the camera power is turned OFF, this menu setting returns to OFF. HDK-790GX 1403 VER1 (U)
  • Page 88 - Use an illumination meter to adjust the light so that light is evenly distributed over the whole chart. Dip switch S11-4 On allows creation of a lens fi le, Off prohibits creation of new lens fi les. HDK-790GX 1403 VER1 (U)
  • Page 89 Lens les memorize a difference in level between lenses. If the lighting or chart is changed, it cannot tell whether it is the lighting error, chart error, or lens error. HDK-790GX 1403 VER1 (U)
  • Page 90 “MANUAL” to “OFF”, and then press ＥＸＴＥＮＤＥＲ          ＯＦＦ the MENU SELECT switch to complete the lens ＡＵＴＯ ＳＥＬ          ＯＦＦ M④ ＦＩＬＥ ＳＥＴ          ＯＦＦ fi le creation. Then, go to the step 8. ＬＥＮＳ ＴＹＰＥ         ＊＊＊ Switch the cursor on "MANUAL" to "OFF"        ＬＥＮＳ ＮＯ．１ and confirm. HDK-790GX 1403 VER1 (U)
  • Page 91 Select the target lens （ＡＢ４０Ｘ１０ ＡＢＣＤ           ） number and confirm. The NO.5 lens set in “AUTO SEL” is selected here as ＥＸＴＥＮＤＥＲ ＯＦＦ ＡＵＴＯ ＳＥＬ ＯＦＦ an example and the AUTO SEL NAME display part ＦＩＬＥ ＳＥＴ ＯＦＦ displays “AB40X10 ABCD”. HDK-790GX 1403 VER1 (U)
  • Page 92 MENU SELECT switch. E⑧ （ＡＢ４０Ｘ１０ ＡＢＣＤ           ） Position the cursor on The item changes to the edit mode and ( ) at both ends the part for displaying ash. the lens name to be edited and confirm. ＮＯＷ ＣＯＮＮＥＣＴＥＤ ＬＥＮＳ （ＡＢ４０Ｘ１０ ＡＢＣＤ           ） HDK-790GX 1403 VER1 (U)
  • Page 93 3. “AUTO SEL NAME EDIT” is a function to edit the model name read through “AUTO READ”. 4. This function is not available if the model name of the target serial lens has not been obtained through “AUTO READ”. HDK-790GX 1403 VER1 (U)

  • Page 94: Using The Memory Card

    ＳＷ ＦＵＮＣＴＩＯＮ of the VF menu screen. ＩＮＦＯＲＭＡＴＩＯＮ When removing the memory card from the card slot, gently press the memory card until there is a clicking sound and then carefully remove the card. HDK-790GX 1403 VER1 (U)
  • Page 95 The images of the storage range for les are shown in the gure below. ＯＶＥＲＬＡＰＰＥＤ ＦＩＬＥ ＮＡＭＥ . ALL FILE ＯＶＥＲＷＲＩＴＥ   ＮＯ SNAPSHOT FILE Parameters for adjusting functions and ON/OFF state. SCENE FILE REFERENCE FILE (ABB/AWB) LENS FILE MENU FILE HDK-790GX 1403 VER1 (U)
  • Page 96 If changes as those listed below have been made in the le name stored to a PC, etc., it is not possible to display the le name normally. -If a le name with more than 8 characters has been set. -Using le names (kanji, kana, etc.) composed of characters other than half-size letters of the alphabet. HDK-790GX 1403 VER1 (U)
  • Page 97 Not a camera data fi le. FILE OF DIFFERENT CAMERA. Different type of fi le. RELEVANT DATA IS NOT FOUND. Relevant data cannot be found. WIRTE ERROR Write error. READ ERROR Read error. ERROR Other error. HDK-790GX 1403 VER1 (U)
  • Page 98 5.3 Using the Memory Card HDK-790GX 1403 VER1 (U)

  • Page 99: Chapter 6. Trouble Shooting And Maintenance

    TROUBLE SHOOTING TROUBLE SHOOTING and MAINTENANCE and MAINTENANCE...
  • Page 100 HDK-790GX 1403 VER1 (U)

  • Page 101: Alarm Lamp On The Ocp Or Mcp Flashes On And Off

    HEAD CABLE CLS OPEN ±1 ±2 OPEN SHORT ALARM CALL PREVIEW ALARM indicator For the list of self diagnostic information of CCU-970, refer to the relevant operation manual. Perform the appropriate action referring to the list. HDK-790GX 1403 VER1 (U)

  • Page 102: Temp!!" Or "Fan!!" Appears On The Vf Screen

    To prevent temperature increase inside the camera, cooling fans are provided at the top of the camera and ber adaptor. See “5. CAMERA SETTINGS and ADJUSTMENT [Menu Confi guration and content]” for how to check which fan stops. HDK-790GX 1403 VER1 (U)

  • Page 103: Initializing The Settings Of This Product

    Press the MENU SELECT switch when the cursor ＰＲＥＳＥＴ ＦＩＬＥ ＬＯＡＤ automatically moves to “LOAD START”. ＦＩＬＥ ＳＥＬＥＣＴ    ＥＮＧＩＮＥＥＲ ④ The cursor moves to the mode selection column and its ＬＯＡＤ ＳＴＡＲＴ     ＲＥＡＤＹ Position the cursor on display changes from “READY” to “START”. "LOAD START" and confirm. HDK-790GX 1403 VER1 (U)
  • Page 104 "COMPLETED" is restarts and the initialization is completed with the le displayed at the selected in “FILE SELECT”. bottom of the screen. ＰＲＥＳＥＴ ＦＩＬＥ ＬＯＡＤ ＦＩＬＥ ＳＥＬＥＣＴ    ＥＮＧＩＮＥＥＲ ＬＯＡＤ ＳＴＡＲＴ     ＳＴＡＲＴ ⑥     ＣＡＭＥＲＡ ＲＥＳＴＡＲＴ "CAMERA RESTART" is displayed at the bottom of the screen. HDK-790GX 1403 VER1 (U)

  • Page 105: Cleaning Camera Connectors

    Ferrule Plug (male) Alignment sleeve Receptacle (female) Receptacle (female) Ferrule Ferrule Ferrule Receptacle (male) Receptacle (male) Ferrule Male and Female Camera Connectors CAMERA front CCU rear Receptacle (male) 3G/SDI OUT Receptacle (female) Plug (male) Plug (female) HDK-790GX 1403 VER1 (U)
  • Page 106 Tighten the screw with a fl at-blade screwdriver or a coin. Camera male connectors have no “top” regardless of whether they are receptacles or plugs. For male connectors, therefore, steps 1, 2, and 6 above are not required. HDK-790GX 1403 VER1 (U)
  • Page 107 The extractor is removed from the alignment sleeve. Camera male connectors have neither “top” nor “alignment sleeve” regardless of whether they are receptacles or plugs. For male connectors, therefore, steps 1 to 3 and 8 above are not required. HDK-790GX 1403 VER1 (U)

  • Page 108: Reset The Breaker

    In this case, reset the breaker as follows: Check that the camera’s POWER switch is OFF. Push down the breaker on the right side of the camera. RET SW SCRIPT REMOTE HD TRUNK MONI-SDI QTV-2 Q-TV/GL HDK-790GX 1403 VER1 (U)

  • Page 109: Replacing The Fuse

    Press the fuse, and remove by turning it counter-clockwise. UTILITY AC IN 100/117V 100/117V 100/117V:4A 220/240V:2A 100/117V:2A 220/240V:1A TRUNK OUT Insert a new fuse and turn it clockwise using a fl at-blade screwdriver until it seats fi rmly. HDK-790GX 1403 VER1 (U)
  • Page 110 6.6 Replace the fuse HDK-790GX 1403 VER1 (U)

  • Page 111: Chapter 7. Specifications

    SPECIFICATIONS SPECIFICATIONS...
  • Page 112 HDK-790GX 1403 VER1 (U)

  • Page 113: Hdk-790Gx Specifi Cations

    OFF, 0.35, 0.4, 0.45 1/100, 1/120, 1/250, 1/500,1/1000, 1/2000 Electronic shutter mode Electronic shutter 1/15, 1/10, 1/8, 1/6, 1/5, 1/4, 1/3, 1/2, 1s CCD accumulation mode 75 VA or less (HDK-790GX only) 180 VA or less (HDK-790GX + CCU-970) HDK-790GX 1403 VER1 (U)
  • Page 114 7.1 HDK-790GX Specifi cations - - - Output signals Item Rating Remarks Y,Pb,Pr 4:2:2 digital serial (optical connector) Main line video signal BTA S-004B compliant Y,Pb,Pr 4:2:2 digital serial (75 BNC) 75 BNC 1 channels Monitor video signal Select with MENU...

  • Page 115: External Dimensions Diagram

    7.2 External Dimensions Diagram 7.2 External Dimensions Diagram - - - Right Side View 453±3 (12) HDK-790GX 1403 VER1 (U)
  • Page 116 7.2 External Dimensions Diagram - - - Left Side View 453±3 (12) HDK-790GX 1403 VER1 (U)
  • Page 117 7.2 External Dimensions Diagram - - - Front and Rear View REAR COVER (170) 205±1 HDK-790GX 1403 VER1 (U)

  • Page 118: External Connections

    Iris /remote switch control signal output ○       ―――――――――― N . C ― ○       ―――――――――― N . C ― ○ LENS TALLY Lens Tally ON/OFF signal ○       ―――――――――― N . C ― ○       ―――――――――― N . C ― HDK-790GX 1403 VER1 (U)
  • Page 119 INC - 2 MIC ON ON/OFF signal for INC-2 microphone audio ○ FOCUS CONT Control signal output for lens focus ○ FOCUS NEAR Control signal input for lens focus near side : Camera←Lens OUT : Camera→Lens HDK-790GX 1403 VER1 (U)
  • Page 120 Ground for B VF VIDEO output signal ○ R VF VIDEO R VF VIDEO output signal ○ R VF VIDEO RET Ground for R VF VIDEO output signal ○ +12V RET Ground for DC+12V power supply HDK-790GX 1403 VER1 (U)
  • Page 121 Optical contact CCU -> Camera ○ CONTROL (H) Control signal (H) CCU -> Camera ○ CONTROL (C) Control signal (C) Camera -> CCU ○ POWER (H) Power (H) supplied from CCU ○ POWER (C) Power (C) supplied from CCU HDK-790GX 1403 VER1 (U)
  • Page 122 Intercom microphone ○ TALK (H) Intercom microphone input (H) ○ COMM COMM GND terminal ○ LISTEN R (H) Intercom receiver R output (H) Receiver R ○ LISTEN R (C) Shield for intercom receiver R output (H) HDK-790GX 1403 VER1 (U)
  • Page 123 Function External Interface ○ TALK (C) Shield for intercom microphone input (H) ○ Intercom microphone TALK (H) Intercom microphone input ○ LISTEN (C) Shield for LISTEN output (H) output ○ Receiver LISTEN (H) LISTEN output (H) HDK-790GX 1403 VER1 (U)
  • Page 124 Connects to R (ring) of the plug ○ LISTEN L (C) Termination when the plug is removed ○ TALK (C) Termination when the plug is removed ○ TALK (H) Intercom receiver input (H) Intercom microphone Connects to T (tip) of the plug HDK-790GX 1403 VER1 (U)
  • Page 125 CONTROL signal (H) for ENG MIC - ON / OFF ○ COMMON GND for signal input ○ EXT - 2 CONT LENS EXTENDER2 select signal input ○ EXT - 1 CONT LENS EXTENDER1 select signal input HDK-790GX 1403 VER1 (U)
  • Page 126 + 12 V (REM) DC+12V power supply to remote controller ○ + 12 V RET (REM) Ground for DC+12V power supply ○ REM LISTEN Intercom input from remote controller ○ REM TALK Intercom output to remote controller HDK-790GX 1403 VER1 (U)
  • Page 127 ○ R TALLY ON/OFF signal for R Tally ○ G TALLY ON/OFF signal for G Tally ○ RET -1 ON/OFF signal for RET-1 ○ RET -2 ON/OFF signal for RET-2 ○      ―――――――――― ― ○      ―――――――――― ― HDK-790GX 1403 VER1 (U)
  • Page 128 Ground for DC + 12 V power supply for lamp Caution: The above voltage is applicable only for SCRIP lamp. Do not use for any other purposes. Considering the voltage applied to LAMP, use R (resistance) as necessary. HDK-790GX 1403 VER1 (U)
  • Page 129 : XLR-3-12C (3-pin male plug) or equivalent Insertion Side Pin No. Name Function External Interface ○ SHIELD Ground for PGM audio signal output ○ PGM (H) OUT PGM auto signal output (H) ○ PGM (C) OUT PGM auto signal output (C) HDK-790GX 1403 VER1 (U)

  • Page 130: Scene File

    7.4 Scene File 7.4 Scene File - - - Save condition of a HDK-790GX scene file Item Save Data SELF DTL CONT HEAD GAIN -6dB ∼ +18dB CAMERA CAMERA GAMMA OFF/0.35/0.40/0.45 CAMERA CAMERA NORMAL 、 CINE1 ∼ 2 、 CUSTOM1 ∼...

  • Page 131: Changing Information

    This chapter contains the revision information of user-speci c speci cation or design change requested by users or any changes done by Ikegami. Read by comparing this information with the main part of the operation manual. HDK-790GX 1403 VER1 (U)
  • Page 132 HDK-790GX 1403 VER1 (U)
  • Page 133 Ikegami Tsushinki Co., Ltd. - All rights reserved. Reproduction or duplication, without permission of Ikegami Tsushinki Co., Ltd. of editorial or pictorial content in whole or in part, in any manner, is prohibited. - Speci cations and design are subject to change without prior notice.
  • Page 136 Ikegami Tsushinki Co., Ltd. 5-6-16, Ikegami, Ohta-ku, Tokyo, 146-8567, Japan Phone : +81-(0)3-5700-4114 Fax : +81-(0)3-5748-2200 E-Mail : info_e@ikegami.co.jp URL : http://www.ikegami.co.jp/en/ Ikegami Electronics (U.S.A.),Inc. 37 Brook Avenue, Maywood, New Jersey 07607, U.S.A. Phone : +1-201-368-9171 Fax : +1-201-569-1626 E-Mail : engineering@ikegami.com, service@ikegami.com URL : http://www.ikegami.com...

Table of Contents
